This series of products is suitable for private villas, residential areas, commercial office buildings, urban complexes and other parking lots or urban public charging stations where slow charging can be performed for a long time. It is also ideal for new energy vehicle road rescue and other occasions requiring temporary or mobile charging solutions.
| Technical Specifications | |
|---|---|
| Model NO. | FH-EA-7KW |
| Power Output | 7kW |
| Input Voltage | 220VAC ± 15% / 230VAC (Single Phase) |
| Output Current | 32A / 16A Options |
| Input Frequency | 50±1Hz |
| Charging Interface | One Pile with One Charge |
| Protection Rating | IP54 (Ingress Protection) |
| Installation | Wall Mounted / Landing |
| Cable Length | Standard 5m (Customizable up to 10m) |
| Authentication | 4G, Ethernet, WiFi, Bluetooth, OCPP |
| Startup Method | Local / Card / Plug & Charge / App |
| Safety Standards | IEC 62196, IEC61851, GB/T20234 |
| Dimensions | 250*180*400(mm) |

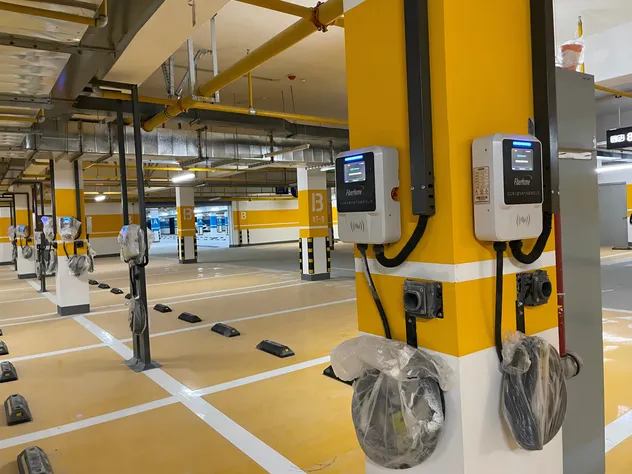

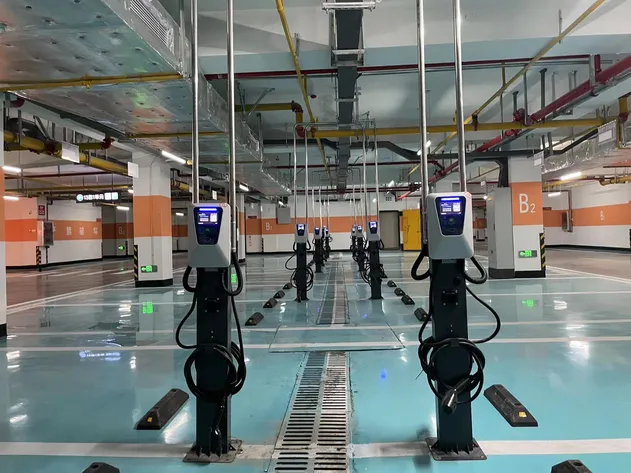

Underground parking deployment with 50+ stations, offering turnkey planning and installation.

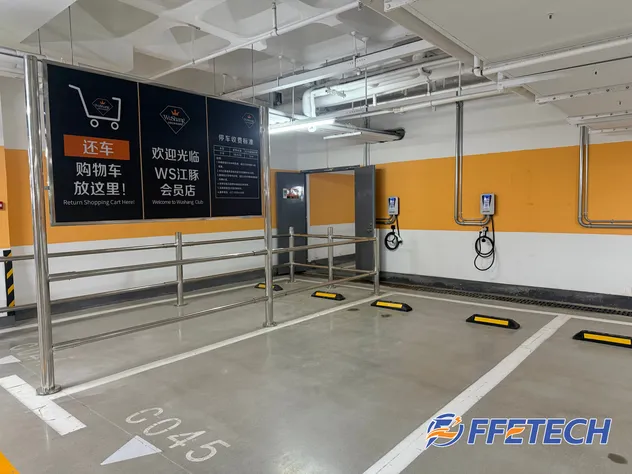

High-traffic commercial areas with operator-managed user fees for fast ROI.

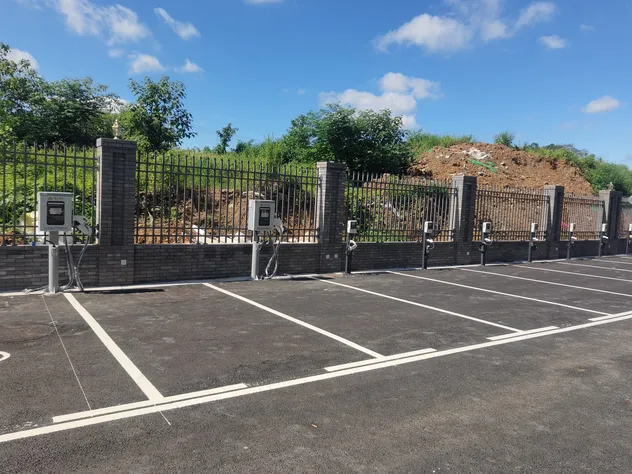

Outdoor parking at tourist spots, enhancing infrastructure for eco-conscious travelers.
