Walnut Charger
1 / 5
This series of products is suitable for private villas, residential areas, commercial office buildings, urban complexes and other parking lots or urban public charging stations where slow charging can be performed for a long time. In addition, it is also suitable for new energy vehicle 4S stores, workshop commissioning areas, new energy vehicle road rescue and other occasions where frequent changes of charging station sites or temporary charging are required.
| Technical Specifications - AC Charging Pile | |
|---|---|
| Model NO. | FH-EA-7KW |
| Category | 7kW AC |
| Input Voltage | 220VAC±15% / 230VAC Single Phase |
| Input Connection | P/N/PE (L+N+PE) |
| Output Power | 7kW |
| Output Current | 16A / 32A |
| Frequency Range | 50±1HZ |
| Ingress Protection | IP54 |
| Mounting Method | Wall Mounted / Landing |
| Cable Length | Rated 5m (Customizable up to 10m) |
| Connectivity | 4G, Ethernet, WiFi, Bluetooth / OCPP (optional) |
| Startup Method | Local / Card / Plug & Charge / App (optional) |
| Safety Standards | IEC 62196, IEC61851, GB/T20234, GB/T18487 |
| Certification | EMC Class B, TUV CE, CQM, ISO and UL |
| Dimensions | 250*180*400mm |

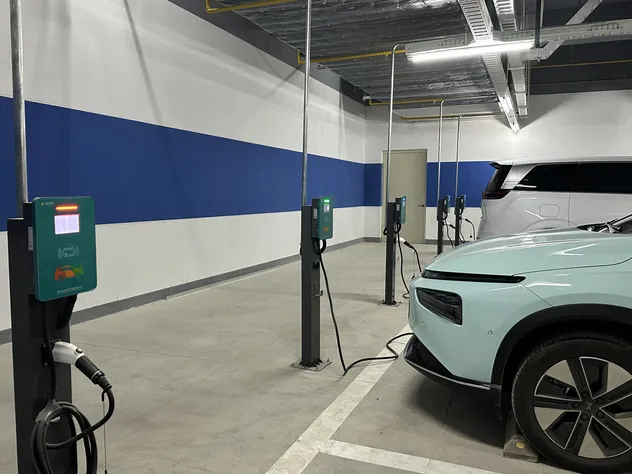

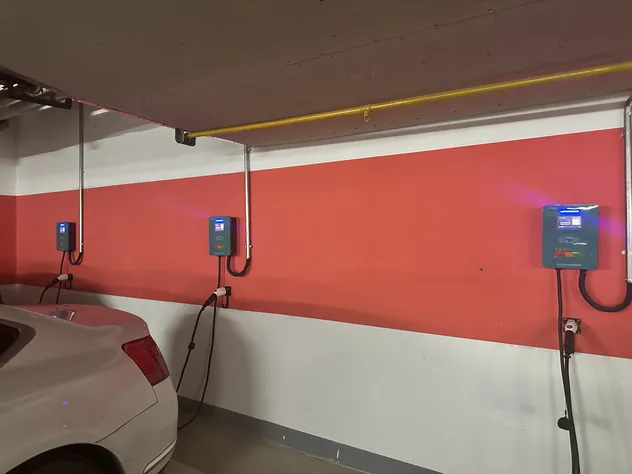

Deploying charging stations for residential areas and workplaces. Full charge in 6-8 hours, perfect for overnight use.

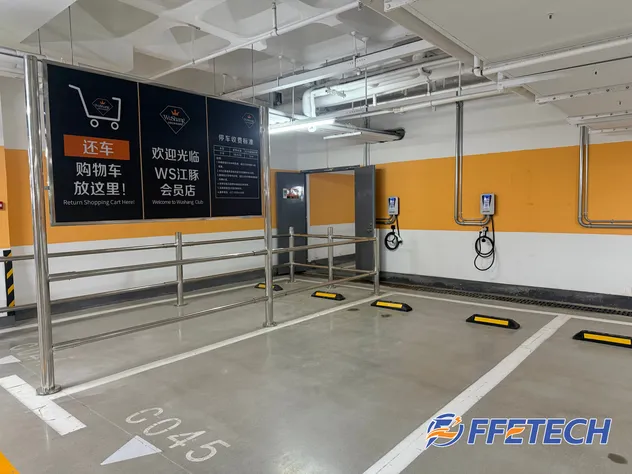

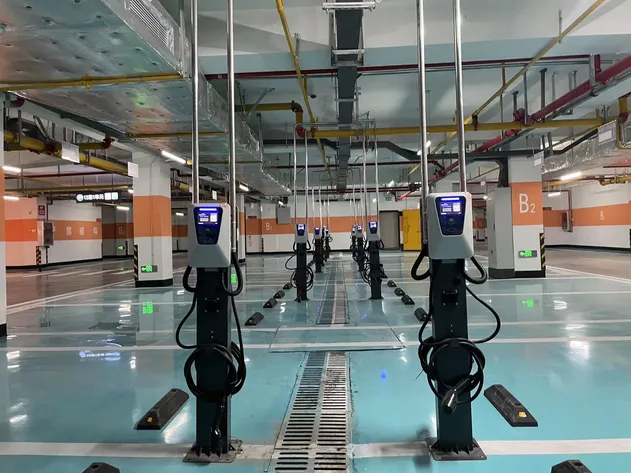

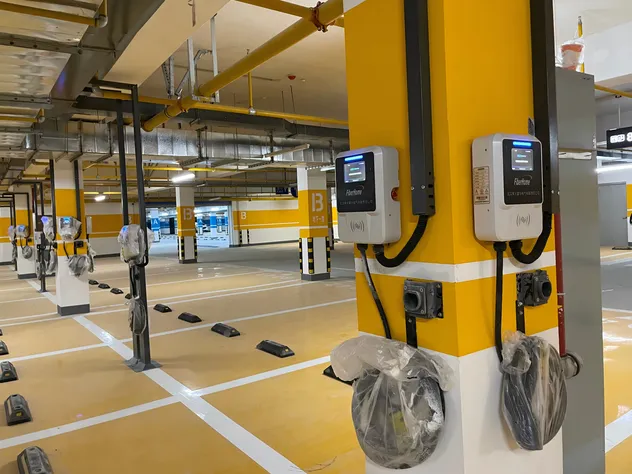

Operator-managed shopping mall installation with high-traffic usage. Full cost recovery within 3 years.

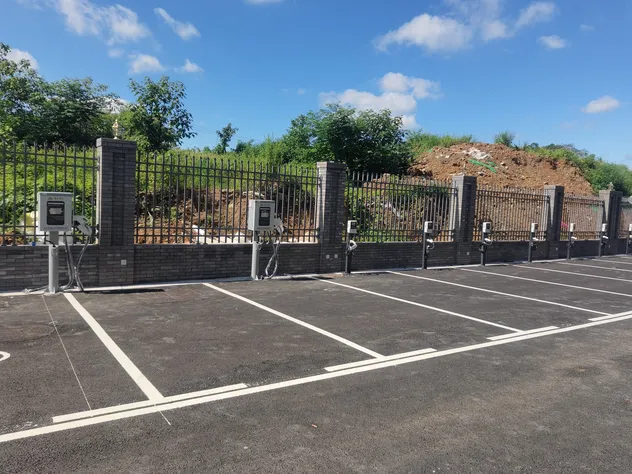

Located at scenic spots serving 40+ vehicles daily. Enhances tourist appeal with eco-friendly infrastructure.
