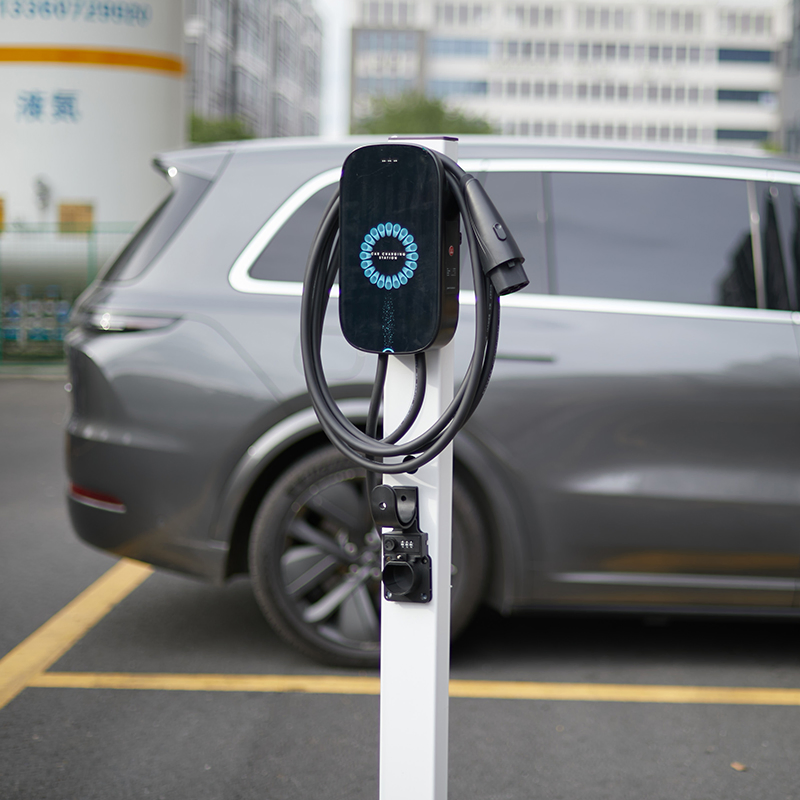

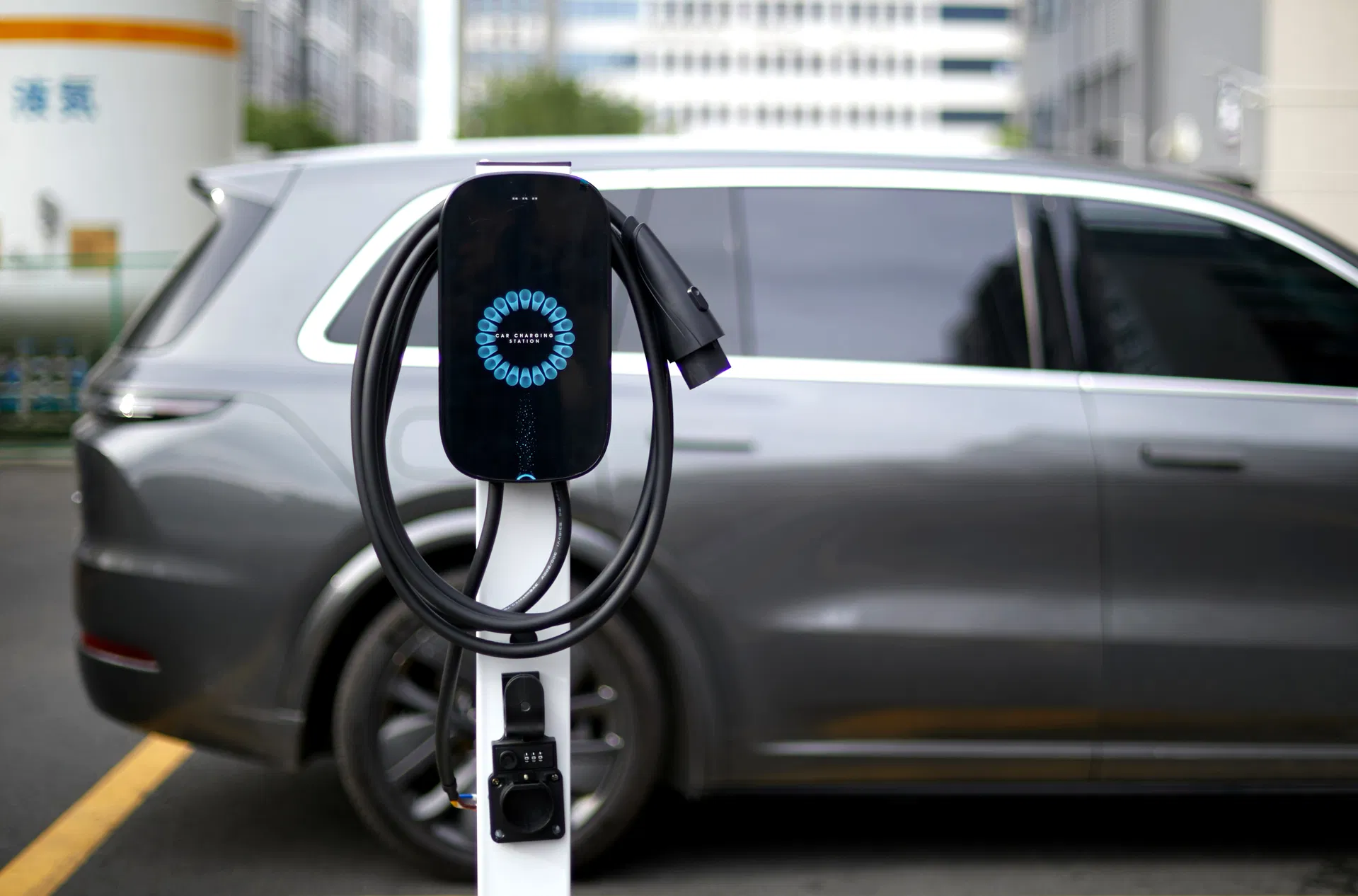

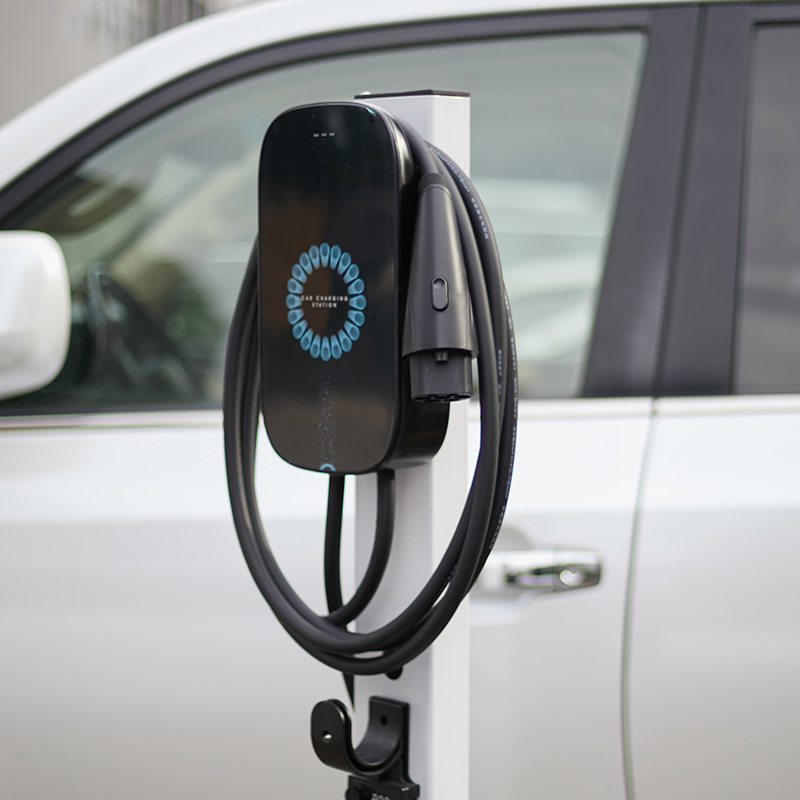

Walnut Charger
1 / 5
| Model NO. | ZD05 |
| Charging Interfaces | One Pile with One Charge |

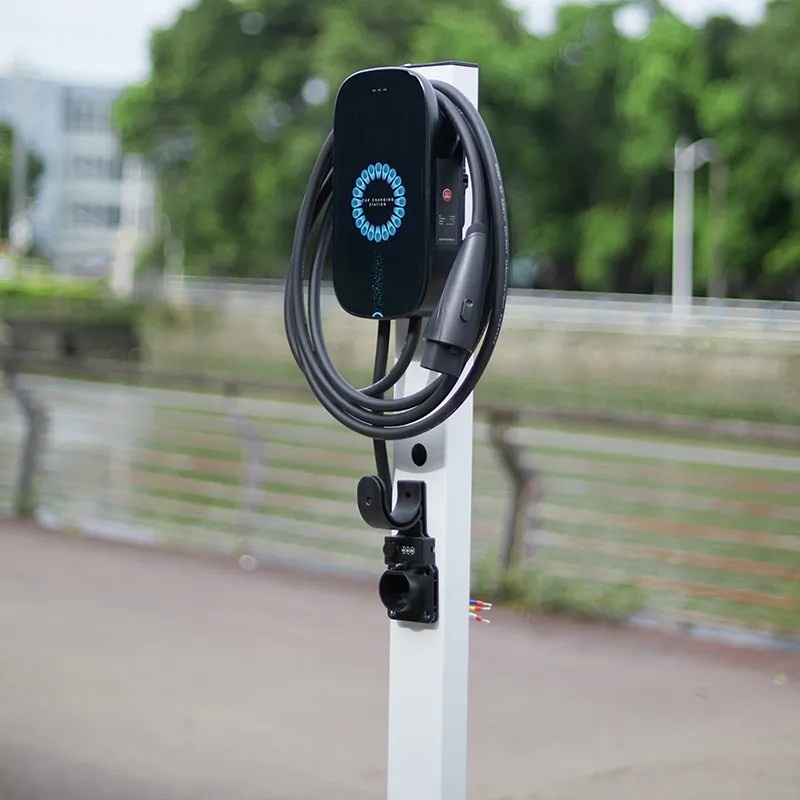

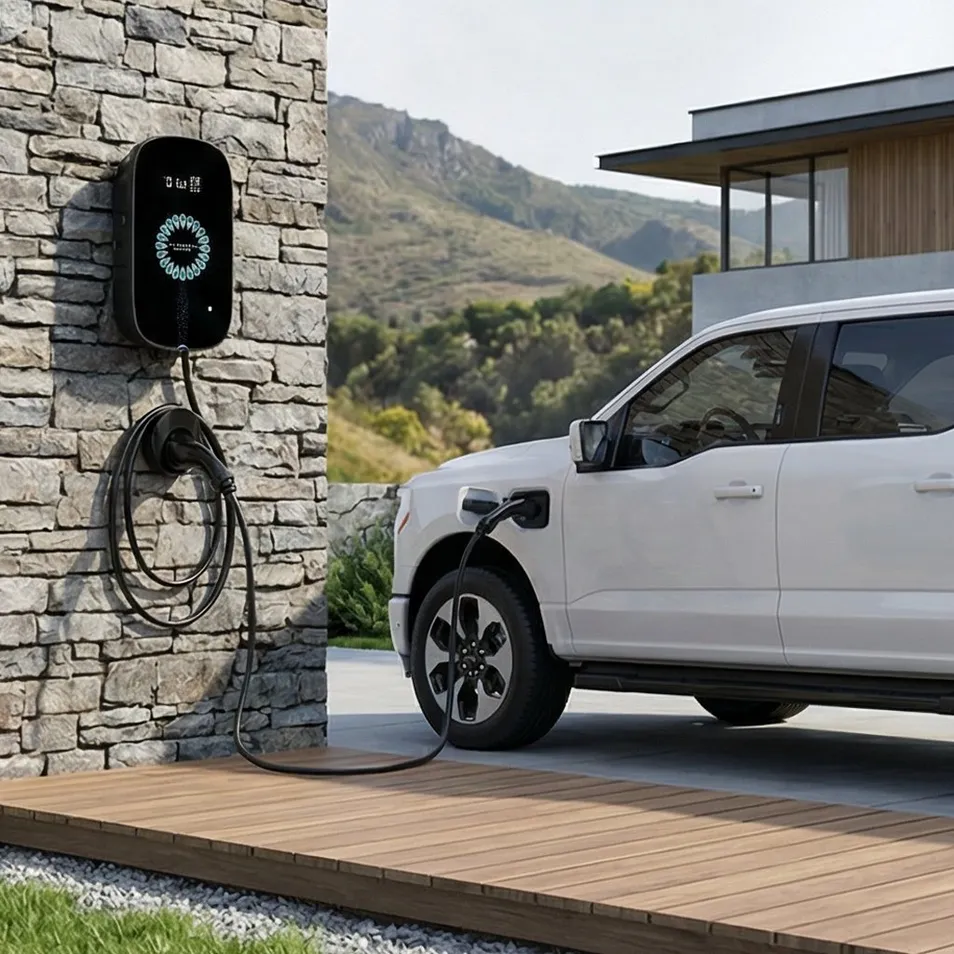

| Installation | Wall Mounted / Floor Standing |
| Charge Method | Quick Charge |
| Adjustable Current | 8-10-13-16-32A |
| Rated Voltage | 110V/230V±10% |
| IP Grade | IP65 |
| IK Level | IK10 |
| Cable Length | 5 Meters / OEM |
| RCD Type | Type A+6mA DC |
| Plug Type | Type 1 / Type 2 / GBT / NACS |

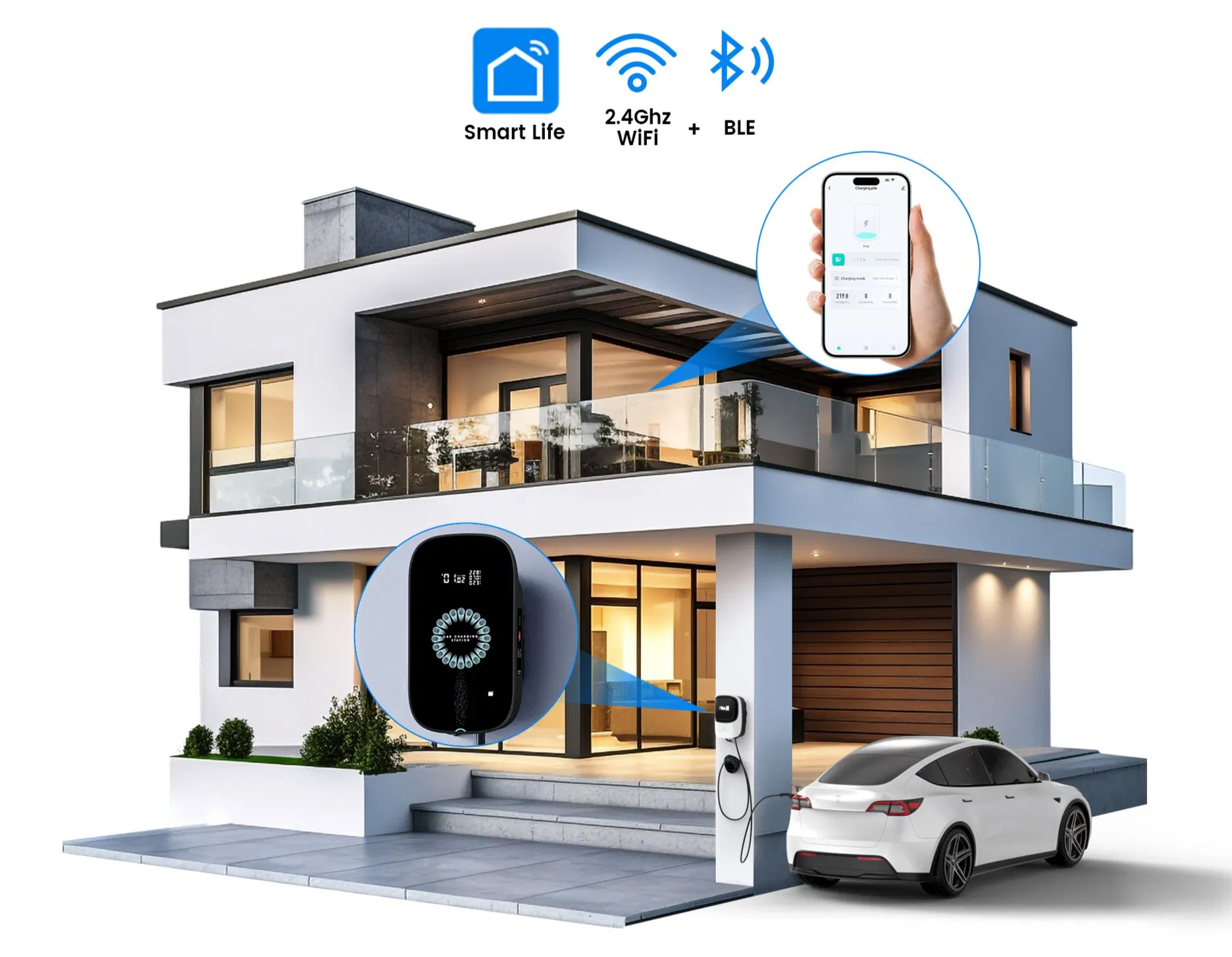

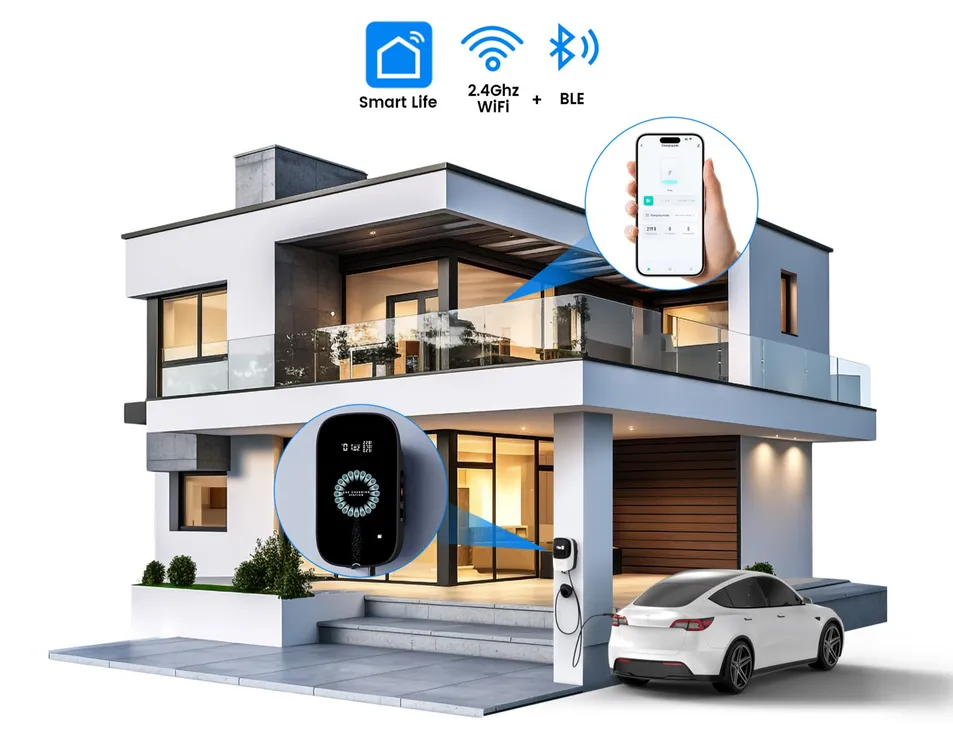

Remote control via WiFi/Bluetooth. Modify power, set timers, and view real-time charging status. Share access with family and friends.

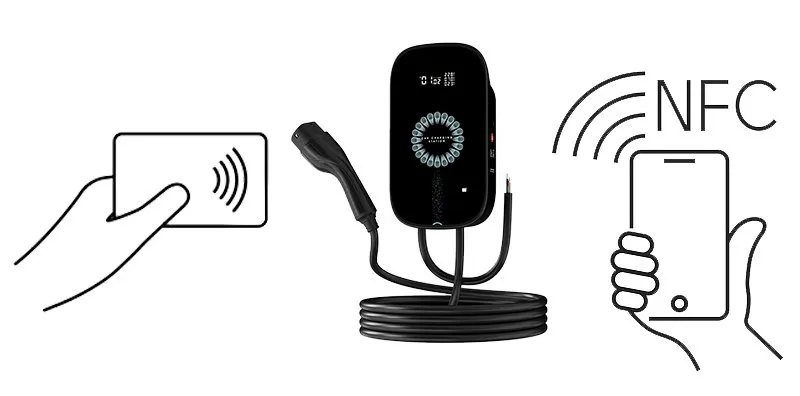

Swipe card to activate charging and anti-theft functions. Ideal for basements or low-signal areas. Phone NFC binding supported.
Ready for commercial use. Centralized management facilitates remote monitoring, diagnosis, and charging strategy control.
| Electrical Specification | |
| Rated Voltage | 100V/240V AC ± 10% |
| Rated Current (Type 2, GBT) | 32A Single-phase / 16A Three-phase / 32A Three-phase |
| Rated Power | 7kW / 11kW / 22kW |
| Rated Current (Type 1) | 32A / 40A / 48A |
| Input Frequency | 47~63Hz |
| Protection Rating | IP65 / IK10 |
| Working Temperature | -20ºC ~ +50ºC |
| Certification | CE, FCC, ISO9001, CCC, ROHS |

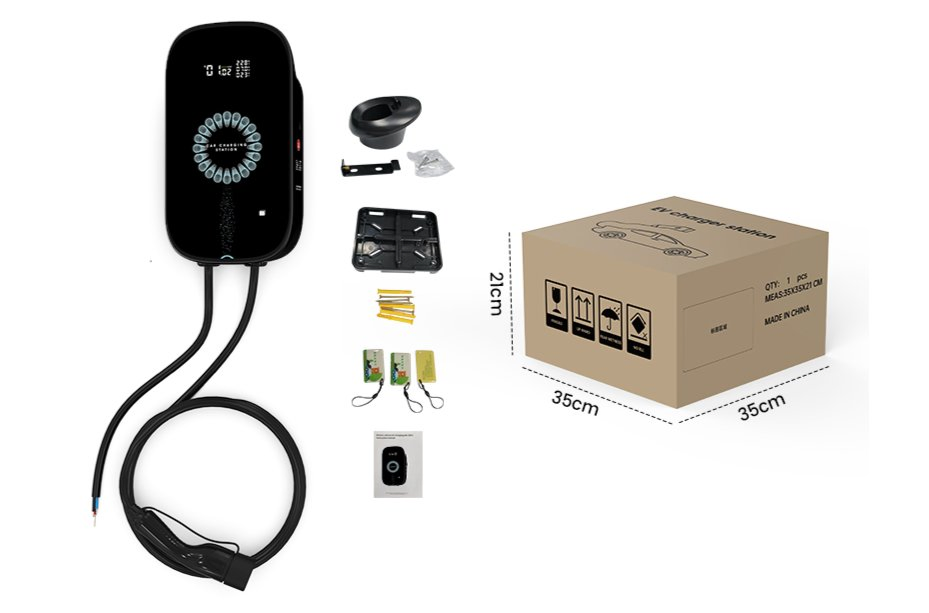

1× EV charger station, 1× Wall mount bracket, 1× Fixed backboard, 3× RFID cards, 1× Manual, 1× Airplane Box.
24-month warranty against manufacturing defects. Professional technical team support and logistics compensation for package damage.
