Walnut Charger
1 / 5

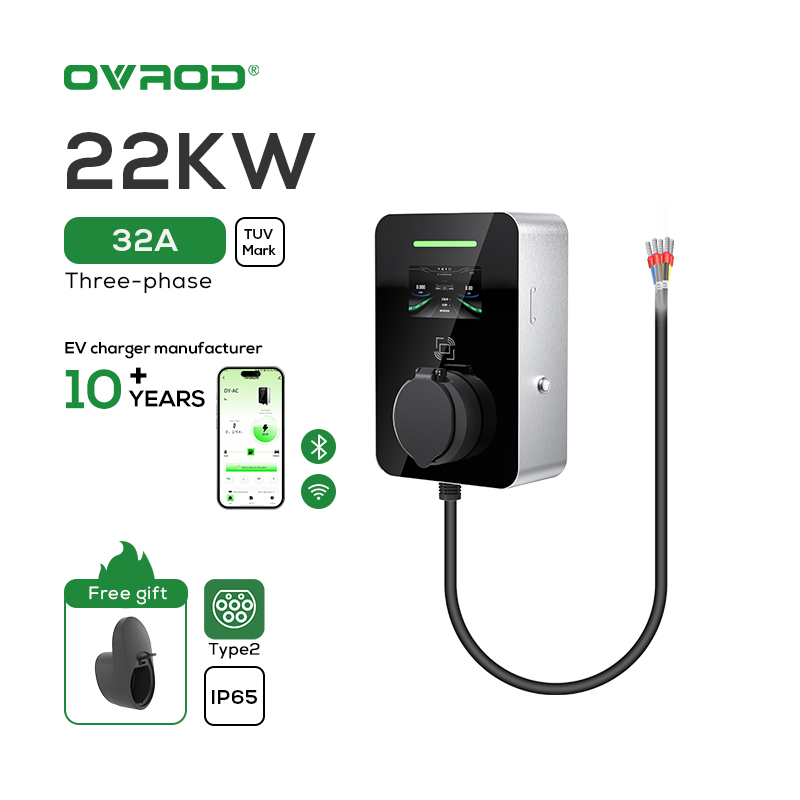

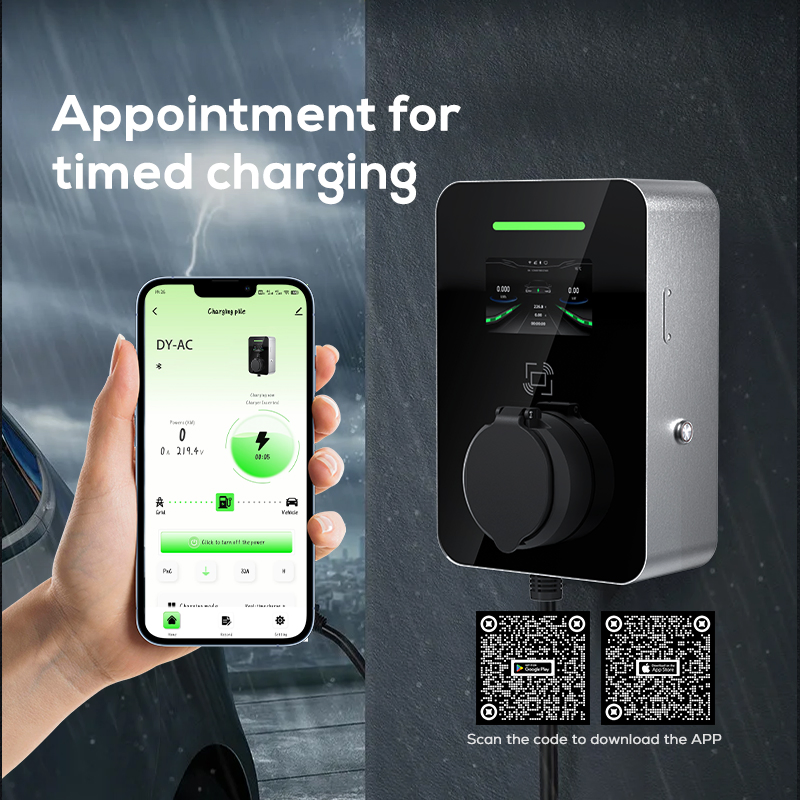

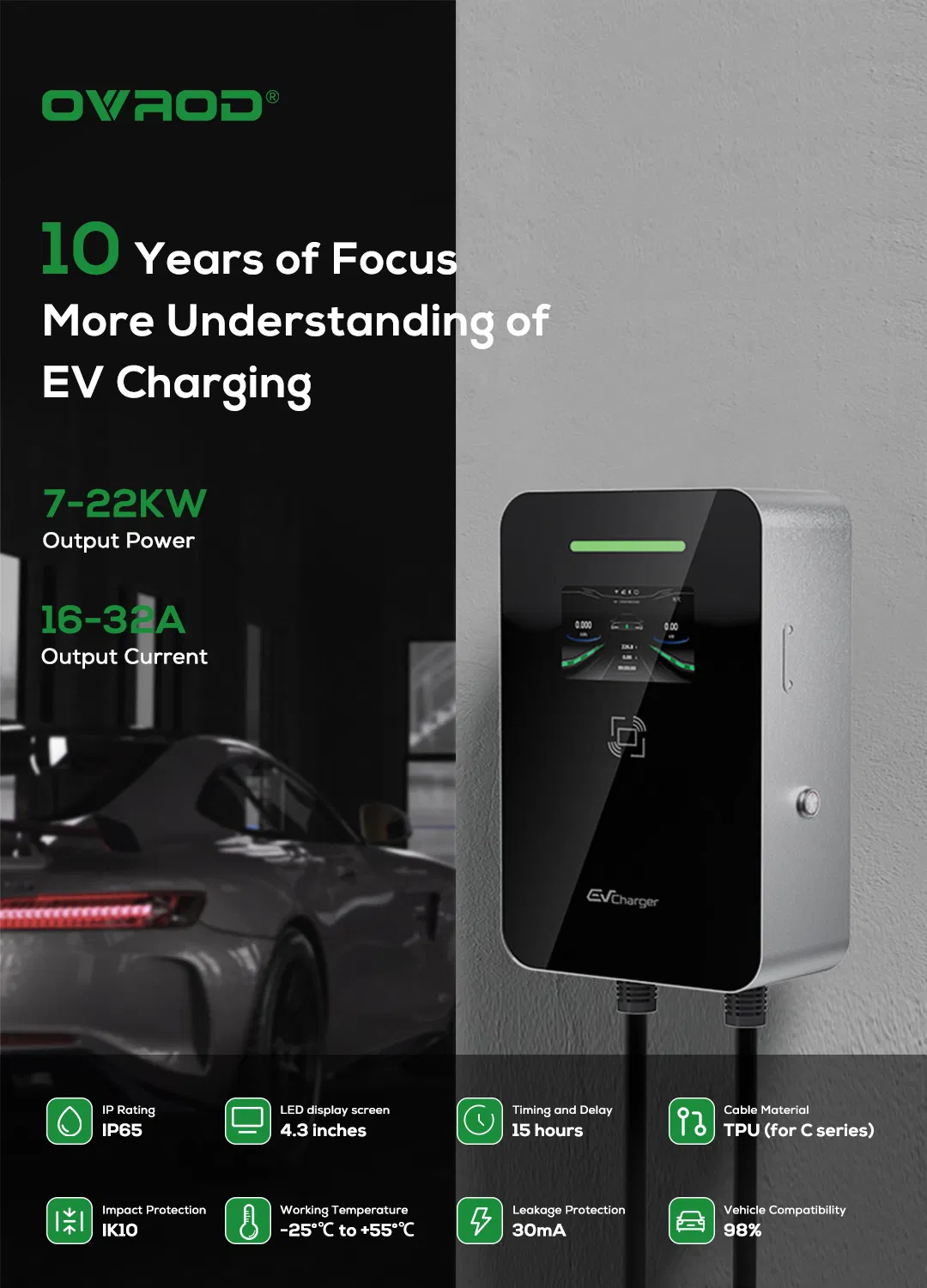

The XC series is a classic wallbox product designed for versatile global compatibility. It supports SAE J1772 (Type 1), IEC 62196-2 (Type 2), and GB/T standards, delivering a robust output of 22kW.

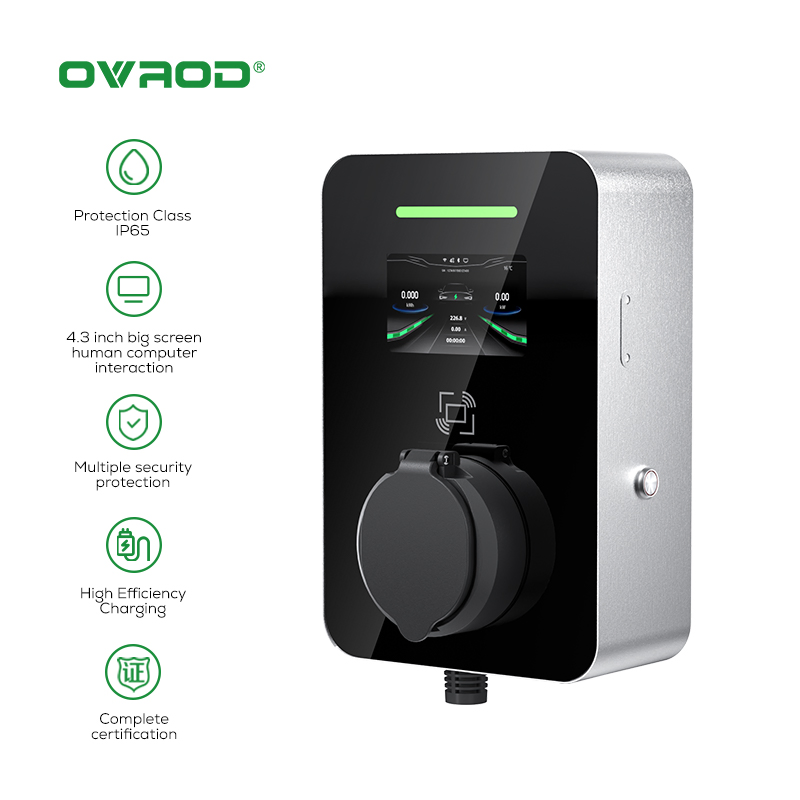

Equipped with a 2.8-inch LCD display and an intuitive button switch, the unit provides real-time charging data. Safety is paramount, featuring a built-in Type A 30mA AC + 6mA DC leakage protector. The durable housing is IP65 rated, making it perfectly suited for long-term outdoor exposure in harsh environments.
| Parameter | Type 1 (SAE J1772) | Type 2 (IEC 61851) | GB/T | NACS |
|---|---|---|---|---|
| Voltage | 120V/240Vac ±15% | 230V/400Vac ±15% | 220V/380Vac ±15% | 120V/240Vac ±15% |
| Power/Current | Up to 11kW / 48A | Up to 22kW / 32A | Up to 22kW / 32A | Up to 11kW / 48A |
| Protection | Ground, Leakage, Over-voltage, Over-current, Over-temperature, Lightning protection | |||
| Material | Enclosure: PC+ASA | Cable: TPU/UL/EV grade | |||
| Temperature | Operating: -25℃ to +50℃ | Storage: -40℃ to +80℃ | |||
| IP Rating | IP65 (Indoor/Outdoor use) | |||
| Optional Features | Bluetooth, Wi-Fi, 4G, Ethernet, RFID, 4.3" Screen, Custom Colors | |||
