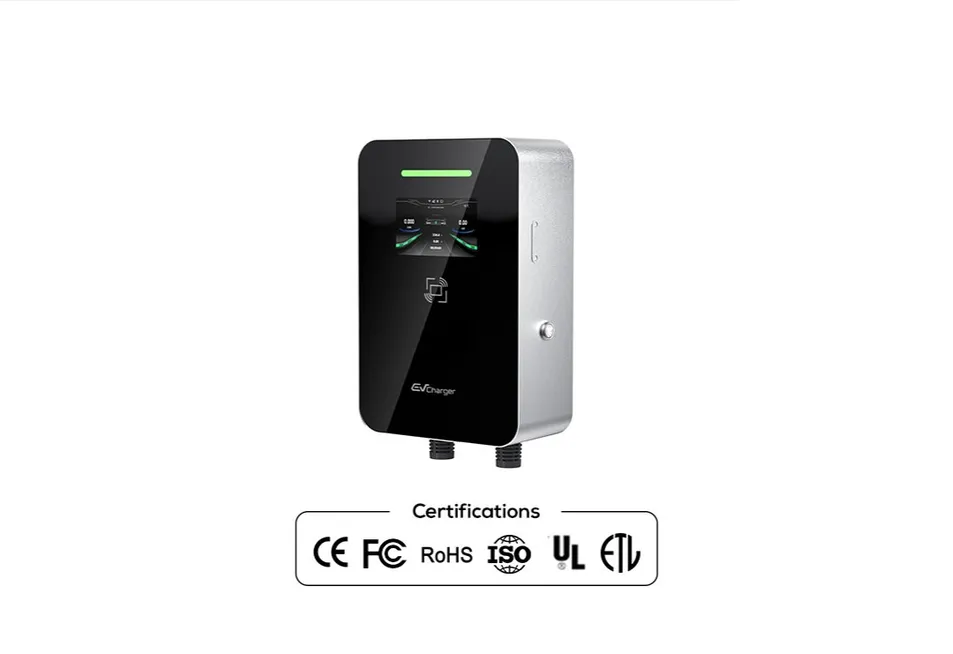

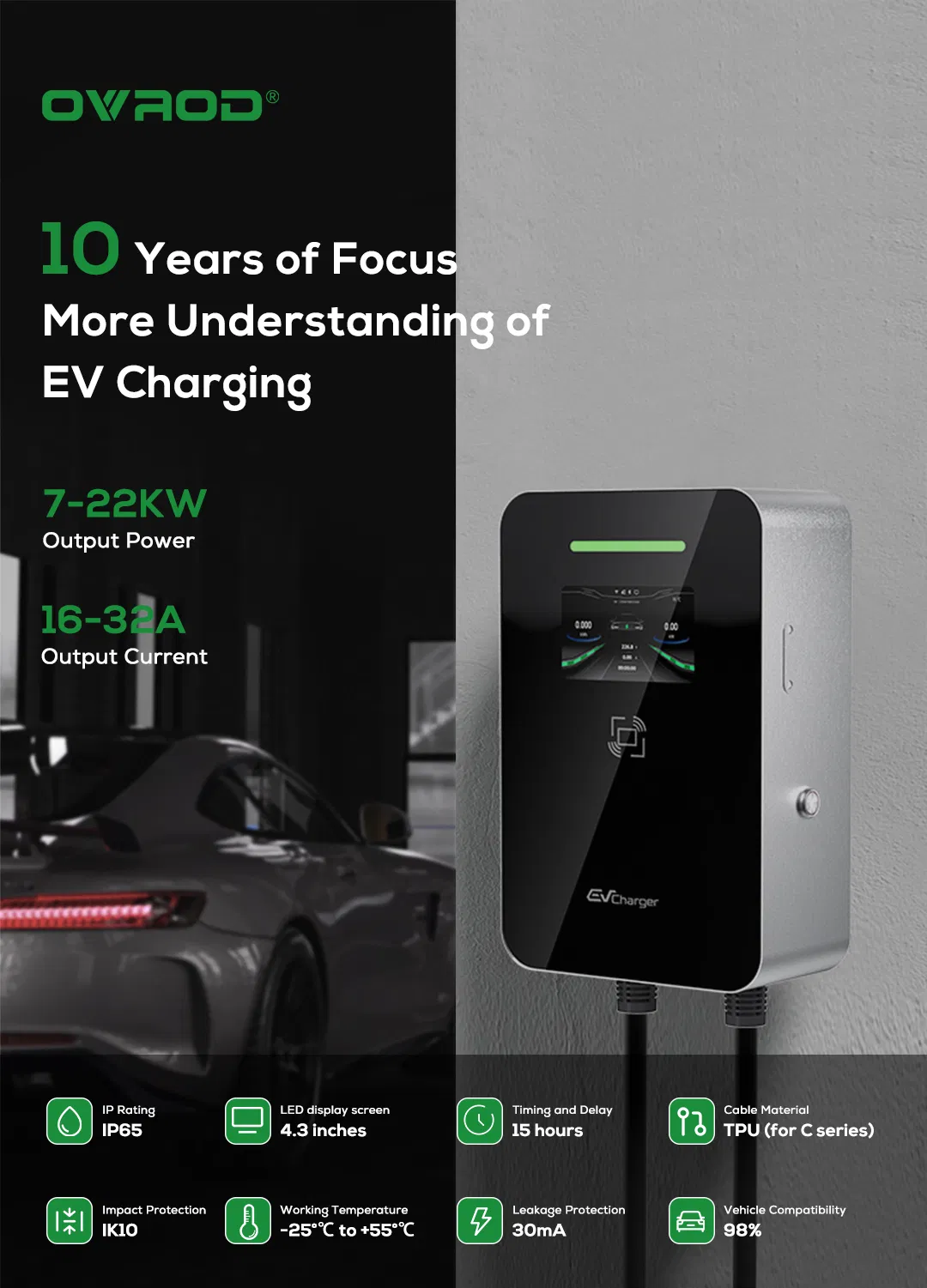

Smart Charging XC Series

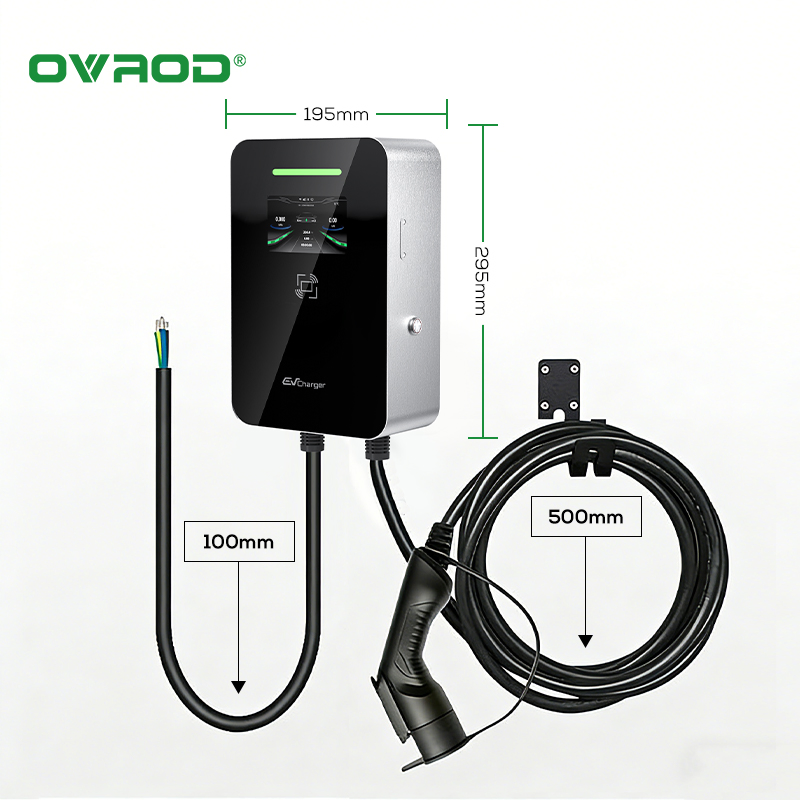

The XC is a classic wallbox product, designed to comply with North American standard SAE J1772 (Type 1), European standard IEC 62196-2 (Type 2), and Chinese standard GB/T, offering a maximum output power of 22kW.

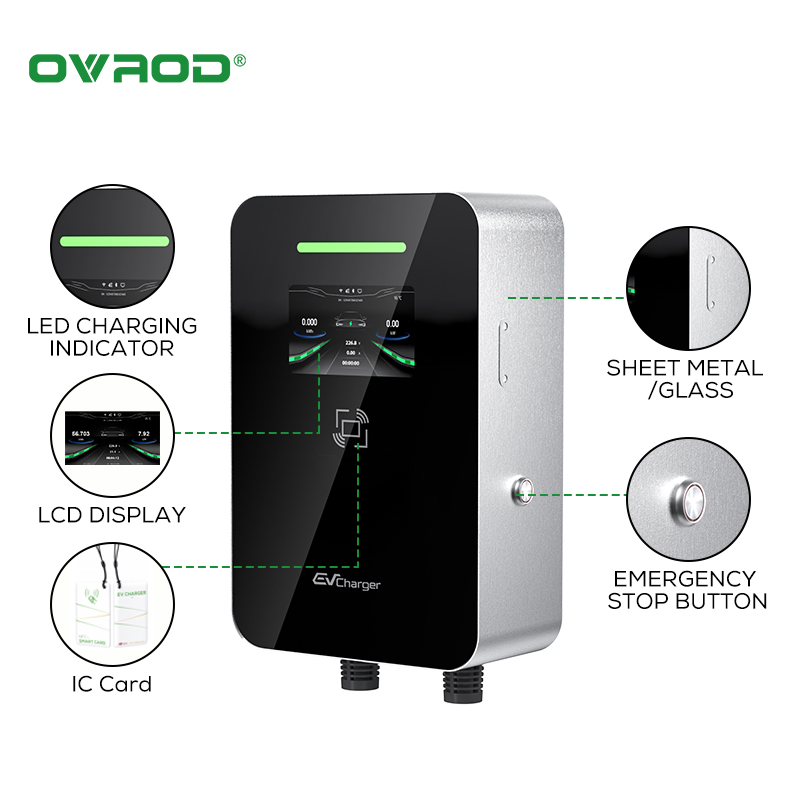

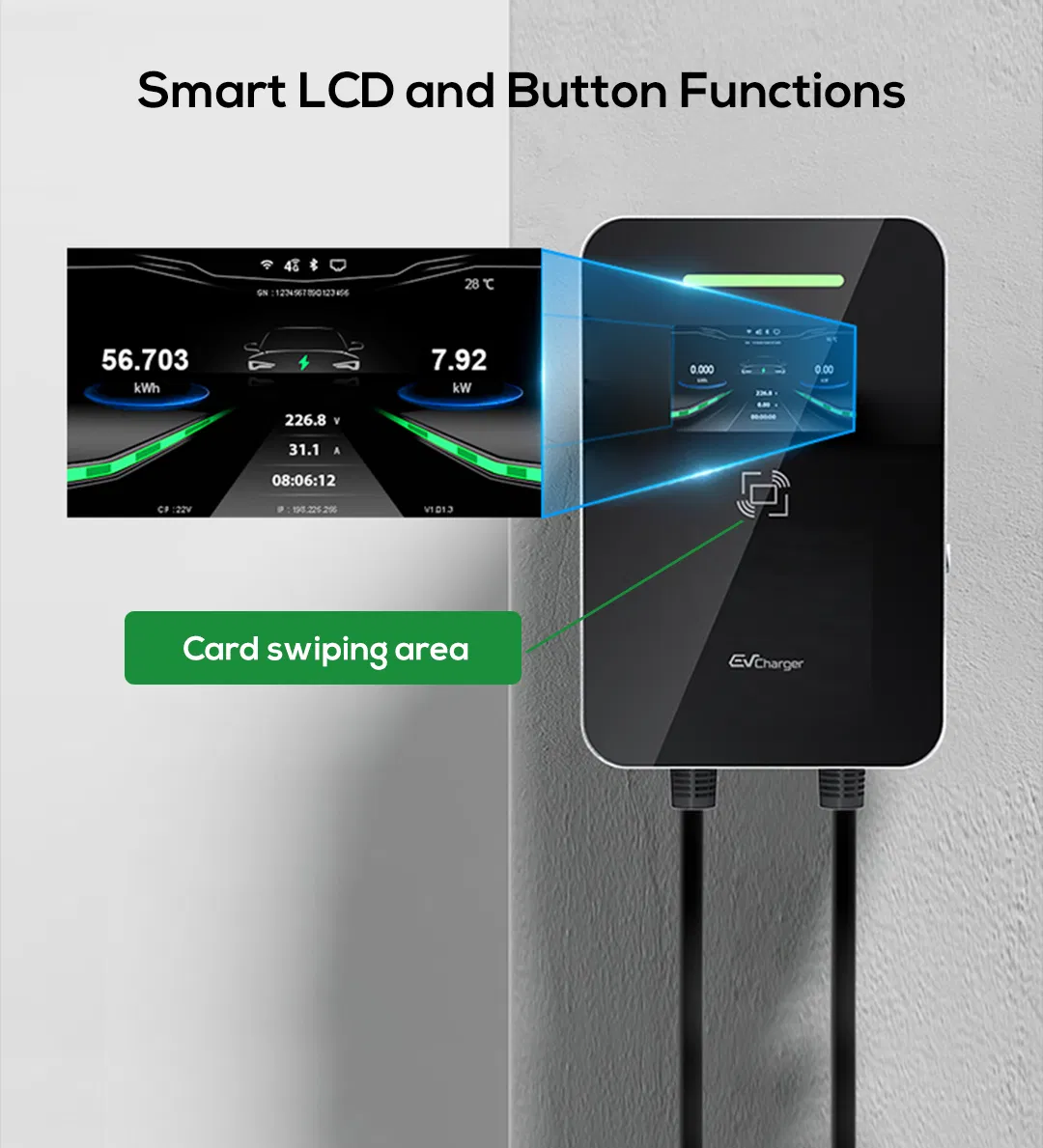

It is equipped with a 2.8-inch LCD charging display and a button switch, along with a built-in Type A 30mA AC+6mA DC leakage protector to ensure user safety.
The durable housing design is suitable for long-term use. Additionally, it has an IP65 protection rating, ensuring it is waterproof and dustproof for reliable outdoor use.
| Standard | Type 1 | Type 2 | GBT | NACS |
|---|---|---|---|---|
| Voltage | 120Vac±15% / 240Vac±15% | 230Vac±15% / 400Vac±15% | 220Vac±15% / 380Vac±15% | 120Vac±15% / 240Vac±15% |
| Power / Amperage | 3.5kW-11kW / 16A-48A | 3.5kW-22kW / 16A-32A | 3.5kW-22kW / 16A-32A | 3.5kW-11kW / 16A-48A |
| Charging Interface | SAE J1772 | IEC 61851 | GB/T 18487 | SAE J1772 |
| Protection | Ground, leakage, over-voltage, over-current, over-temperature, lightning protection, etc. | |||
| Material | Enclosure: PC+ASA | Operating Temp: -25℃~+50℃ | |||

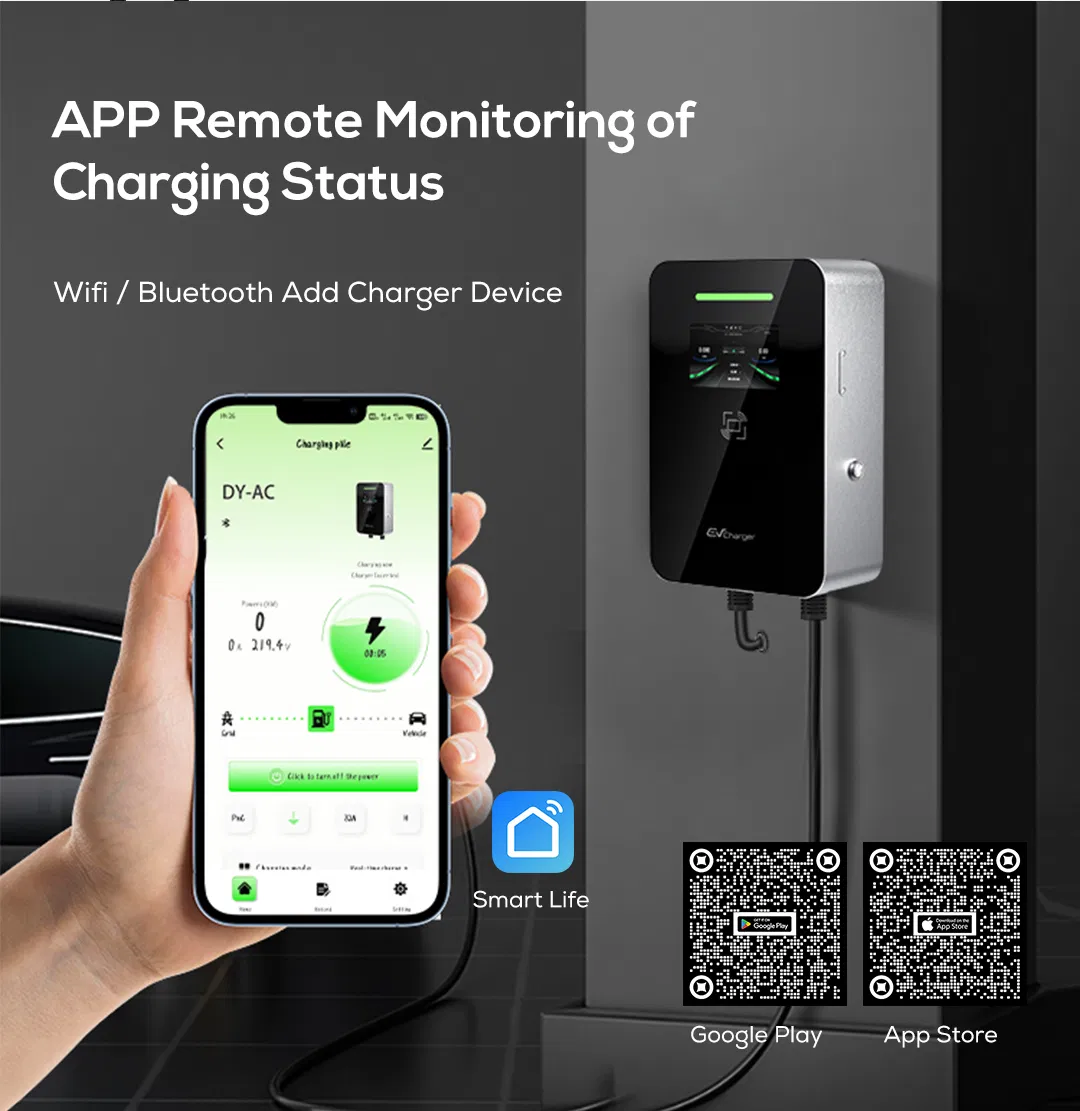

| Connectivity (Optional) | Bluetooth / Wi-Fi, 4G, Ethernet, RFID, OCPP 1.6J/2.0 | |||
