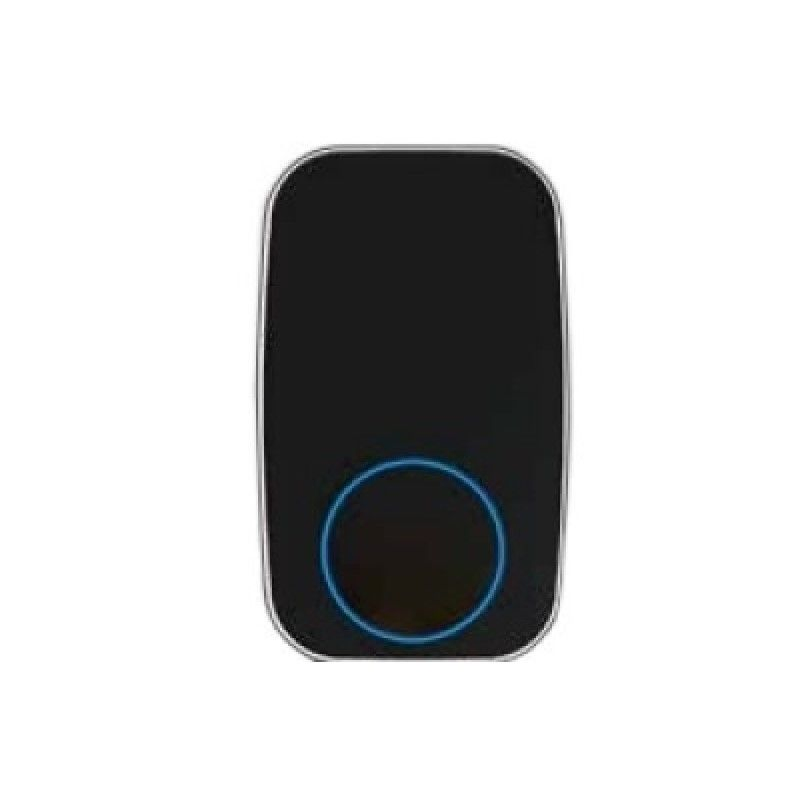

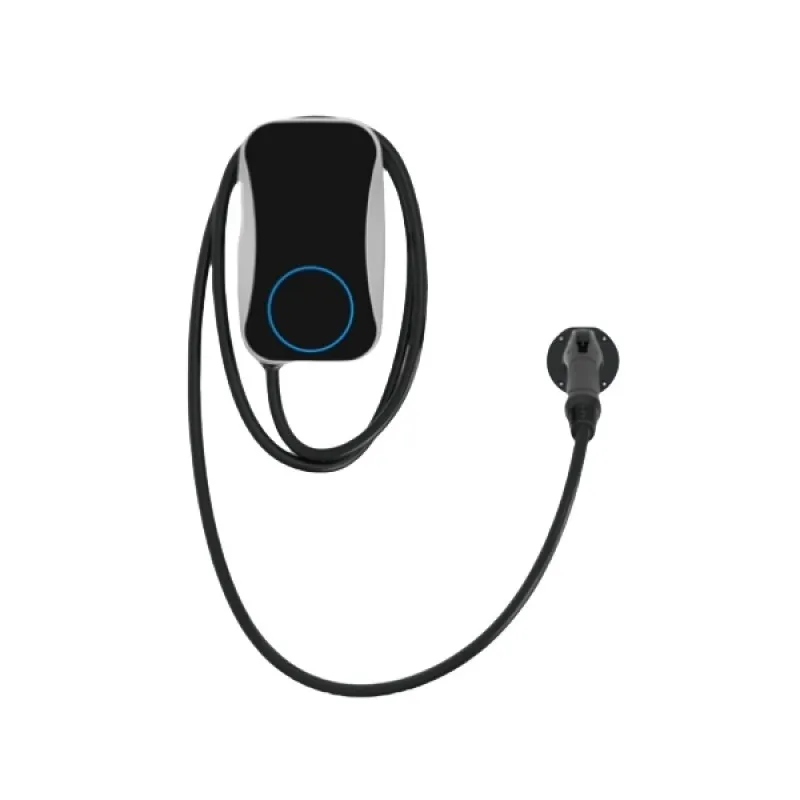

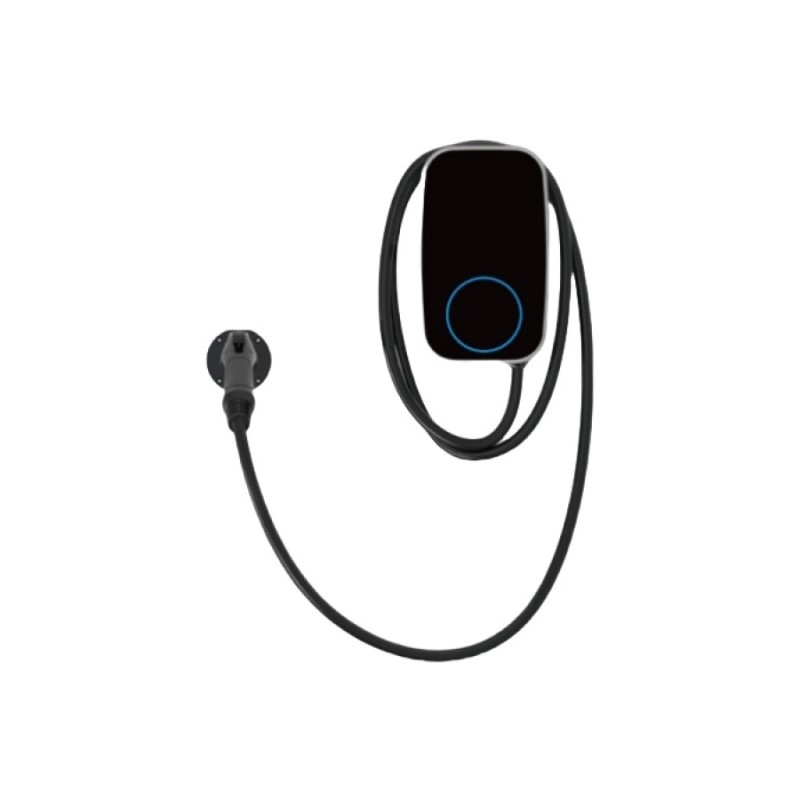

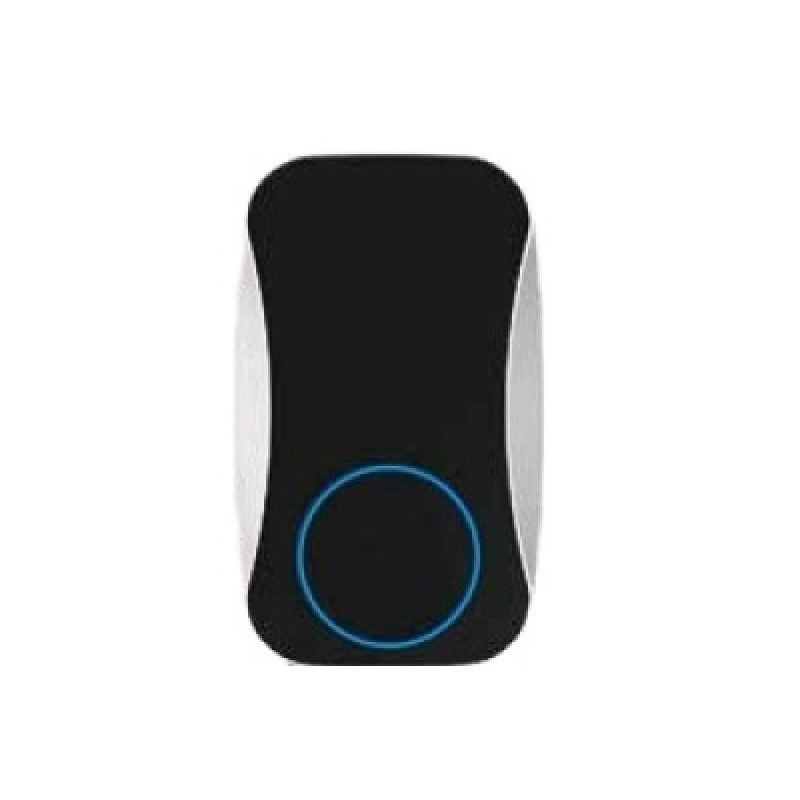

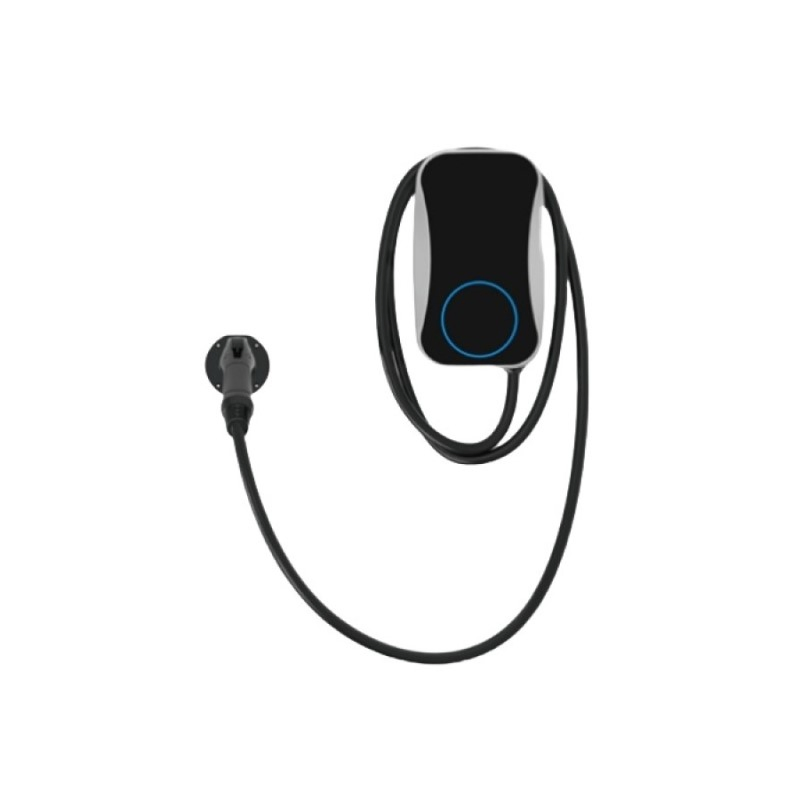

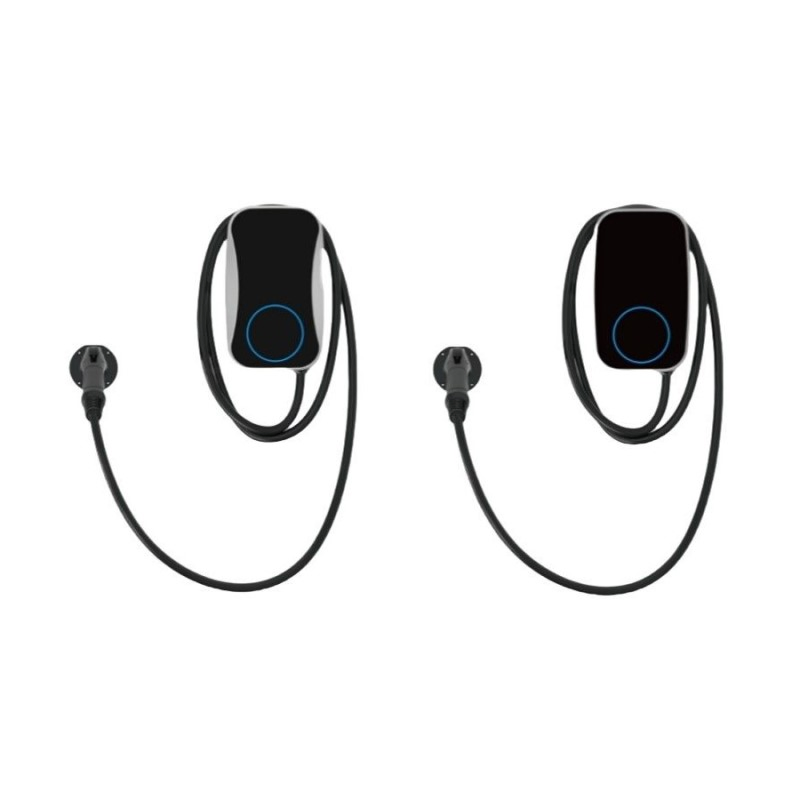

Smart APP Control AC Charging Station Indoor and Outdoor EV Charger
1. Innovative Design: Ergonomic shell design and human-centric operation. Multiple configuration options including RFID.

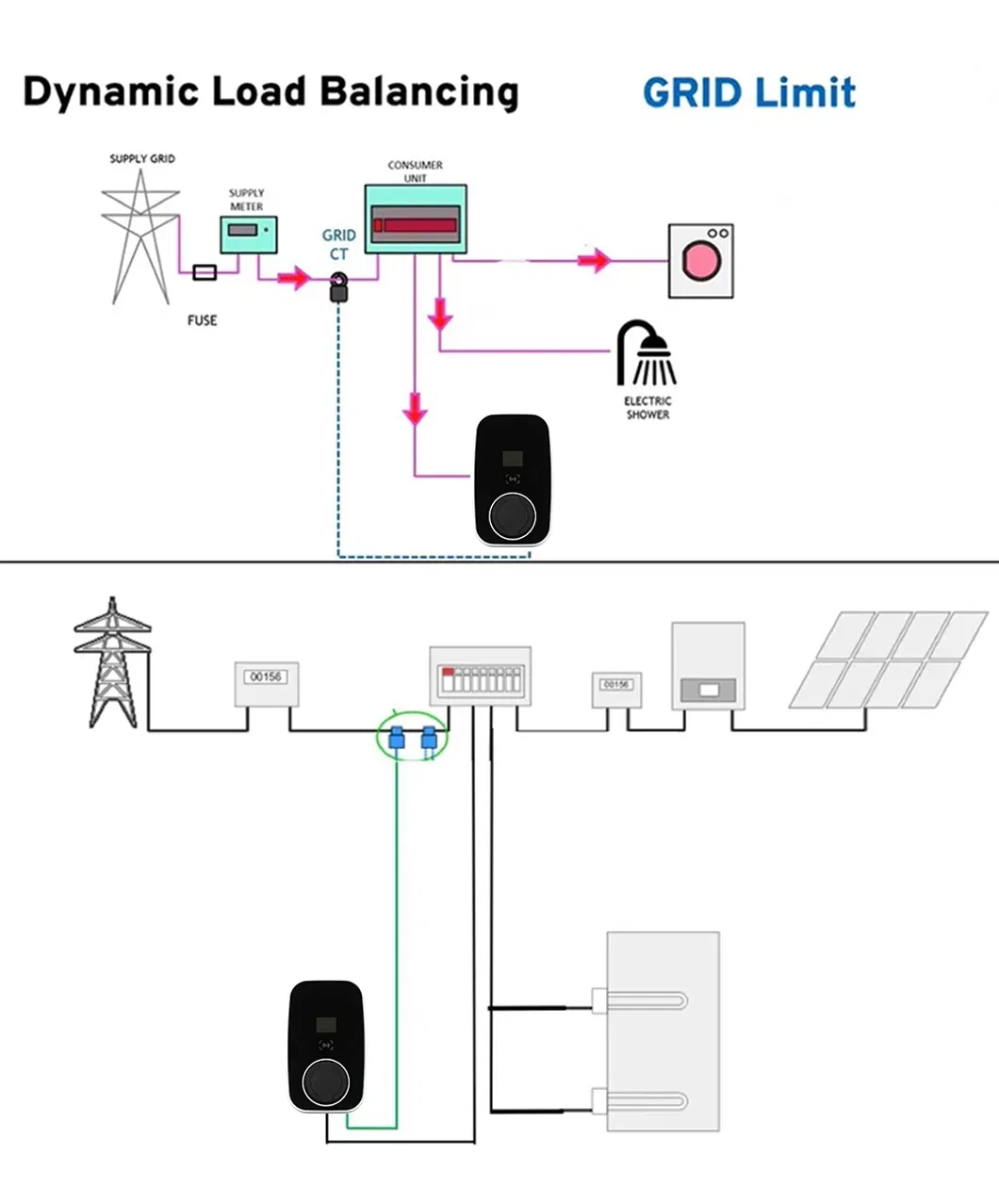

2. Intelligent Control: Supports multiple communications (Wi-Fi, 4G, Ethernet). Fully compatible with OCPP1.6J protocol and Tuya APP. Features home load balancing and solar energy control.
3. Security & Reliability: CCID 20mA leakage protection, input ground wire monitoring, and network security compliance.
4. Flexible Options: Supports both wall-mounted and pedestal column installation. Multi-mode charging: RFID, APP, or Plug & Charge.
| Model Number | UEVC1L-3210 | UEVC1L-4010 | UEVC1L-4810 |
|---|---|---|---|
| Rated Current | Up to 32A Max | Up to 40A Max | Up to 48A Max |
| AC Power | L1 + L2 + PE | ||
| Voltage | AC 208 ~ 240Vac | ||
| Frequency | 50 / 60 Hz | ||
| Operating Temperature | -25ºC to +50ºC | ||
| Certification | UL-2594, UL-2231, FCC Part15, Energy STAR | ||
| Optional Functions | APP (TUYA), RFID Card, OCPP 1.6J | ||

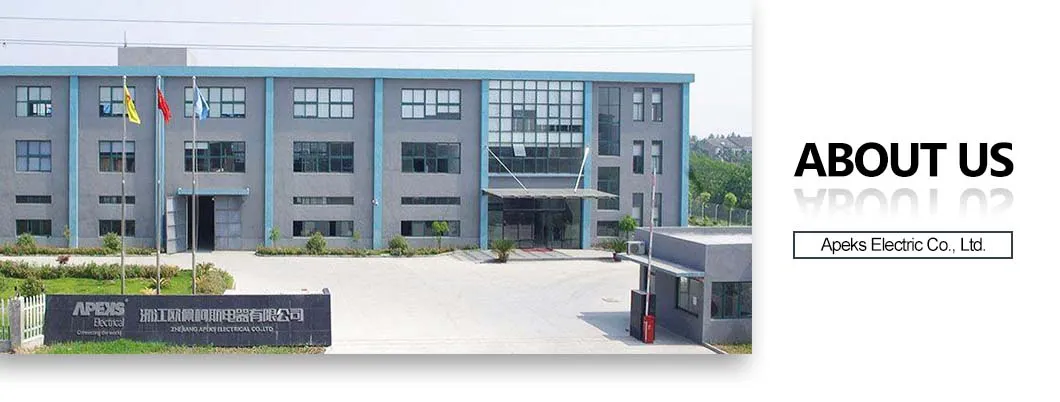

Specializing in industrial plugs, sockets, battery connectors, and EV charging solutions. Our products are widely utilized in construction, mining, transportation, and chemical industries. Most items hold CE, CB, TUV, or UL approvals, conforming strictly to international standards like IEC60309 and IEC62196.

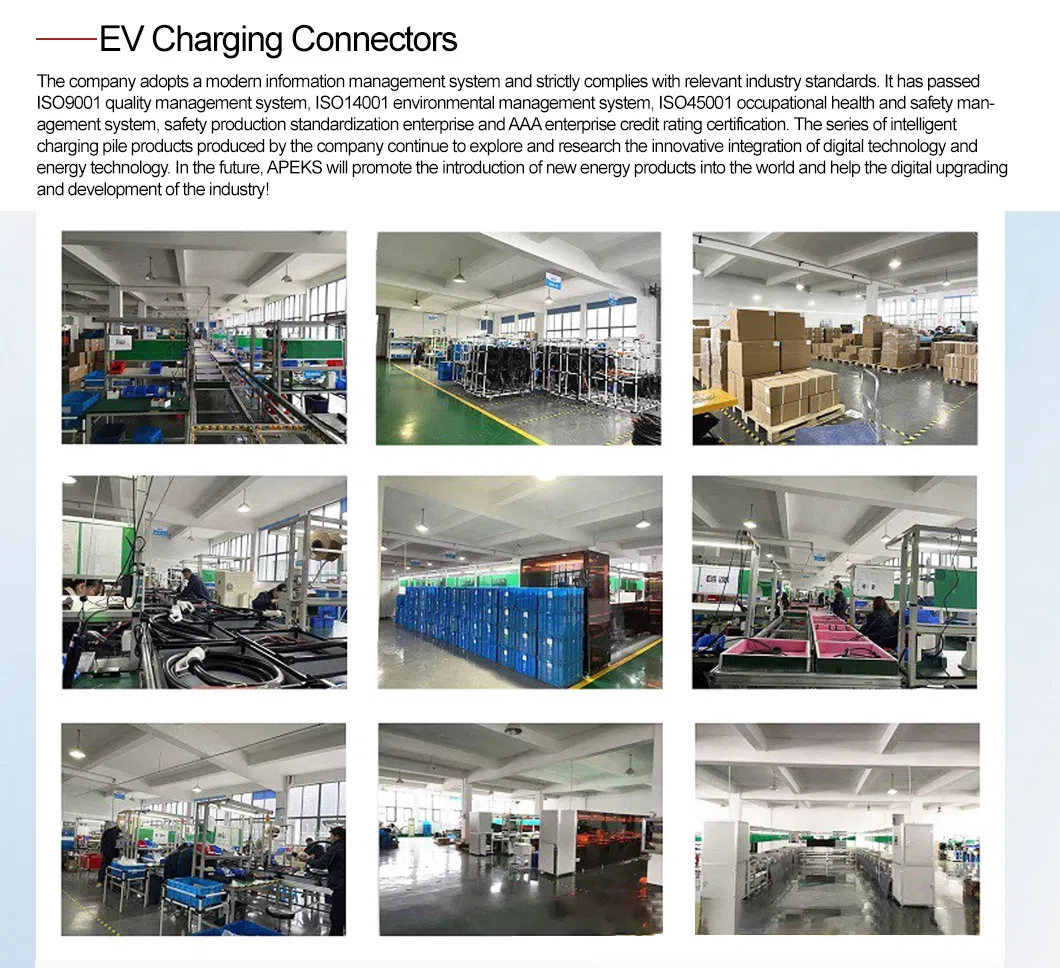

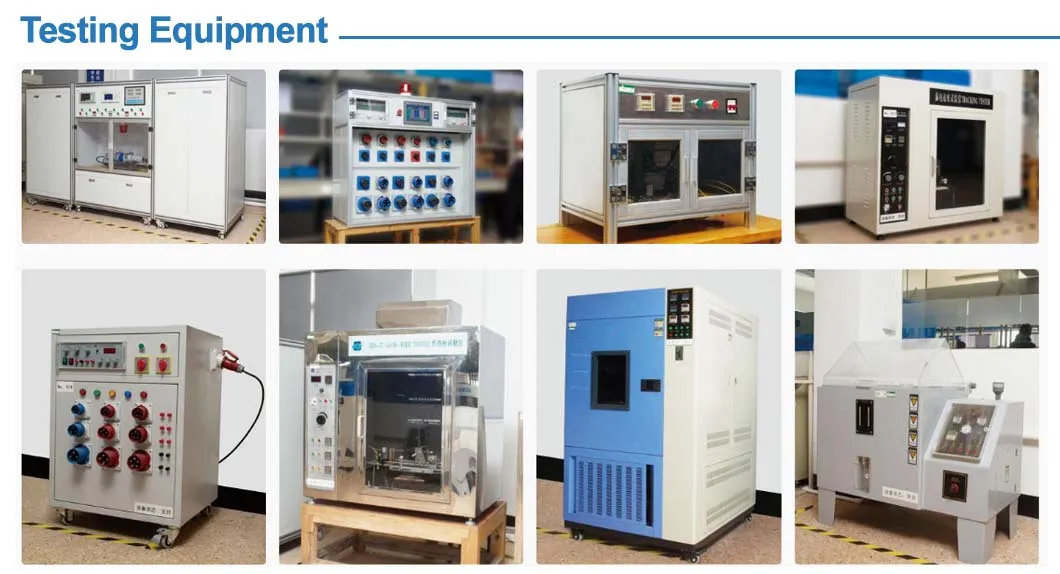

Equipped with modern production lines and high-quality control systems, we provide both standard and "tailor-made" solutions to meet specific client needs, focusing on safety, energy conservation, and environmental protection.
