Smart EV Charger Commercial AC EV Fast Charging Station with Double Charger Guns
Smart EV Charger Commercial AC EV Fast Charging Station with Double Charger Guns
Smart EV Charger Commercial AC EV Fast Charging Station with Double Charger Guns
Smart EV Charger Commercial AC EV Fast Charging Station with Double Charger Guns
Smart EV Charger Commercial AC EV Fast Charging Station with Double Charger Guns
1 / 5
Smart EV Charger Commercial AC EV Fast Charging Station with Double Charger Guns
Smart EV Charger Commercial AC EV Fast Charging Station with Double Charger Guns
Smart EV Charger Commercial AC EV Fast Charging Station with Double Charger Guns
Smart EV Charger Commercial AC EV Fast Charging Station with Double Charger Guns
Smart EV Charger Commercial AC EV Fast Charging Station with Double Charger Guns

Smart EV Charger Commercial AC EV Fast Charging Station with Double Charger Guns

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Smart EV Charger Commercial AC EV Fast Charging Station with Double Charger Guns

Basic Info

Model NO.EVC1LL-3210
InterfacesOne Pile with Multiple Charges
InstallationWall Mounted
Charge MethodQuick Charge
VoltageAC220~240V
Rated Current32A
AC Power1p+N+PE
Frequency50/60 Hz
Temperature-25℃ to +50°℃
Charging SocketIEC 62196 (Type 2)

Product Description

Core Features

  • IP54 Waterproof & Dustproof
  • LED Charging Status Indicator
  • AC & DC Fault Protection
  • Over Current Protection
  • Ground Detection & Surge Protection
  • Over/Under Voltage Protection
  • Over Temperature Protection

Key Advantages

1. Innovative Design: One charger with 2 charging points, commercial grade resistance to damage and corrosion, APP control enabled.

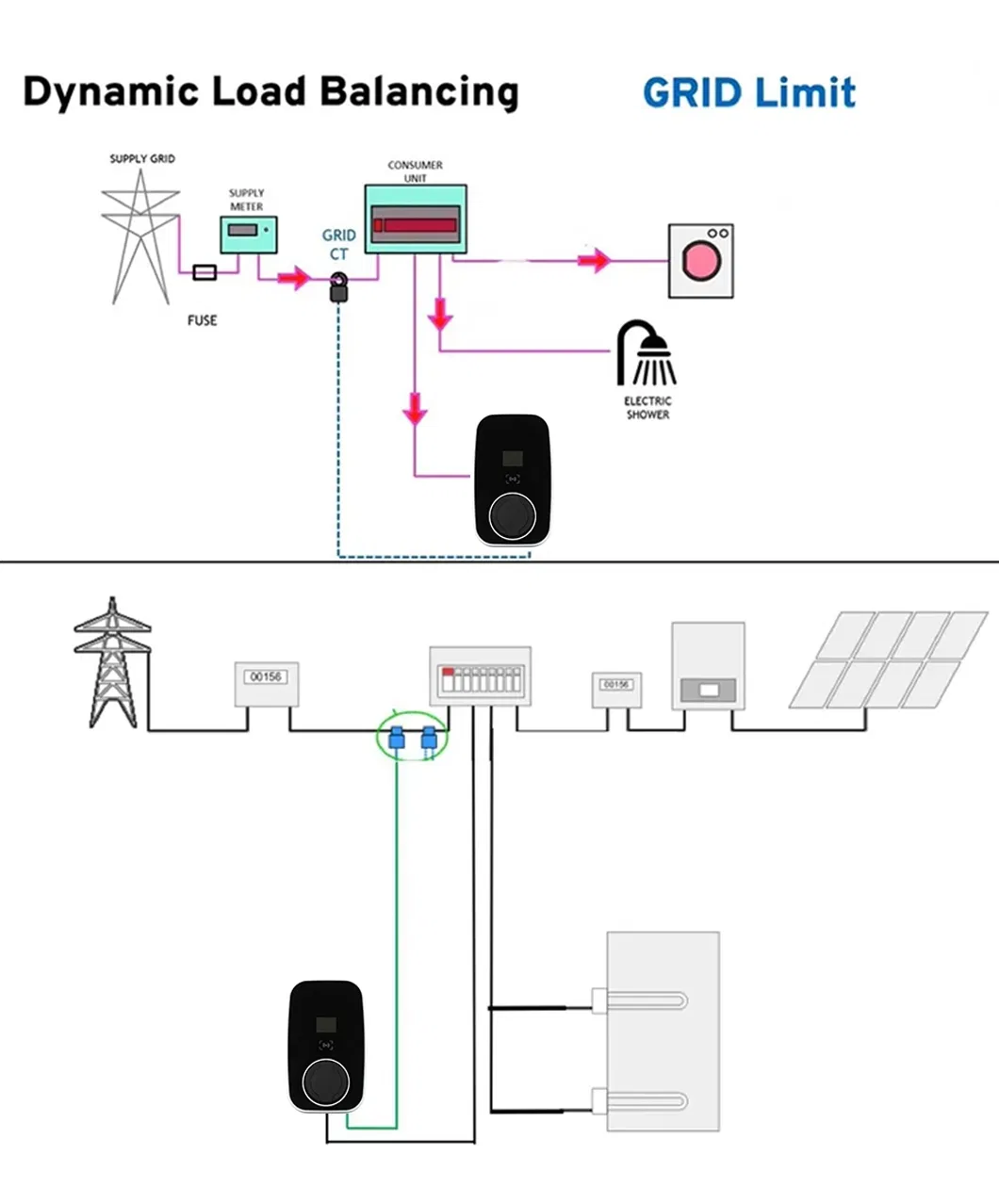

2. Intelligent Control: Support for Wi-Fi, 4G, and Ethernet. Compatible with OCPP1.6J protocol and Tuya APP. Features home load balancing and solar energy integration.
3. High Security: AC30mA + DC6mA leakage protection, surge protection, and strict network security compliance.
4. Flexible Options: Supports Type 2 socket or connector. Suitable for wall or column installation. Multiple charging modes: RFID, APP, or Plug & Charge.

Technical Specifications

Parameter EVC1LL-3210 EVC1LL-3210-A
AC Power1P+N+PE
VoltageAC220~240V
Frequency50/60Hz
Operating Temperature-25ºC to +50ºC
Rated CurrentMAX 32A (6-32A Adjustable)
Incoming Cable Terminals3x10mm² terminals
Recommended Protection36A Over Current Protection
Charging ConnectorIEC 62196 (Type 2)
Fault Protection30mA Type A + 6mA DC Protection
Optional FeaturesTUYA APP, RFID Card, LCD, OCPP1.6J, PEN Protection

Detailed Photos

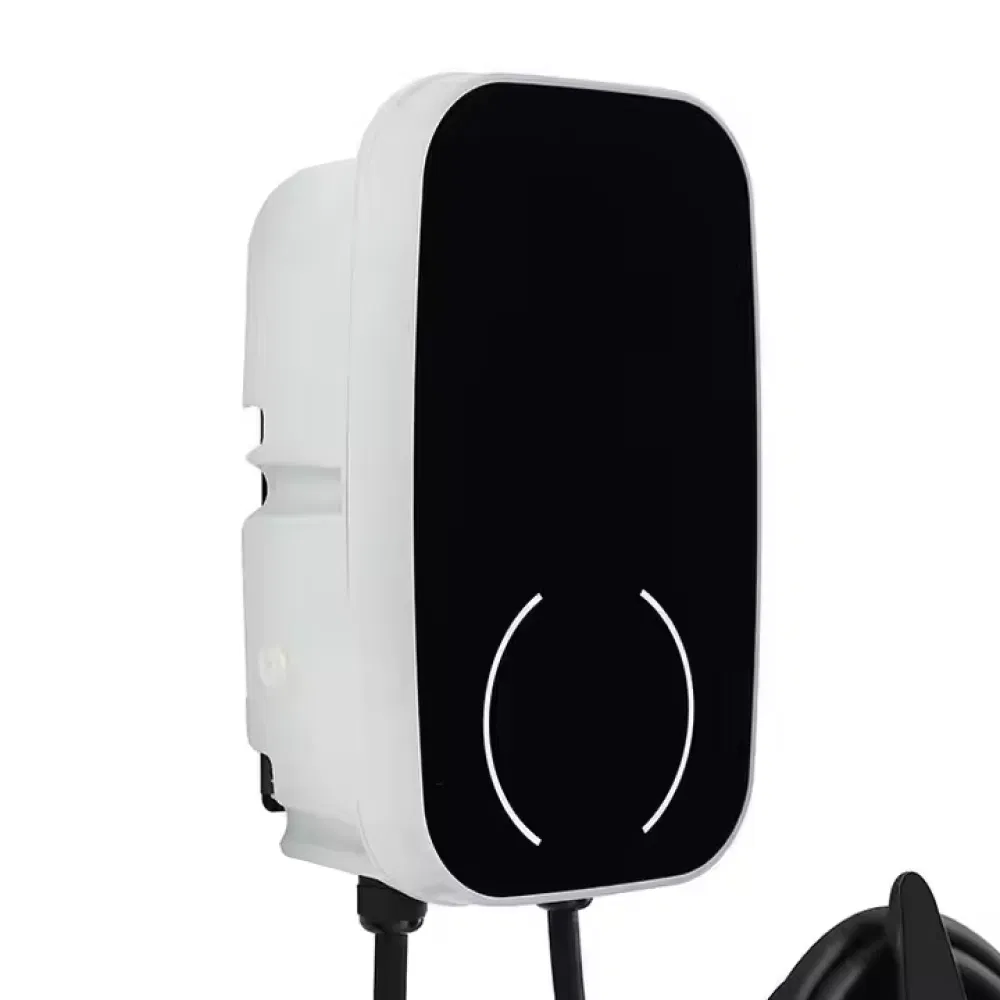

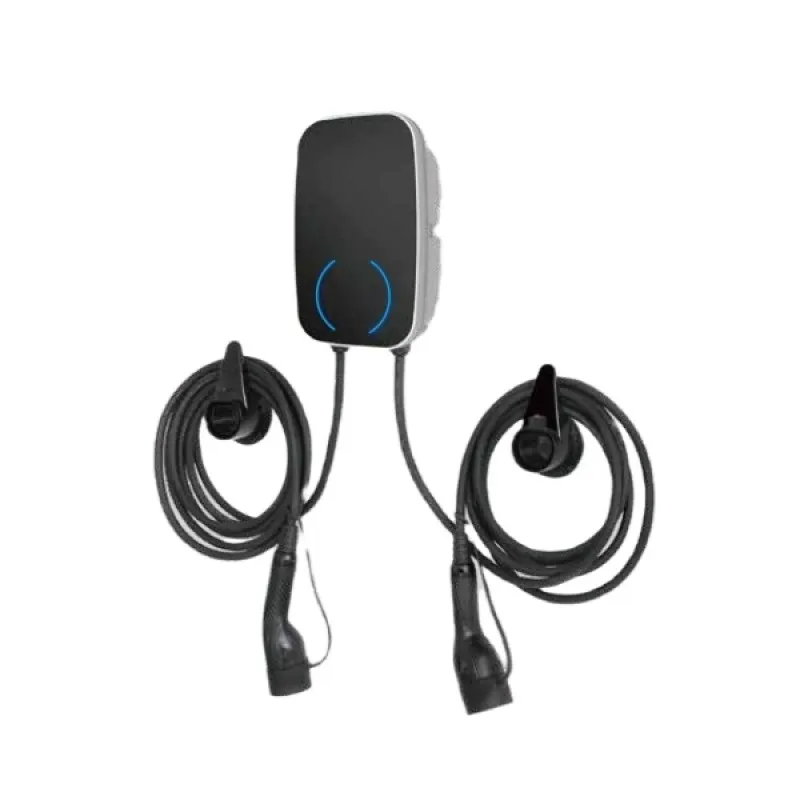

Smart EV Charger

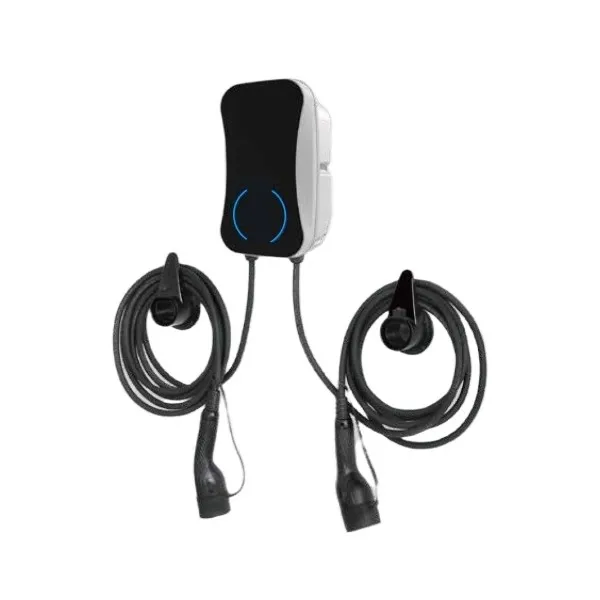

Commercial Charging Station

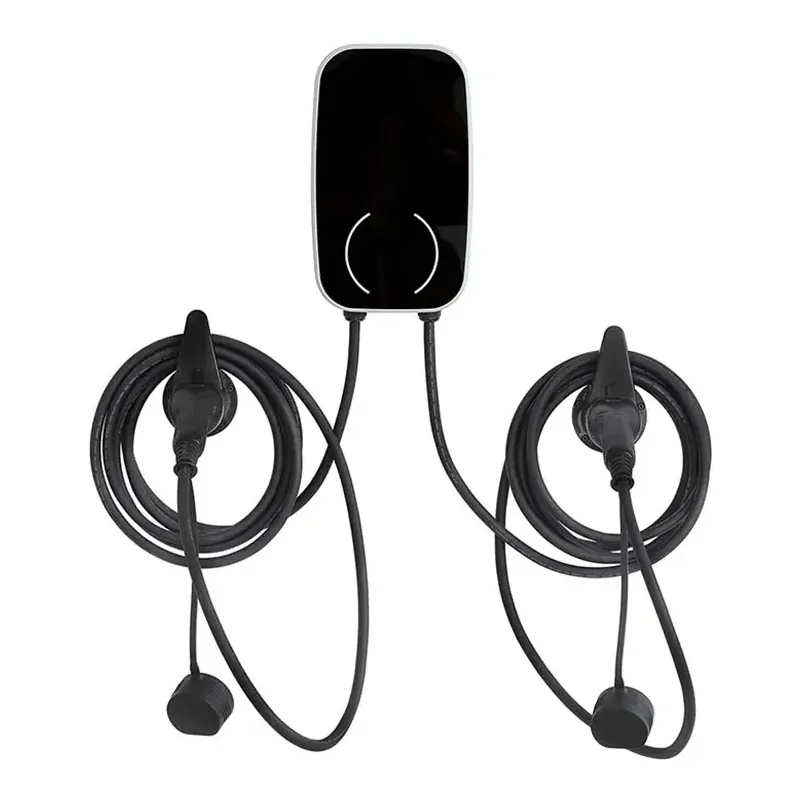

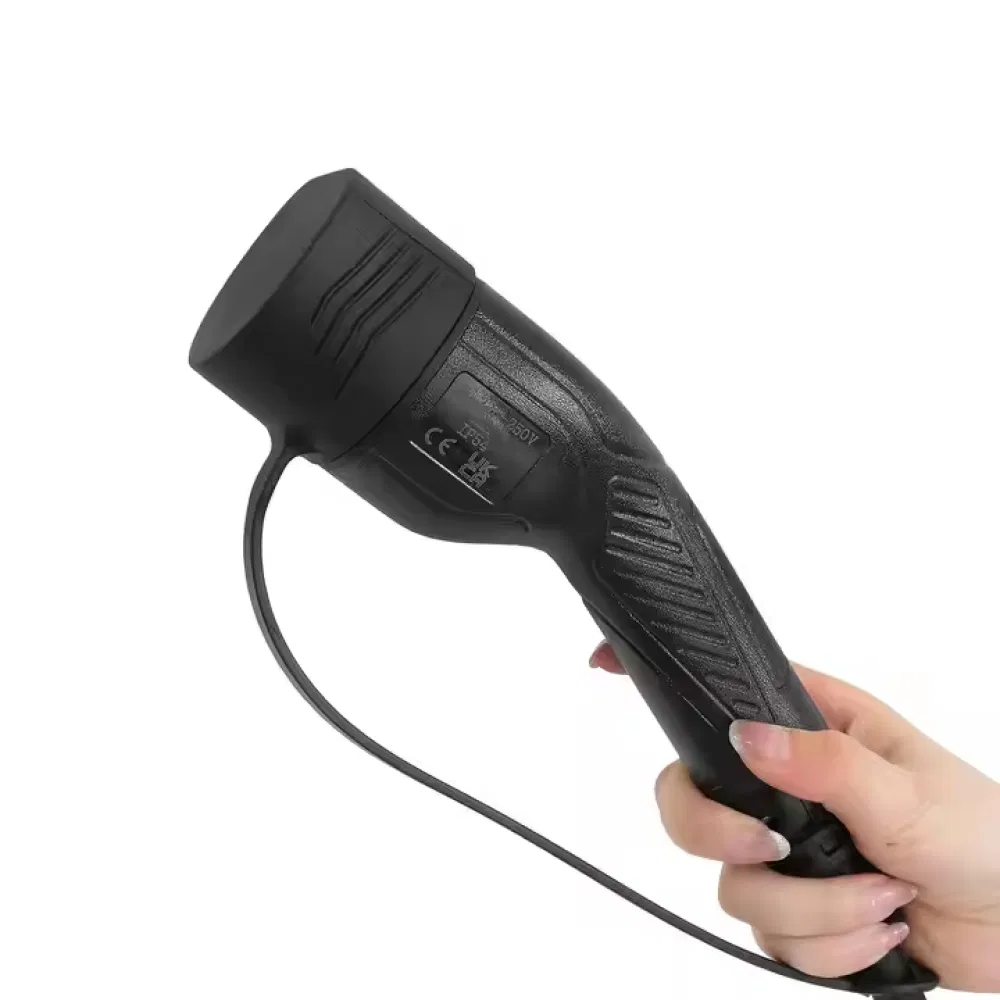

Double Charger Guns

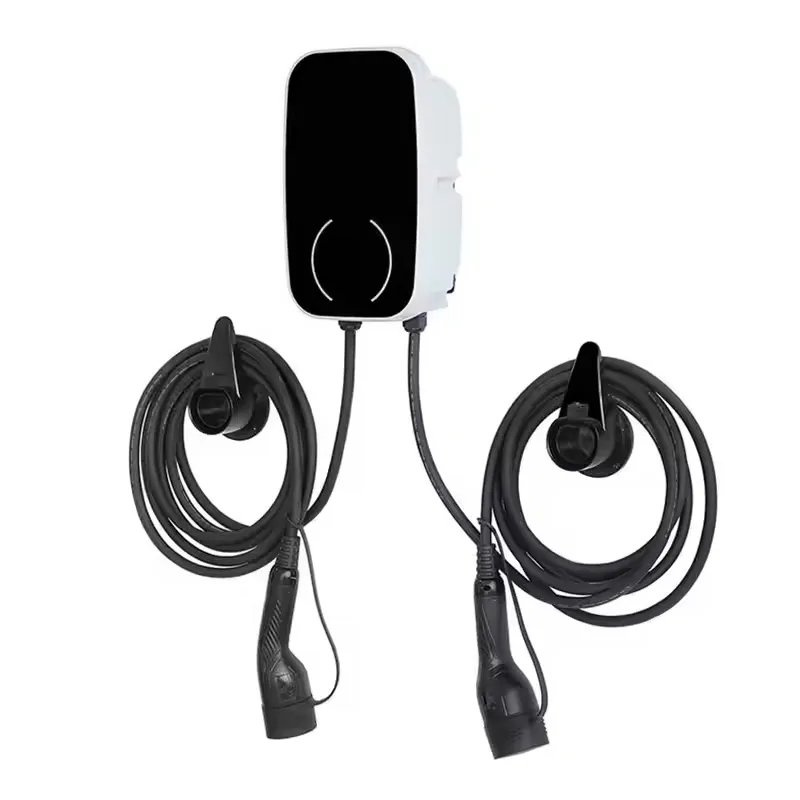

EV Station Detail

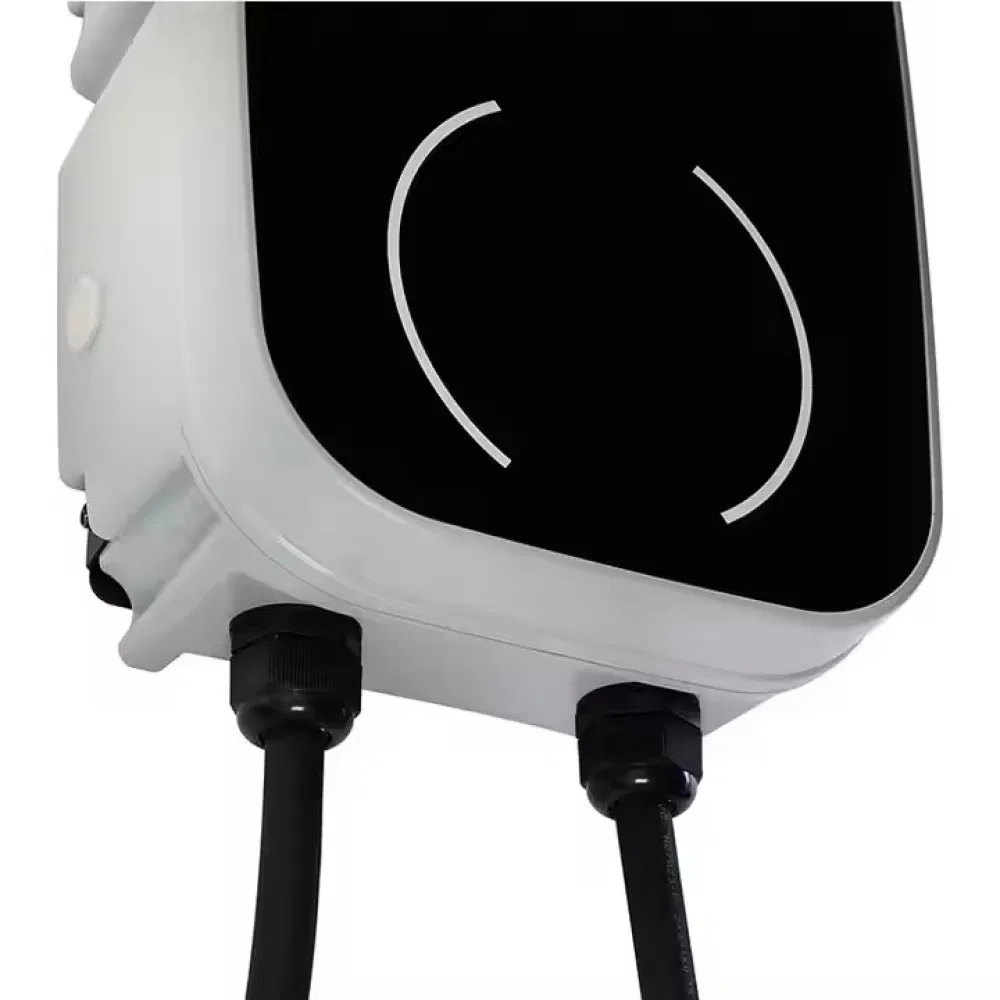

Fast Charging Station

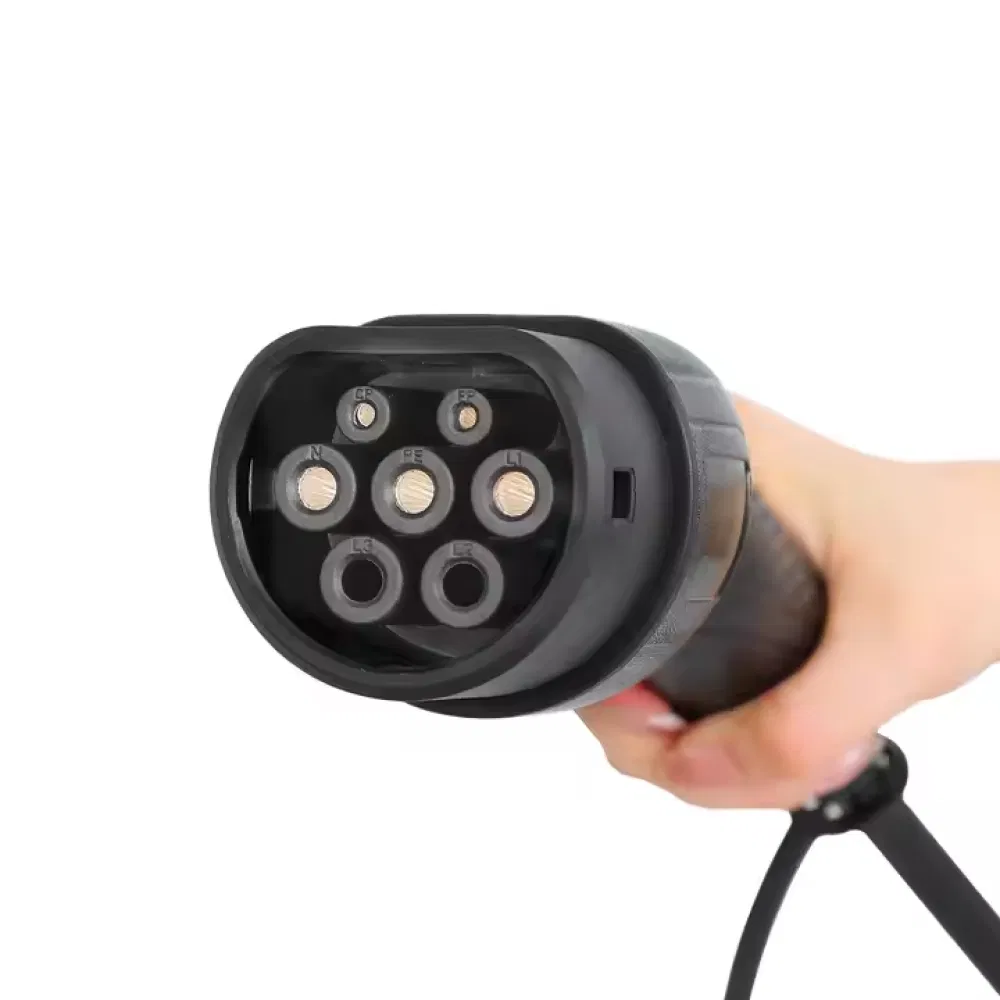

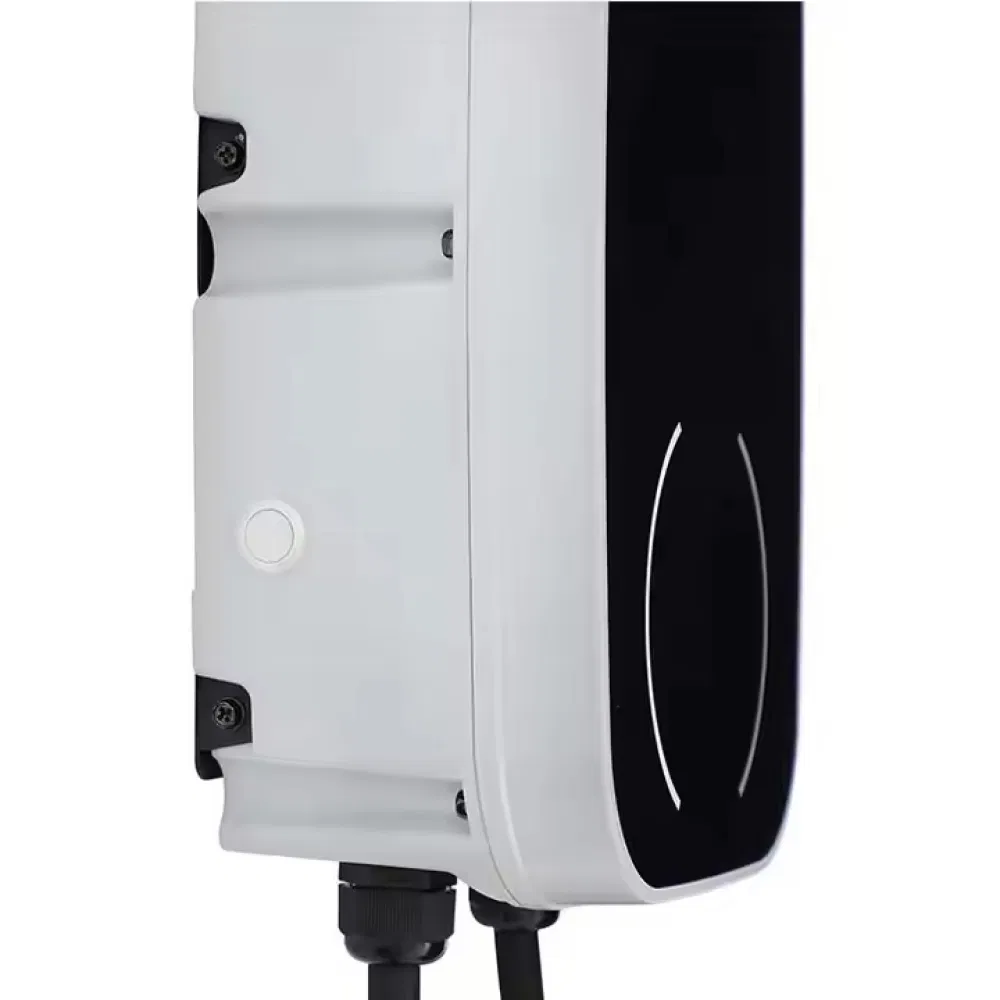

Charging Interface
EV Charger Dimensions Internal Structure Component Layout Usage Scenario Mounting Guide Outdoor Installation

Application

Application scenarios

Our EV charging solutions are widely used in commercial parking lots, public buildings, industrial equipment areas, and transportation hubs. They are designed for high-performance environments and diverse scenarios.

Quality & Certifications

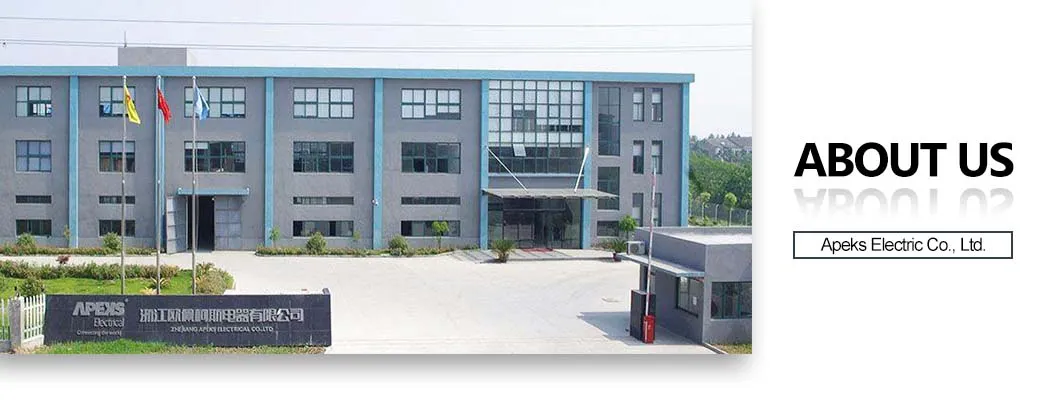

Production Line

Products strictly conform to international standards including IEC60309, IEC62196, and IEC61439. We hold certifications such as CE, CB, TUV, and UL, ensuring reliable quality and safety in the international market.

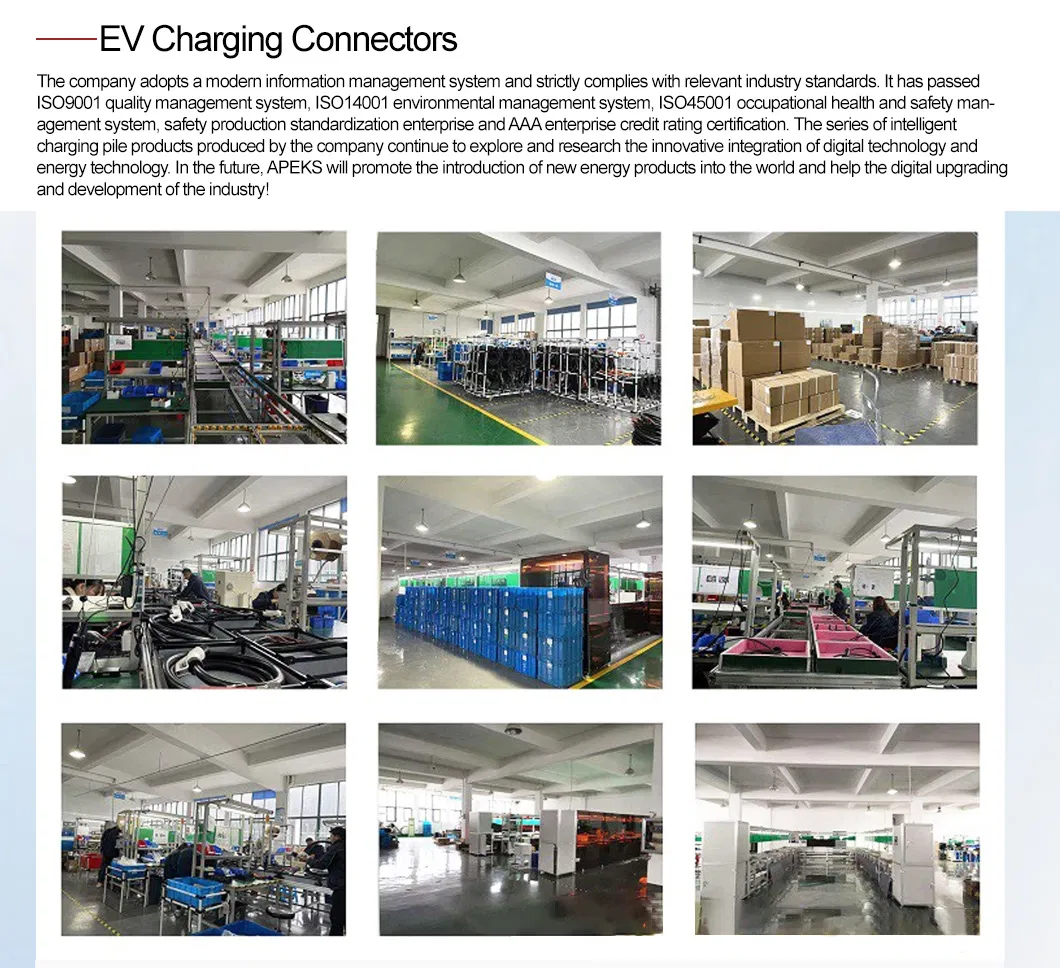

Certification Showcase

Our Advantages

Advantage 1
Advantage 2
Advantage 3

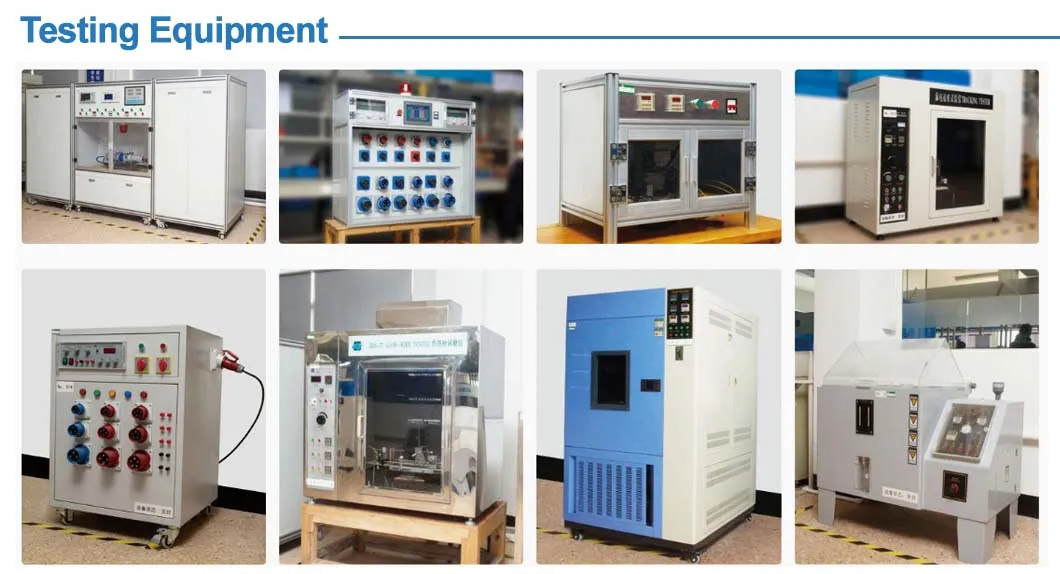

Advantage 4
Technology Advantage

Frequently Asked Questions

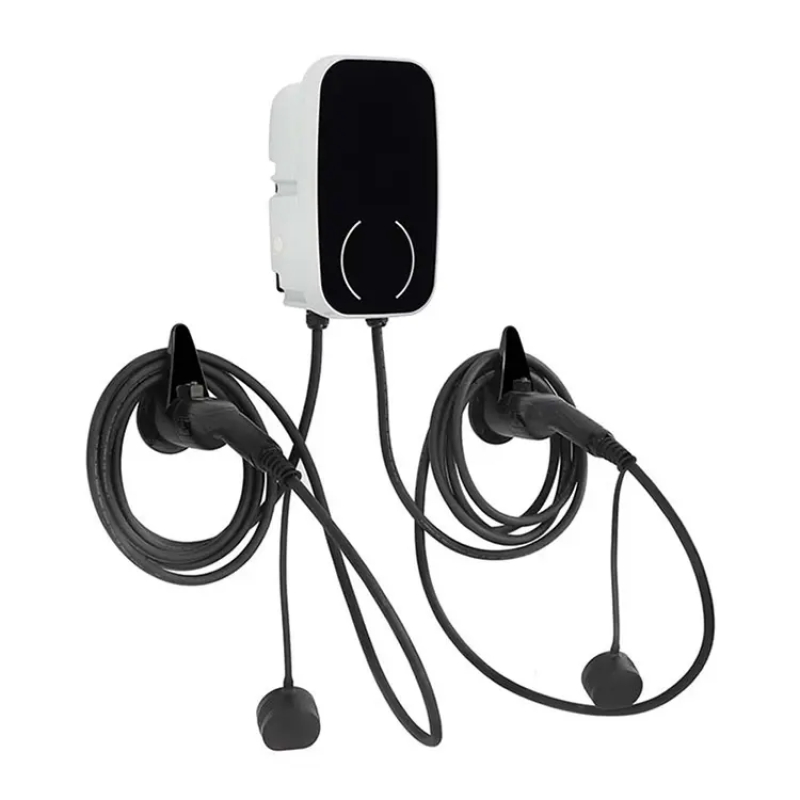

Q1: Can this charging station charge two vehicles simultaneously?
Yes, this commercial AC EV charging station features double charger guns, allowing two vehicles to be charged at the same time efficiently.
Q2: What is the maximum charging current available?
The station supports a maximum rated current of 32A, which is adjustable between 6A and 32A to suit different power requirements.
Q3: Is the charger suitable for outdoor installation?
Absolutely. It is IP54 rated, meaning it is protected against dust and water splashes, making it ideal for both indoor and outdoor public or commercial use.
Q4: Does the station support mobile app control?
Yes, it supports multiple communication methods including Wi-Fi, 4G, and Ethernet, and is compatible with the Tuya APP for intelligent remote control.
Q5: What safety protections are built into the device?
The unit includes comprehensive protection features: AC & DC fault protection (30mA Type A + 6mA DC), over-current, surge, over/under voltage, ground detection, and over-temperature protection.
Q6: Which EV models are compatible with this charger?
The station uses the standard IEC 62196 (Type 2) charging interface, which is compatible with most modern electric vehicles in Europe and many other regions.
