Walnut Charger
1 / 5

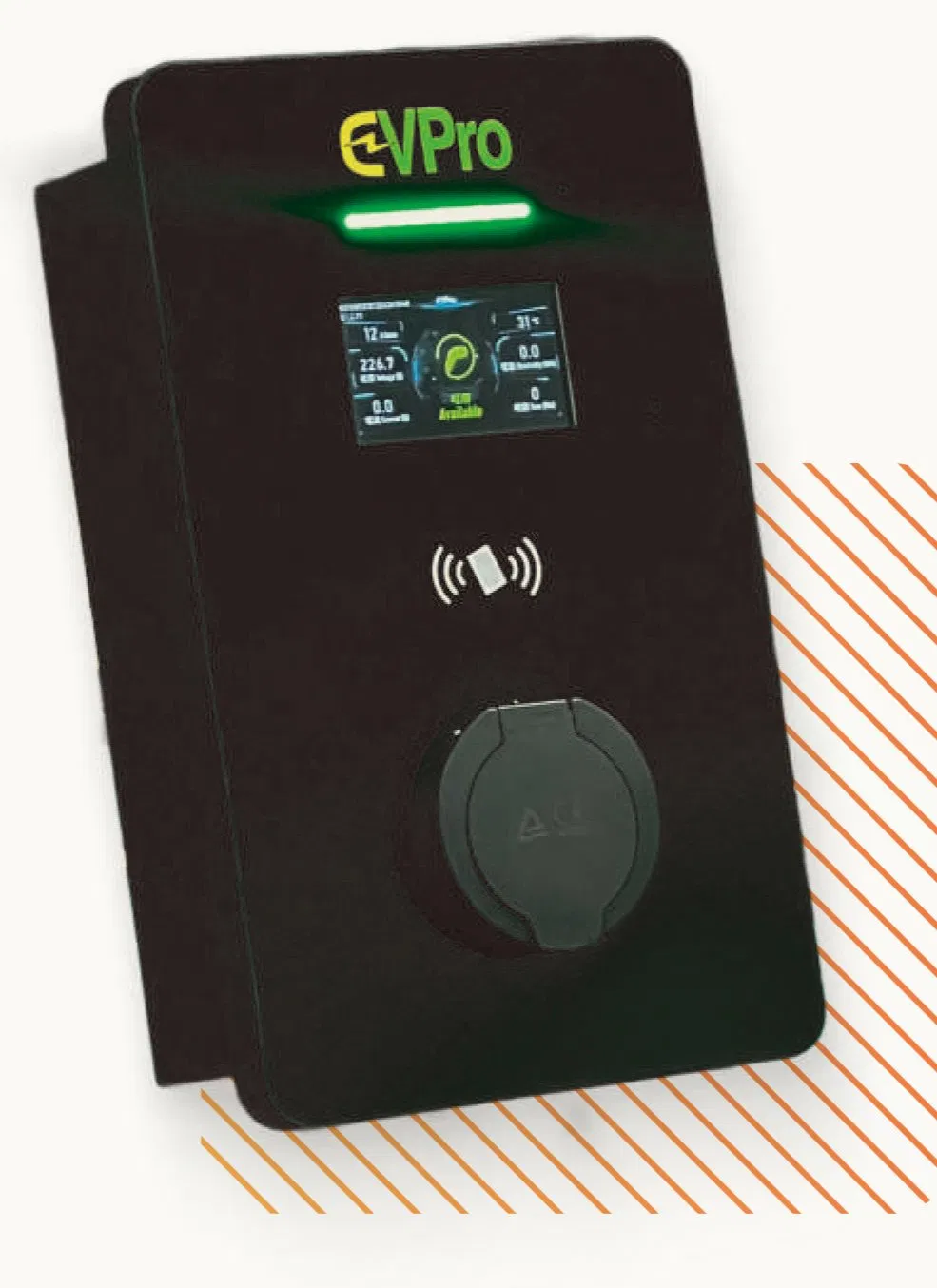

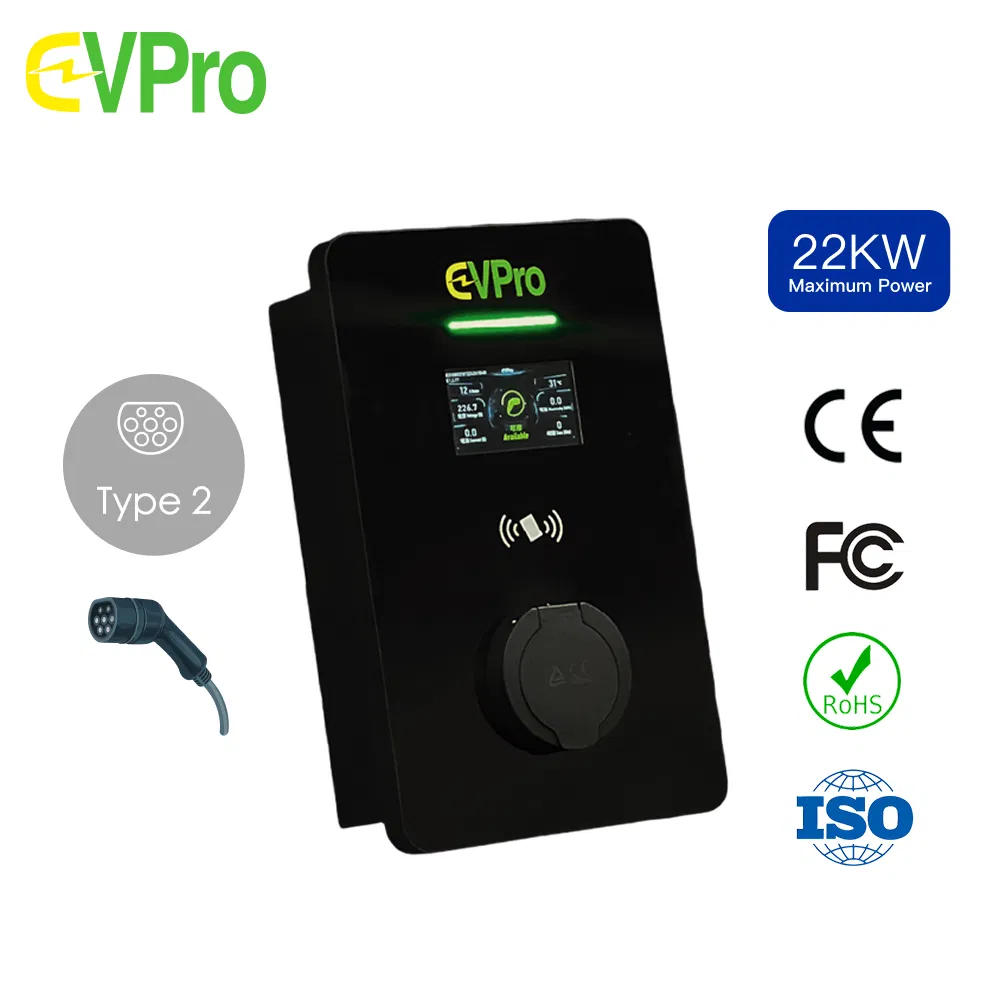

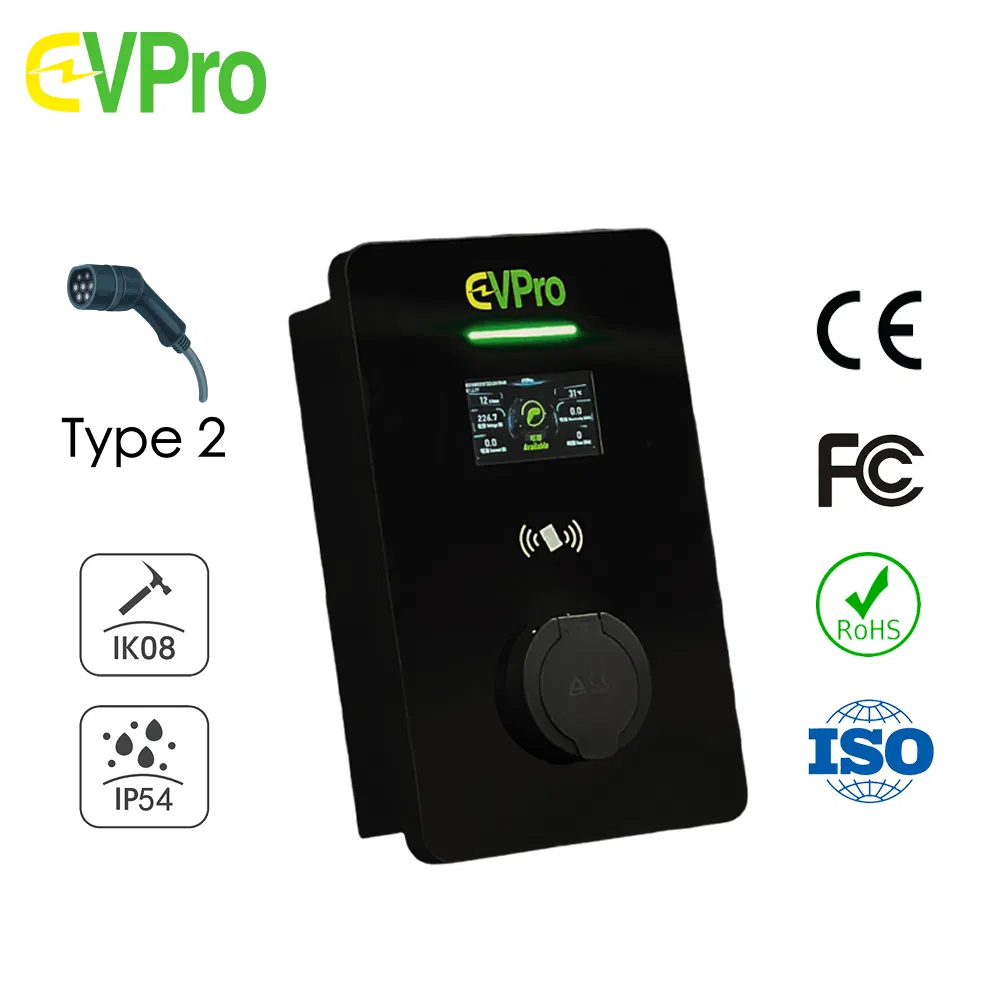

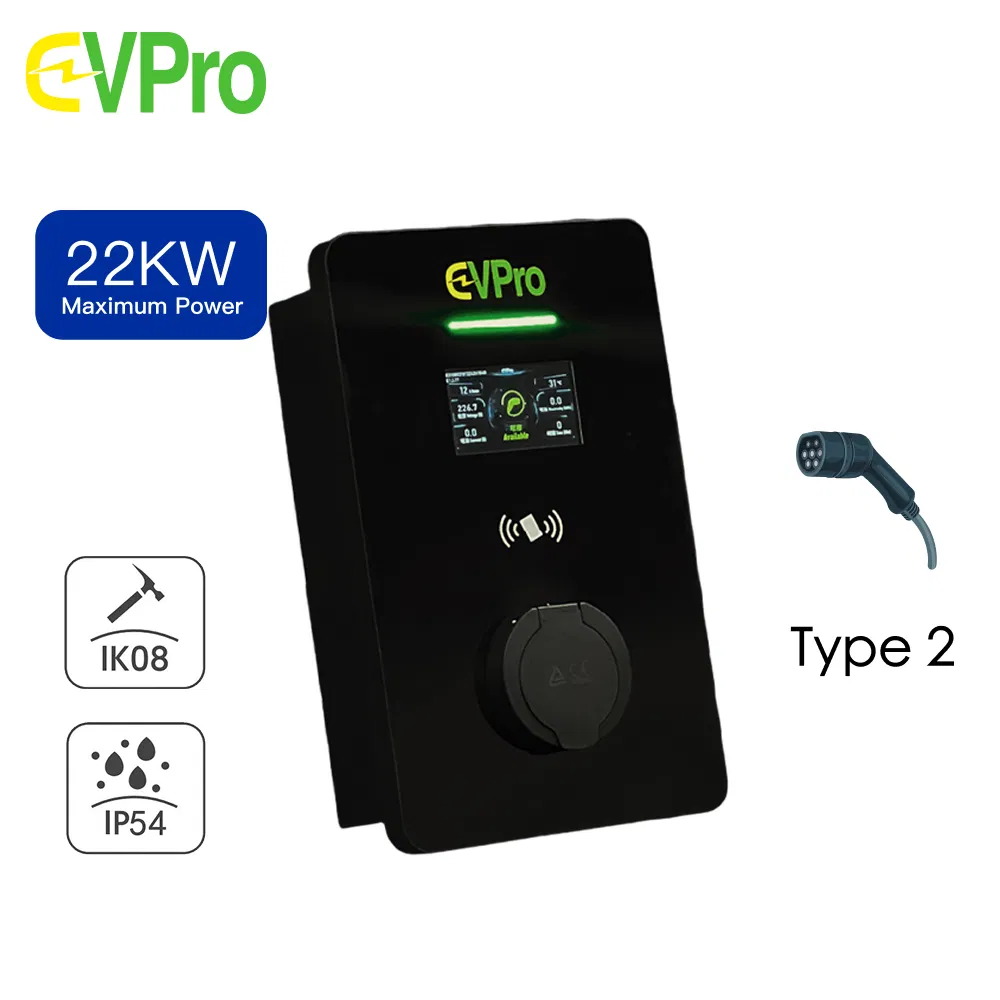

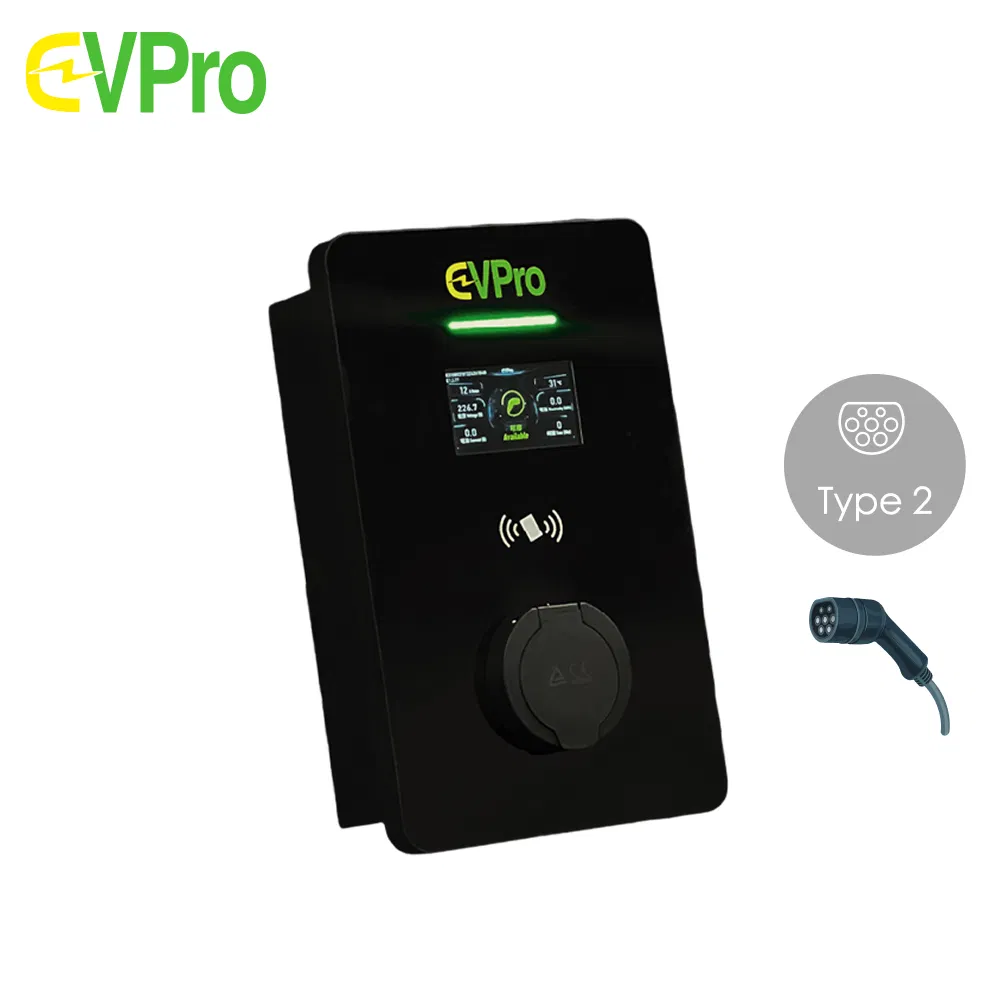

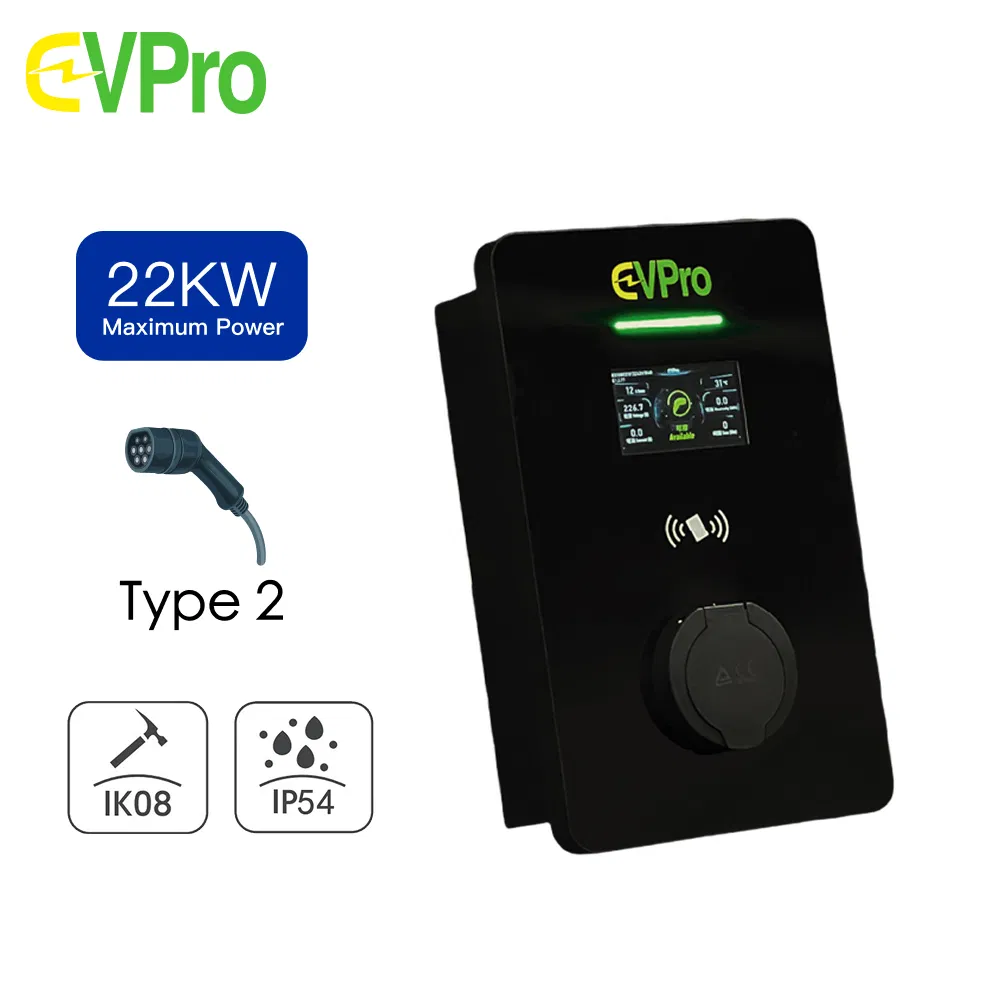

The SMART AC WALLBOX EV Charger boasts an innovative and intelligent design. It supports 3.6kW / 7kW / 11kW / 22kW charging power, with an impact protection level of IK08 and waterproof level of IP54. Made of a tempered glass cover and stainless steel body, it features Type A RCD + DC6mA leakage protection and is compatible with IEC Type 2 / CCS2 EV plugs. Additionally, it supports a Load Balance System, a 4.3-inch color display, RFID authentication, and WiFi/4G/Ethernet connectivity with OCPP 1.6J compliance.
| Category | Data Parameters |
|---|---|
| Input Voltage | 220V AC (Single Phase) / 380V AC (3 Phase) |
| Output Current | 32A |
| Charging Mode | Mode 3 (IEC61851-1:2019) |
| Operating Temperature | -30℃ to +55℃ |
| Ingress Protection | IP54 |

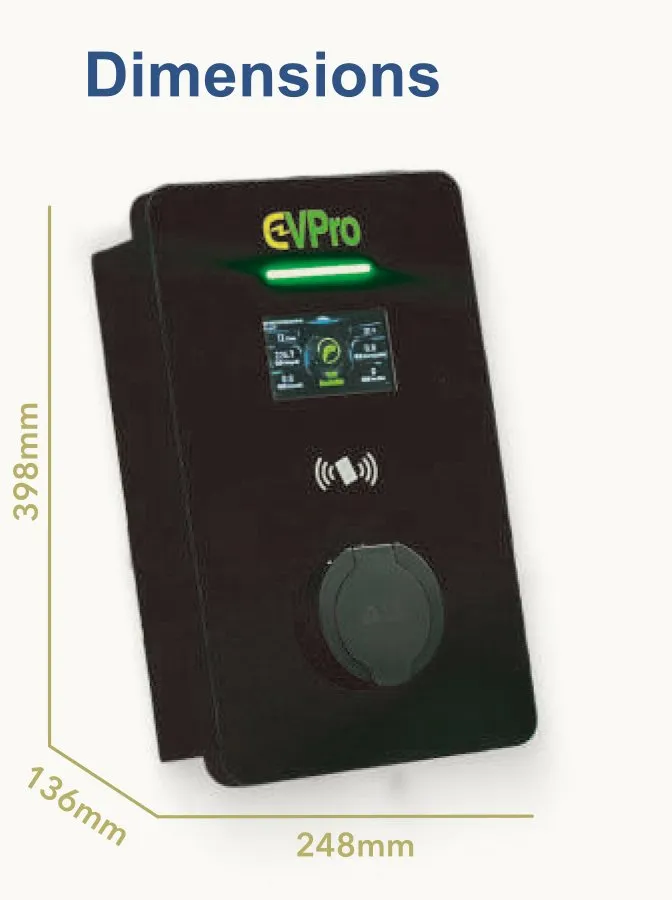

| Dimensions | 248 * 386 * 163mm |
| Net Weight | 3.5kg (Socket) / 5.8kg (with 5m Cable) |
| Display | 4.3 Inch or above color display screen |
| Activation | Plug and Play / RFID Card / Offline Payment |
| Safety Protection | Over/Under Voltage, Over Current, Short Circuit, Grounding |

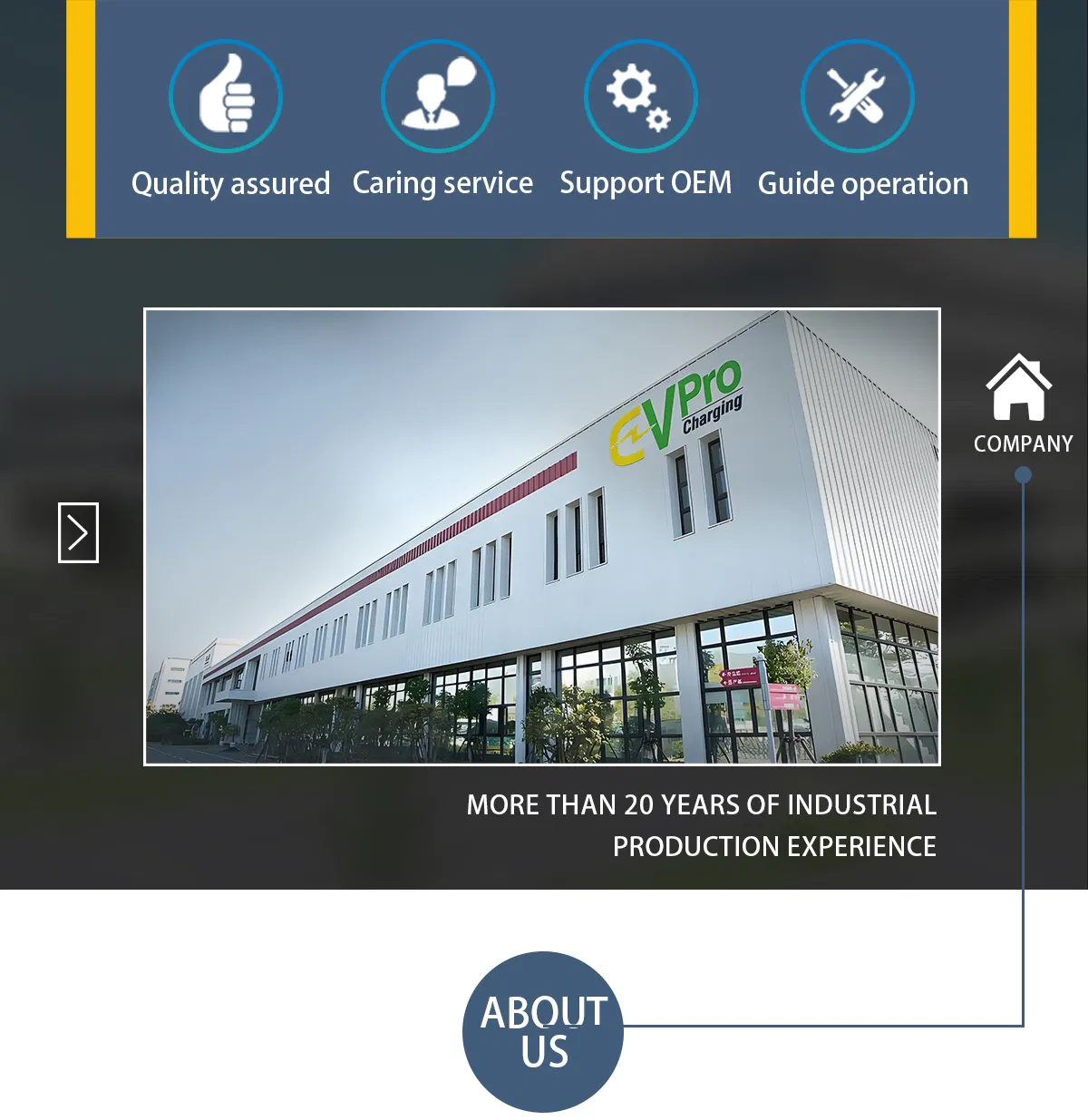

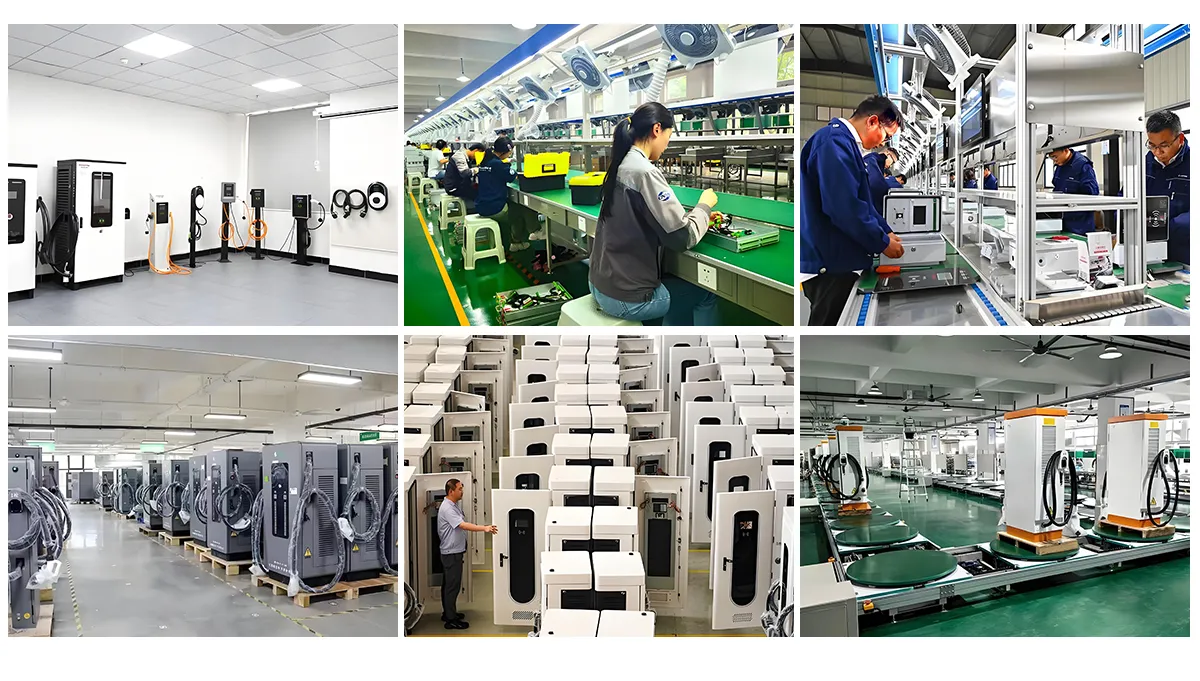

As a fully integrated provider, every stage of the EV charging ecosystem is controlled to deliver superior quality and cost-competitive solutions. Operating a dedicated manufacturing facility allows for custom hardware configurations and rigorous quality control standards, ensuring compliance with IEC 61851 and IEC 62196 standards.
At the core of the innovation is a smart, interconnected system that harnesses solar energy and utilizes artificial intelligence to manage power flows dynamically. The V2G (Vehicle-to-Grid) capabilities transform EVs into mobile energy storage units, maximizing renewable energy use and grid stability.
