11kw GB/T AC EV Charger Fast Charging Station CE RoHS IP65 Ik10

1 / 5

11kw GB/T AC EV Charger Fast Charging Station CE RoHS IP65 Ik10

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

GS11-AC-B02

Charging Interfaces

One Pile with One Charge

Location

Private/Commercial Use

Installation

Wall Mounted

Charge Method

Quick Charge

Product Name

AC EV Charging Station

Voltage

380V

Function

APP Control RFID Card Optional

Output Power

7/11/22kw

Cable Length

5meters/ Customized

Certification

CE, ISO, RoHS

Protection

Ik10 / IP65

Product Description

★

Key Features

Dynamic Load Balancing Built-in

Active load management options available.
Load management can reduce the maximum load of the power grid and save electric energy by improving the user's power consumption behavior and mode through load adjustment technology.
Reduces power investment and operating costs effectively.

Technical Specifications

Category	Feature	GS7-AC-BO2	GS11-AC-BO2	GS22-AC-BO2
Input	Power Supply	1P+N+PE	3P+N+PE	3P+N+PE
	Rated Voltage	230V AC	400V AC	400V AC
	Rated Current	32A	16A	32A
Output	Output Voltage	230V AC	400V AC	400V AC
	Output Current	32A	16A	32A
	Rated Power	7KW	11KW	22KW
User Interface	Start Mode	Plug&Play / RFID Card / APP

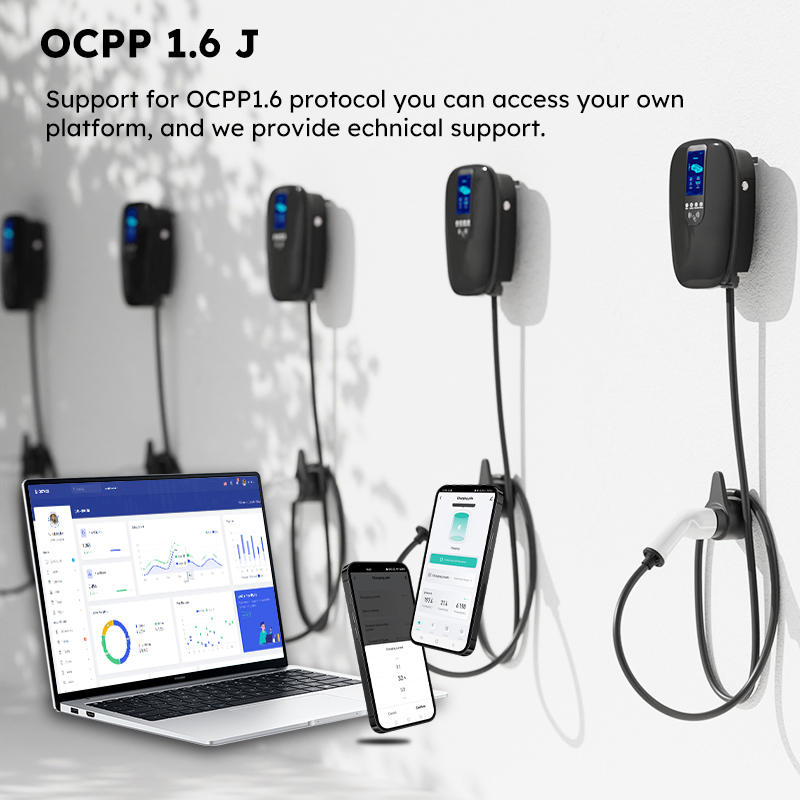

Communication	OCPP	OCPP 1.6 Json (OCPP 2.0 Optional)

⚙

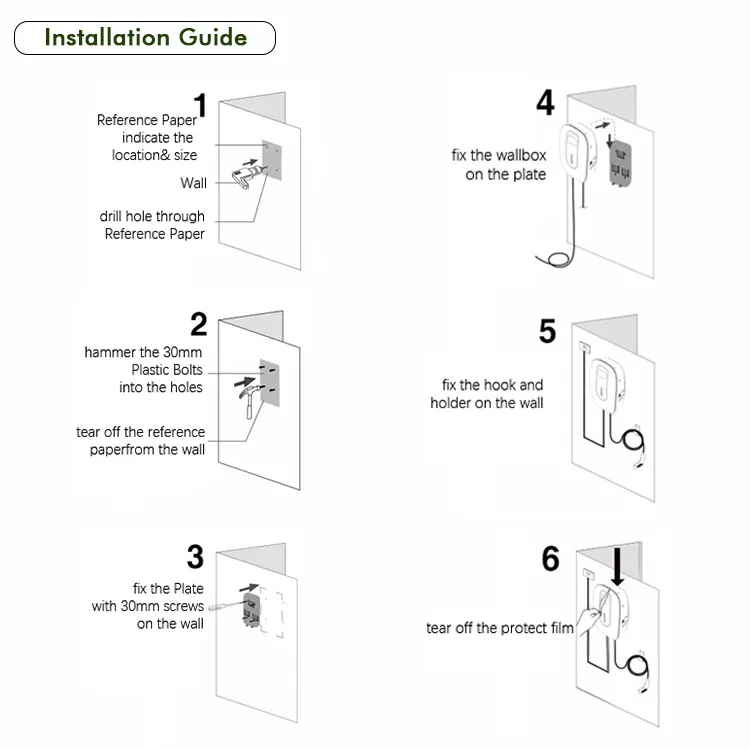

Installation Instructions

✔

Quality Assurance

Frequently Asked Questions

What are the available power options for this EV charger?

The station is available in 7KW, 11KW, and 22KW output versions to meet different charging speed requirements.

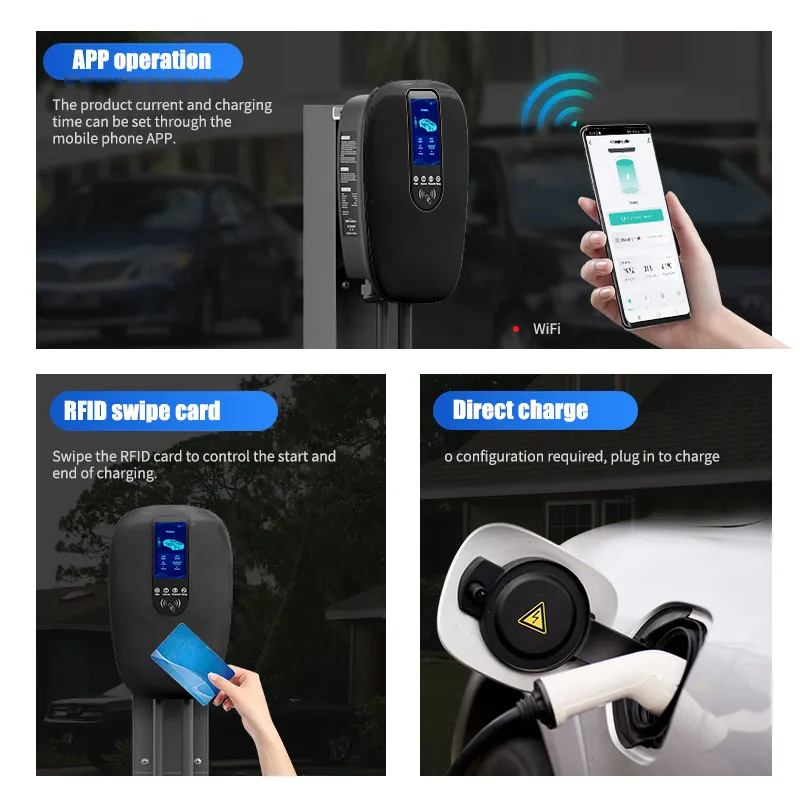

How do I start the charging process?

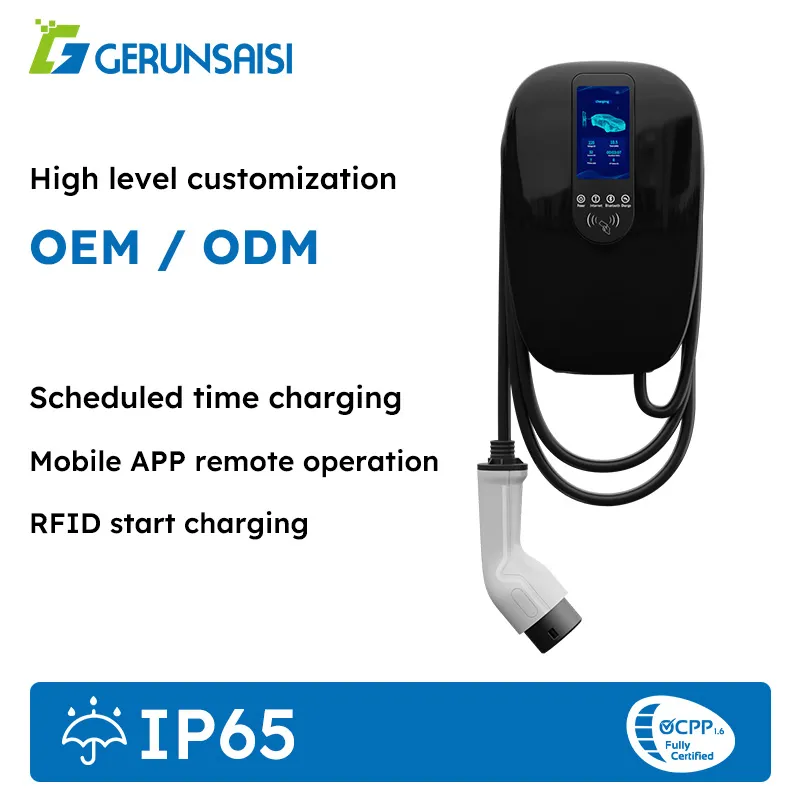

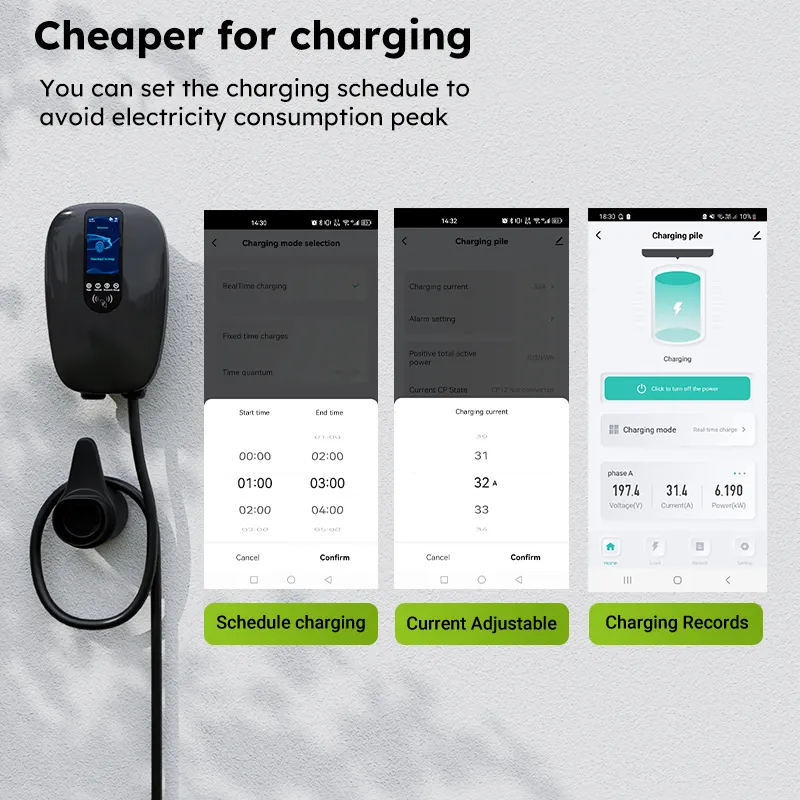

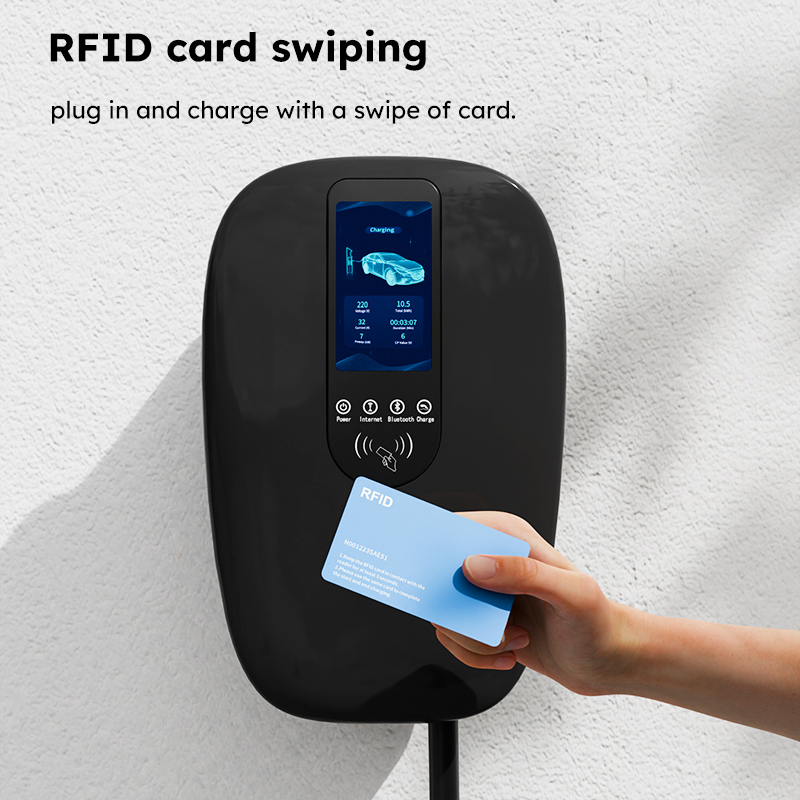

You can choose between three modes: Plug & Play for simplicity, RFID Card for access control, or via a dedicated Mobile App.

Is this charger suitable for outdoor installation?

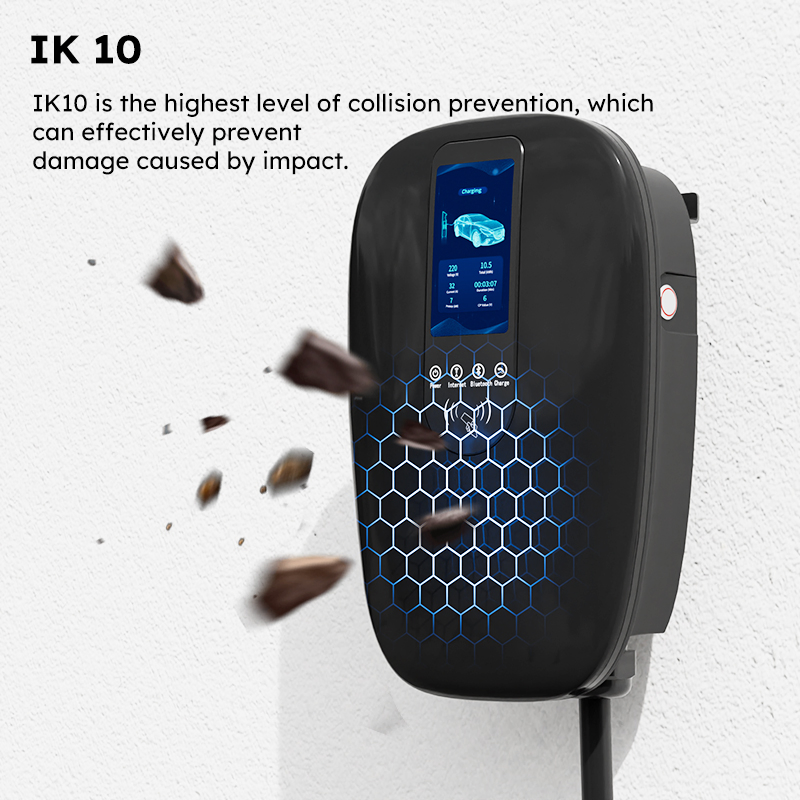

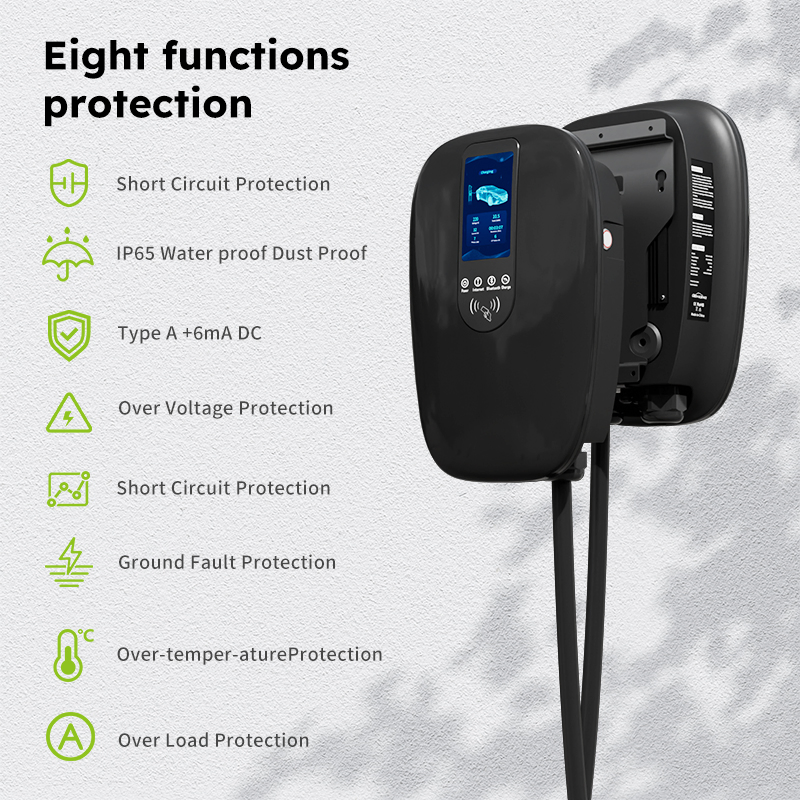

Yes, it features an IP65 protection rating and IK10 impact protection, making it highly durable for both indoor and outdoor environments.

What is Dynamic Load Balancing?

It is a built-in feature that intelligently manages the power distribution to prevent overloading your electrical system while optimizing charging efficiency.

Does the charger support smart connectivity?

Yes, it supports WiFi and OCPP 1.6 Json communication protocols, with 4G/5G options available for remote management and monitoring.
