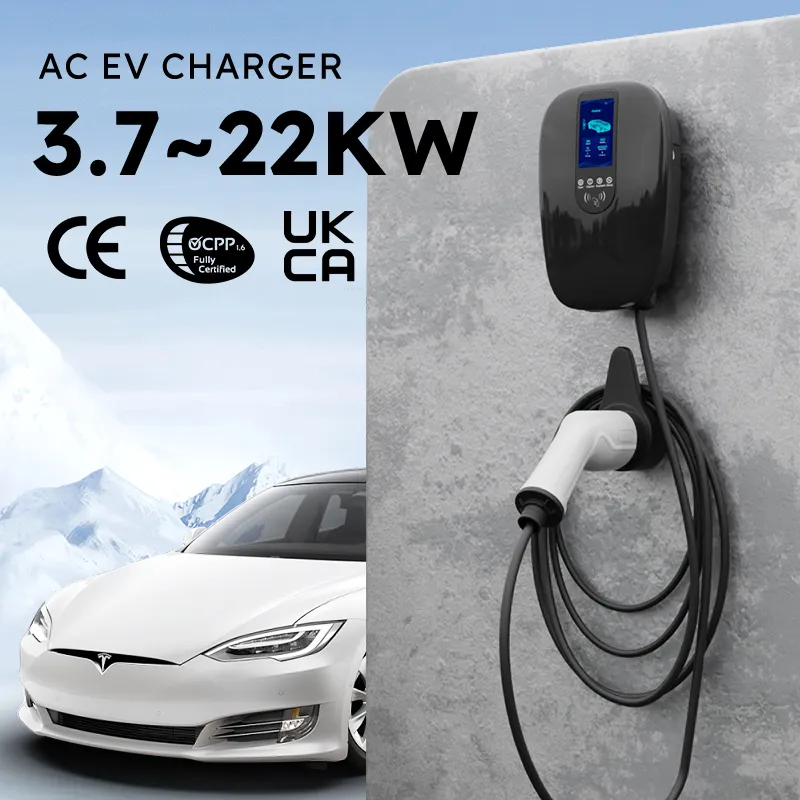

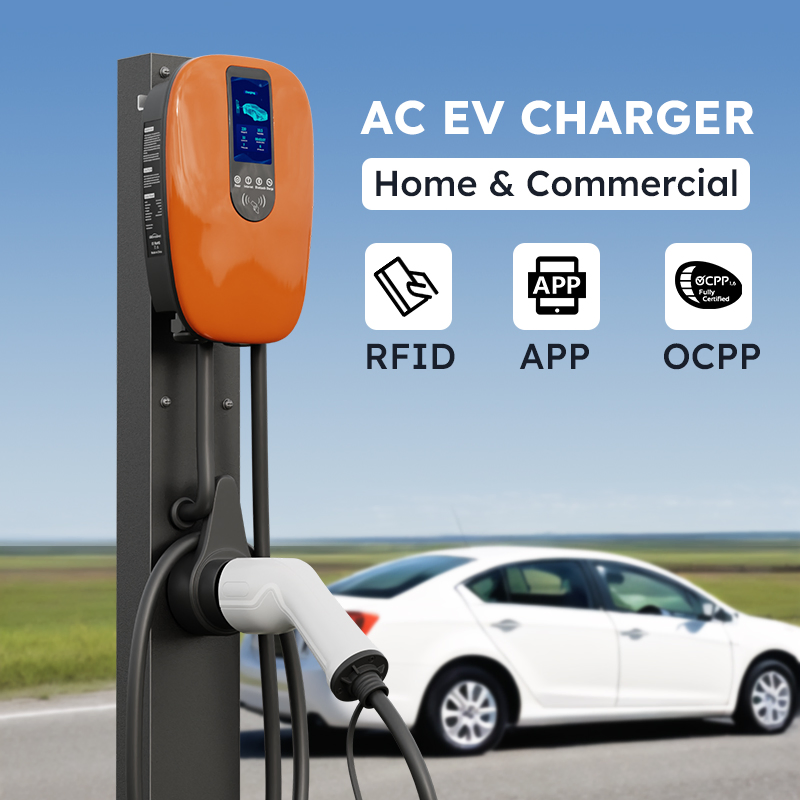

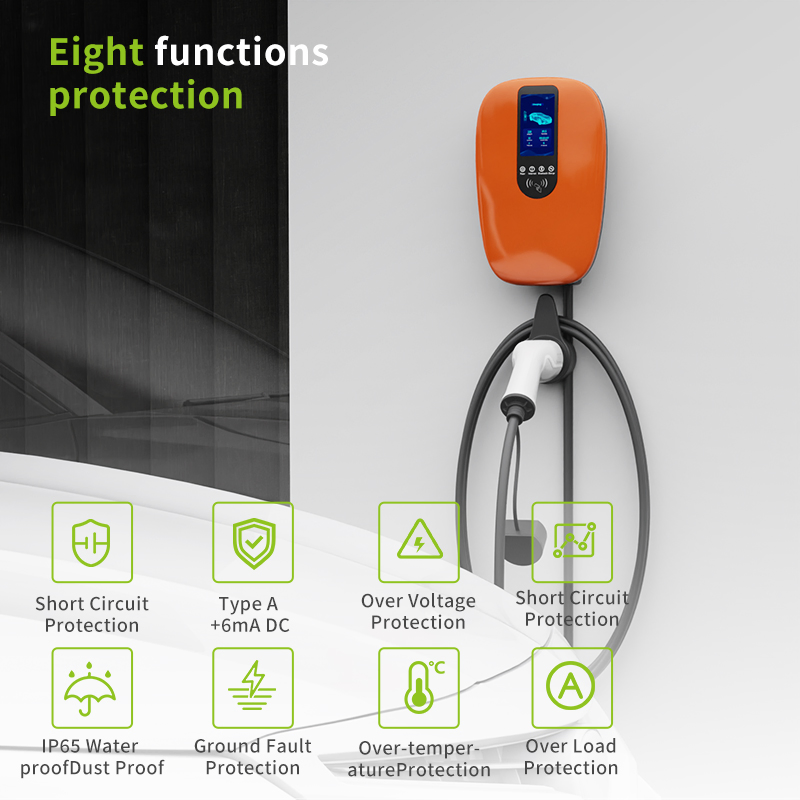

22kw GB/T AC EV Charger Fast Charging Station CE RoHS IP65 Ik10

1 / 5

22kw GB/T AC EV Charger Fast Charging Station CE RoHS IP65 Ik10

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

⚙️ Basic Information

Model NO.

GS22-AC-B02

Interfaces

One Pile with One Charge

Location

Private/Commercial Use

Installation

Wall Mounted

Charge Method

Quick Charge

Voltage

380V

Output Power

7/11/22kw

Certification

CE, ISO, RoHS

Impact Protection

Ik10

Warranty

12 Months

📦 Packaging & Delivery

Package Size

52.00cm * 35.00cm * 29.00cm

Gross Weight

10.000kg

🔍 Product Description

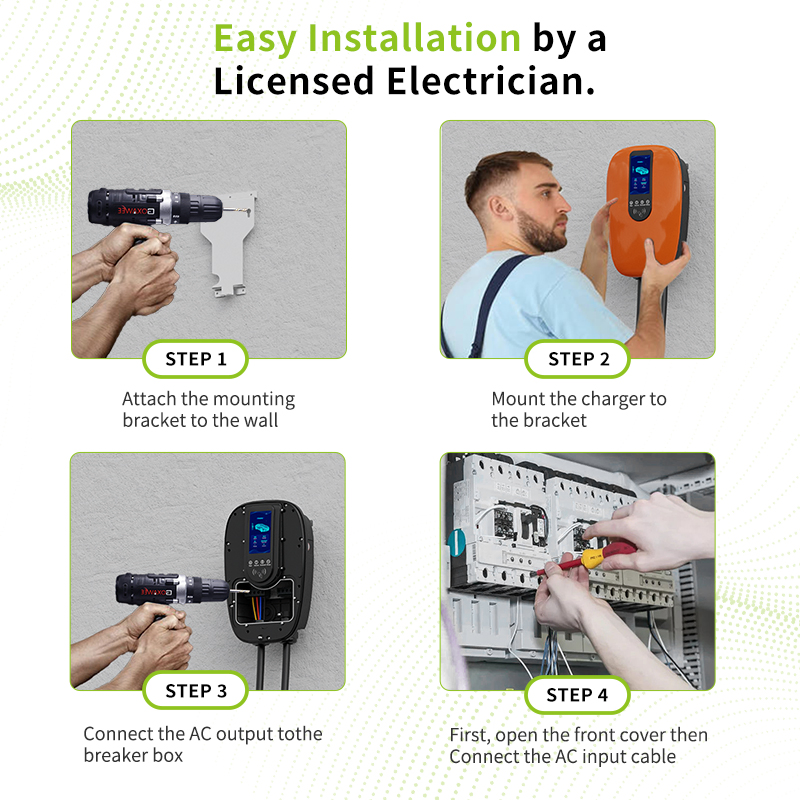

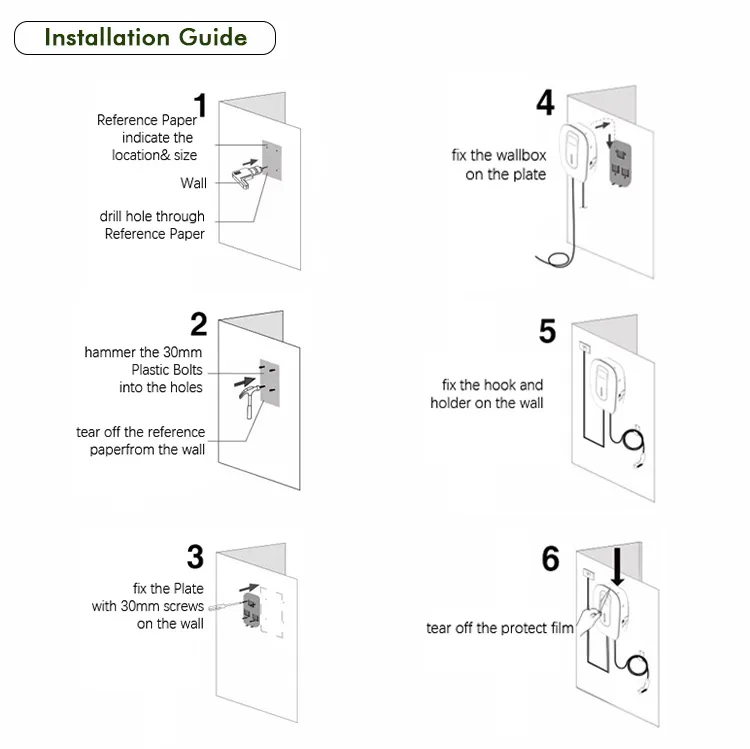

🛠️ Installation Instructions

⚡ Key Features

Dynamic load balancing built in
* Active load management options available;
* Load management can reduce the maximum load of power grid and save electric energy by improving user's power consumption behavior and mode through load adjustment technology.

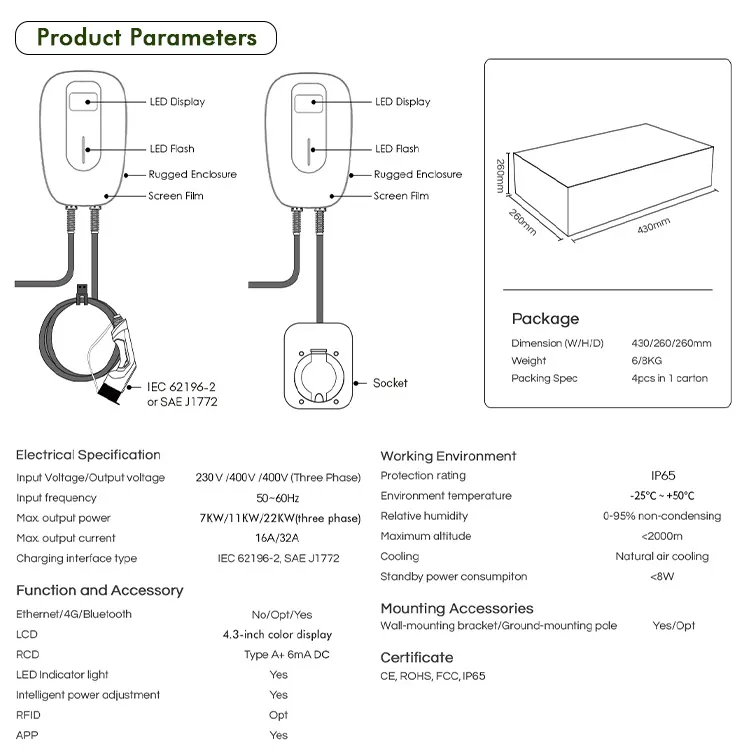

📋 Technical Specifications

Data	Model	GS7-AC-BO2	GS11-AC-BO2	GS22-AC-BO2
Input	Power Supply	1P+N+PE	3P+N+PE	3P+N+PE
	Rated Voltage	230V AC	400V AC	400V AC
	Rated Current	32A	16A	32A
Output	Output Voltage	230V AC	400V AC	400V AC
	Output Current	32A	16A	32A
	Rated Power	7KW	11KW	22KW
User Interface	Charging Port	Type 2
	LED Indicator	Yellow/Green/Red

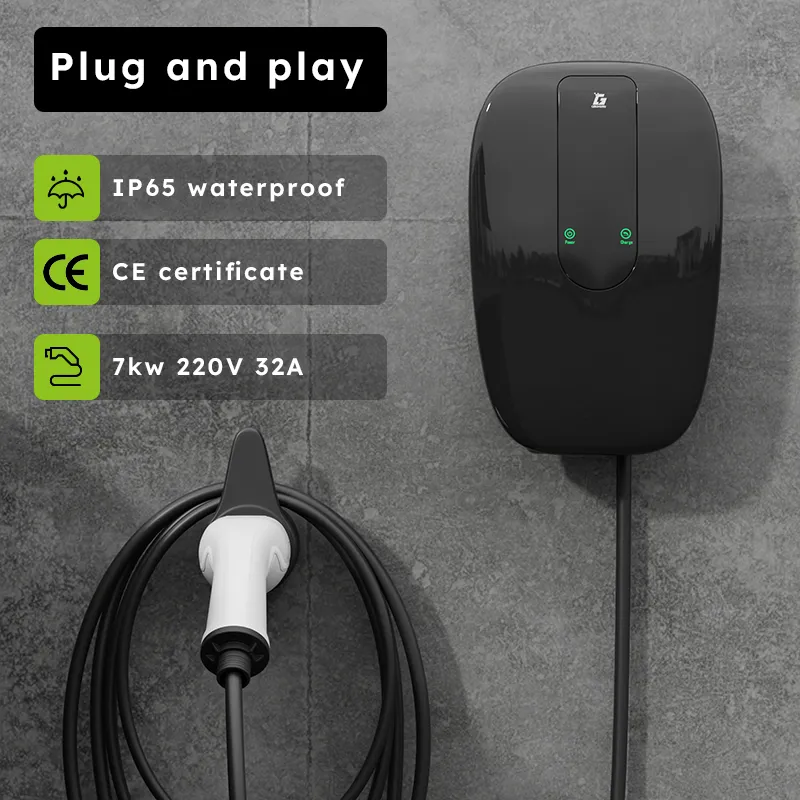

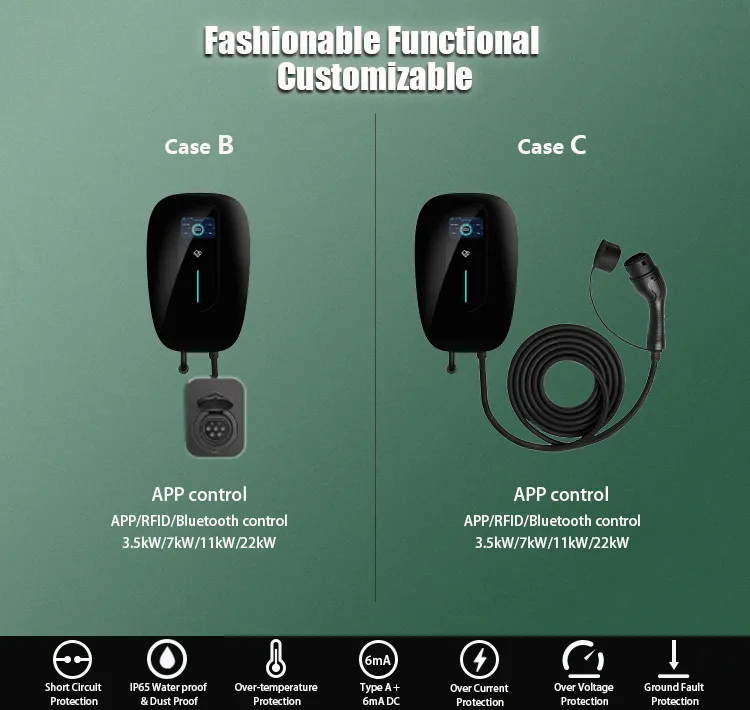

	Start Mode	Plug&Play / RFID Card / APP

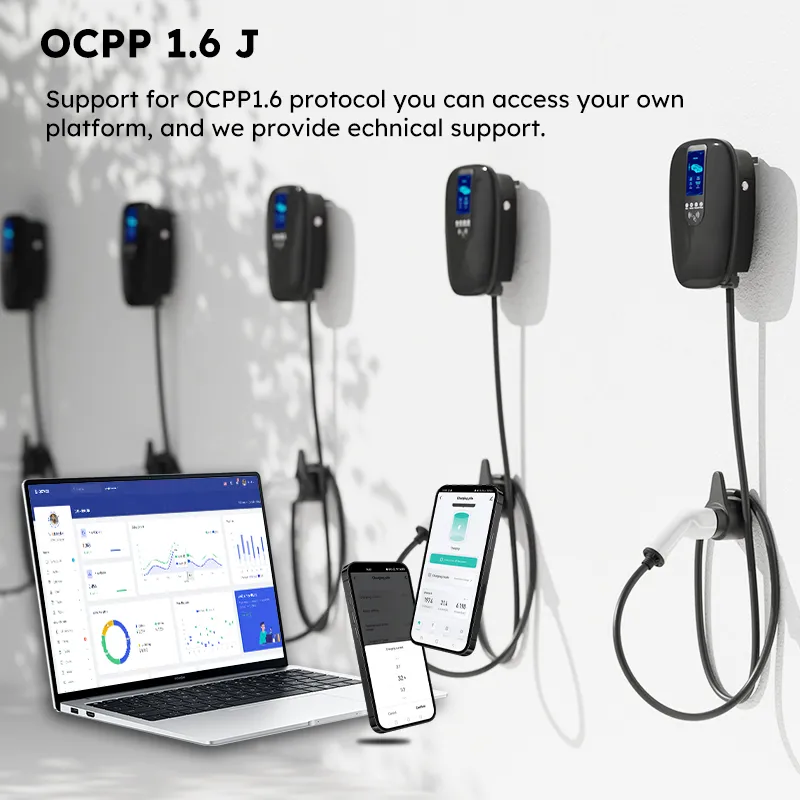

Communication	OCPP	OCPP 1.6 Json (OCPP 2.0 Optional)
Communication	Connectivity	WIFI / 3G / 4G / 5G (Optional)

❓ Frequently Asked Questions

What are the available power outputs for this charging station?

This series offers three power options: 7kW (Single Phase), 11kW (Three Phase), and 22kW (Three Phase) to meet different charging speed requirements.

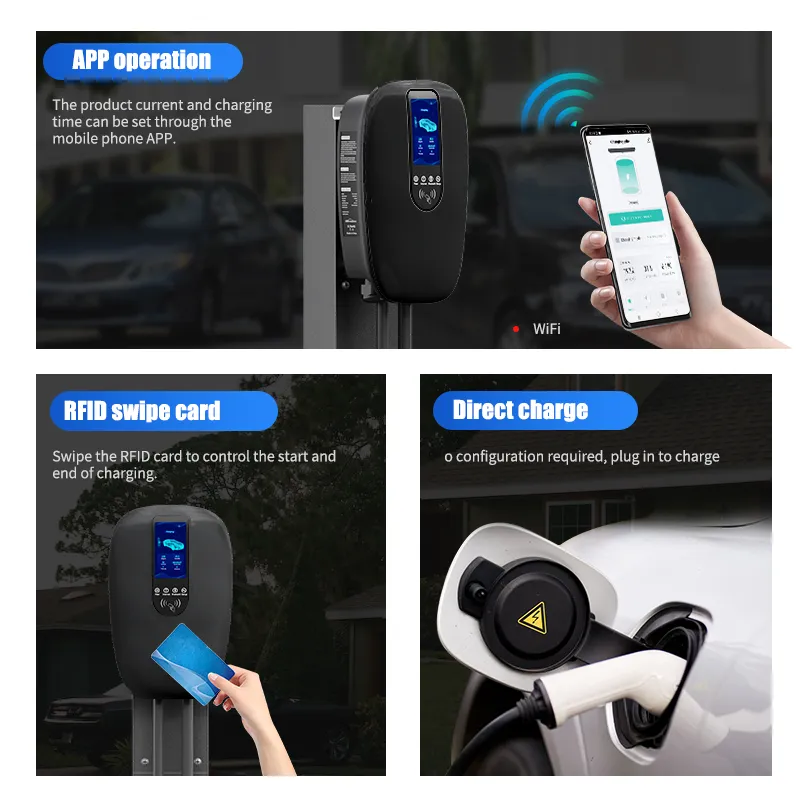

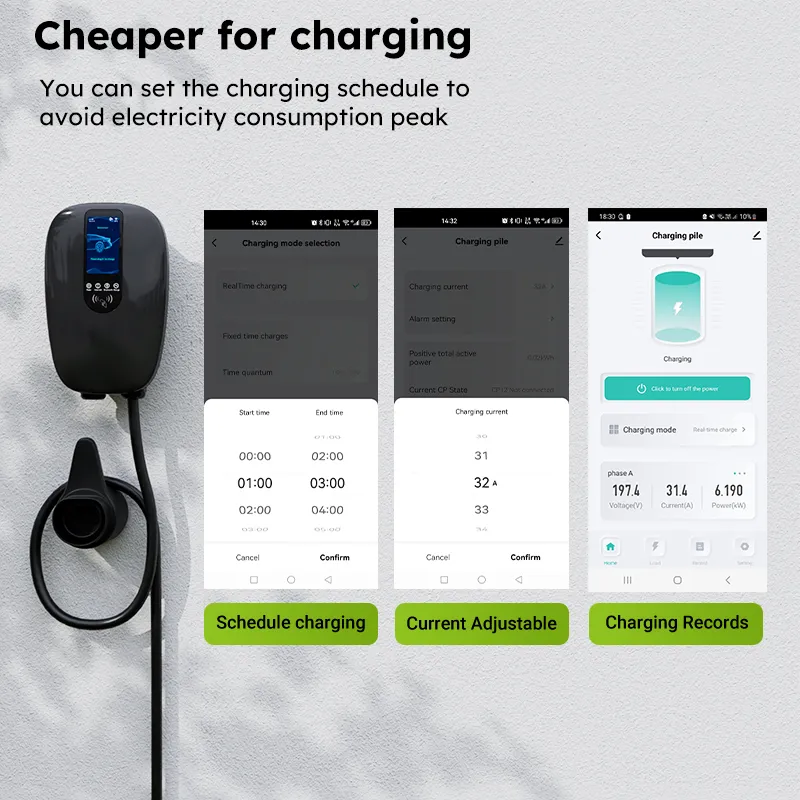

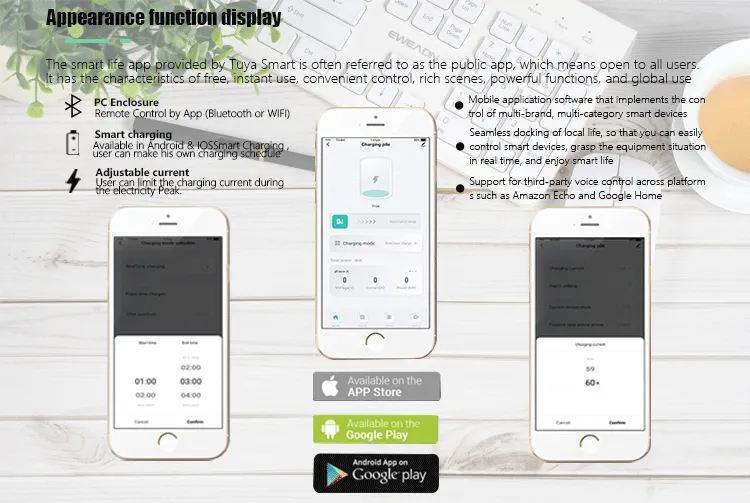

Does the charger support smart control?

Yes, it supports multiple start modes including Plug & Play, RFID card authentication, and APP control. It also supports OCPP 1.6 Json for management integration.

What is the advantage of the built-in Dynamic Load Balancing?

Dynamic Load Balancing optimizes the power distribution between the charger and other home appliances, preventing grid overload and potentially saving on energy costs.

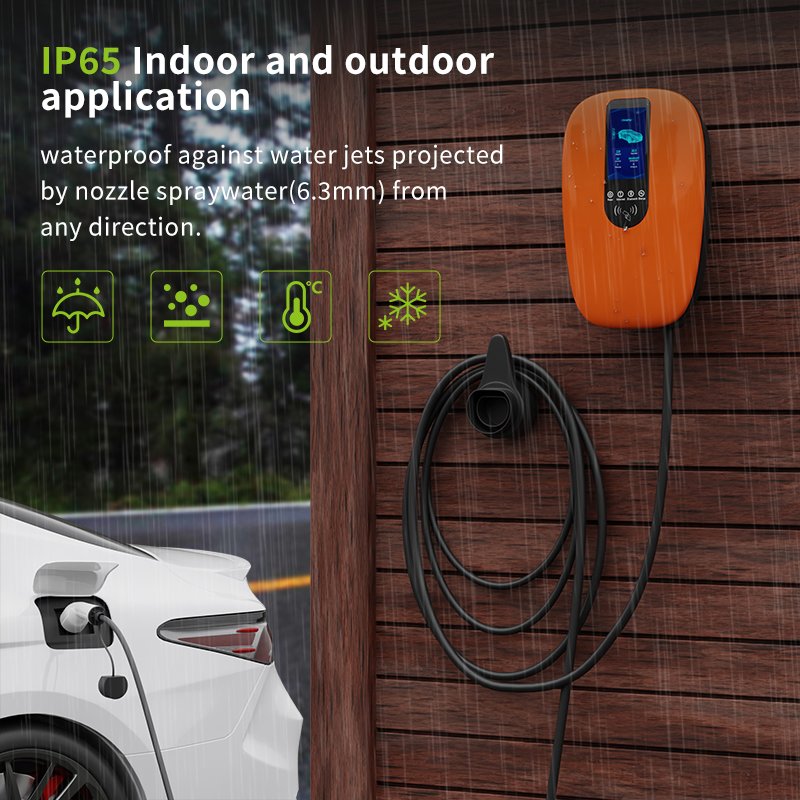

Can this EV charger be installed outdoors?

Yes, the station is designed for durability with an IK10 impact protection rating and high-level ingress protection, making it suitable for both indoor and outdoor wall-mounted installation.

What type of vehicles is this charger compatible with?

It features a standard Type 2 charging port, which is compatible with the vast majority of modern electric vehicles in Europe and other regions using Type 2 standards.

Is the charging cable length customizable?

Standard lengths include 3.5m, 4m, 5m, and 10m. Customized lengths are also available to suit specific installation site requirements.
