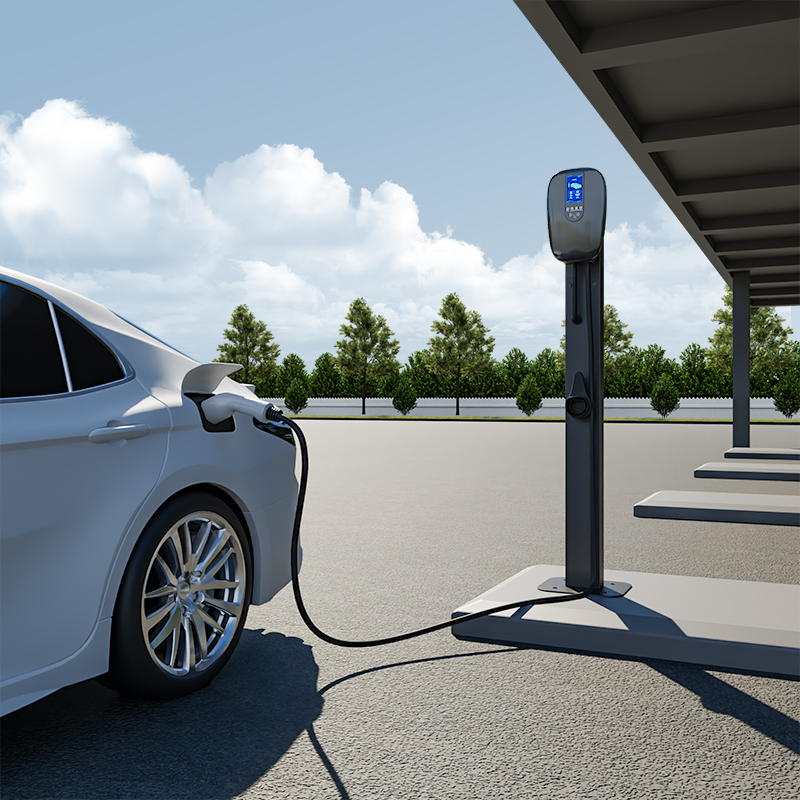

22kw Type 2 EV Wallbox Charger, Fast Charging IP65 EU Plug

1 / 5

22kw Type 2 EV Wallbox Charger, Fast Charging IP65 EU Plug

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

GS22-AC-B02

Charging Interfaces

One Pile with One Charge

Installation

Wall Mounted

Charge Method

Quick Charge

Product Name

AC EV Charging Station

Voltage

230V / 400V

Output Power

7/11/22kw

Function

APP Control / RFID Card Optional

Cable Length

5 meters / Customized

Certification

CE, ISO, RoHS

Impact Protection

IK10

Warranty

12 Months

Product Description

⚙️

Dynamic Load Balancing Built-in

Active load management options available. Load management reduces the maximum load of the power grid and saves energy by improving consumption behavior through advanced adjustment technology.

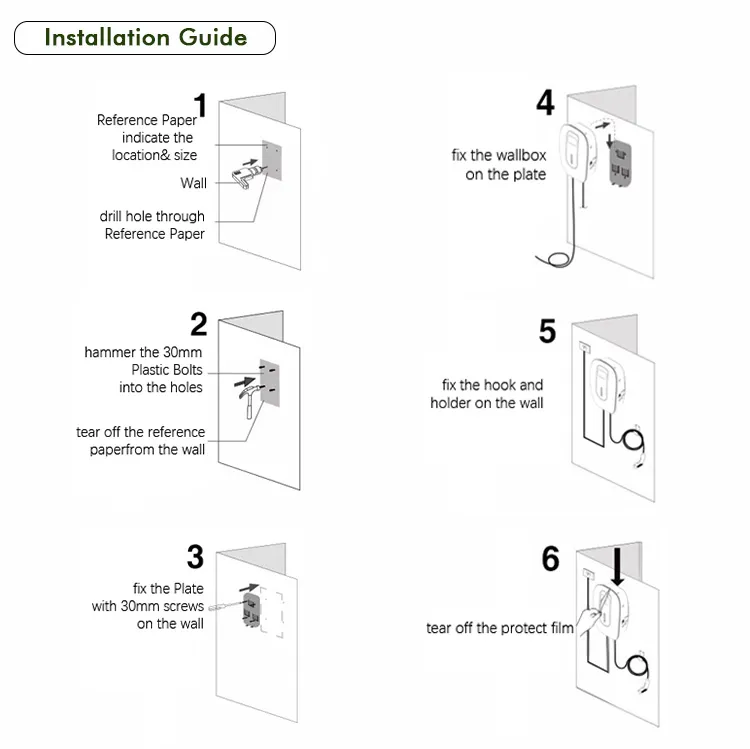

Installation Instructions

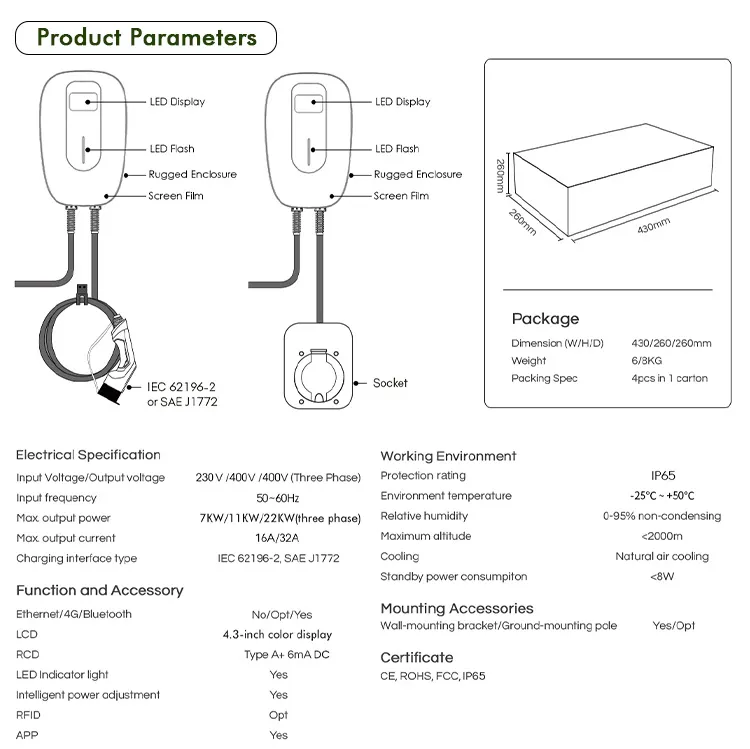

Technical Specifications

Data Category	Model GS7-AC-BO2	Model GS11-AC-BO2	Model GS22-AC-BO2
Power Supply	1P+N+PE	3P+N+PE	3P+N+PE
Rated Voltage	230V AC	400V AC	400V AC
Rated Power	7KW	11KW	22KW
Charging Port	Type 2
Start Mode	Plug & Play / RFID Card / APP
OCPP Support	OCPP 1.6 Json (OCPP 2.0 Optional)
Unit Size	340285147mm

Packaging & Gallery

Frequently Asked Questions

What is the charging capacity of these wallboxes?

We offer three models with different power outputs: 7kW (single-phase), 11kW (three-phase), and 22kW (three-phase), all supporting Type 2 interfaces.

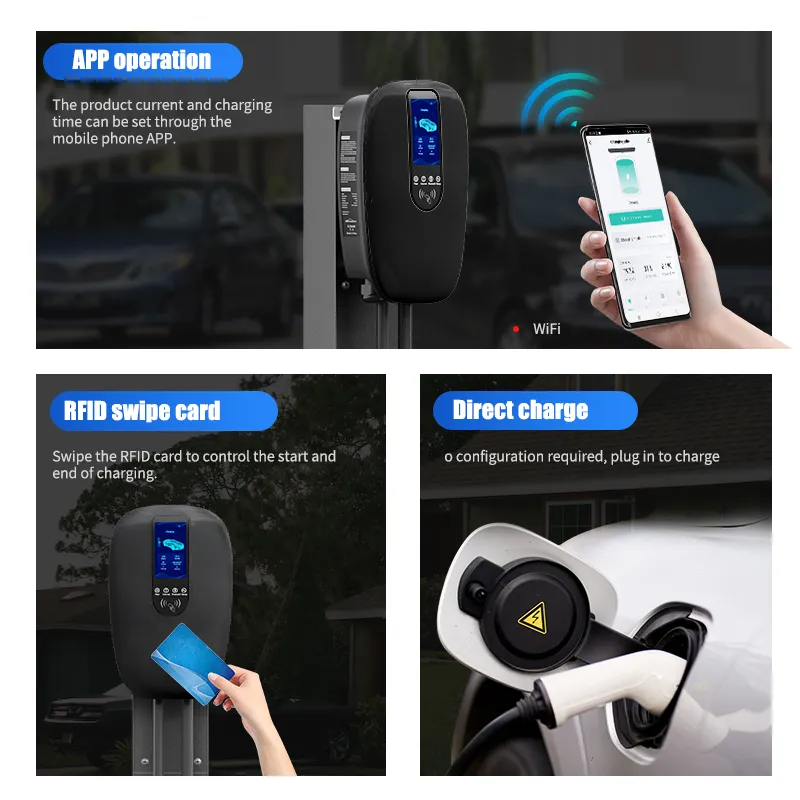

Is the charging station compatible with smart apps?

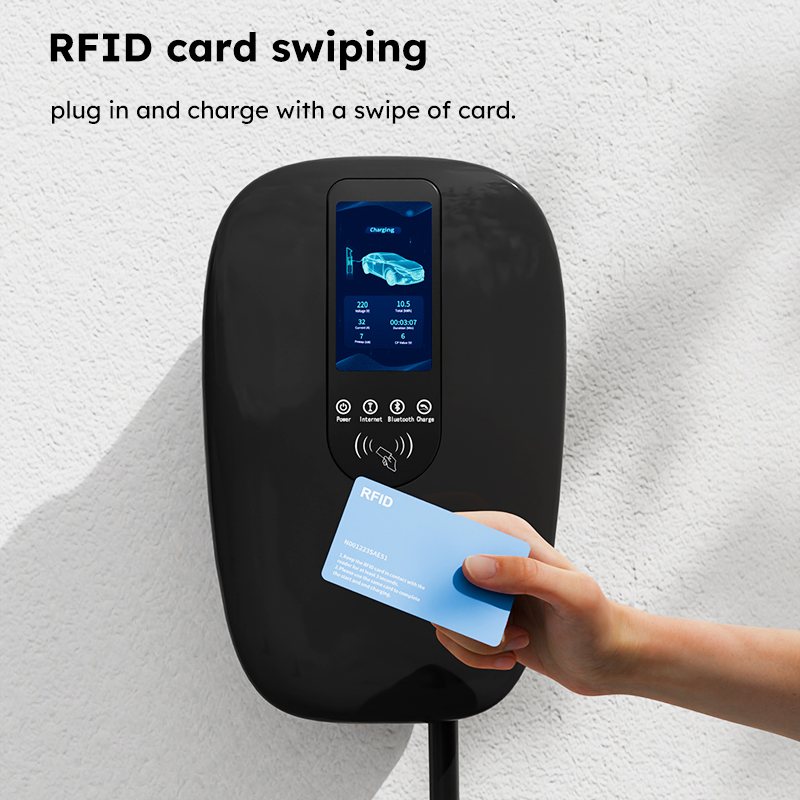

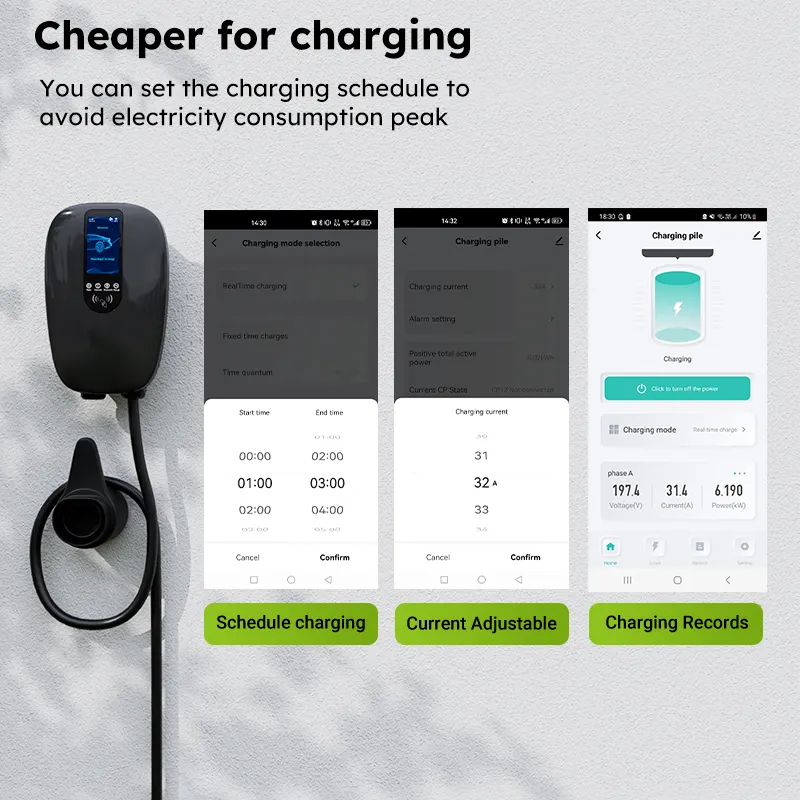

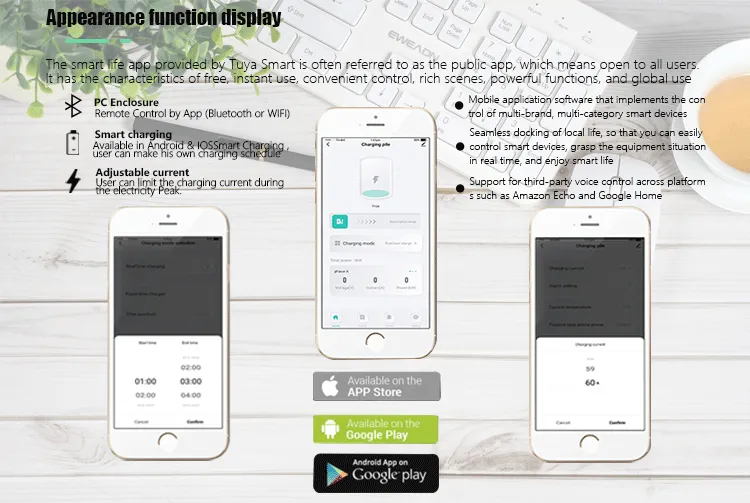

Yes, the charging station supports multiple start modes, including Plug & Play, RFID card access, and full APP control via WIFI or 4G options.

What does Dynamic Load Balancing do?

Dynamic Load Balancing monitors your building's total electricity usage and automatically adjusts the power sent to the EV charger to prevent circuit overload.

Is the charger suitable for outdoor installation?

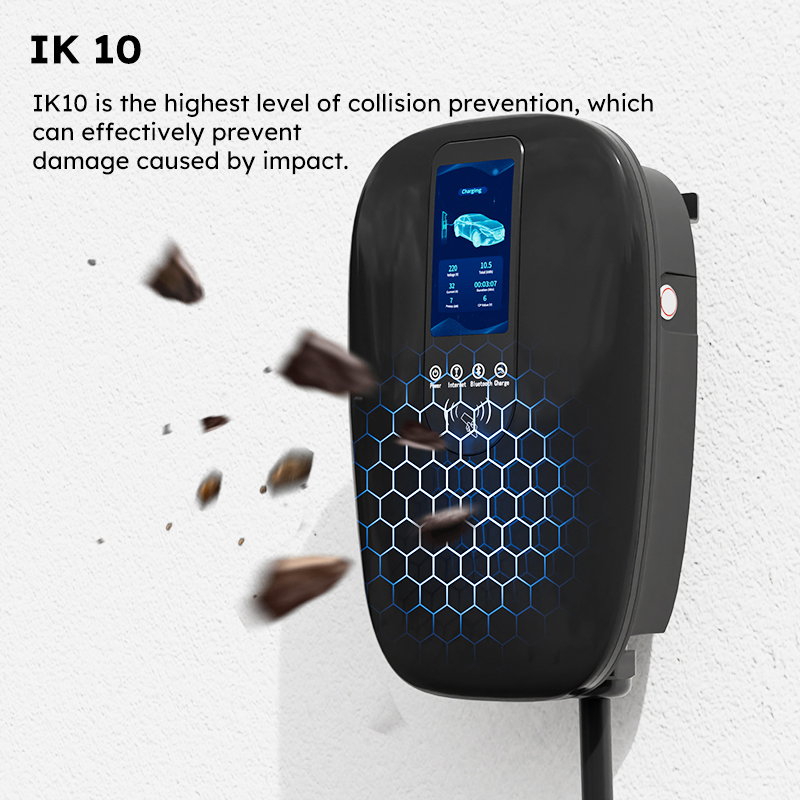

Yes, the device is built to withstand outdoor conditions with an IP65 ingress protection rating and IK10 impact resistance.

What is the standard cable length provided?

The standard cable length is 5 meters. However, we also offer customized lengths such as 3.5m, 4m, or 10m to suit your specific needs.

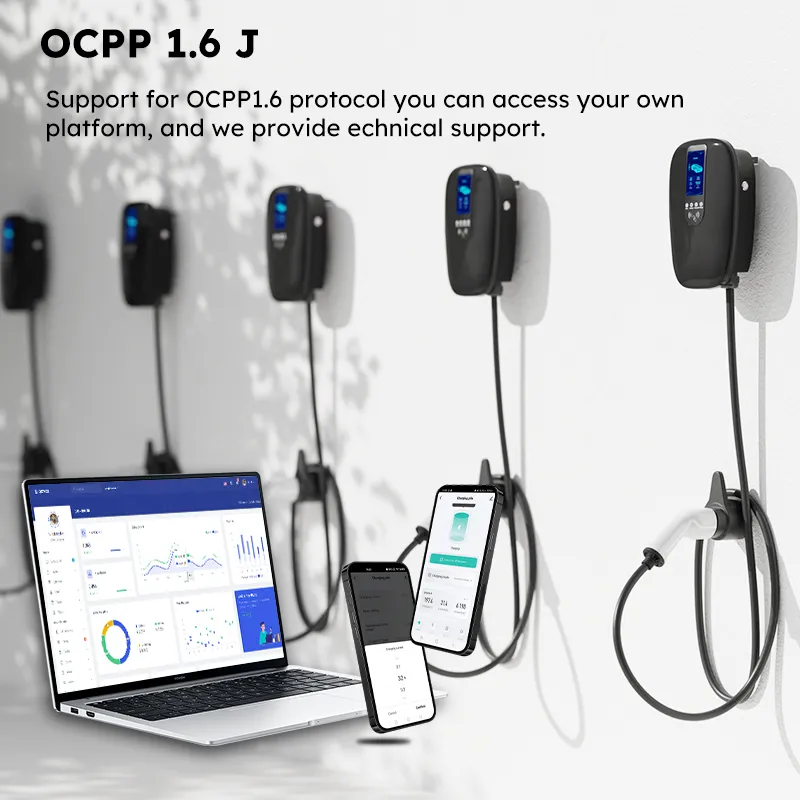

Does the charger support OCPP protocols?

Absolutely. Our stations support OCPP 1.6 Json as standard, making them compatible with various charging management systems, with OCPP 2.0 as an optional upgrade.
