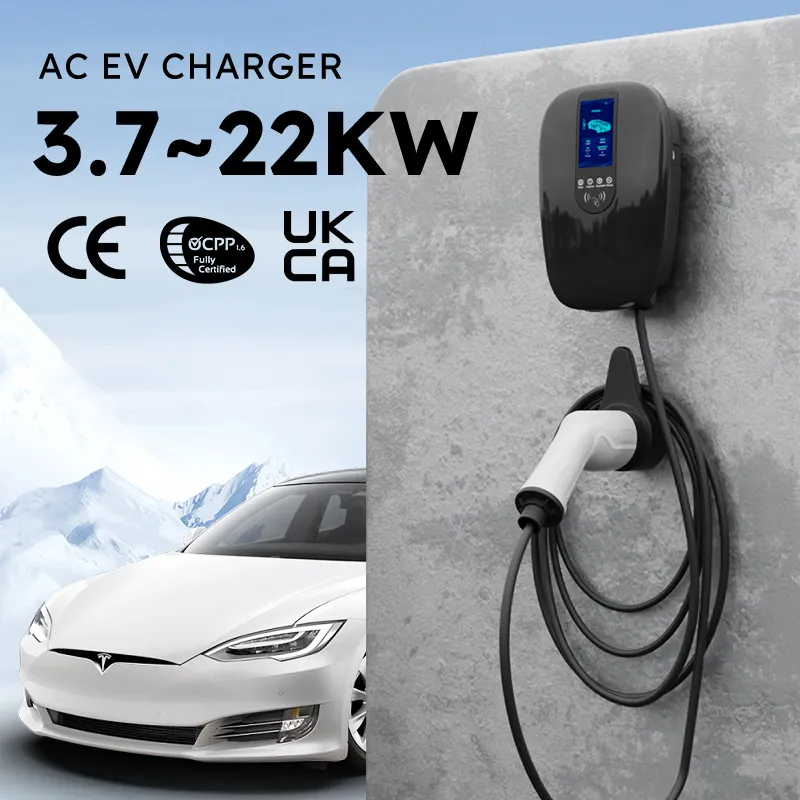

7kw Fast Charging Wallbox EV Charger, Type 2 EU Plug IP65

1 / 5

7kw Fast Charging Wallbox EV Charger, Type 2 EU Plug IP65

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

GS7-AC-B02

Interfaces

One Pile with One Charge

Location

Private/Commercial Use

Installation

Wall Mounted

Charge Method

Quick Charge

Product Name

AC EV Charging Station

Voltage

230V

Color

Black White Orange Optional

Function

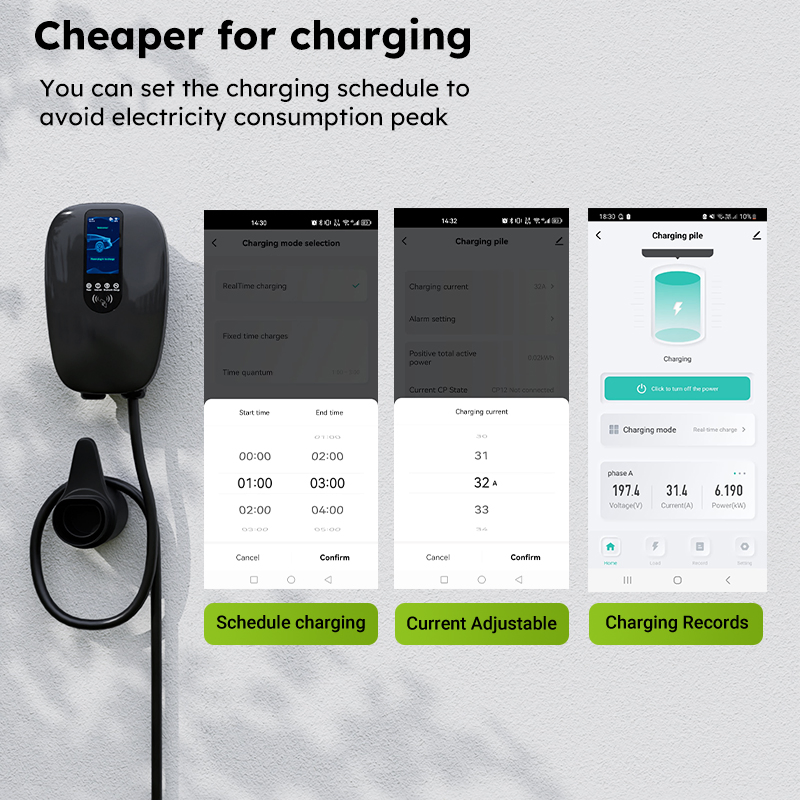

APP Control RFID Card Optional

Output Power

7/11/22kw

Cable Length

5meters/ Customized

Type

Fast EV Charging Station

Certification

CE, ISO, RoHS

Warranty

12 Months

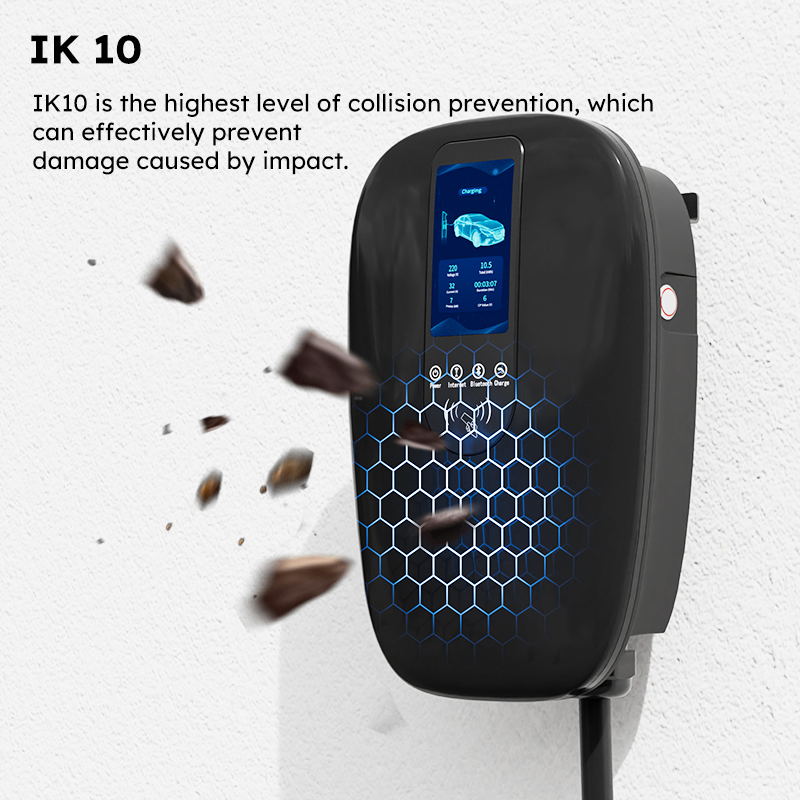

Impact Protection

Ik10

Package Size

52.00cm * 35.00cm * 29.00cm

Product Description

Dynamic Load Balancing Built-in

* Active load management options available;

* Load management can reduce the maximum load of the power grid and save electric energy by improving power consumption behavior and mode through load adjustment technology. This effectively reduces power investment and operating costs.

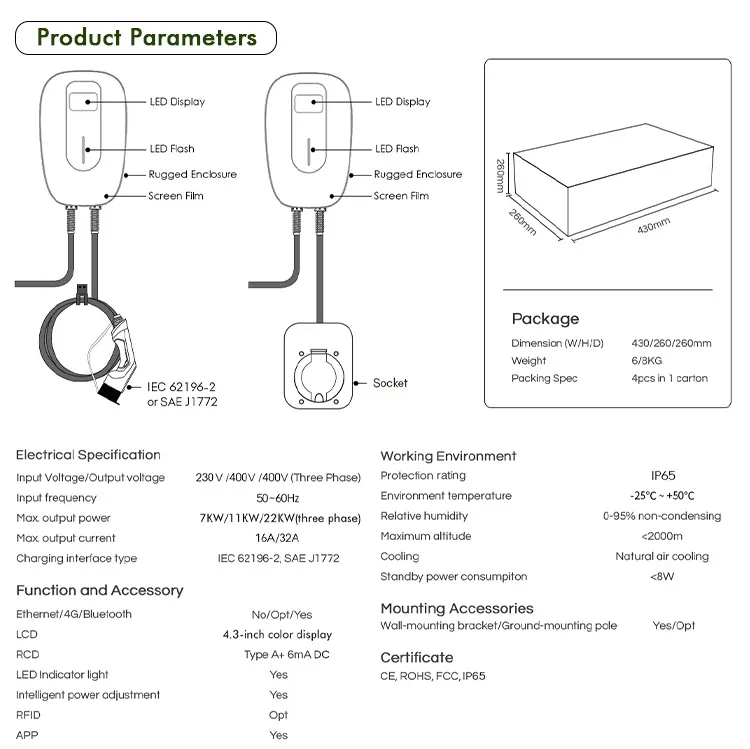

Technical Specifications

Data Item	GS7-AC-BO2	GS11-AC-BO2	GS22-AC-BO2
Power Supply	1P+N+PE	3P+N+PE	3P+N+PE
Rated Voltage	230V AC	400V AC	400V AC
Rated Current	32A	16A	32A
Rated Power	7KW	11KW	22KW
Charging Port	Type 2
Cable Length	3.5M/4M/5M/10M

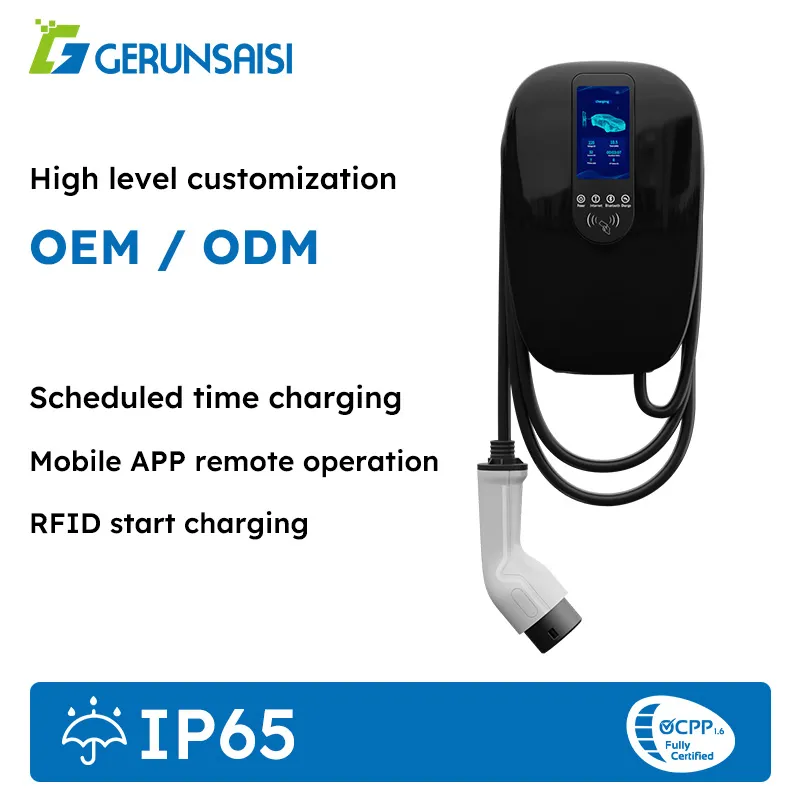

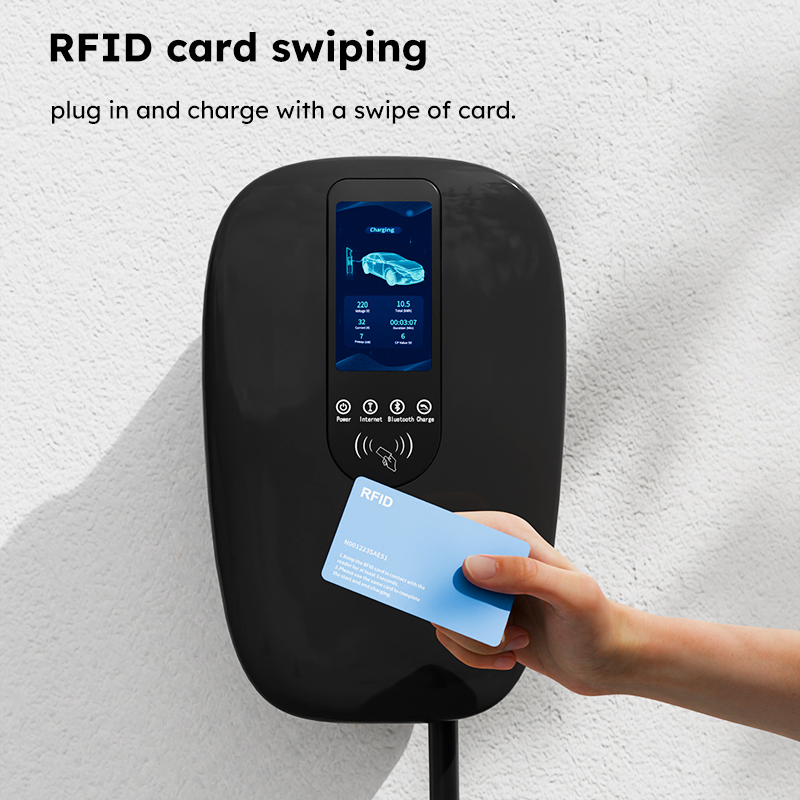

Start Mode	Plug&Play / RFID Card / APP

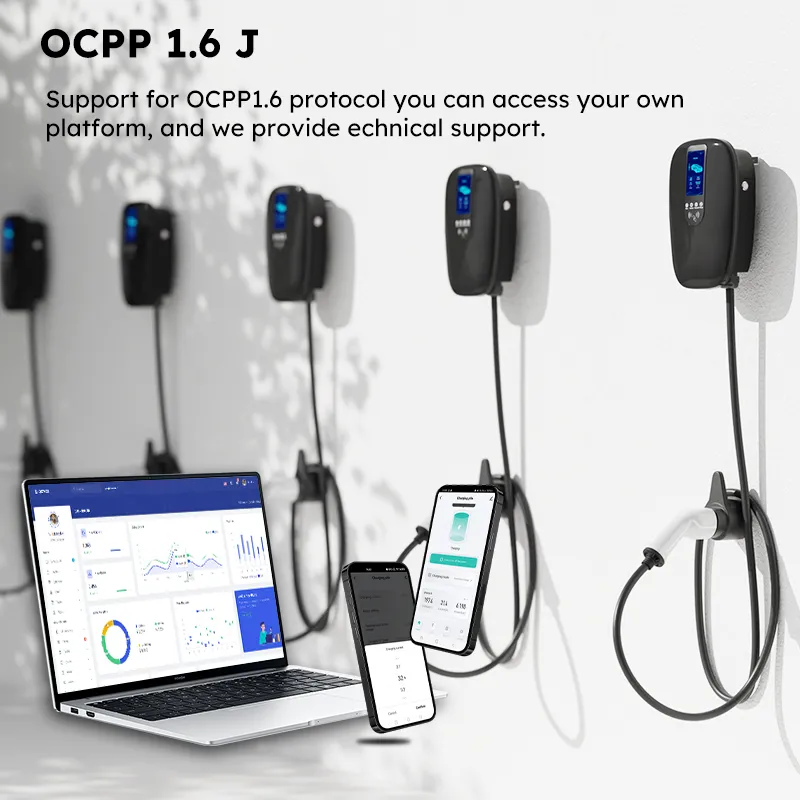

OCPP	OCPP 1.6 Json (OCPP 2.0 Optional)

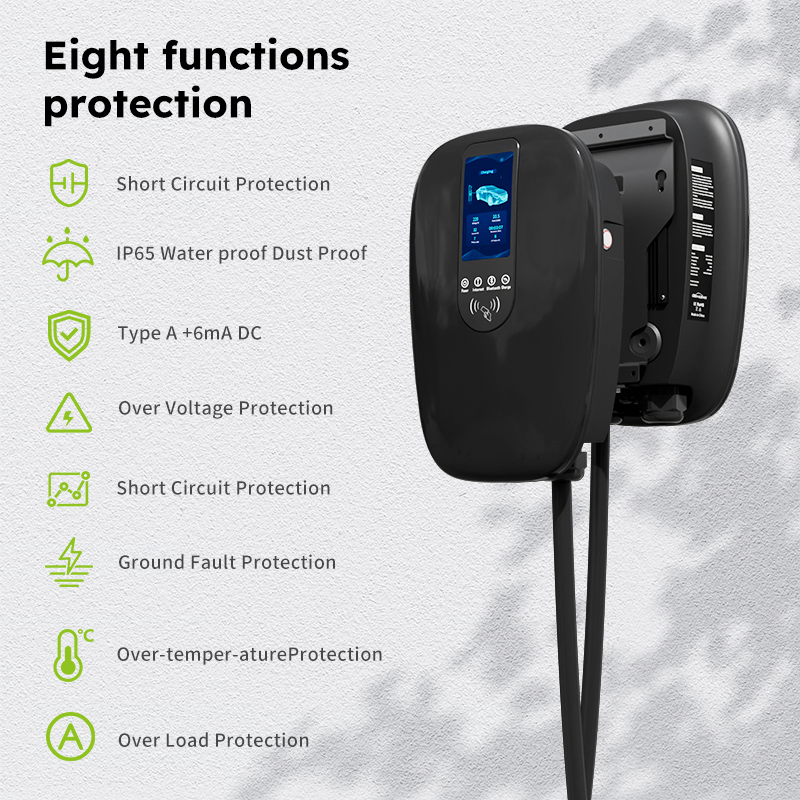

Protection	Emergency Stop, IK10

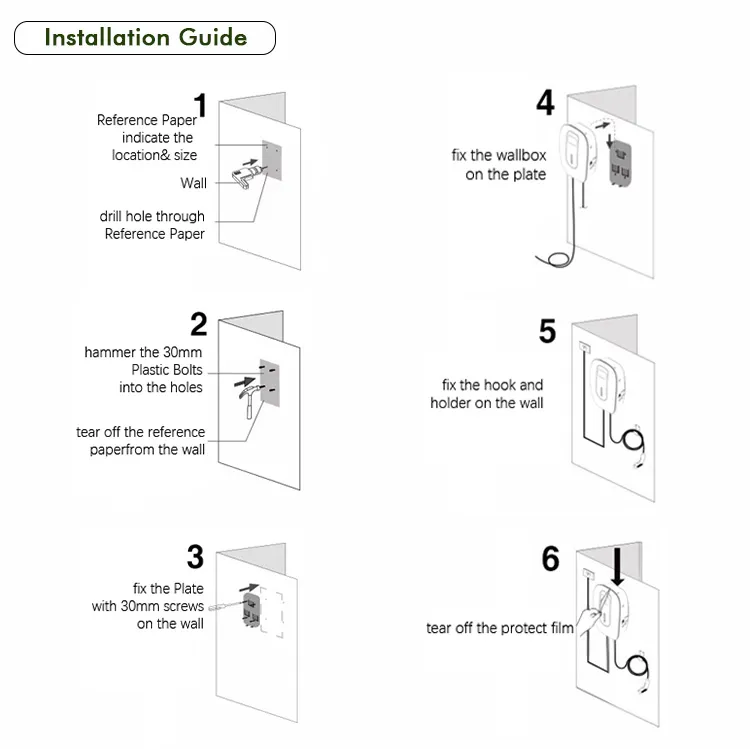

Installation Instructions

Capability & Design

Frequently Asked Questions

What are the available power ratings for this EV charger?

This series is available in three power output options: 7kW (Single-phase), 11kW (Three-phase), and 22kW (Three-phase) to meet different charging speed requirements.

Does the charger support mobile app control?

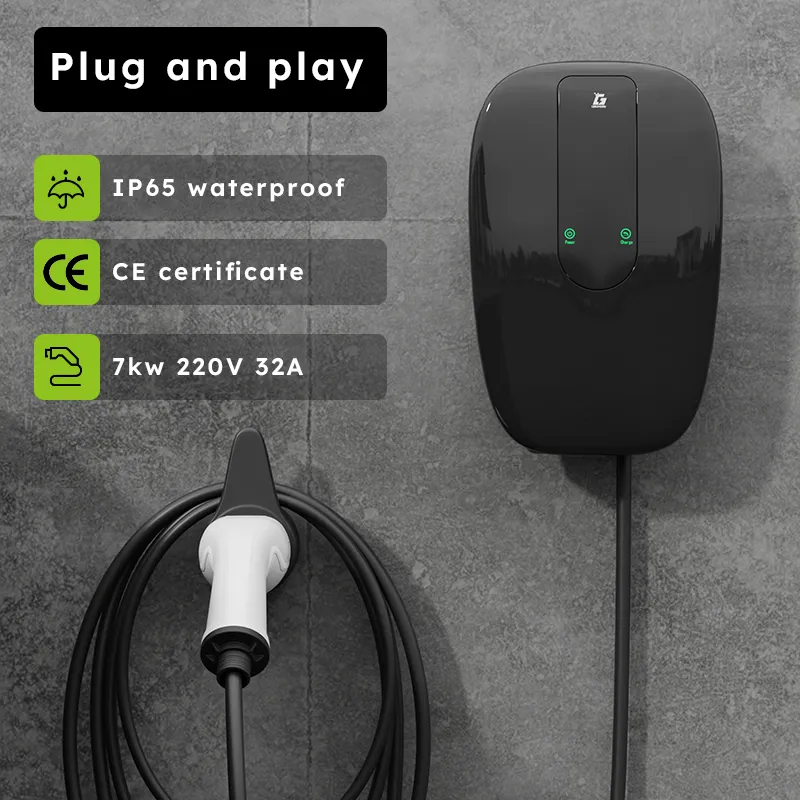

Yes, the station supports APP control along with RFID card and Plug & Play start modes for maximum flexibility and user convenience.

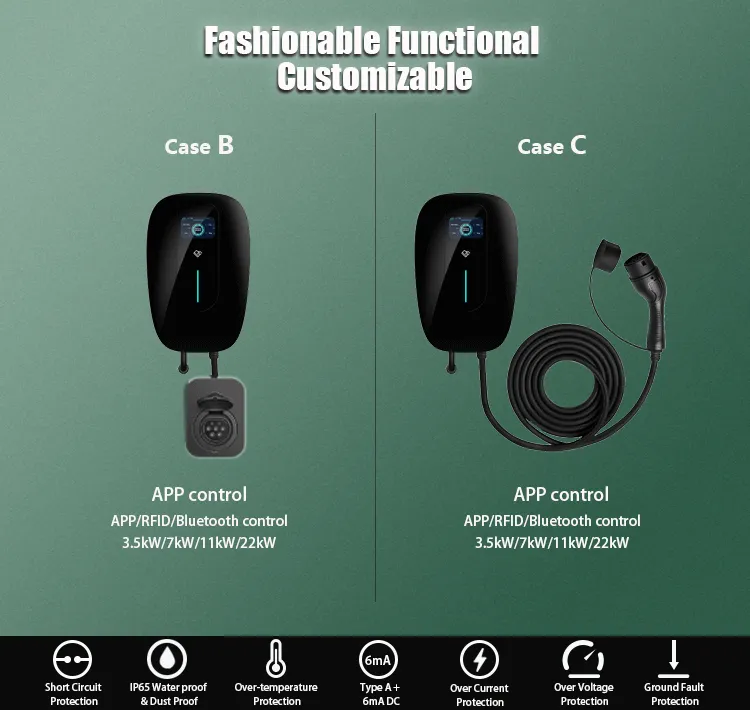

Is this charging station suitable for outdoor installation?

Absolutely. The charger features an IP65 protection rating and IK10 impact protection, making it highly durable against dust, water, and physical impact.

What is the standard cable length provided?

The standard cable length is 5 meters, but we also offer customized lengths including 3.5m, 4m, and 10m based on your specific needs.

What is Dynamic Load Balancing?

Dynamic Load Balancing is a built-in feature that monitors and adjusts the power distribution to prevent overloading your home or facility's electrical system while ensuring the fastest possible charge for your vehicle.

Is this charger compatible with all electric vehicles?

It uses a standard Type 2 charging port, which is compatible with the majority of modern electric vehicles in the European market.
