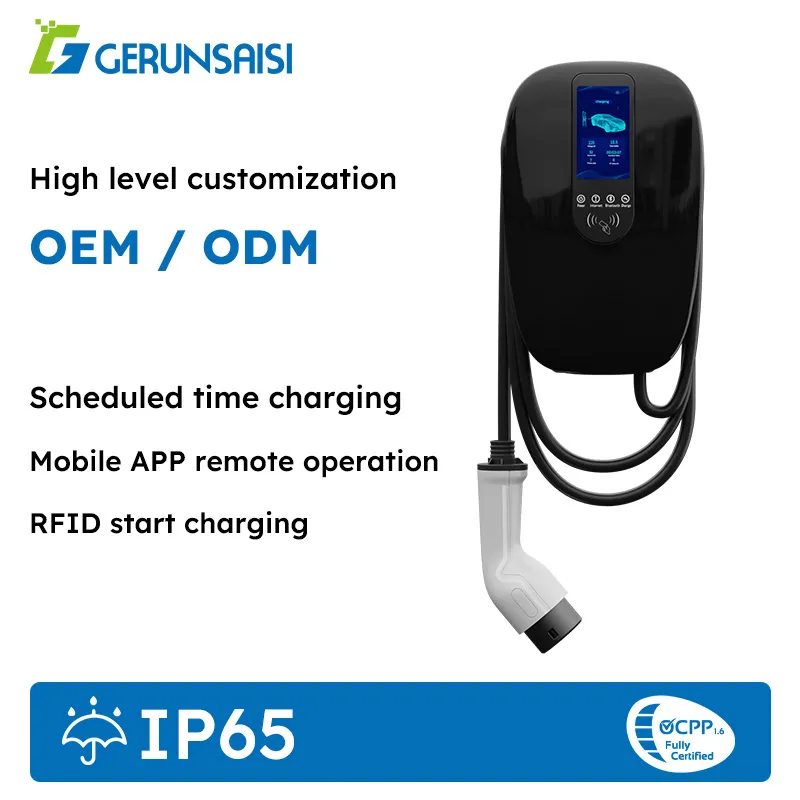

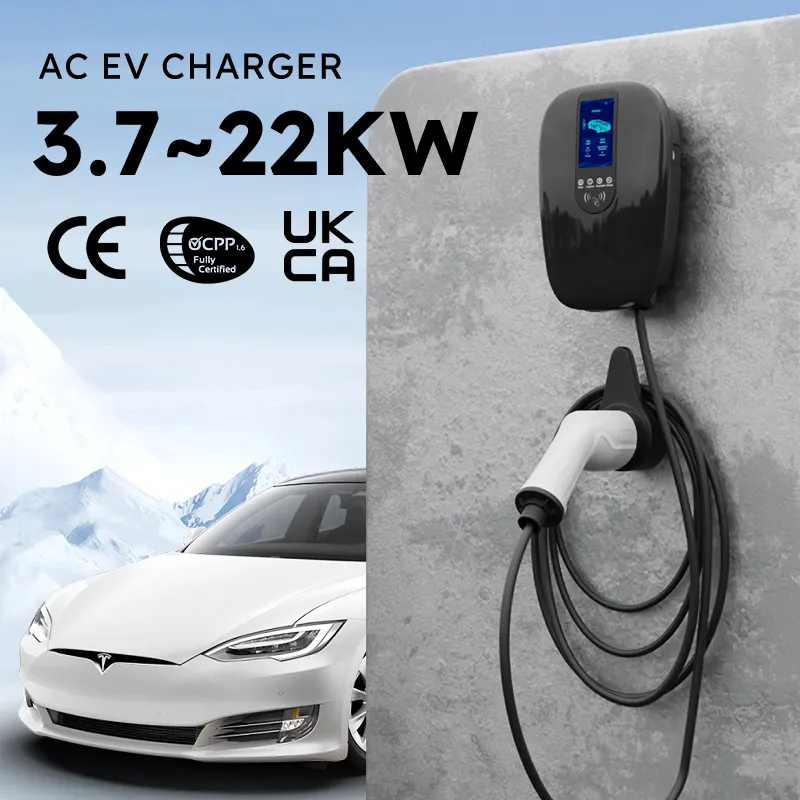

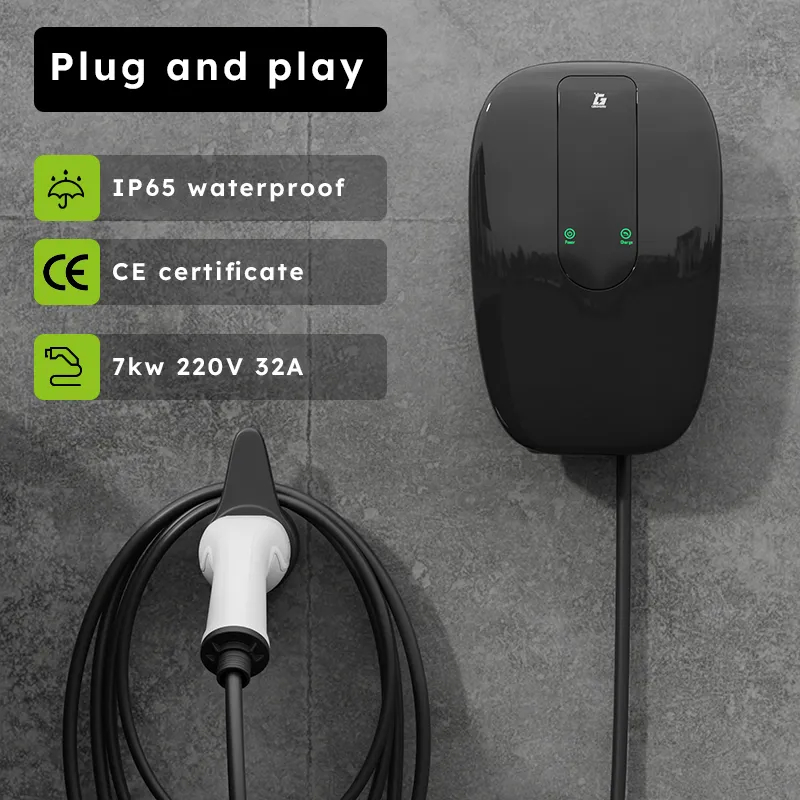

7kw Type 2 Wallbox EV Charger, Fast Charging EU Plug IP65

Overview & Basic Info

Model NO.

GS7-AC-B02

Charging Interfaces

One Pile with One Charge

Location

Private/Commercial Use

Installation

Wall Mounted

Charge Method

Quick Charge

Product Name

AC EV Charging Station

Voltage

230V

Color

Black White Orange Optional

Function

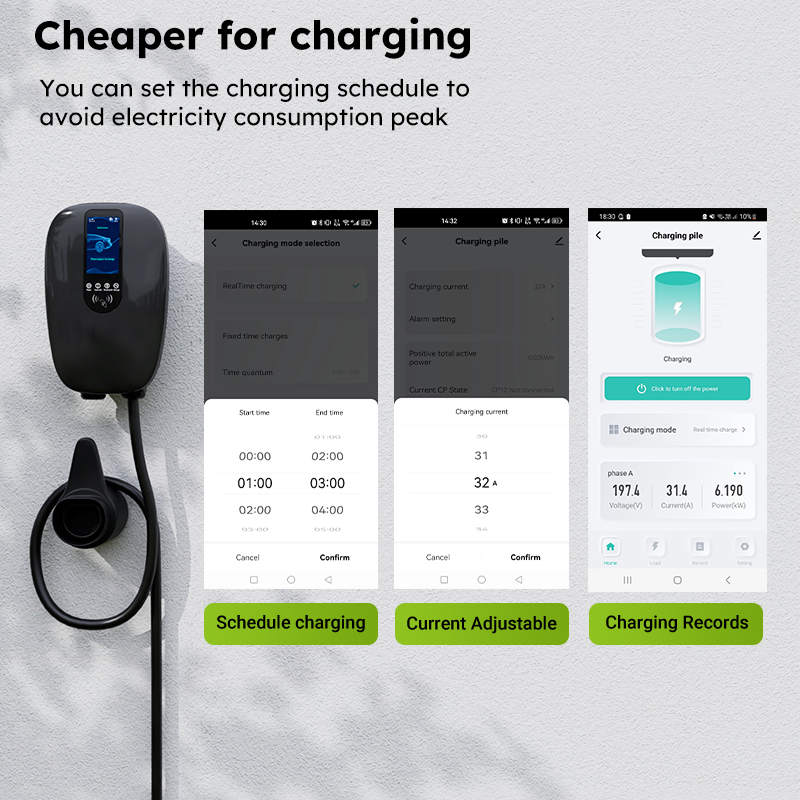

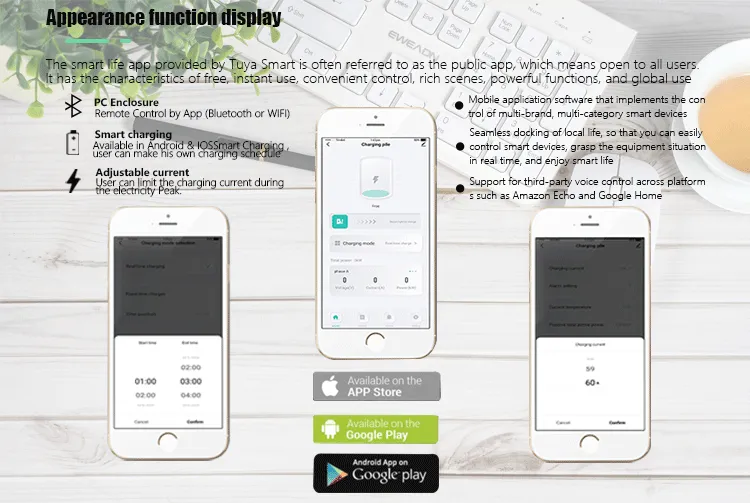

APP Control RFID Card Optional

Output Power

7/11/22kw

Cable Length

5meters/ Customized

Type

Fast EV Charging Station

Certification

CE, ISO, RoHS

Warranty

12 Months

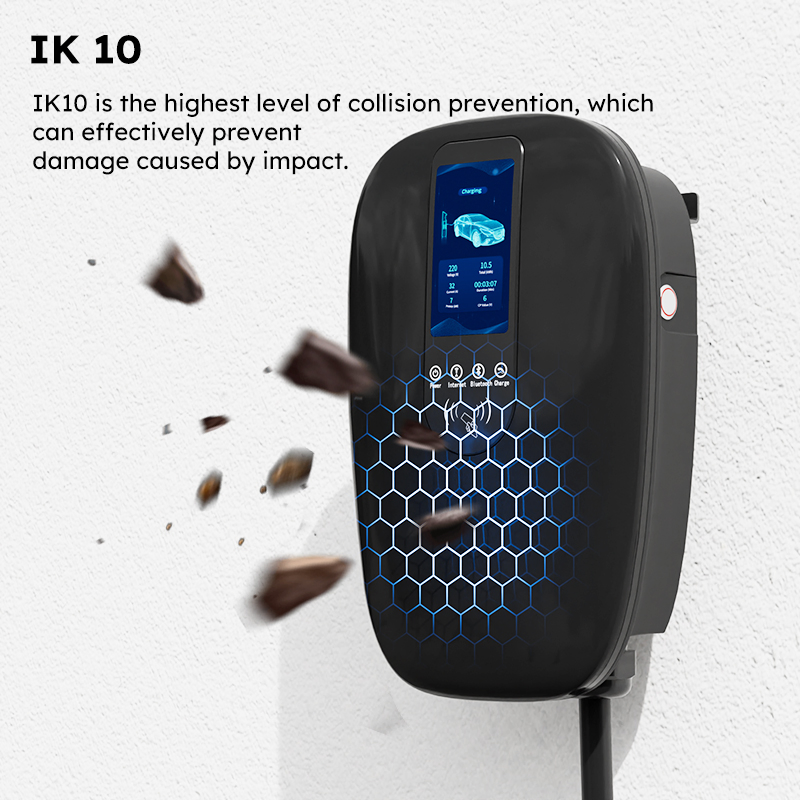

Impact Protection

Ik10

HS Code

8504409999

Production Capacity

10000 Month

Packaging & Delivery

Package Size

52.00cm * 35.00cm * 29.00cm

Package Gross Weight

10.000kg

Product Description

Dynamic Load Balancing Built-in

* Active load management options available;

* Load management can reduce the maximum load of power grid and save electric energy by improving user's power consumption behavior and mode through load adjustment technology. The effect of reducing power investment and operating behavior.

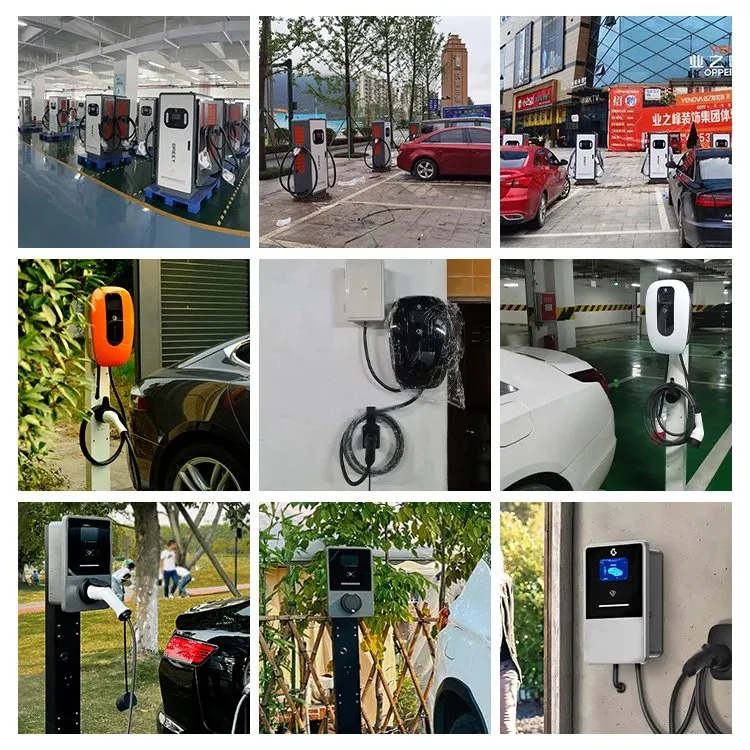

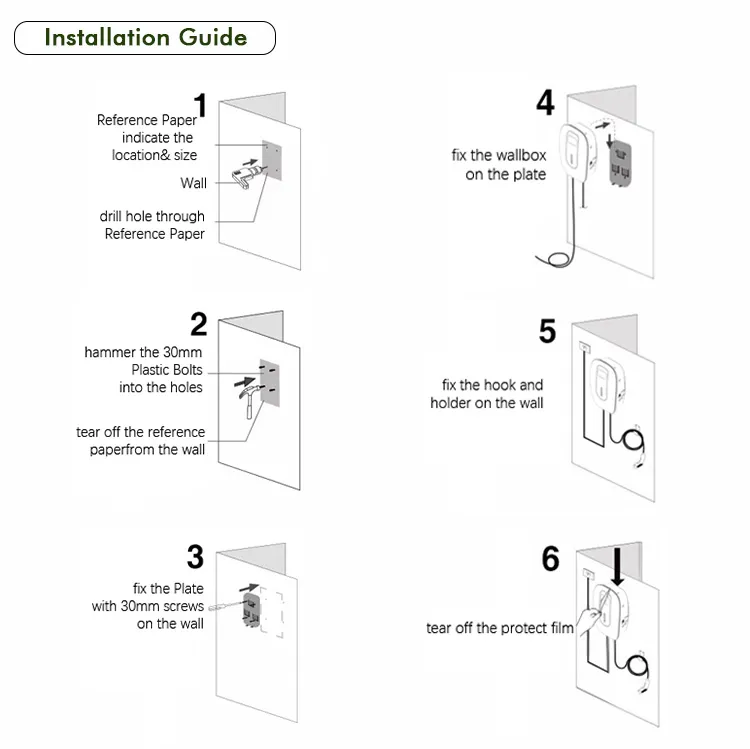

Installation Instructions

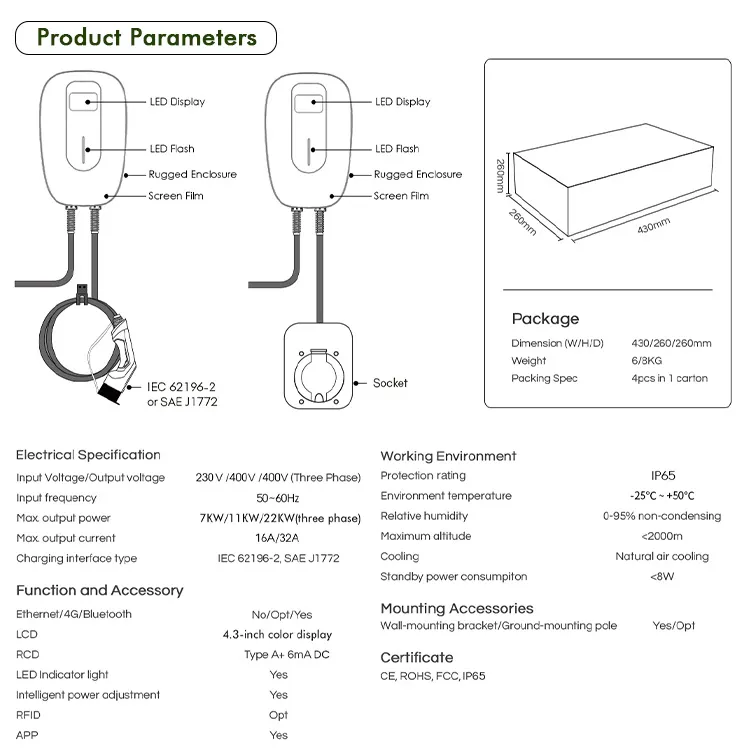

Technical Specifications

Model	GS7-AC-BO2	GS11-AC-BO2	GS22-AC-BO2
Power Supply	1P+N+PE	3P+N+PE	3P+N+PE
Rated Voltage	230V AC	400V AC	400V AC
Rated Current	32A	16A	32A
Rated Power	7KW	11KW	22KW
Charging Port	Type 2

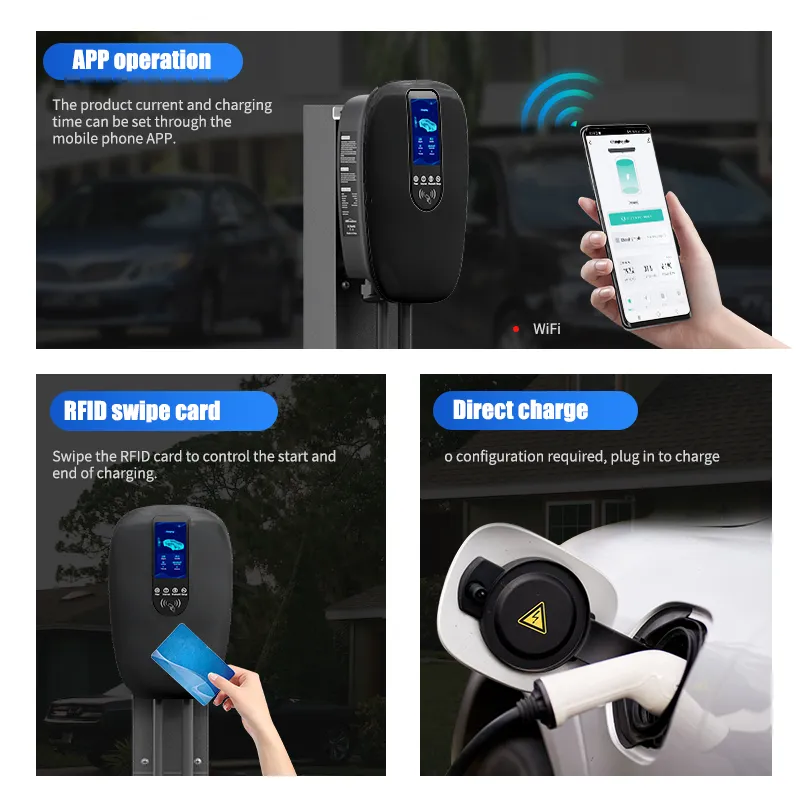

Start Mode	Plug & Play / RFID Card / APP

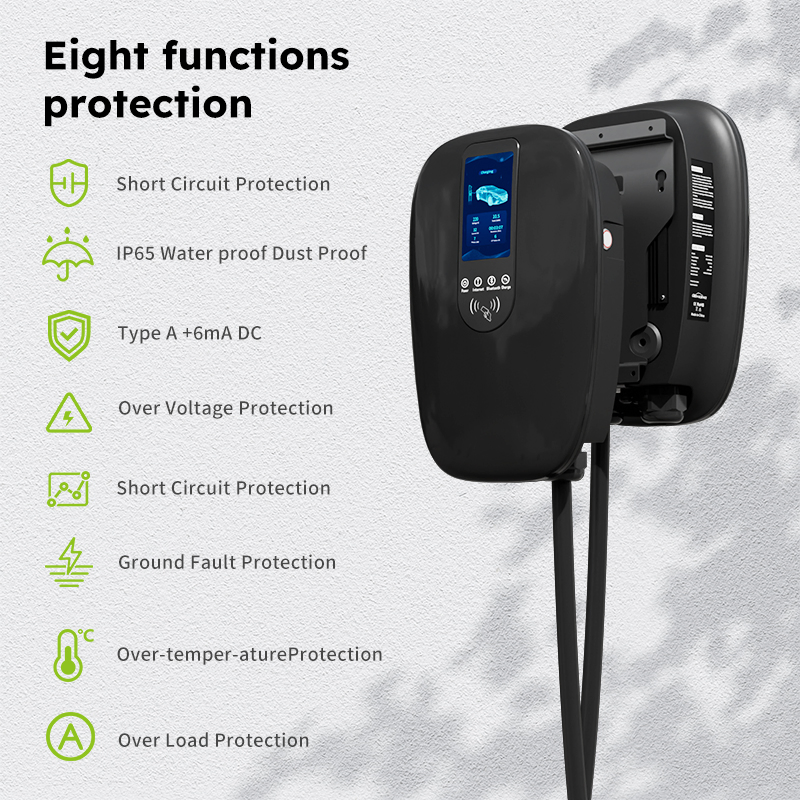

Protection	Emergency Stop, IP65, IK10

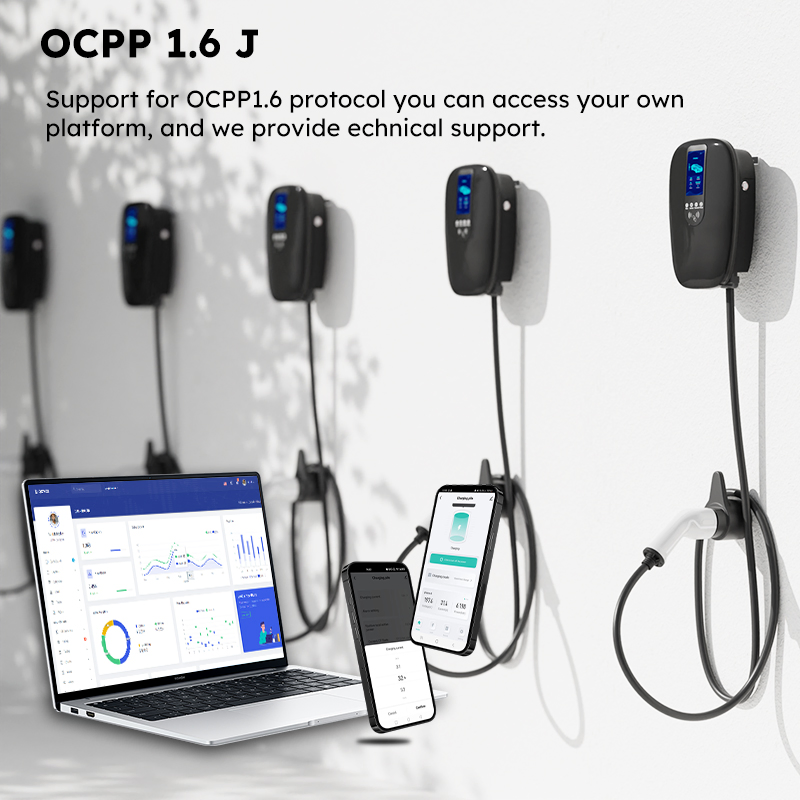

Communication	WIFI / 4G (Optional), OCPP 1.6 Json

Professional Capabilities

Frequently Asked Questions

1. What power options are available for this EV charger?

This station is available in 7kW, 11kW, and 22kW versions to suit both single-phase and three-phase power supplies.

2. Is the charging station suitable for outdoor installation?

Yes, it features an IP65 rating for water and dust resistance, along with IK10 impact protection, making it ideal for outdoor use.

3. How do I start the charging process?

You can choose from three convenient start modes: Plug & Play, RFID card swiping, or via the dedicated mobile application.

4. Does it support smart load balancing?

Yes, it has built-in dynamic load balancing capabilities to manage power consumption and protect your local grid from overloading.

5. What is the standard cable length?

The standard cable length is 5 meters, but we also offer customization options for 3.5m, 4m, or 10m based on your needs.

6. What certifications does the product have?

The product is fully certified with CE, ISO, and RoHS standards, ensuring high safety and quality for international markets.
