Walnut Charger
1 / 5
| Product Model | WE X7 |
| Rated Input/Output Voltage | 220VaC 1P+N+PE |
| Rated Input/Output Current | 32A |
| Output Power | 7kW Max |
| Frequency | 45-65HZ |
| Residual Current Detection | AC 30mA+DC 6mA |
| Standby Power Consumption | 5W |
| Protection Functions | Overcurrent, earth leakage, overtemperature, short-circuit, electrostatic discharge, relay sticking, overvoltage, undervoltage, lightning, overcharge, flame retardant, anti-theft, waterproof, dustproof, ground continuity. |
| Reference Standards | GB/T 18487.1-2023, GB/T 18487.2-2017, GB/T 20234.2-2015, NB/T 33008.2-2018, NB/T 33002-2018 |
| Measurement Accuracy | Level 2 |
| MTBF | 43,800 hours |
| Wireless Connectivity | Bluetooth/4G |
| Human-Machine Interaction | |
|---|---|

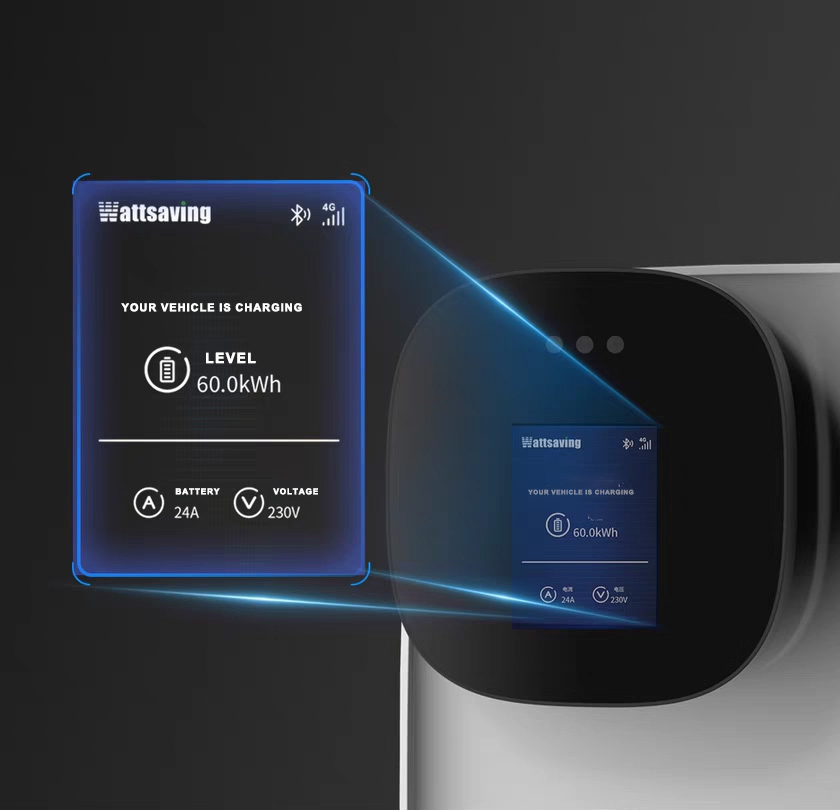

| Display Function | 2.8-inch LCD screen |

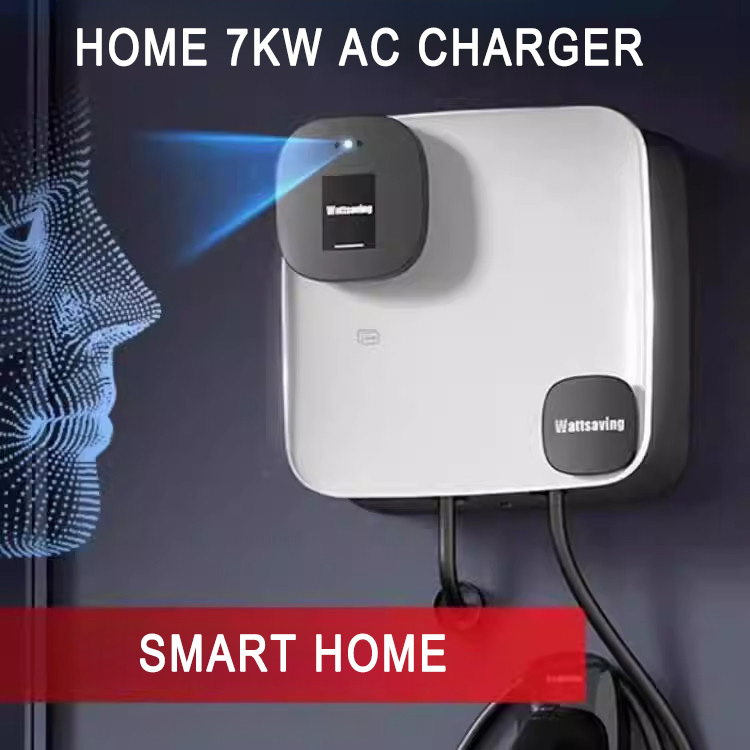

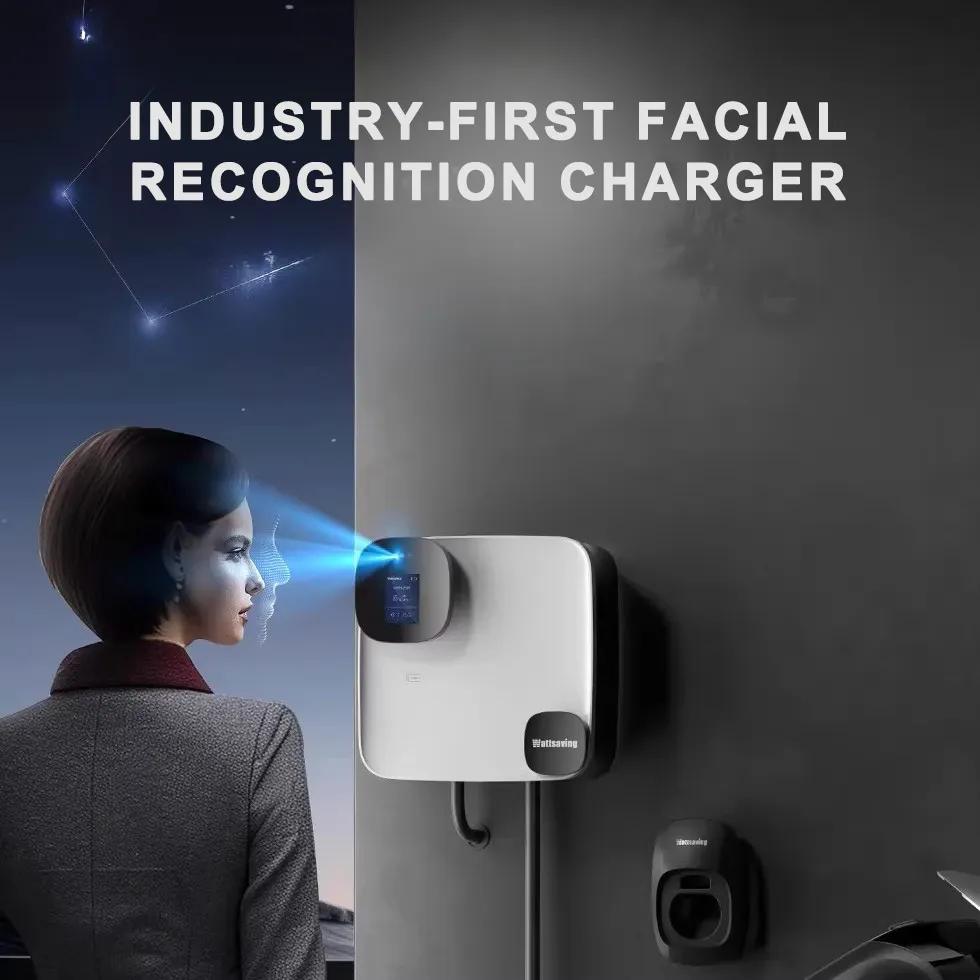

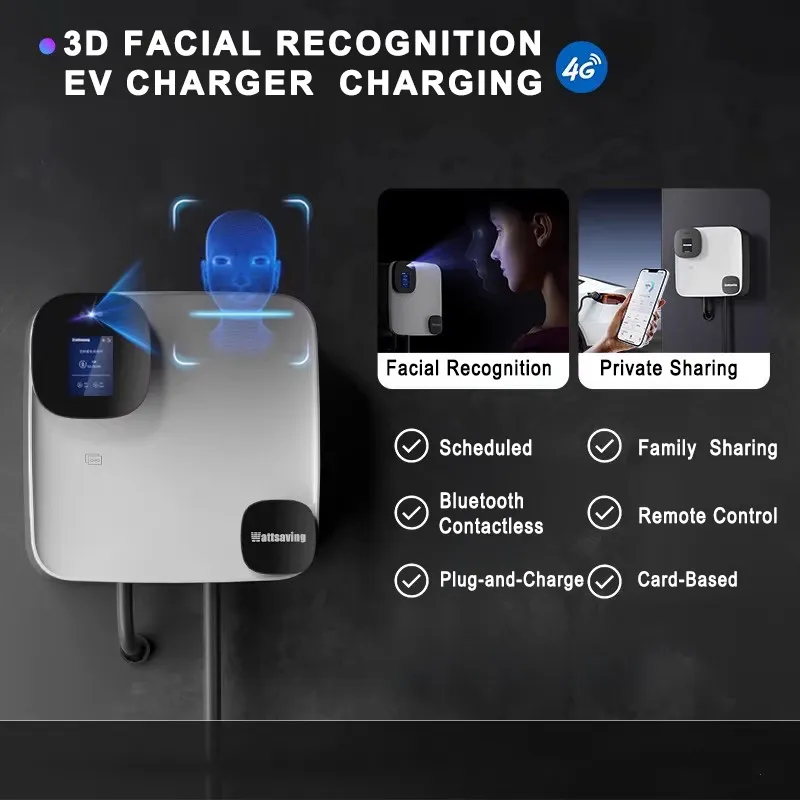

| Startup Method | Face recognition / Scheduled / App / Contactless / Card swipe / Plug-and-charge |
| Appearance Structure | |
| Housing Material | PC: UV-resistant flame retardant rating UL94V-0 |
| Main Unit Dimensions | 290mm x 290mm x 120mm |
| Product Net Weight | 6 kg |
| Charging Gun Cable | 5 m |
| Installation Method | Wall-mounted / Pole-mounted |
| Operating Environment | |
| Temperature Range | -30 °C to +55 °C |
| Protection Rating | IP65 (Indoor/Outdoor) |
| Cooling Method | Natural cooling |
This street light features high brightness, energy saving, environmental protection, and easy installation. It has a waterproof rating of IP67 and has passed CE certification. It is suitable for schools, parks, roadsides, factories, squares, etc. It has a warranty period of 3 years.
This street light features high brightness, energy saving, environmental protection, and easy installation. It has a waterproof rating of IP67 and has passed CE certification. It is suitable for schools, parks, roadsides, factories, squares, etc.

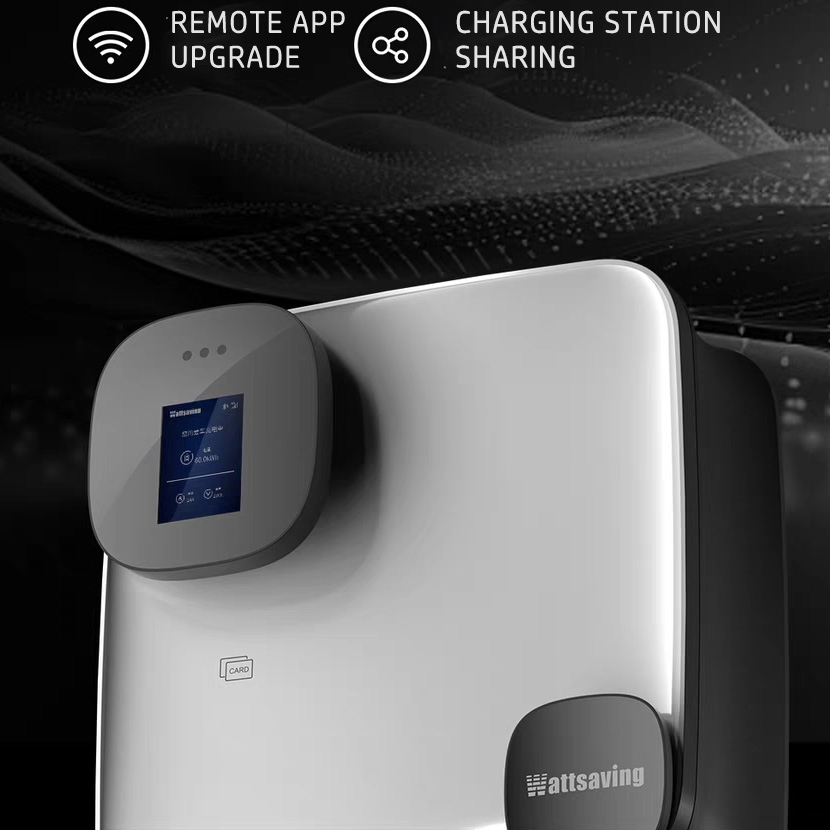

Through remote control functions, users can start, stop, and monitor charging sessions anytime and anywhere via a mobile app or centralized management system, improving convenience and operational efficiency.
Designed for multi-user scenarios, the charger supports private sharing and family sharing, making it ideal for households, residential communities, offices, and fleet operations. Access rights can be easily managed to ensure secure and efficient usage.
