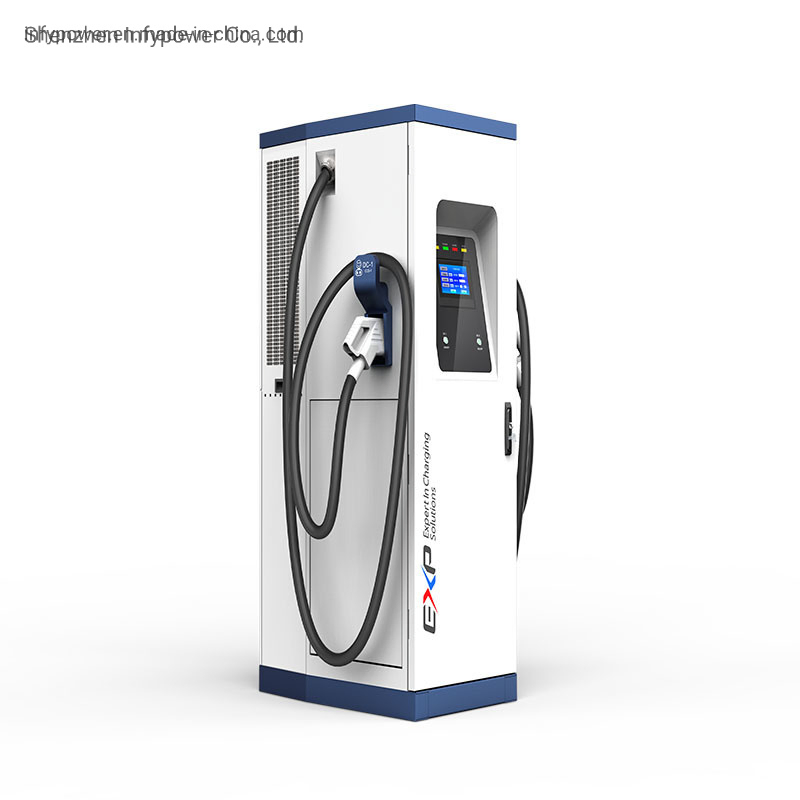

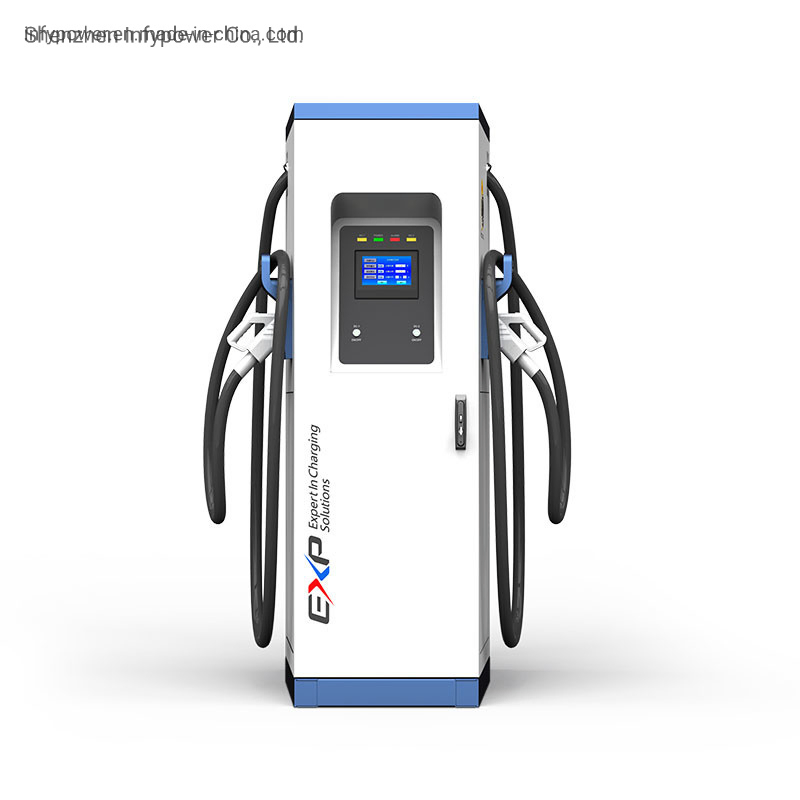

CCS 180kw EV Charging Station Dual DC Connector AC 22kw Fleet Fast Charger IP55

1 / 5

CCS 180kw EV Charging Station Dual DC Connector AC 22kw Fleet Fast Charger IP55

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.	EXP180K2
Location	Public Use
Charging Interfaces	One Pile with Multiple Charges
Start Mode	Credit Card, Mobile Remote, RFID, APP Control
Charge Method	Quick Charge
Charging Standard	CCS / Chademo / Gbt, AC Type 2
DC Output Voltage	150VDC - 1000VDC
DC Output Current	600A/300V, 360A/500V, 180A/1000V
Warranty	24 Months
Specification	700mm * 1750mm * 750mm

Product Description

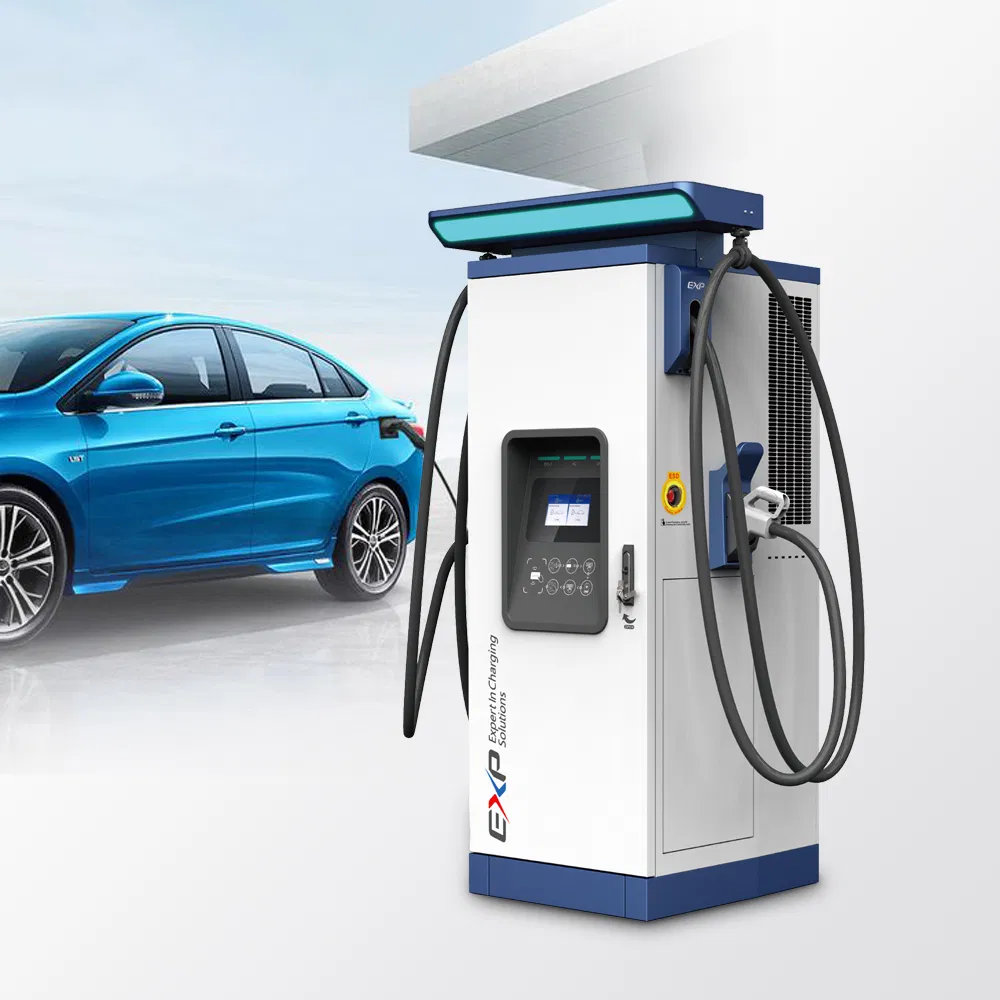

The EXP180K2 is one of the most well-received electric vehicle DC chargers qualified with CCS, CHAdeMO, GBT, and optional Type 2 charging standards. The EV charging station features a perfect combination of IP55 protection, a glass protective 7" LCD touch screen, multiple charging modes, as well as LAN and optional LTE wireless communication.

Technically, the fast EV DC charger supports a maximum DC output power capacity of 180kW, which depends on the number of power modules put in the slots, and an ultra-wide output voltage range from 150Vdc to 1000Vdc. There are altogether 6 power module slots inside the EV charger, allowing flexible charging configurations with 60, 90, 120, 150, and 180kW output power.

Main Features

◈CCS1 or CCS2, CHAdeMO and GBT configure support.
◈IP55 design with high protection and high reliability under harsh environments.
◈Smart charging and power management support.
◈Optional technology enables power to transfer between two EV chargers to realize a maximum power of 360kW.
◈Maximum 180kW charging capacity and charging voltage from 150Vdc to 1000Vdc.
◈User-friendly interface with tempered glass protective 7'' TFT capacitive touch screen LCD.
◈Multiple charging modes: Auto basis, Amount basis, Energy basis, SOC basis.
◈Internal high precision AC energy meter and DC energy meter.
◈LAN and optional LTE wireless support, OTA support, RFID authorization, and Mobile App payment.

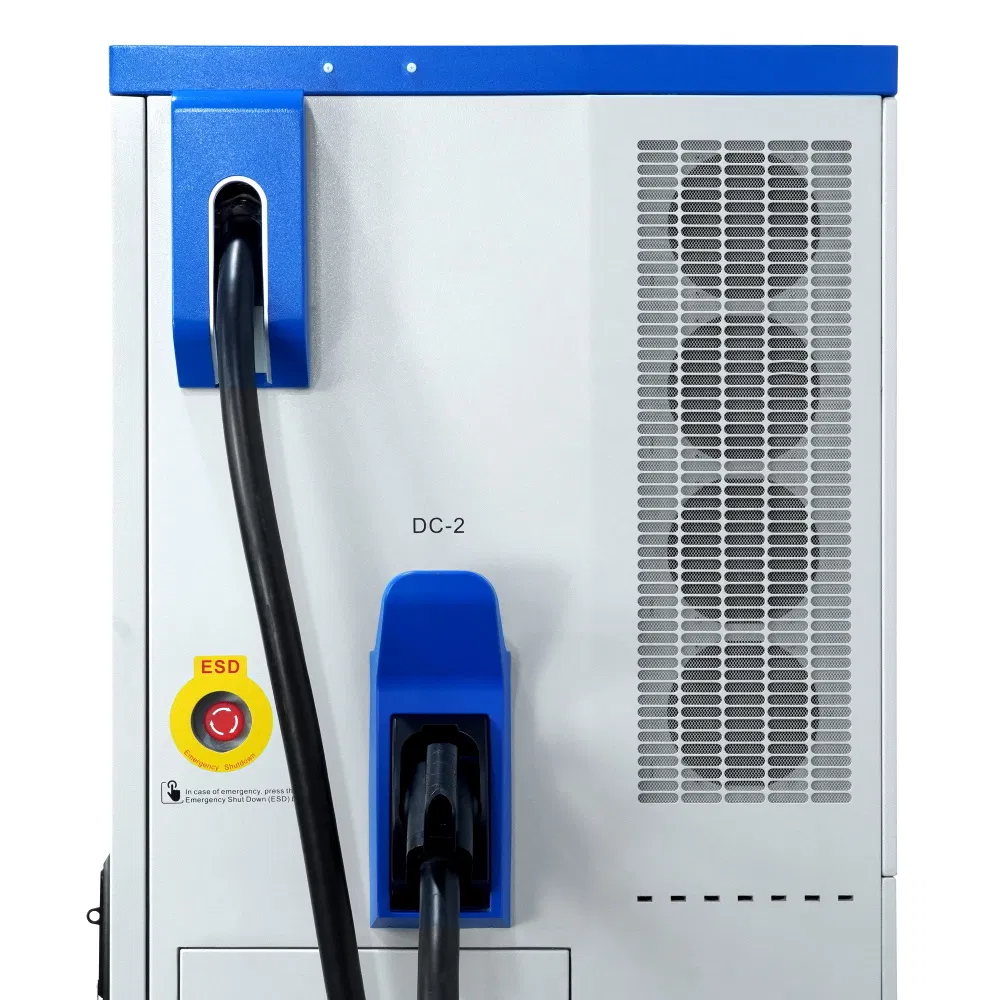

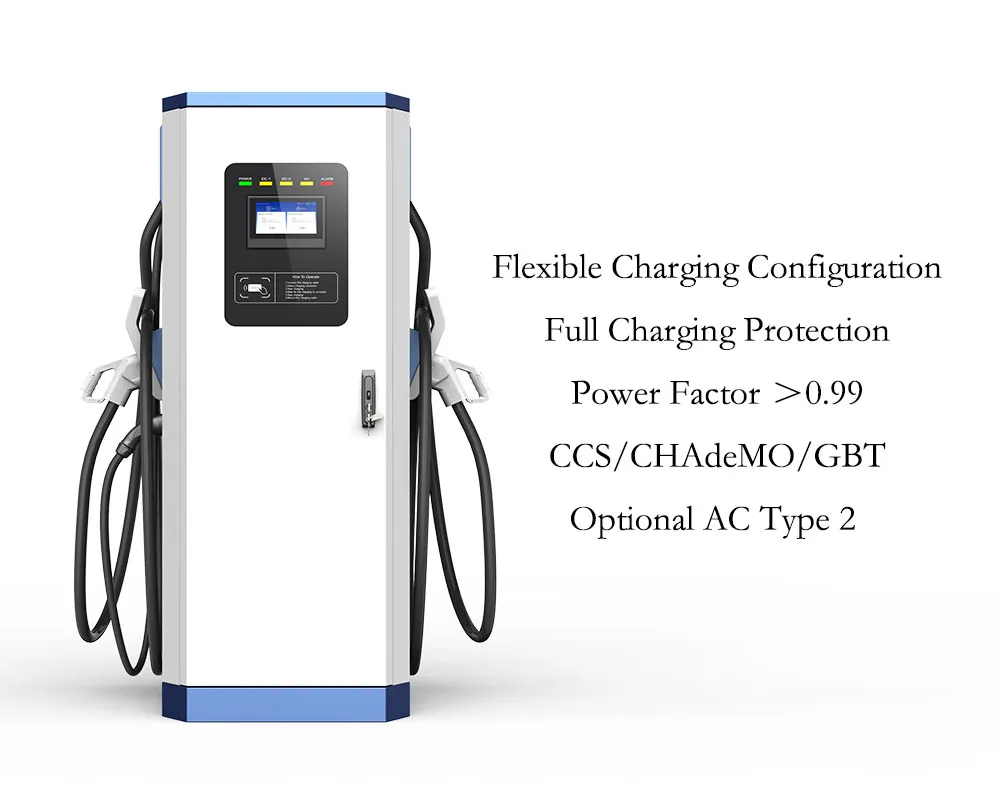

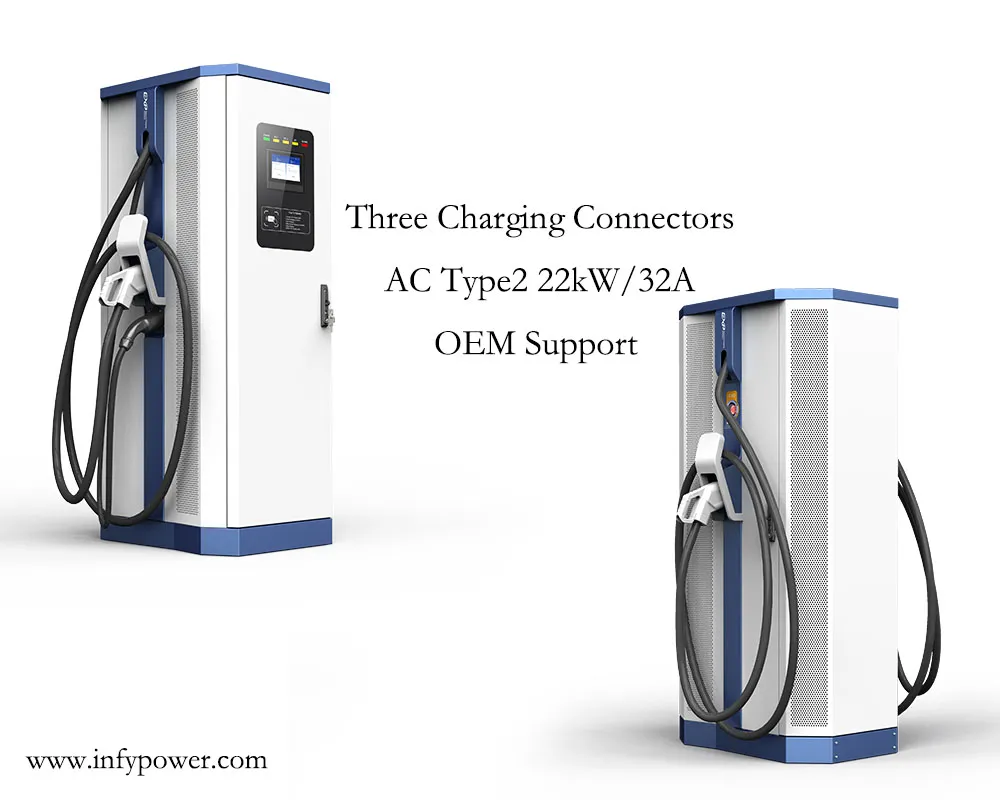

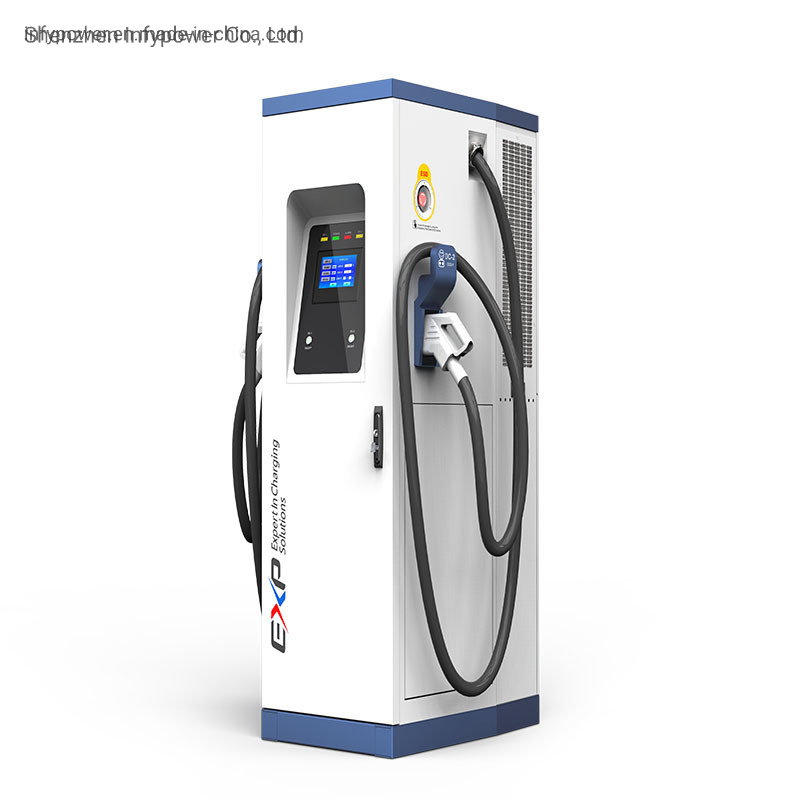

Detailed Photos

Technical Parameters

Rated Power	DC 60, 90, 120, 150 and 180kW
AC Side	3-phase+N+PE, 260Vac-530Vac, AC output Type 2 22kW/32A
DC Voltage	150Vdc-1000Vdc
Max DC Output Current	180A/1000V, 360A/500V, 600A/300V
Charging Standard	CCS, GBT, CHAdeMO
Certification	TUV CE

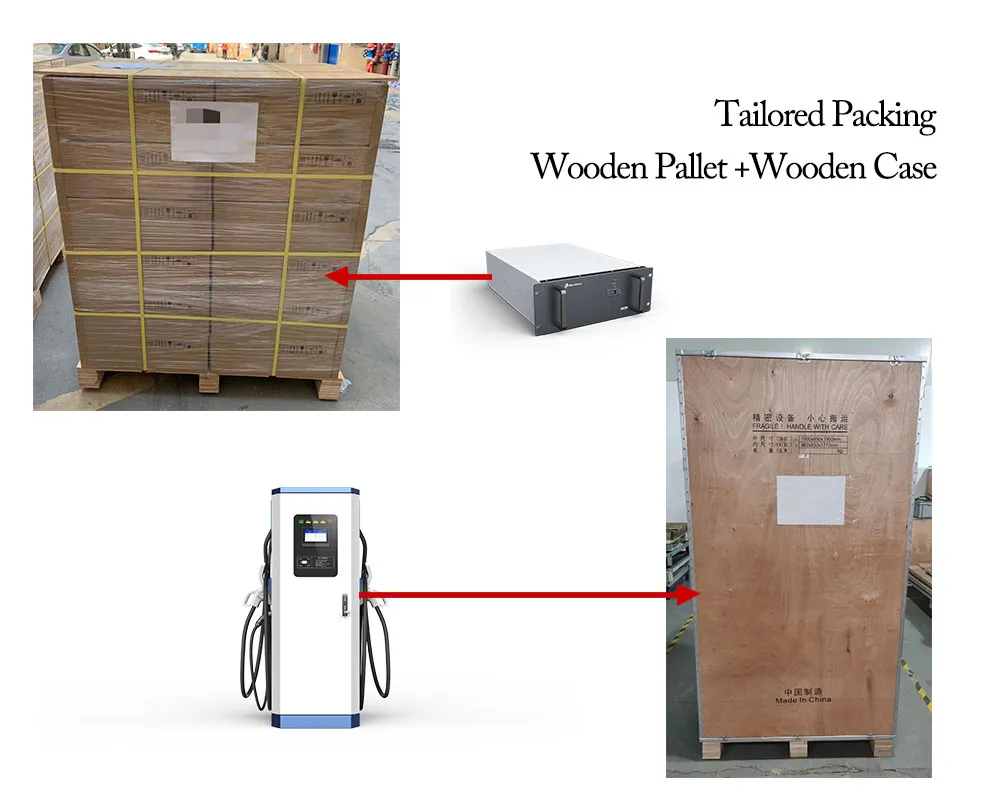

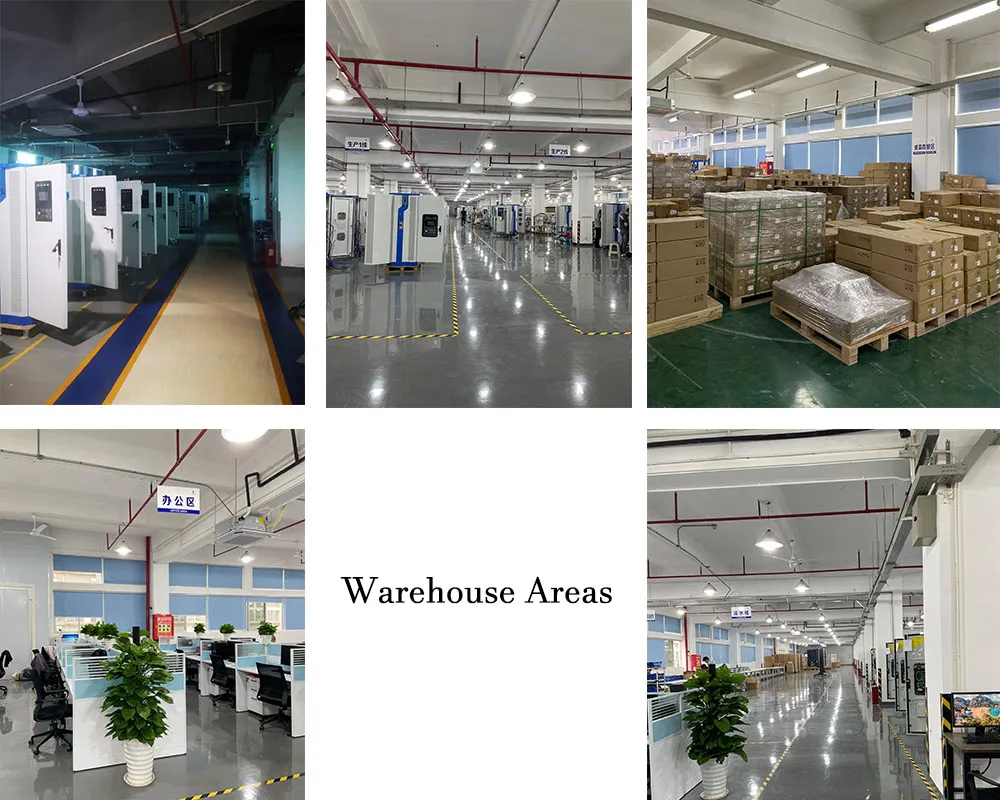

Packaging & Shipping

Our Expertise

This high-tech company is professionally engaged in power modules and power system solutions. With abundant experience in power electronics and intelligent control technology, specialty lies in electric vehicle charging solutions and energy storage solutions. The products cover a wide range of power modules and energy storage converters, which have enjoyed a good reputation for high reliability and efficiency. The team attaches great importance to steady and rapid development to maintain a leading role, having published more than 150 authorized patents. The focus is on helping customers grow and succeed, aiming to build a greener planet together.

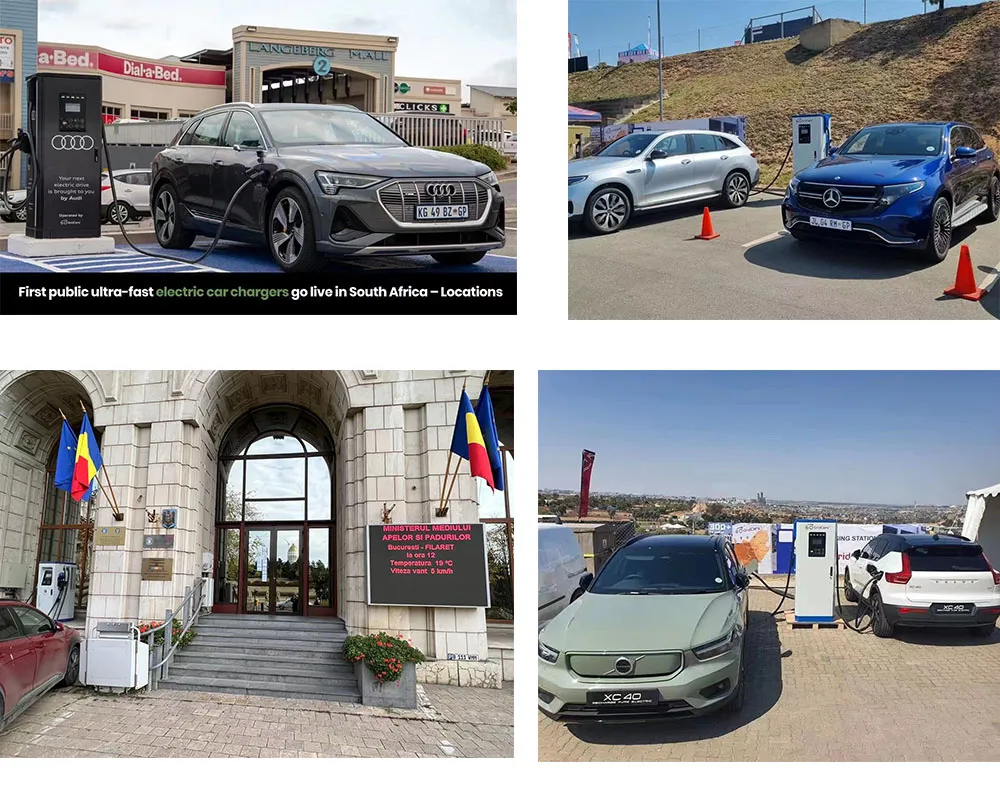

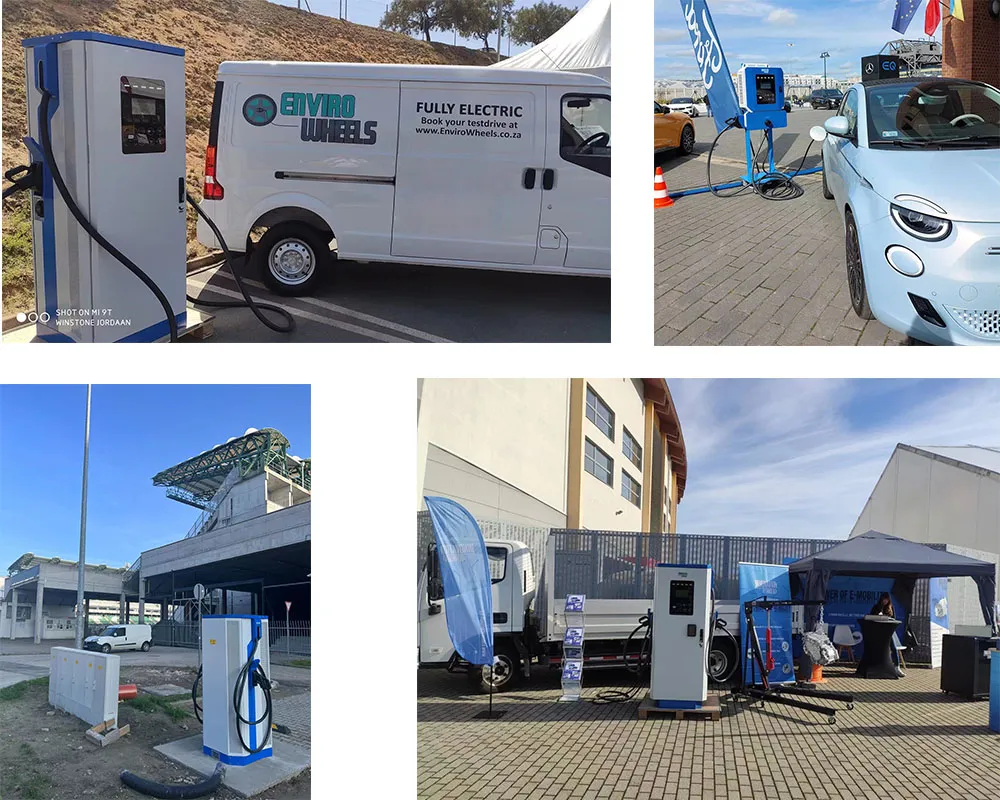

Customer Feedback

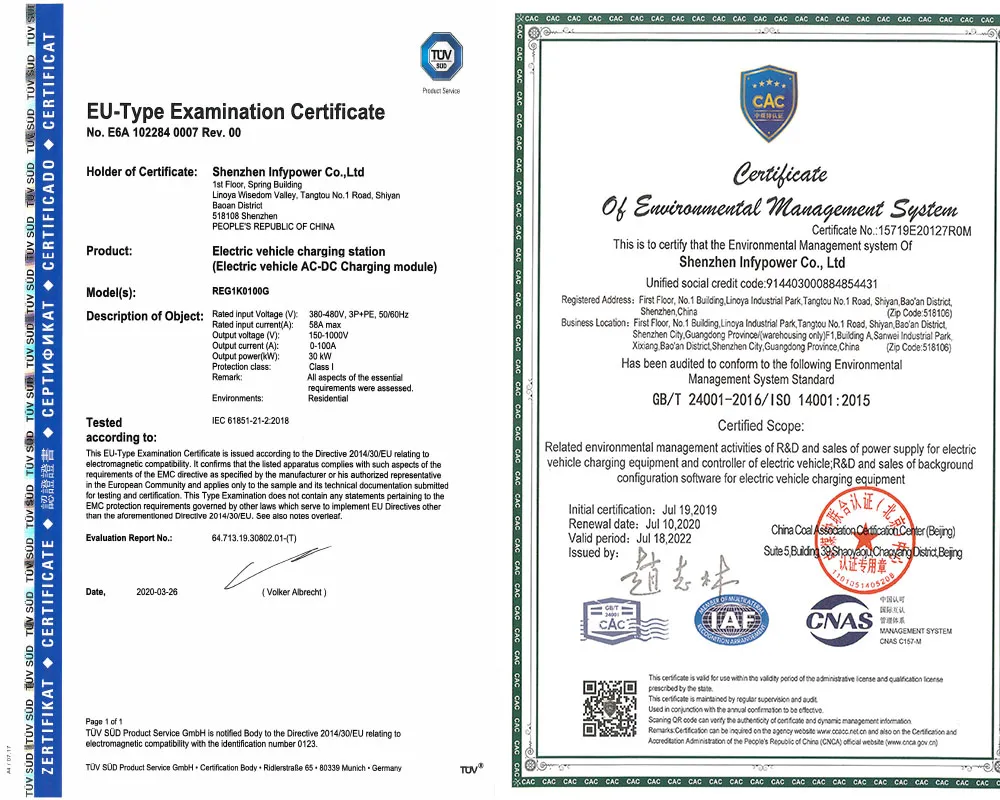

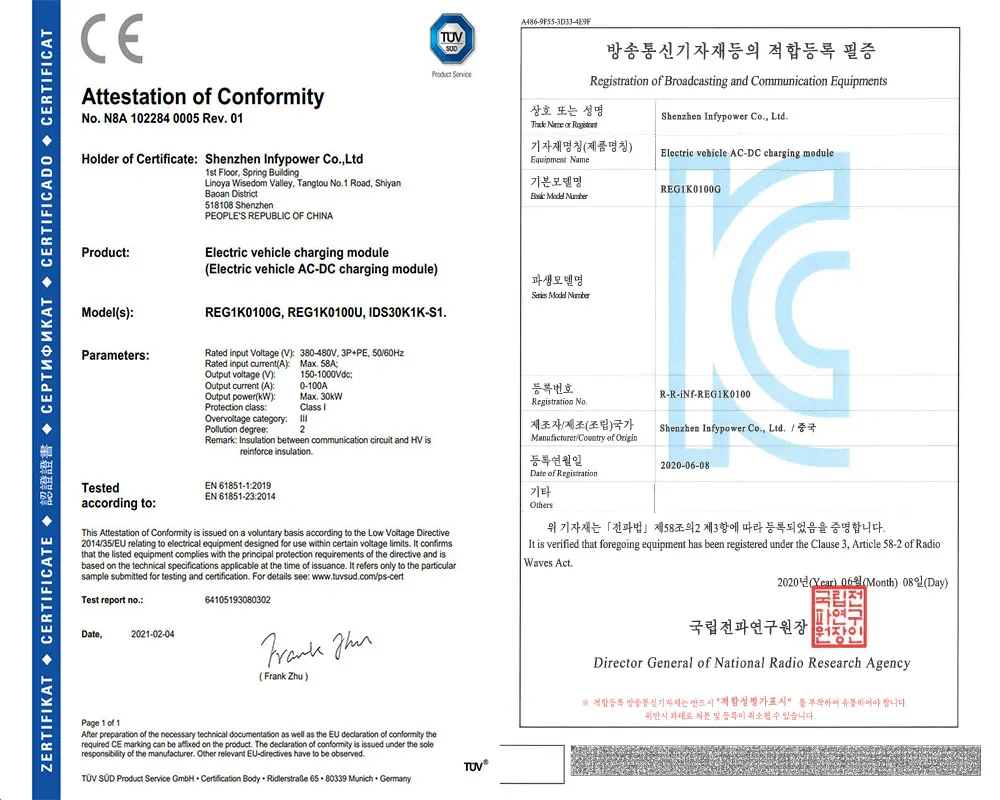

Certifications

Frequently Asked Questions

Q1. How do you handle shipments?

For small orders, we send goods by FedEx, DHL, UPS express service on a door-to-door basis. For large shipments, we send goods by sea or by air in containers. Delegates of your own forwarders are also highly recommended.

Q2. What is your delivery time?

Normally, we need about 30 days to prepare your goods. For orders in large quantities and customized orders, the time for shipment will be slightly longer.

Q3. What is your term of payment?

Our standard term is 100% TT advance with the order. However, this is negotiable under the condition of long-term strategic cooperation.

Q4. What customized services do you provide?

With abundant experience in OEM and ODM projects, we provide flexible and professional customized services. The MOQ varies based on your specific requirements.

Q5. How long is the warranty period?

The warranty of our products is 24 months upon the receipt of your shipment under normal circumstances.

Q6. What certifications do your products have?

Our products are well-qualified for major overseas markets with international certifications, such as CE for Europe, UL for the United States, and KC for South Korea.
