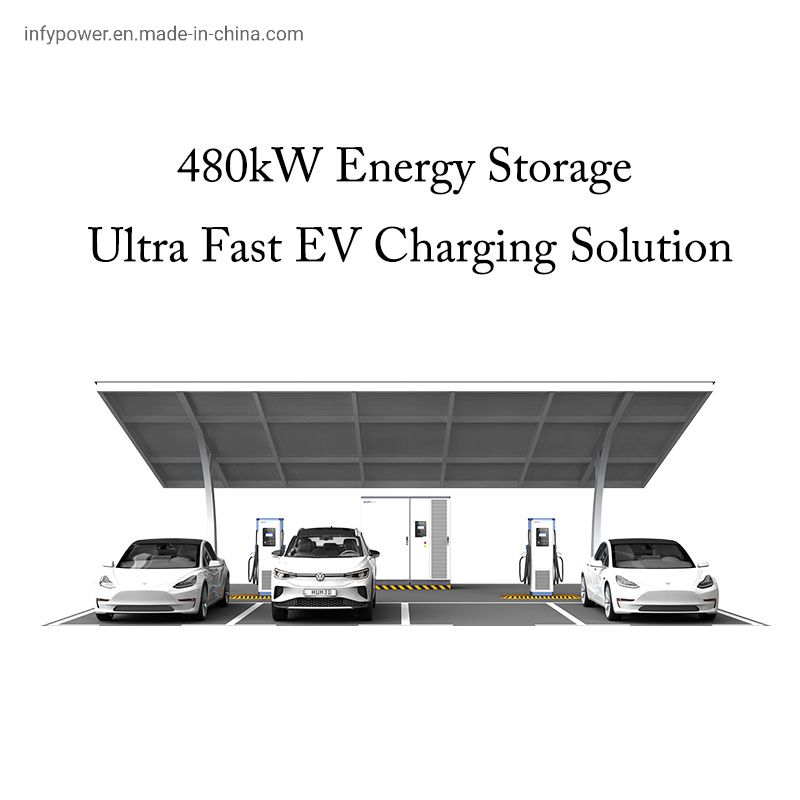

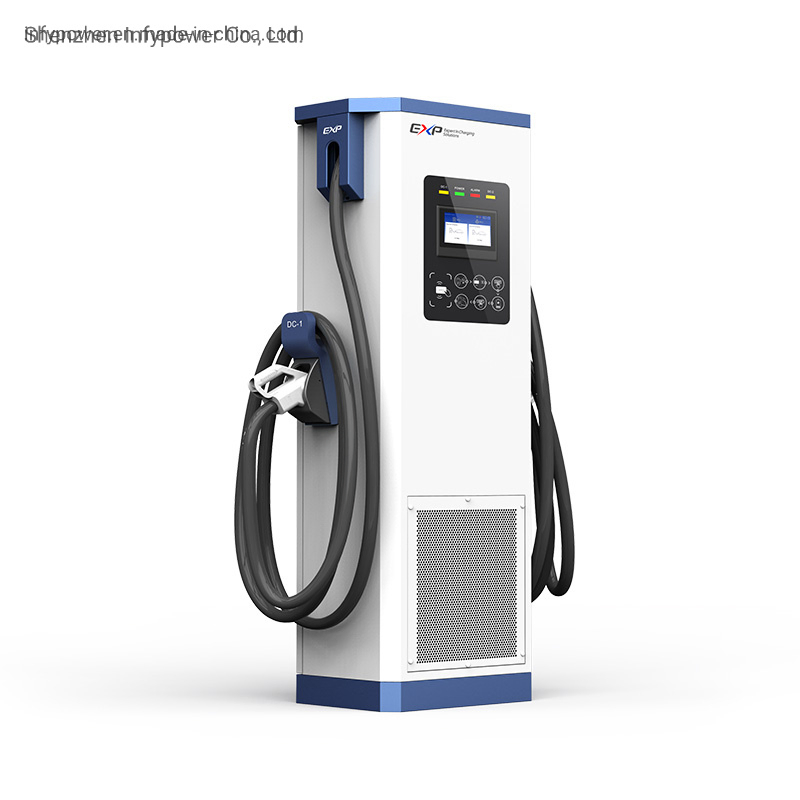

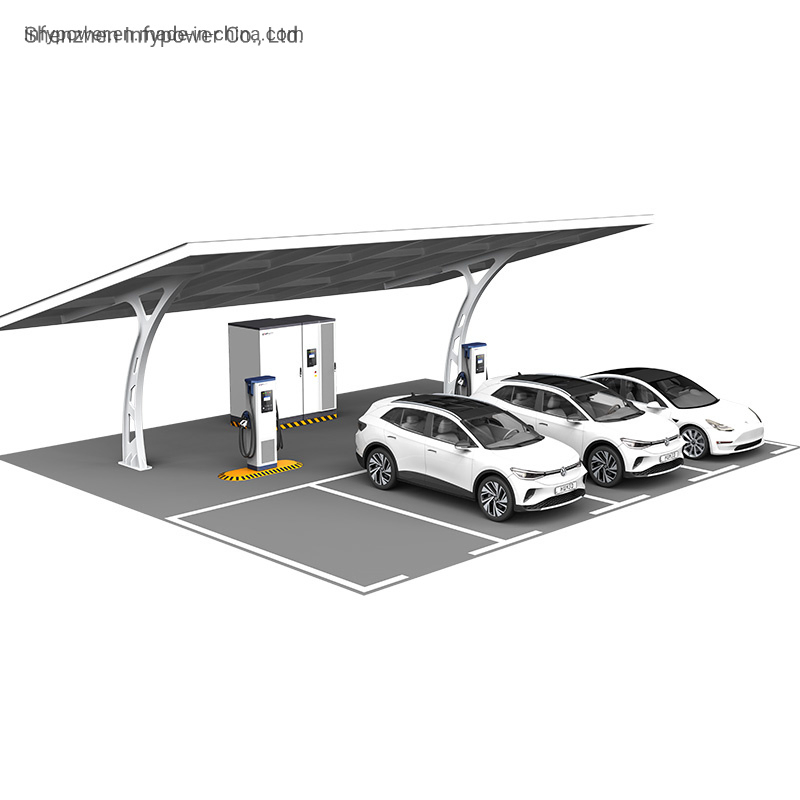

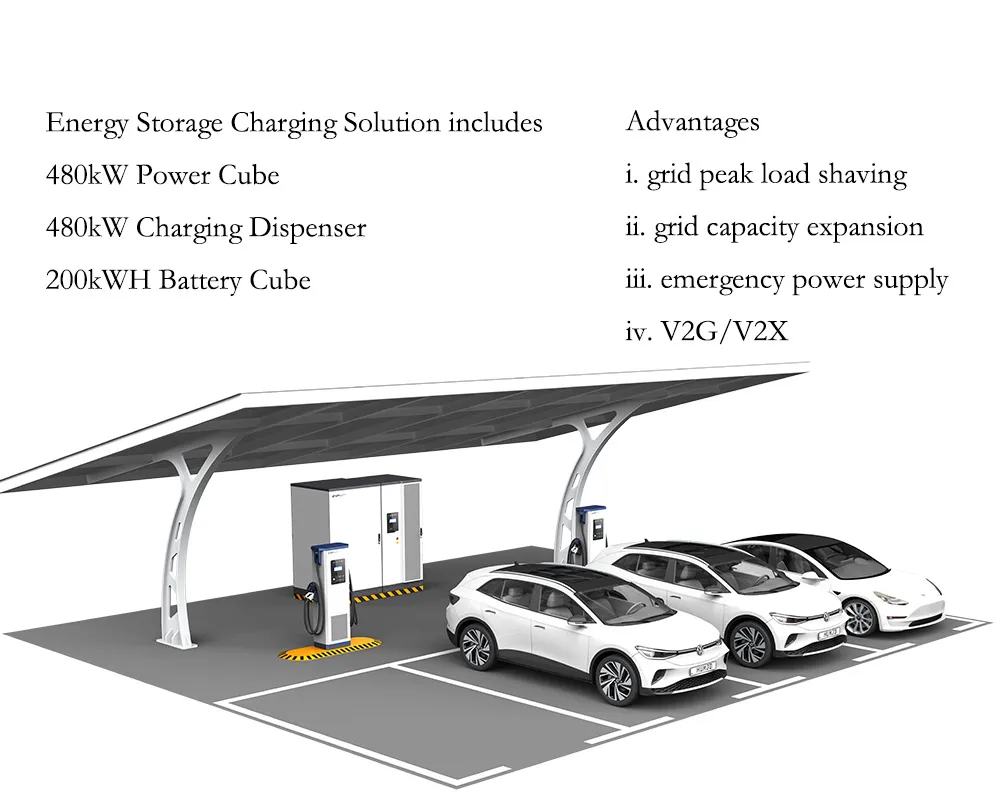

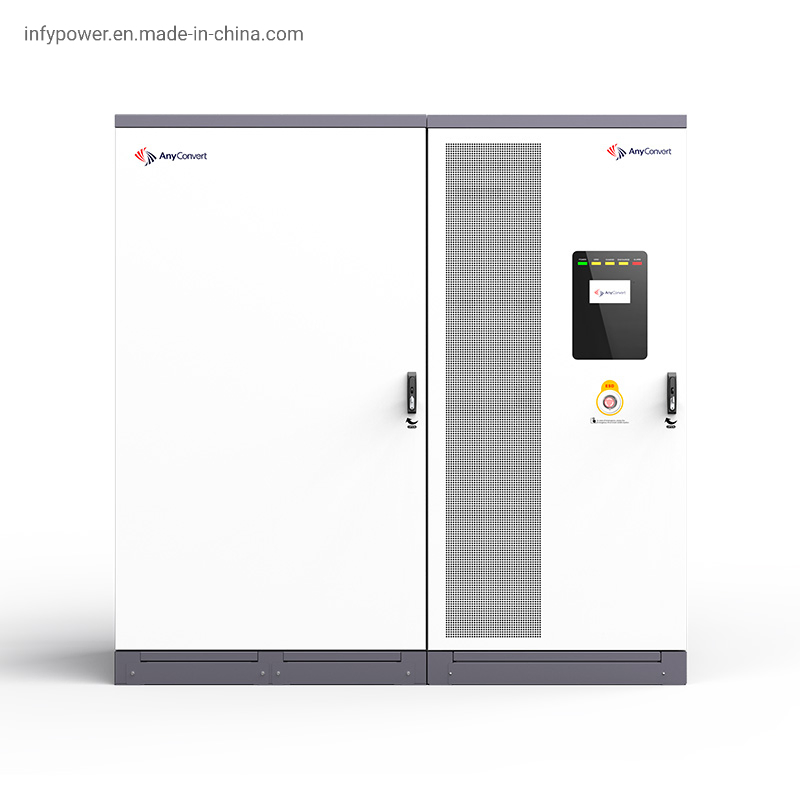

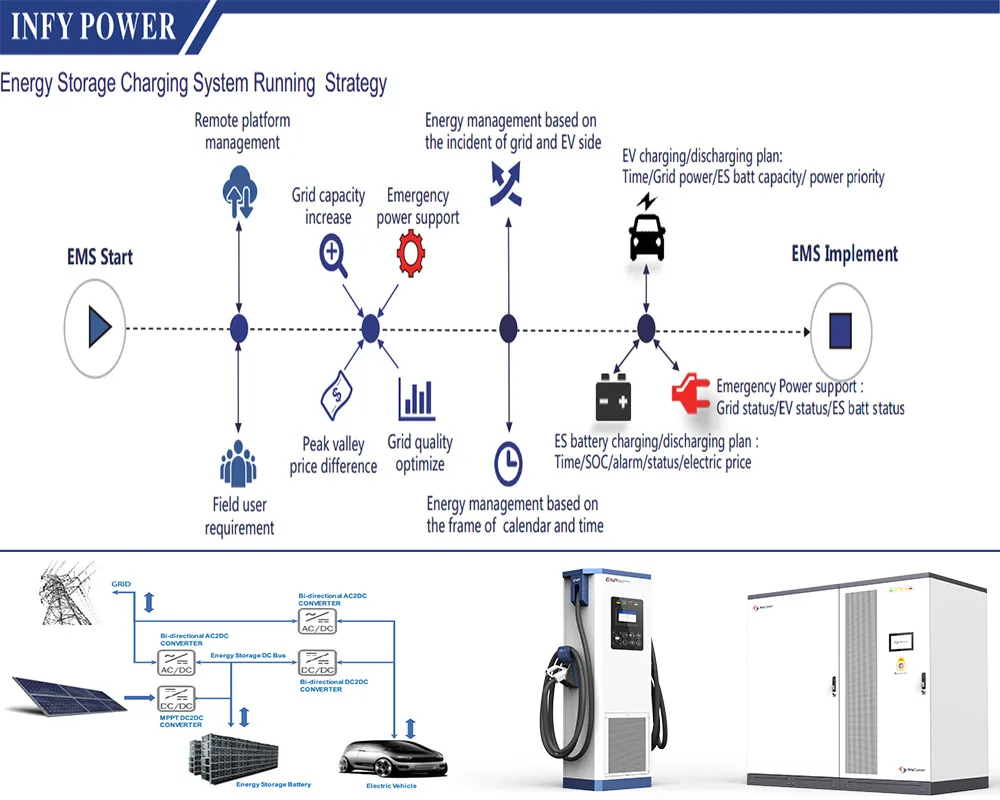

This is an advanced ENERGY STORAGE CHARGING SOLUTION which includes a 480kW power cube, a 200kWH battery cube, and two 480kW charging dispensers. The solution aims to achieve grid capacity expansion, grid peak load shaving, emergency power supply, V2X goals, as well as renewable energy access (e.g., PV access). Energy storage is fulfilled with powerful lithium battery groups. It is an EV charging station capable of supporting up to 6 electric vehicles being charged simultaneously. It's an integrated V2X grid network combining AC grid access, energy storage battery access, EV charging, EV discharging, and PV access.
Main Components:
Main Features:
| AC Grid Access | 3-phases+N+PE, 260Vac~530Vac, 645A |
|---|---|
| Energy Storage Access | Max 6 channels, 6*60kW=360kW to charge EV |
| EV Charging | Max 6 points, 3 dispensers, 480kW, 150V~1000V |
| PV Access | Max 2 access channels, 2*30kW MPPT |
| Normal Charging Cable | CCS1 200A/300A, CCS2 200A/250A, CHAdeMO 125A, GBT 250A |
|---|---|
| Liquid Cooling Cable | 500A/1000V CCS1 or CCS2 or GBT |
| Protection Class | IP55 |

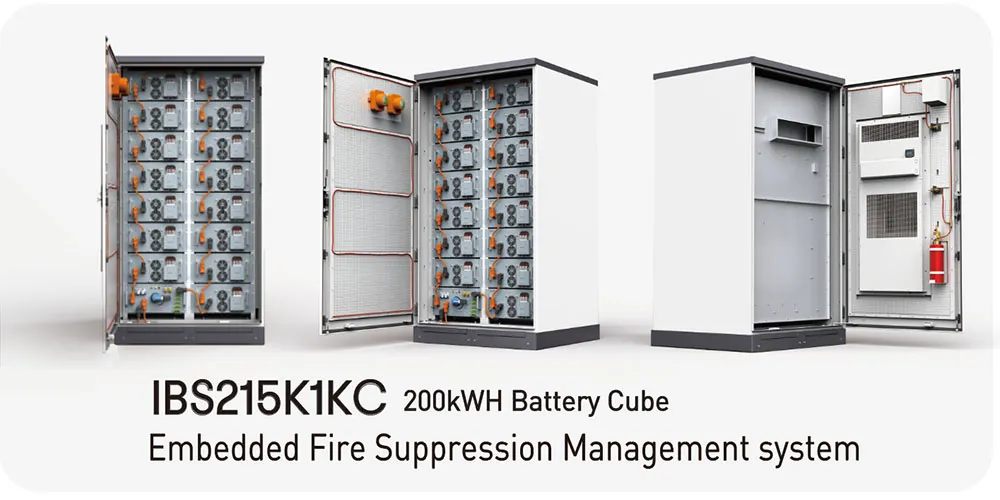

| Energy Storage Battery | 200kWh/280Ah, battery voltage: 627V~806V |
|---|---|
| Fire Suppression | Temperature-activated system + fire probe + air pressure sensors |
| Protection Class | IP65 |
| Dimension/Weight | 1200mm*2200mm*1200mm / 1600kg |
The company is professionally engaged in power modules and power system solutions. With abundant experience in power electronics and intelligent control technology, products cover a wide range of power modules, energy storage converters, and charger solutions. With over 70% R&D members, the focus is on steady and rapid technological development, holding more than 150 authorized patents.
