Walnut Charger
1 / 5

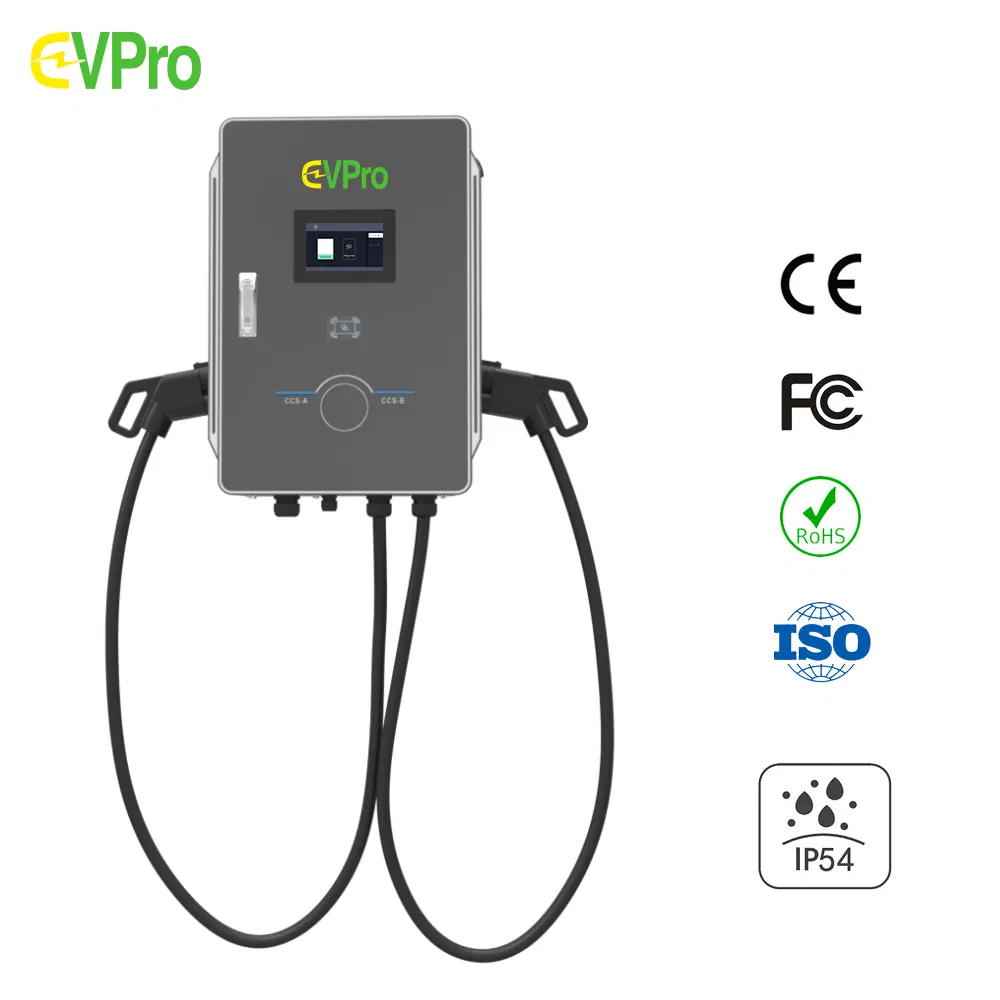

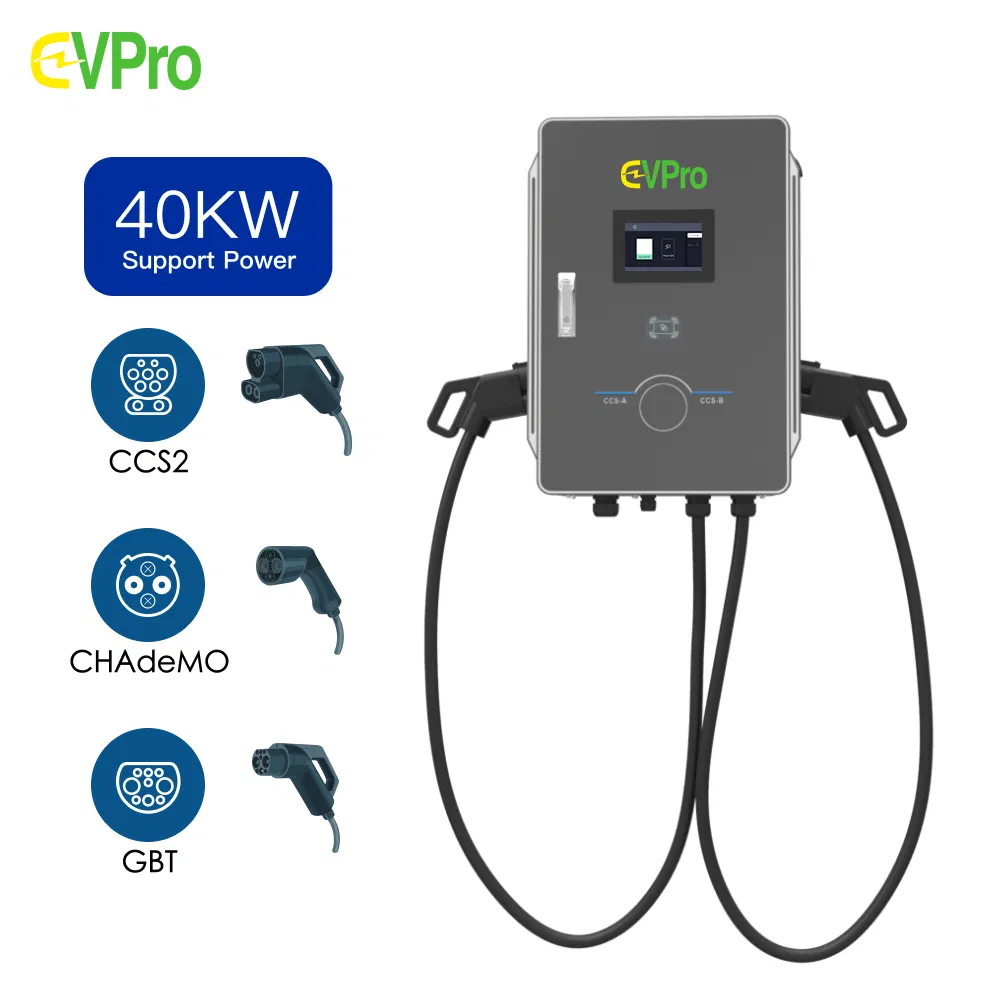

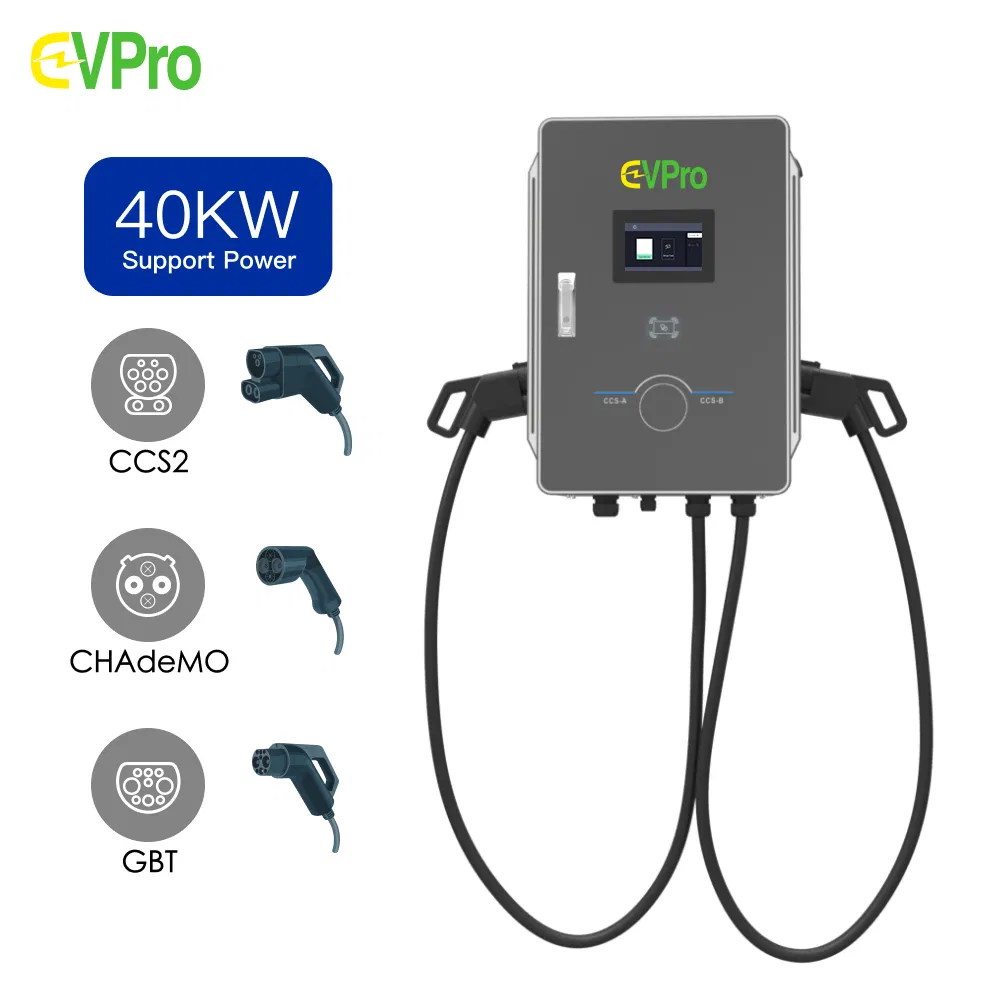

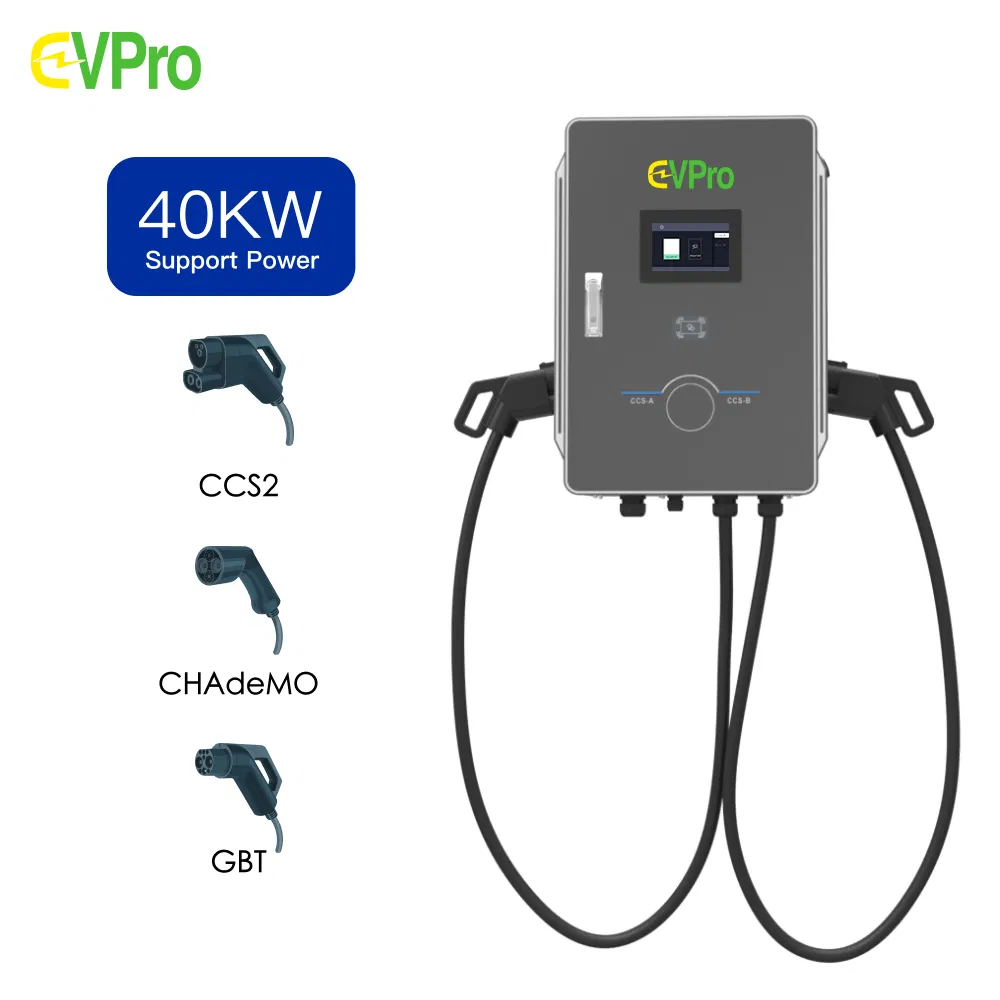

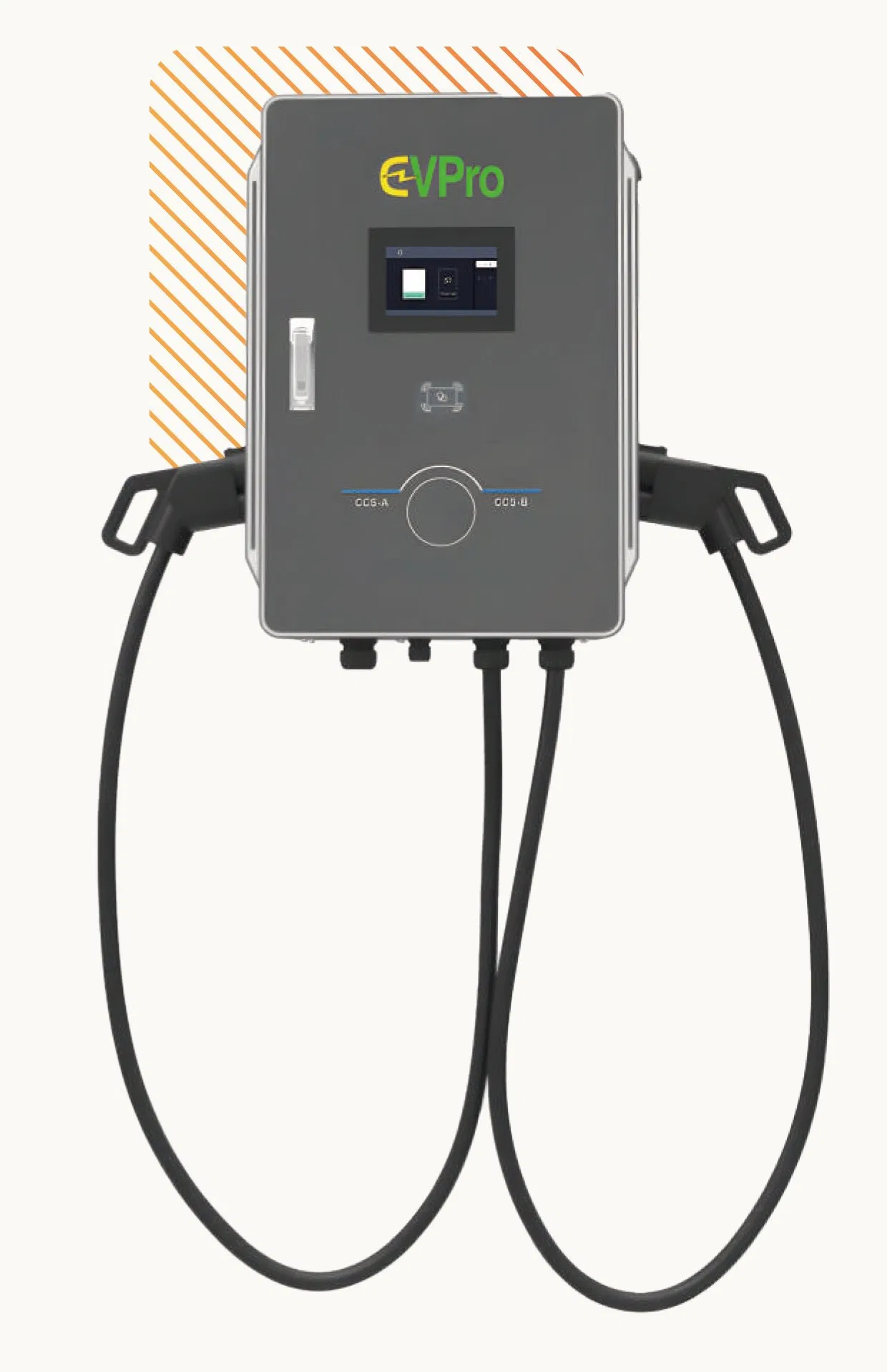

This charger delivering 40kW power with 95.2%+ efficiency, dual-gun charging (CCS2/CHAdeMO/GBT), IP54 waterproofing, and smart features like a 7" LCD touch-screen, multi-payment options (RFID/APP), and OCPP 1.6J compliance. Its A-type RCD protection, fire alarm/auto-extinguishing system, and IEC certifications ensure top-tier safety.
| Category | Data Parameters |
|---|---|
| Input | AC 380V 3P+N+PE 63A 50~65HZ |
| Output Voltage | DC 150V~1000V |
| Output Current | MAX. 100A |
| Efficiency | ≥95.2% @750V |
| Operating Temperature | -25℃~50℃ |
| Altitude | ≤2000 meters |

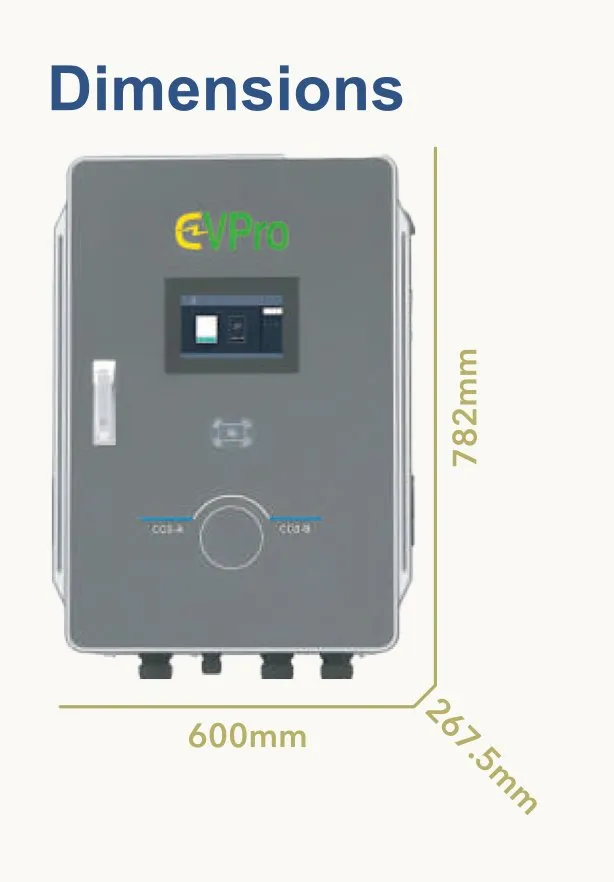

| Dimensions (L x D x H) | 782mm X 600mm X 267.5mm |
| Cooling | Forced air cooling |
| Electrical Safety | Over/Under Voltage, Over Current, Surge Protection (20 KA) |

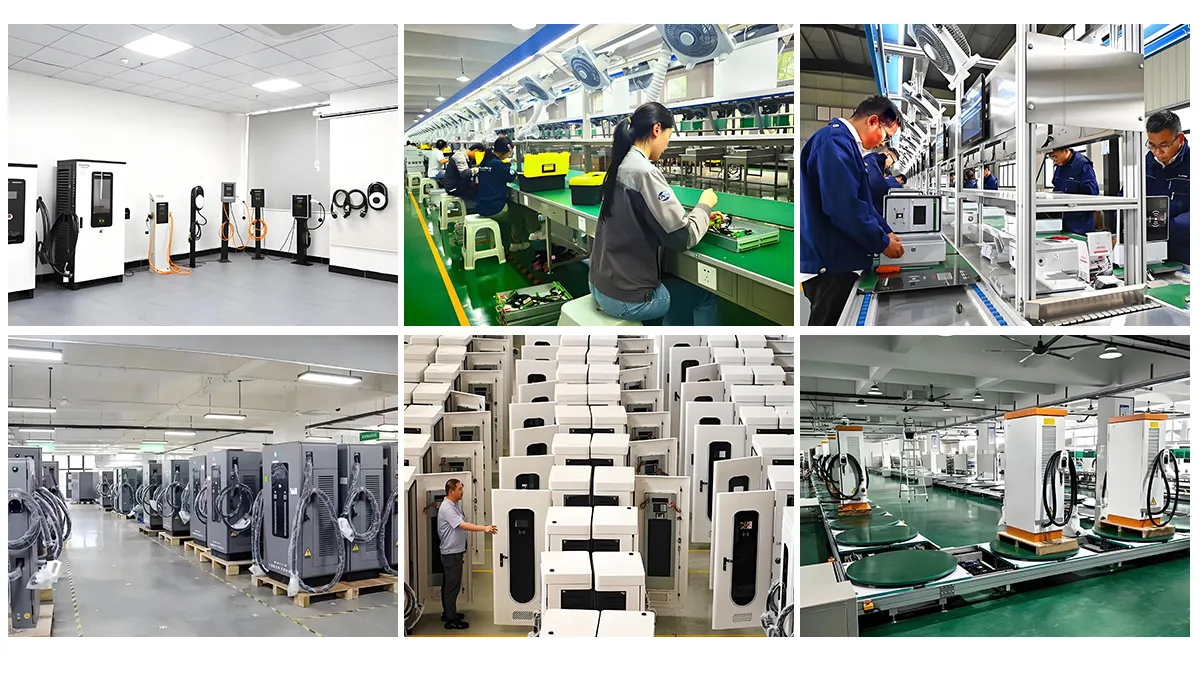

As a fully integrated provider, every stage of the EV charging ecosystem is controlled to deliver superior quality and cost-competitive solutions. Operating a dedicated manufacturing facility producing both AC and DC chargers ensures custom hardware configurations and rigorous quality control. All products comply with IEC 61851 and IEC 62196 standards.
At the core of innovation is a smart, interconnected system utilizing AI to dynamically manage power flows between solar panels, the electrical grid, building loads, and vehicle batteries. V2G capabilities further transform EVs into mobile energy storage units that can feed power back into the grid when needed most.
