Walnut Charger
1 / 5
| Model NO. | QD10 |
| Charging Interfaces | One Pile with Multiple Charges |
| Installation | Wall Mounted |
| Adjustable Current | 8-10-13-16-32A |
| Rated Voltage | 230V±10% |

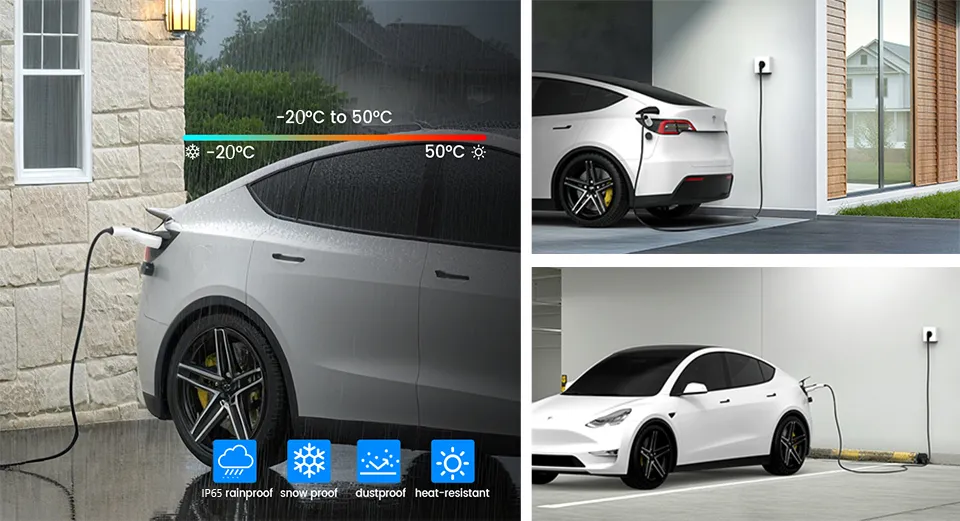

| Protection Grade | IP65 / IK10 |
| Cable Length | 5 Meters / OEM |
| RCD Type | Type A + 6mA DC |
| Operating Temperature | -20°C to 50°C |
Specializing in electric vehicle charging solutions, capable of producing TYPE 1 / TYPE 2 / GBT plug AC charging equipment. Customizable logo, packaging, and patterns are available to meet global regional standards.

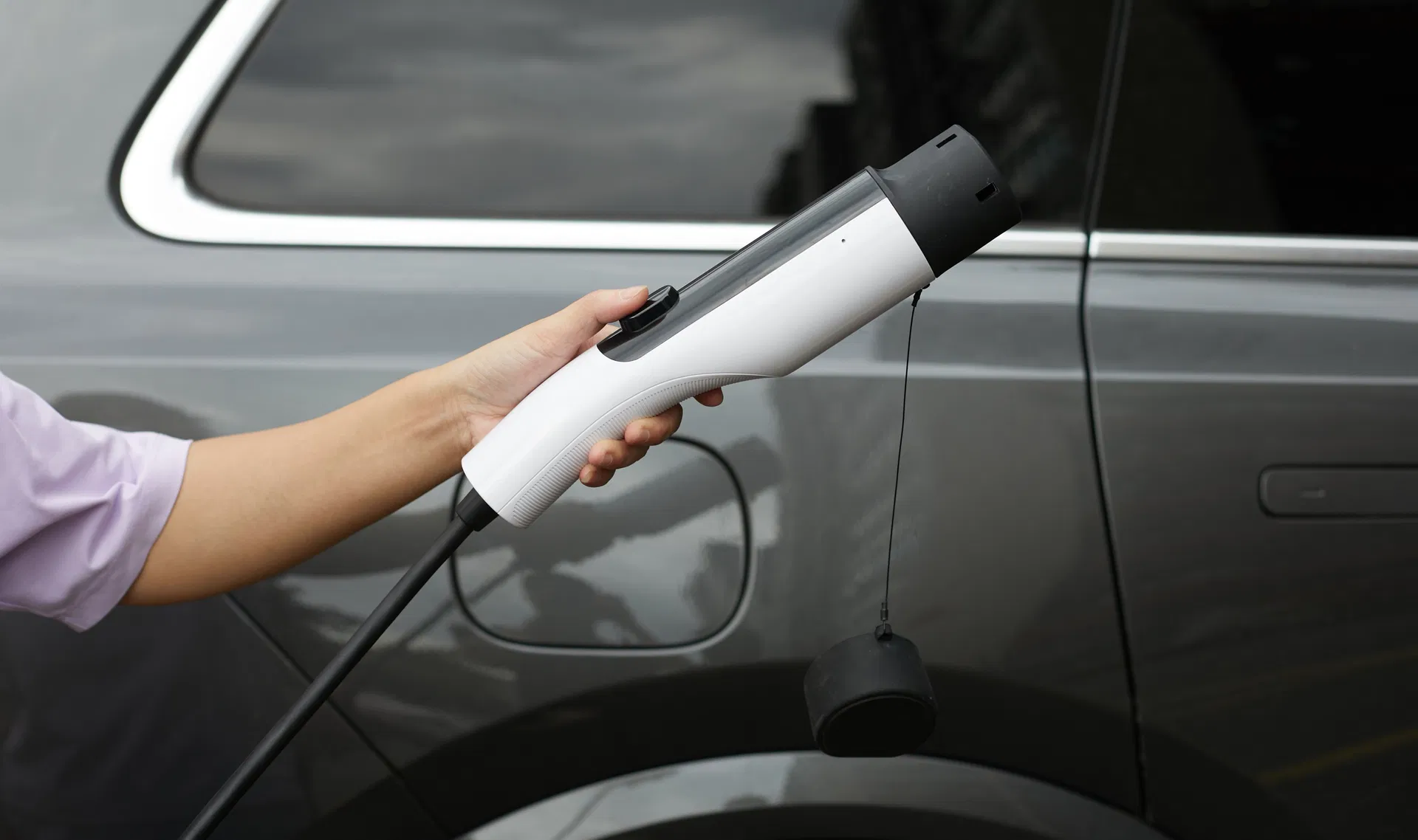

Lightweight & Portable: The control box weighs only 0.6kg. Integrated plug design makes it easy to carry for travel or home use.
Sound Prompts: Intelligent beeps to indicate charging status and abnormal warnings.

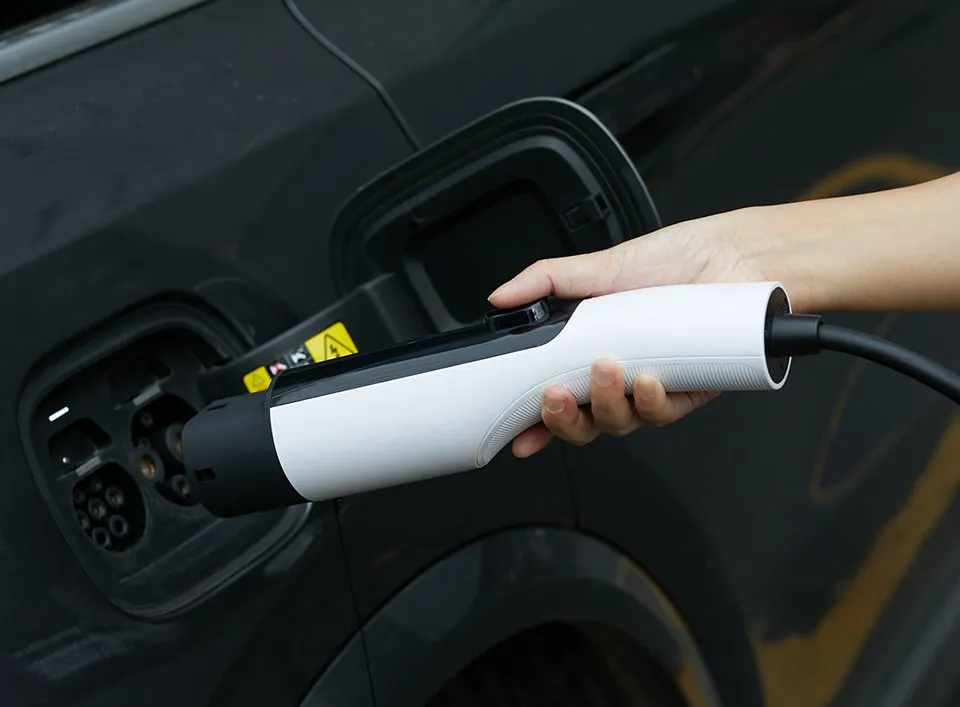

LED Headlight: Gun head equipped with LED to help find charging ports in the dark.
| Electrical Specification | |
| Rated Power | 3.5kW / 7kW |
| Input Frequency | 47~63Hz |
| Standby Power | < 8W |
| Functions | |
| Intelligent Adjustment | Yes (Current & Time) |
| Cooling | Natural Air Cooling |
| Certificates | CE, FCC, ISO9001, CCC, IP65, IK10 |
