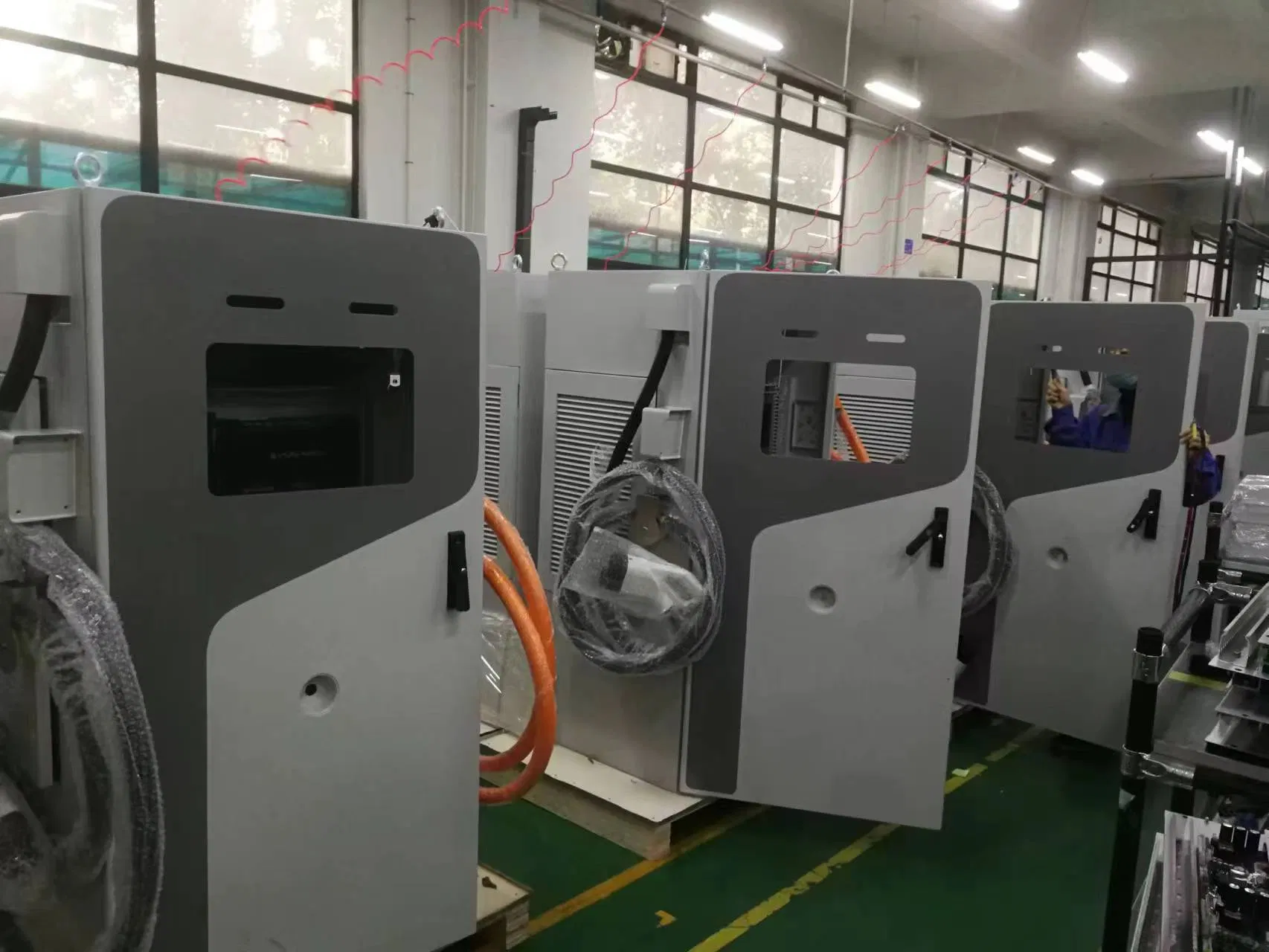

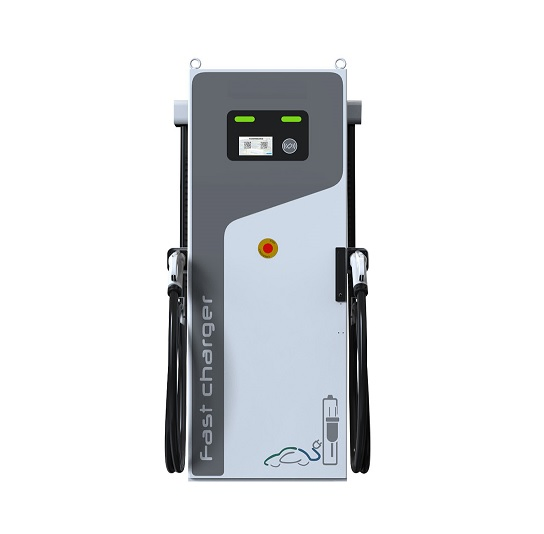

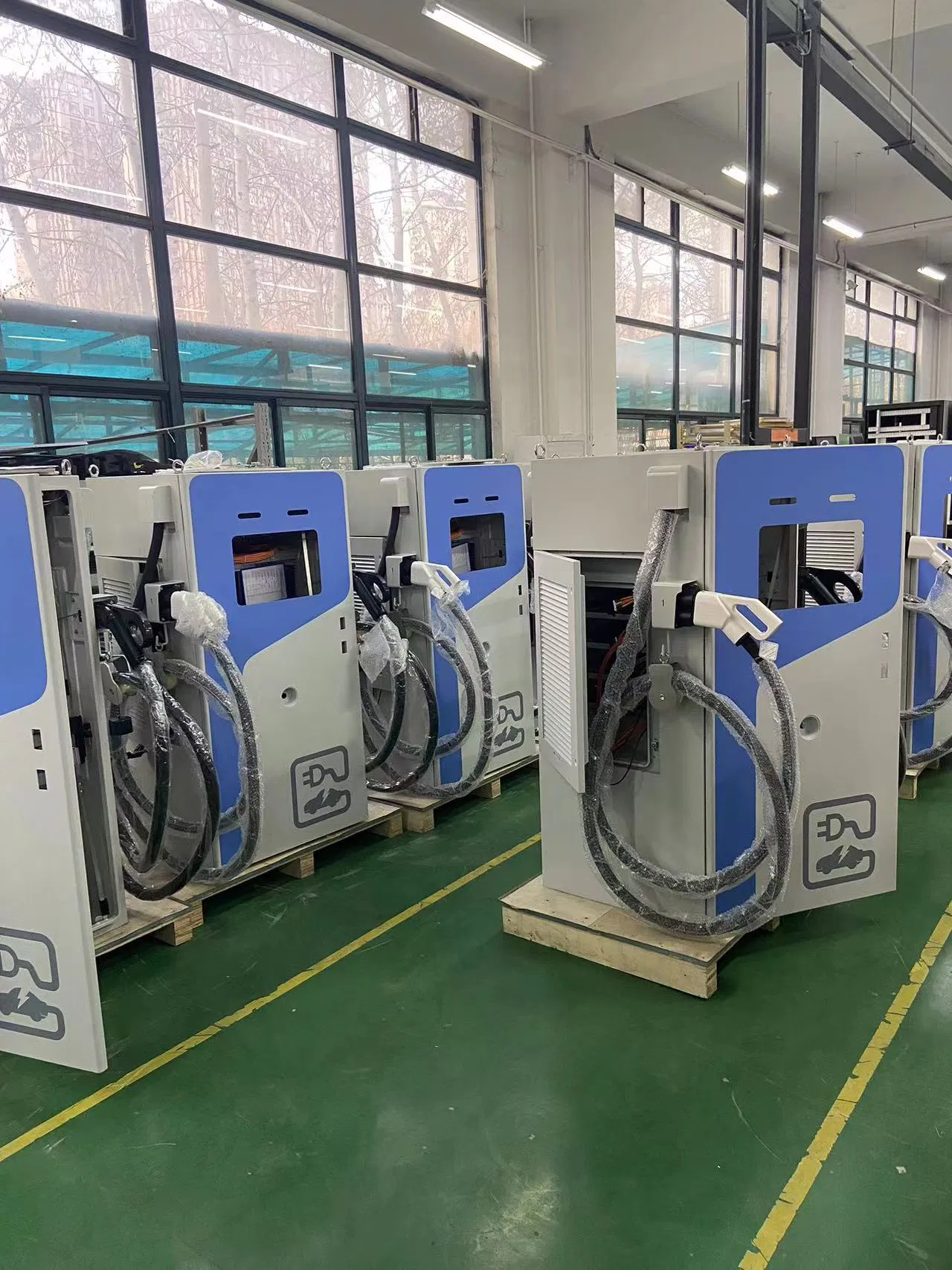

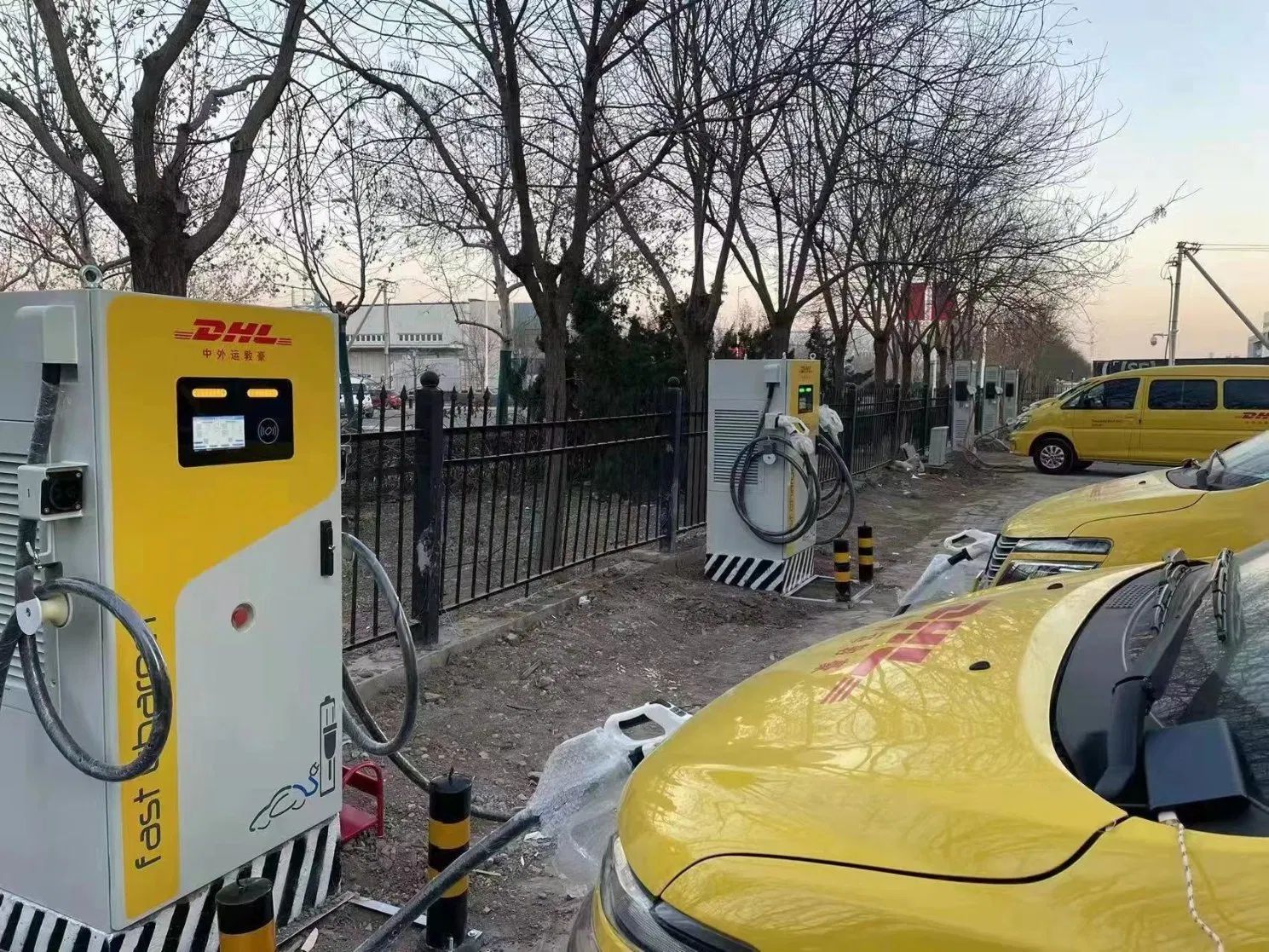

120kw~300kw CCS2 Ultra-Rapid Vehicle Charging Station 1000VDC Charging Output

1 / 5

120kw~300kw CCS2 Ultra-Rapid Vehicle Charging Station 1000VDC Charging Output

Customization:	Available
Number of Charging Interfaces:	One Pile with Multiple Charges
Location:	Public Use

Send Inquiry

Product Description

Technical Specifications

Model NO.

DC EV Charger

Installation

Floor Type

Charge Method

Quick Charge

Application

EV DC Fast Charging

EV Plug

Chademo CCS GB/T

Output Power

60kw / 120kw-300kw

Communication

OCPP 1.6J

Billing System

RFID / QR / POS Option

Output Voltage

200-1000VDC

Certification

Product Description

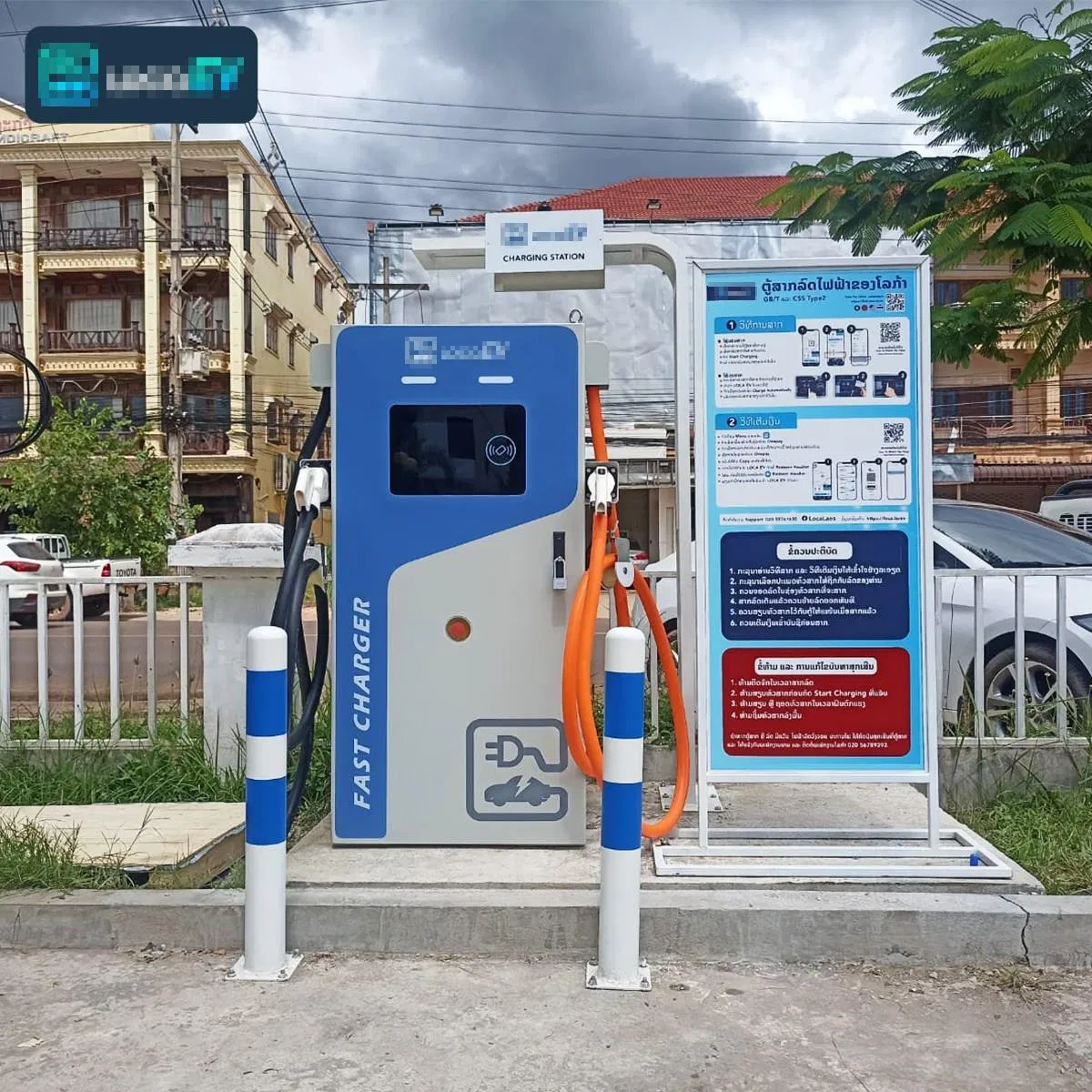

This 120kw~300kw CCS2 ultra-rapid vehicle charging station offers a 1000VDC charging output. It is an ideal solution for commercial public areas, providing rapid energy delivery to EVs in short periods. Built with OCPP 1.6J, it allows for seamless remote control and management. The station supports CHAdeMO, CCS Combo 1, CCS Combo 2, and GB/T standards, making it compatible with all EV brands. With smart power-sharing technology, the unit can charge two electric vehicles simultaneously.

🔌 Multi Standard

Plug and play type connectors including CHAdeMo, CCS Combo 1/2, and GB/T. Customizable DC output cables available.

⚡ Rapid Speed

Designed for fast-paced environments, allowing users to quickly charge while shopping or dining.

🖥️ Smart Interface

Multi-language intelligent human-machine interface (HMI) with voice navigation for easy operation.

Datasheet & Performance

MODEL	60KW	120KW	180KW
Nominal Input Voltage	380 VAC ± 15% (3-phase + N + PE)
Frequency	50 - 60 Hz
Maximum Input Current	100A	260A	300A
Output Voltage Range	200~750VDC (Up to 1000VDC options available)
Efficiency	> 94%
IP Protection	IP54
Cable Length	5m

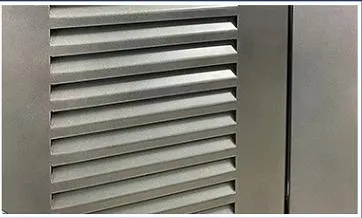

1 Exhaust Vents

Designed for optimal heat dissipation to ensure stable long-term operation.

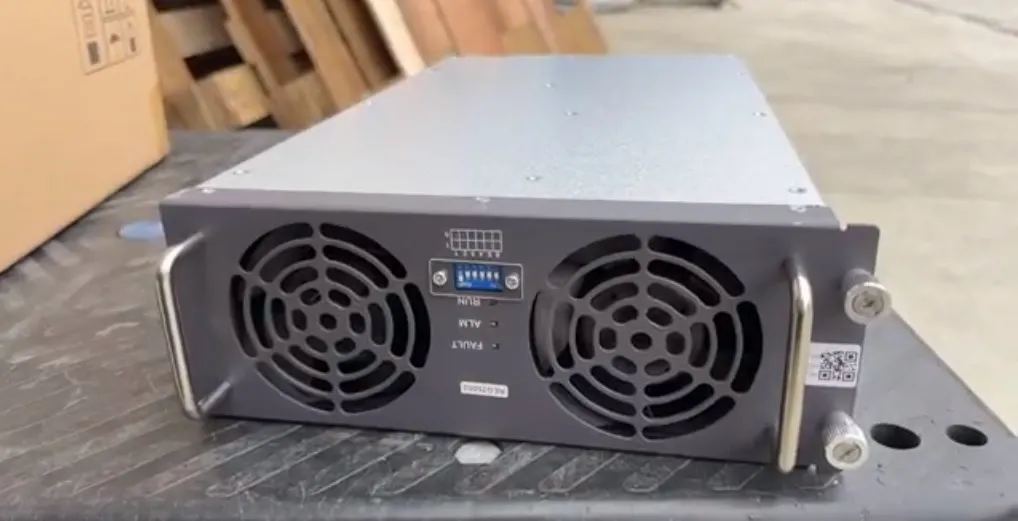

2 Modular Design

Includes control system, power source system, distributed power system, and power factor system.

3 User Interface & Safety

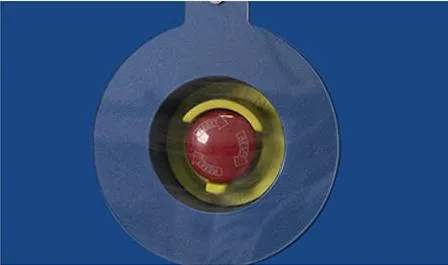

Equipped with a 7-inch colored LCD touch display and an emergency stop button for immediate safety control.

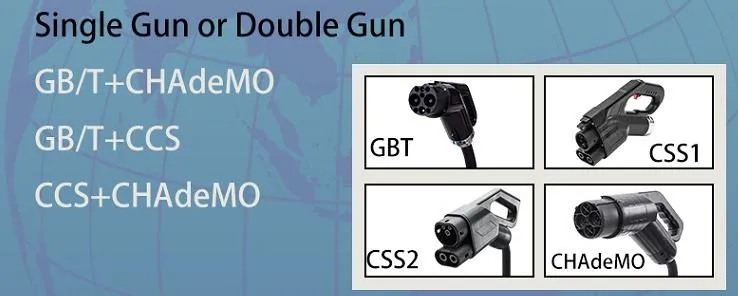

Flexible Connector Options

Available in single or double plug configurations to meet global standards:

GB/T + CHAdeMO
GB/T + CCS
CHAdeMO + CCS

Popular Solutions

Frequently Asked Questions

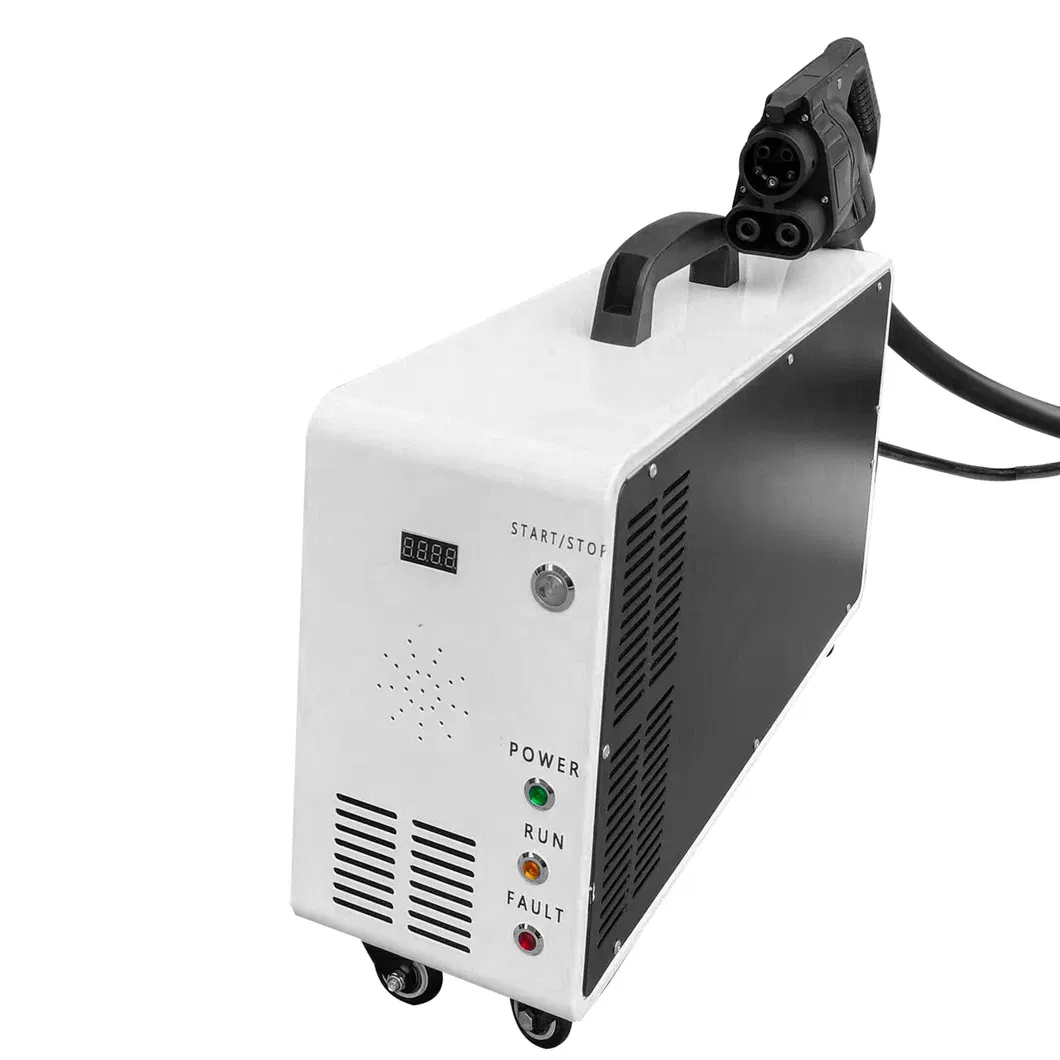

Q1. What is the difference between Movable Charger and Wallbox Charger?

A: Wallbox chargers have an IP54 protection level, suitable for outdoors with RFID billing. Movable chargers have an IP43 level and are generally not recommended for outdoor use during rainy weather.

Q2. What is the standard warranty period?

A: 12 months. During this period, we provide technical support and free replacement parts, though customers are responsible for delivery costs.

Q3. What are your payment terms?

A: Generally, T/T 50% as a deposit and 50% before delivery. We provide product and packaging photos before the final balance is paid.

Q4. How long is the typical delivery time?

A: Usually, it takes 3 to 7 working days after receiving advance payment, depending on the specific items and order quantity.

Q5. Do you test all goods before delivery?

A: Yes, we conduct 100% testing on all products before they are dispatched to ensure quality and safety.
