Electric Bike Public Charger with Ocpp

Customization:	Available
Connector Type:	AC Socket
Start Mode:	RFID Card

Send Inquiry

Product Description

Basic Information

Model NO.

NSAC020B

Charging Interfaces

One Pile with Multiple Charges

Location

Public Use

Installation

Wall Mounted

Charge Method

Normal Charge

Socket

Communication

Waterproof Grade

IP54

Warranty

24 Months

Certification

Product Description

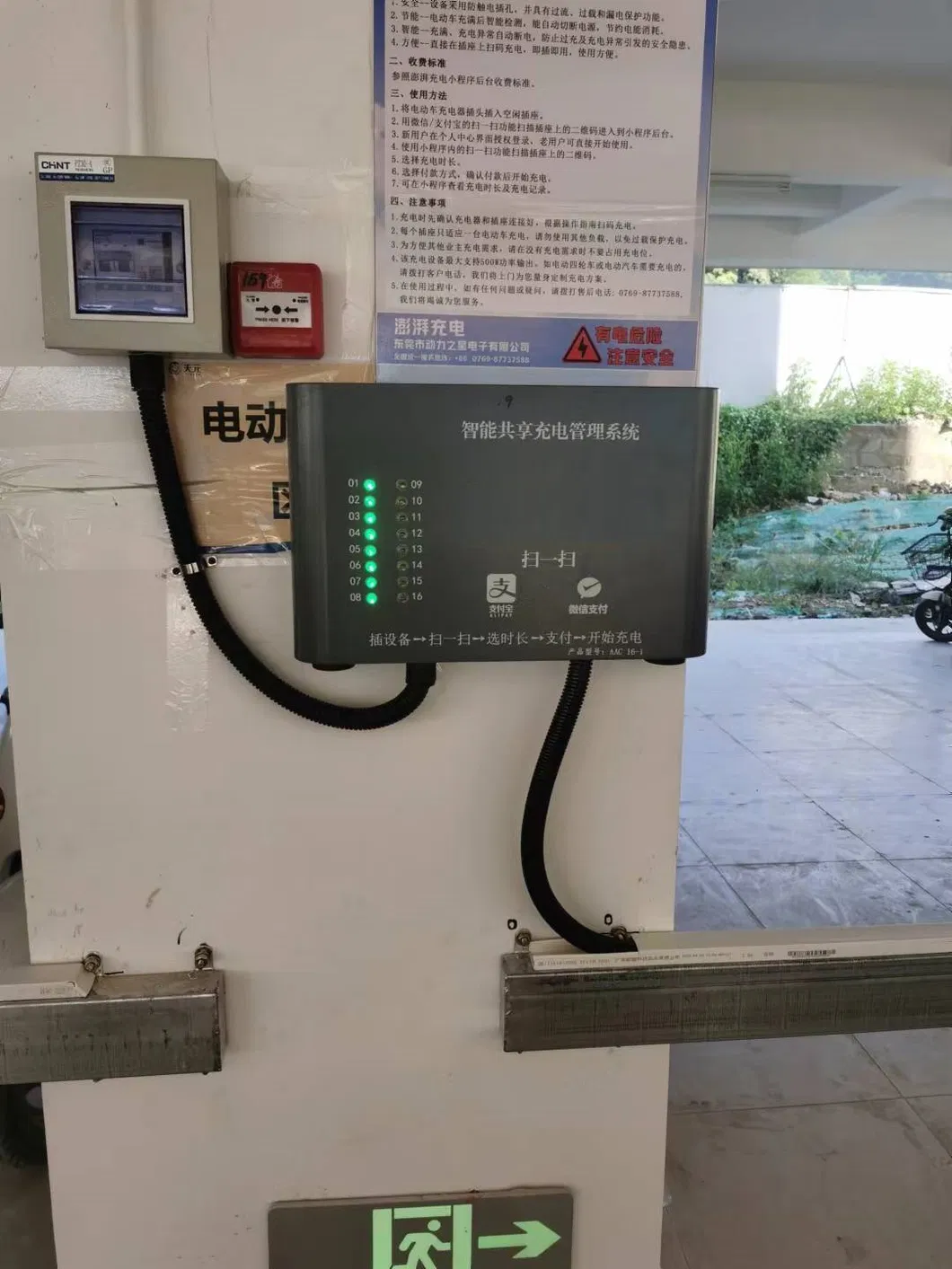

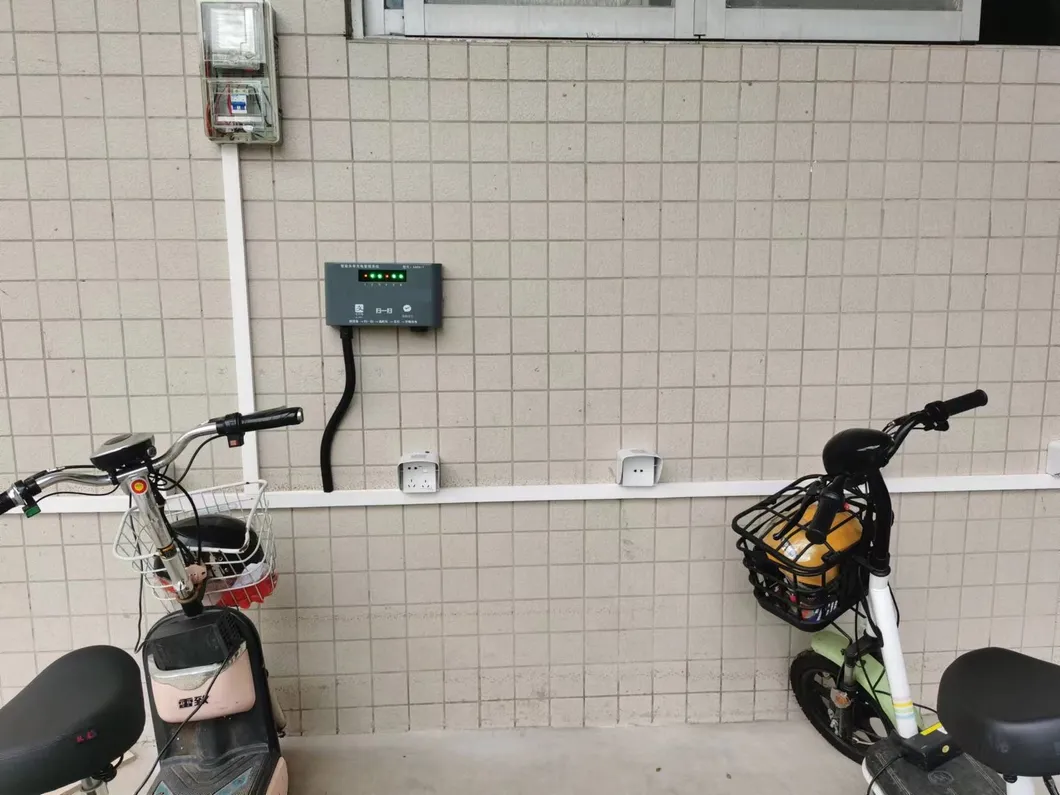

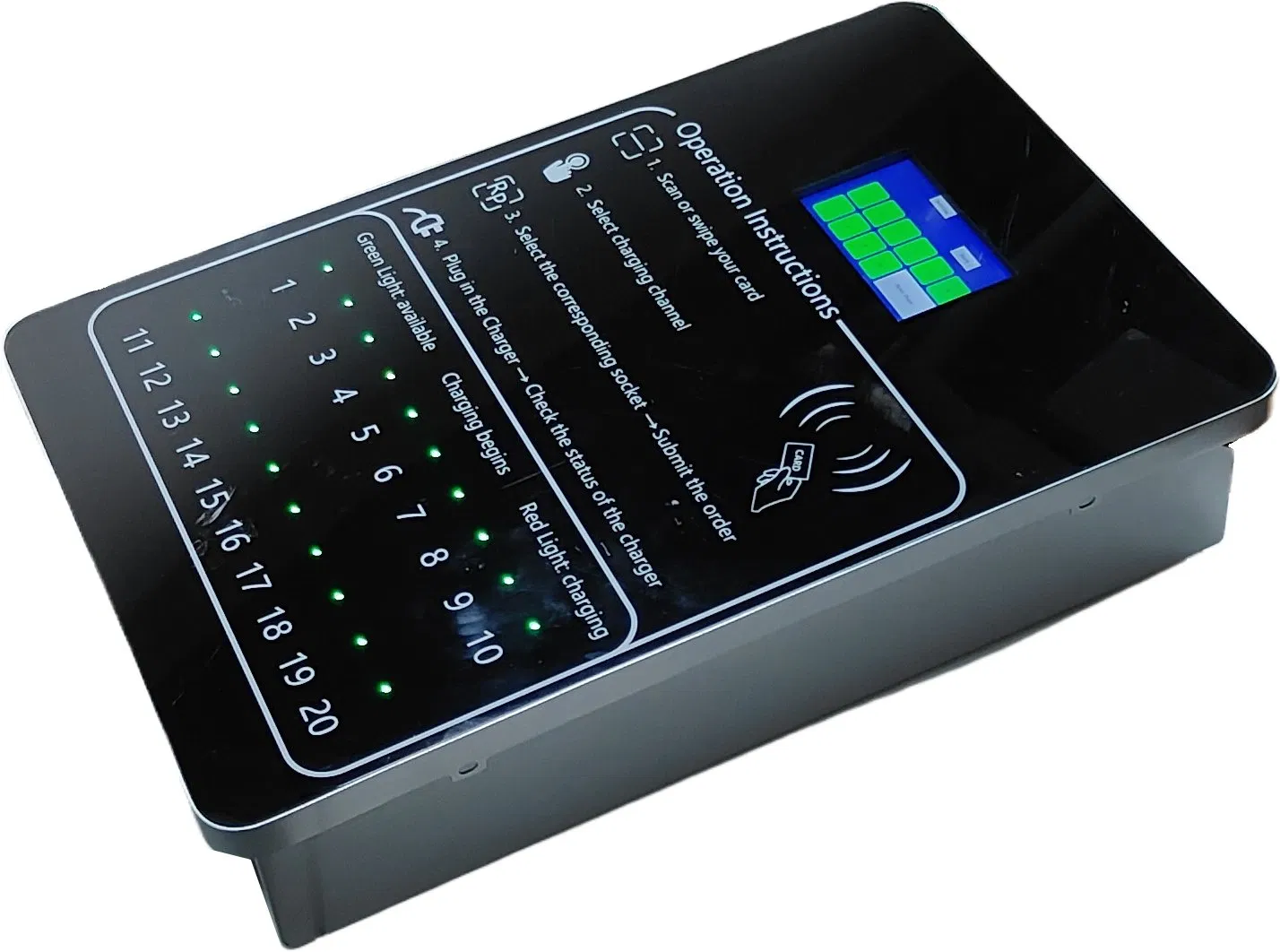

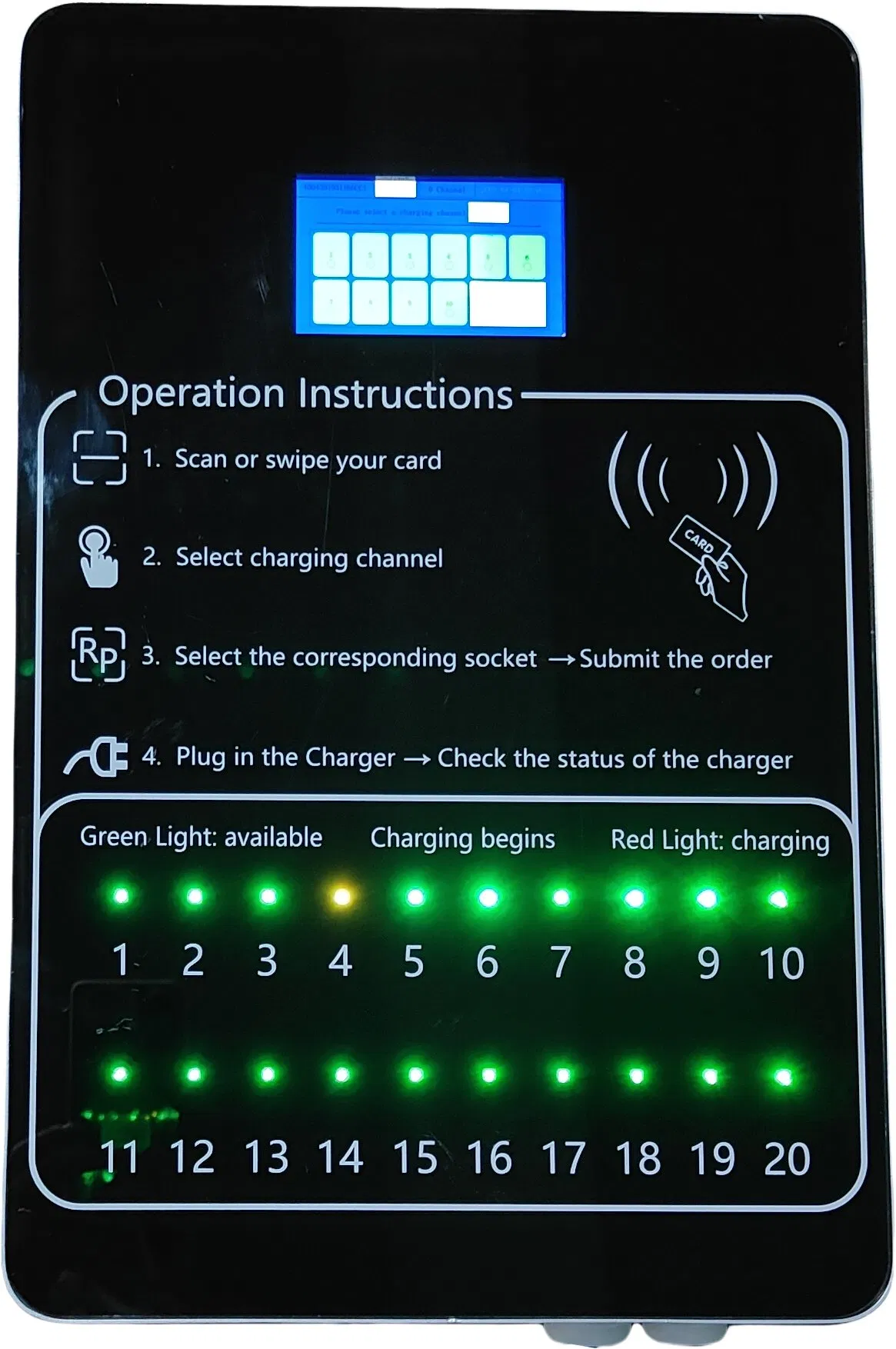

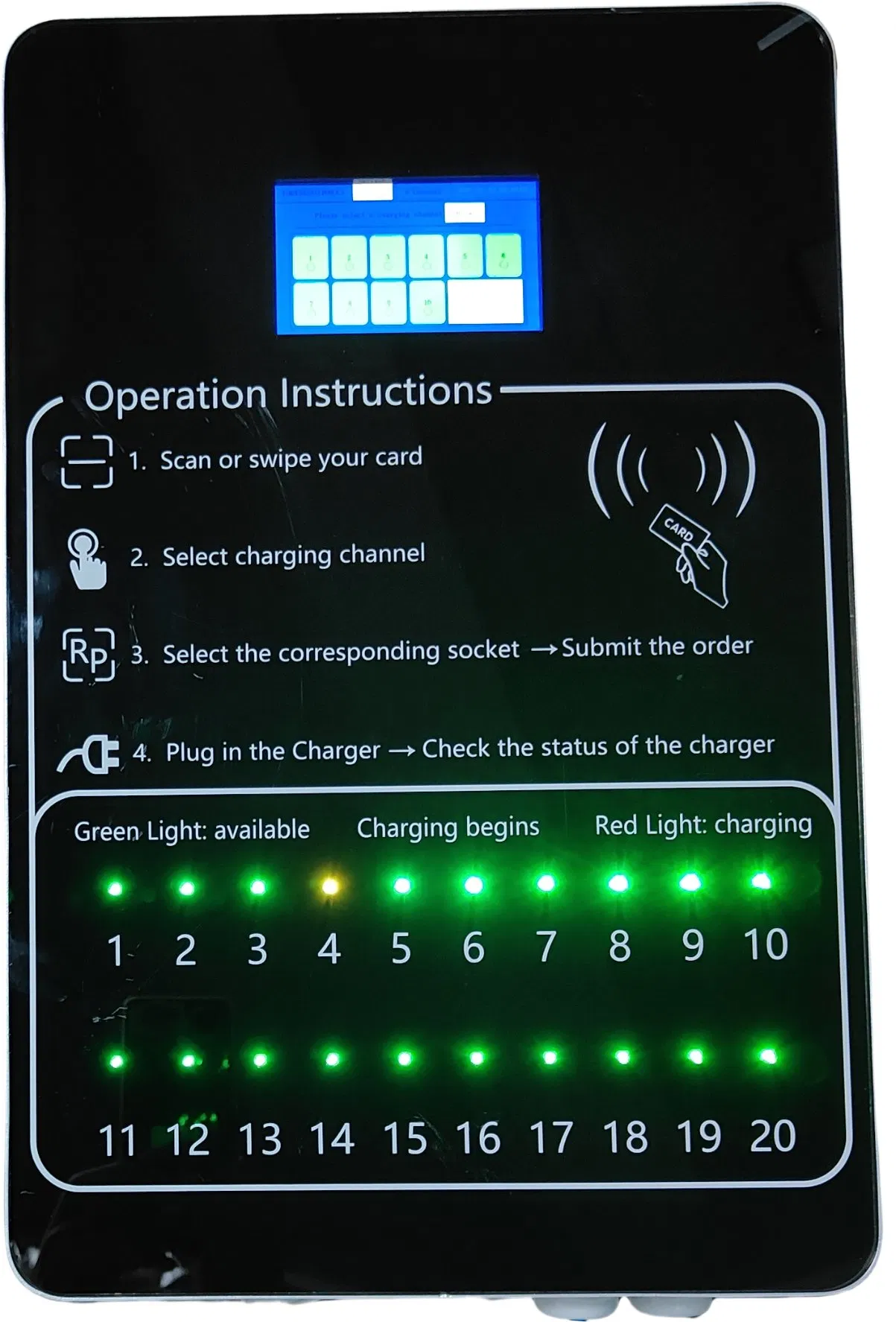

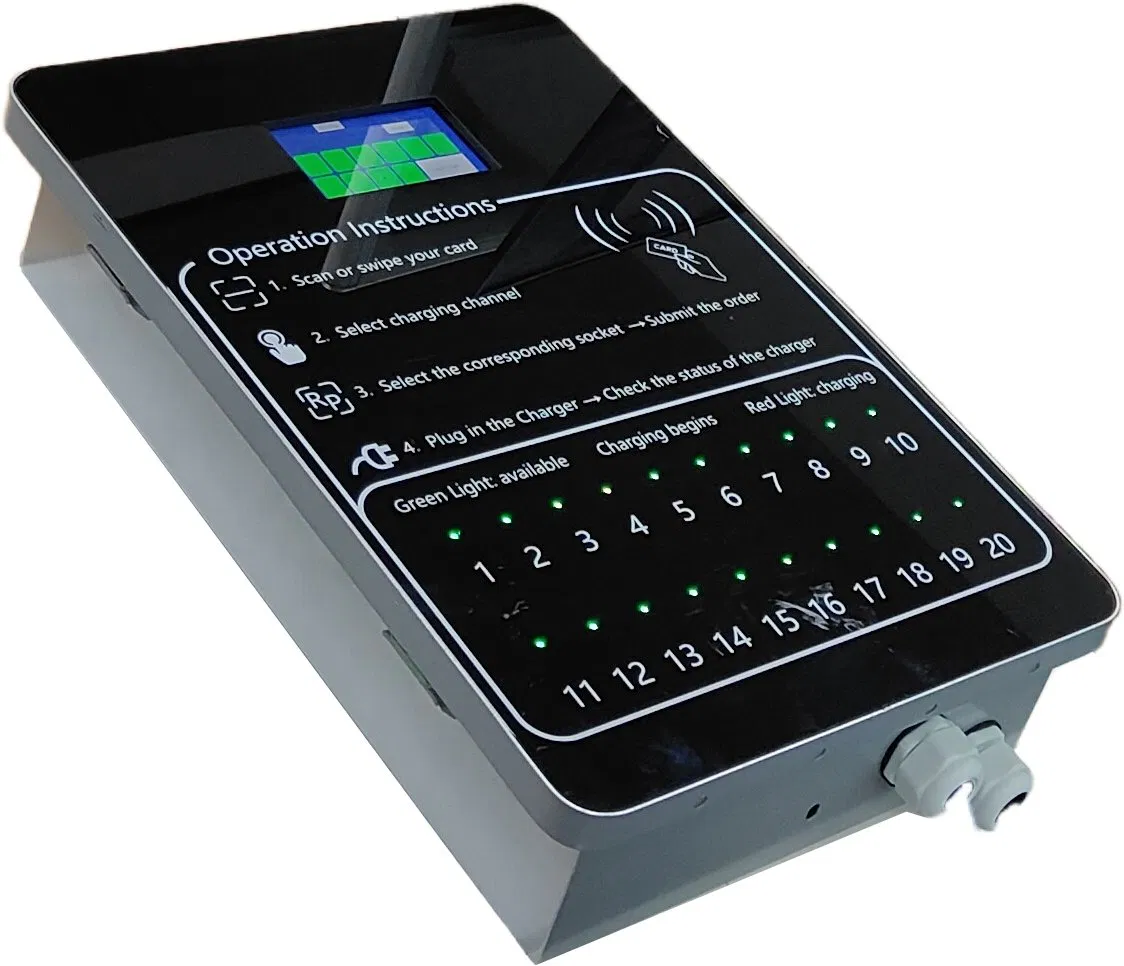

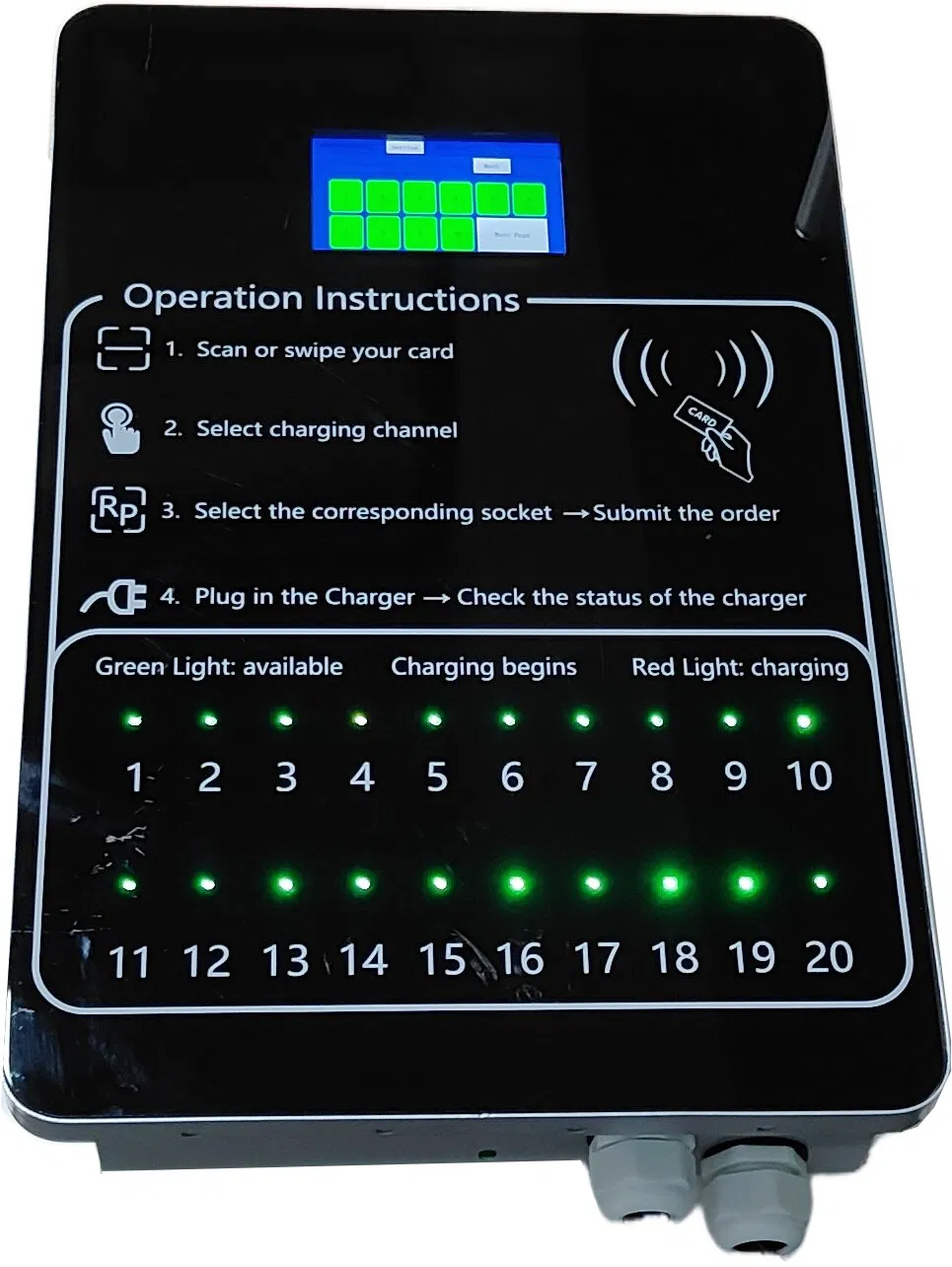

Wall mounted E-Bicycle Charger

For densely populated area, the use of motorcycles is the preferred mode of transport. Two-wheelers provide the most efficient, affordable, and flexible door-to-door mobility option. Scooters with an engine capacity of 125 cc are the most popular. They are cheap and good for short trips at low or medium speed.

Key Features

⚡ 1. AC charging function for E-bike battery;
⚡ 2. Single or multi-machine networking;
⚡ 3. 4G communication support;
⚡ 4. Support software and hardware platform docking;

Applications

Ideal for personal use, home use, and public charger sharing systems.

Technical Datasheet

Parameter	Specification

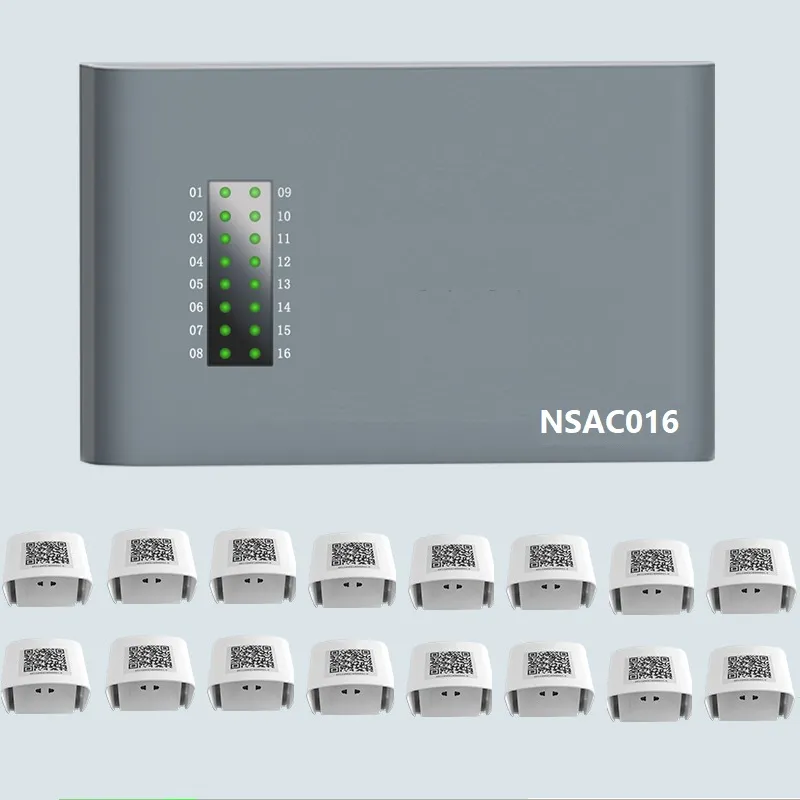

Model	NSAC016
Name	Smart DC charging pile for electric bicycles
Applicable Battery	Lead-acid, Lithium, Iron batteries
Input Details
Rated Voltage & Frequency	220Vac ; 50Hz~60Hz
Voltage Range	180V-264V
Input Current	Max 4A at 180Vac / 3A at 264Vac
Output Details
Output Voltage	220Vac
Output Current	3-7A
Output Load Number	16
Connector	AC socket
Mechanical & Safety
Dimension	44828096mm (LWH)
Weight	12Kg
IP Grade	IP54
Operate Temperature	-20ºC ~ +50ºC

Other Popular Solutions

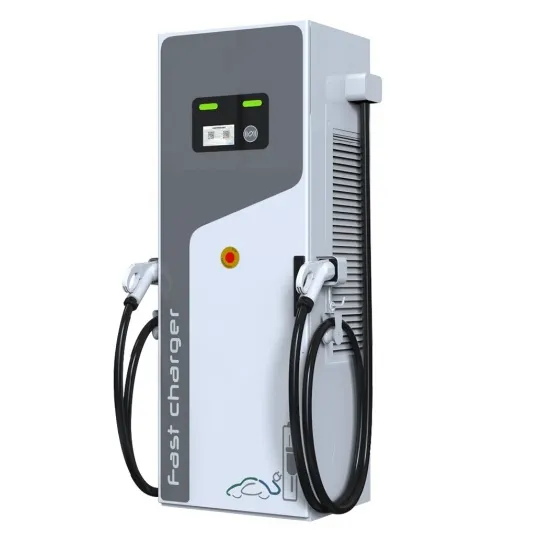

Media Charging Station with 49/55 inch Advertising Screen LOW VOLTAGE 40-100Vdc EV CHARGER SOLAR EV CHARGING STATION GRID FREE EV BATTERY STORAGE CHARGER SYSTEM PORTABLE EV CHARGER

Manufacturing Excellence

Our facility is dedicated to producing and manufacturing AC EV chargers, DC EV chargers, DC power supplies, and battery storage products. As a professional manufacturer, we focus on providing safer, more efficient, and more stable charging equipment. Our products serve household and commercial markets, including EV connectors, charging cables, emergency rescue systems, solar EV chargers, and e-scooter/e-motorcycle solutions.

Frequently Asked Questions

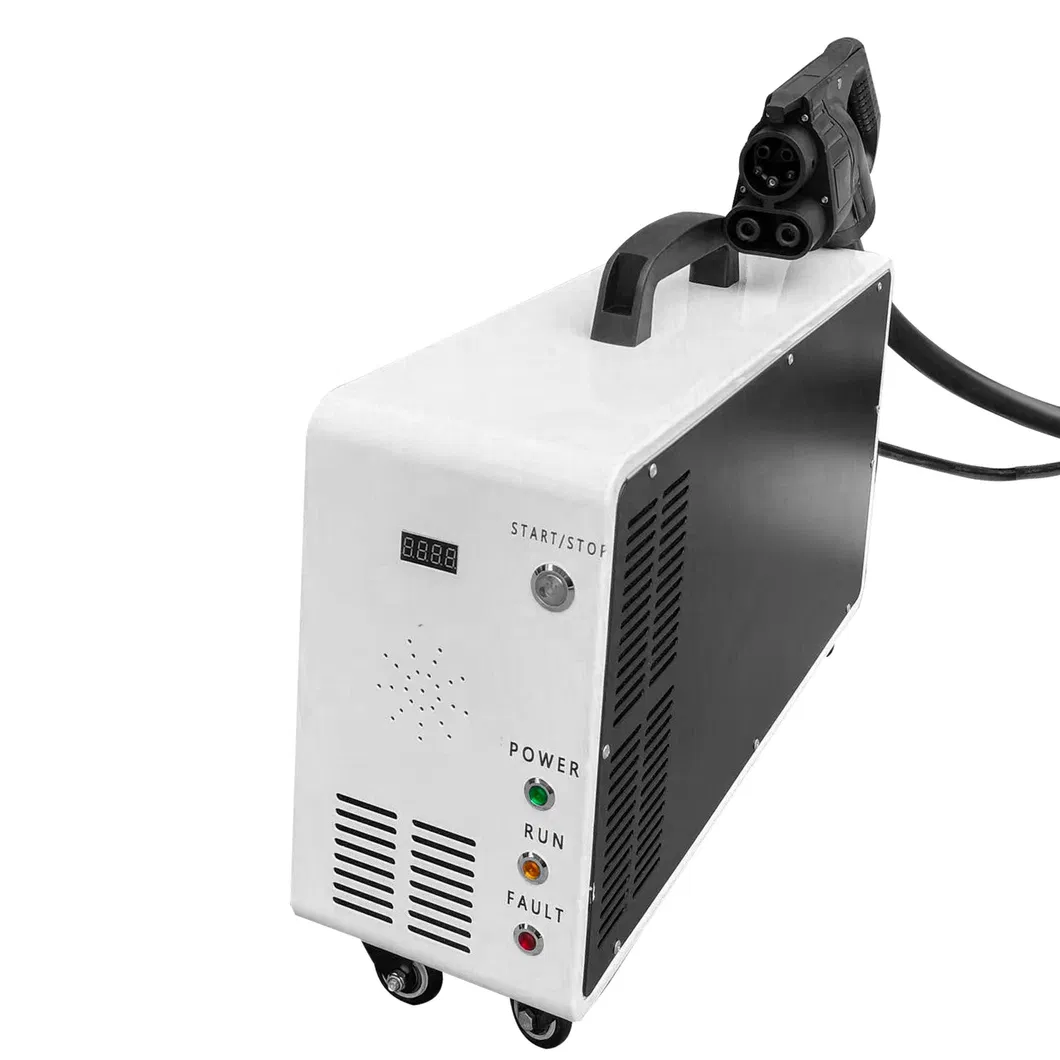

? What's the difference between Movable and Wallbox Chargers?

The Wallbox charger has an IP54 protection level and is suitable for outdoor use with an RFID billing system. The Movable Charger has an IP43 level and should not be used outdoors during rainy or extreme weather.

? What is the warranty period for the products?

We provide a 12 to 24-month warranty depending on the model. During this period, we provide technical support and free replacement parts for qualified issues.

? What are the available payment terms?

Standard terms are T/T 50% as a deposit and 50% before delivery. We provide photos of products and packaging before final payment.

? How long is the typical delivery time?

Generally, it takes 3 to 7 working days after receiving advance payment. The specific time depends on the items and the total order quantity.

? Do you test the goods before they are shipped?

Yes, we perform 100% testing on all products before delivery to ensure quality and safety standards are met.

? Can you produce based on specific samples?

Yes, we can manufacture products based on your samples or technical drawings, including the development of custom molds and fixtures.
