China Advanced EV Fast Charging Equipment Solution Provider

Basic Specifications

Model NO.

Fast EV Charging Station

Installation

No Need Any Install

Charge Method

Quick Charge

Application

for EV Fast Charging Station

EV Plug

Chademo CCS and GB/T

Communication

Ocpp

Charger Speed

DC Fast

Cooling Unit

Fans Cooling

LCD Screen

4.3inch LCD Screen

Authorization

RFID Billing System

Warranty

24 Months

Certification

CE

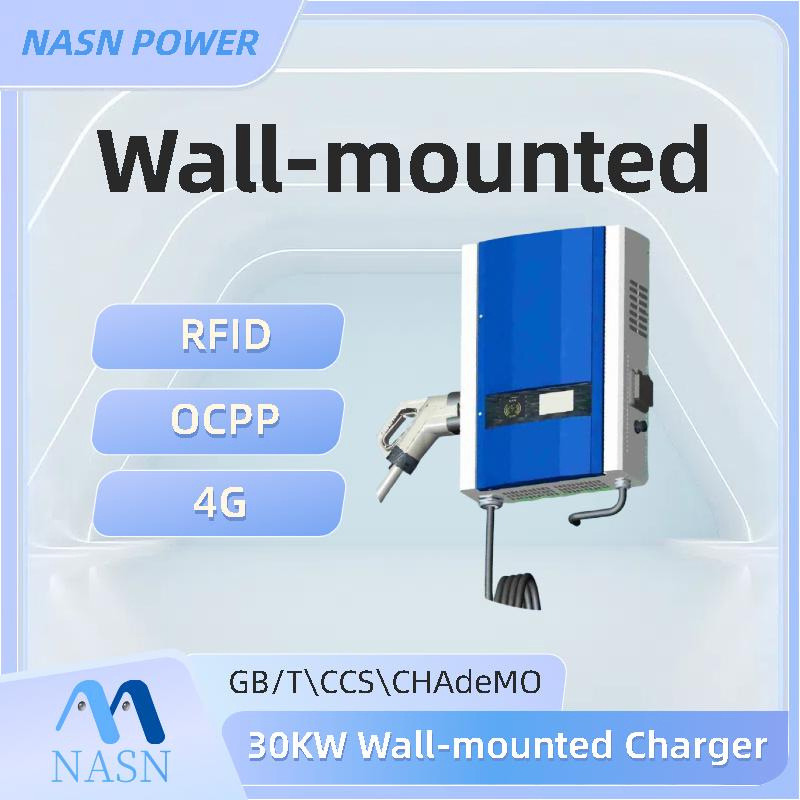

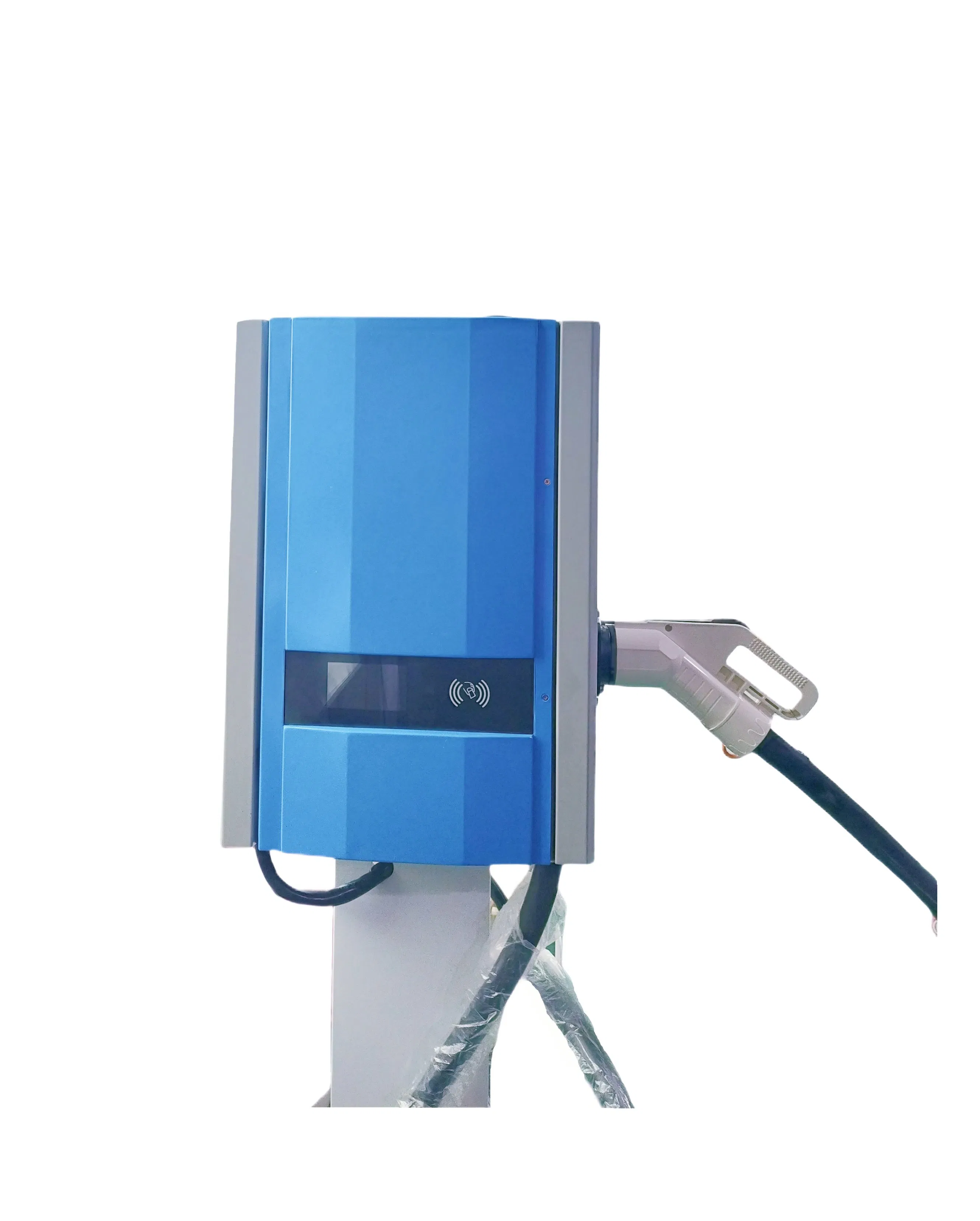

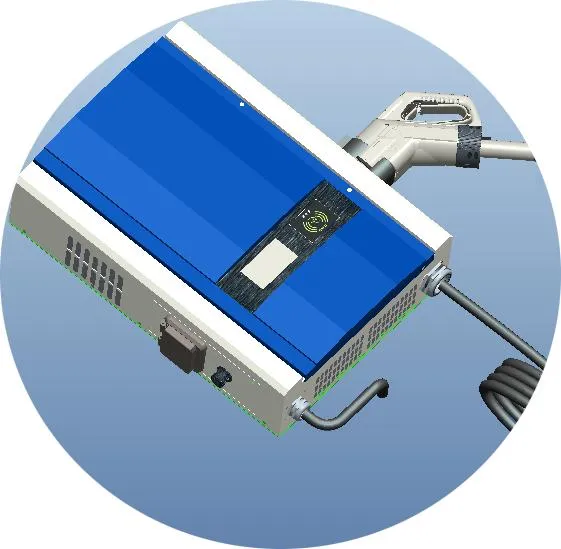

Wallbox DC Fast Charger

The 30KW Wallbox DC Fast Charger is designed to provide rapid and efficient charging for electric vehicles, including those with high-voltage battery systems. Its compact and versatile performance makes it an ideal solution for personal use and small-scale fleets. Featuring a modern design, user-friendly interface, and multi-standard compatibility, this unit supports plug hot-swapping technology to meet various international charging standards.

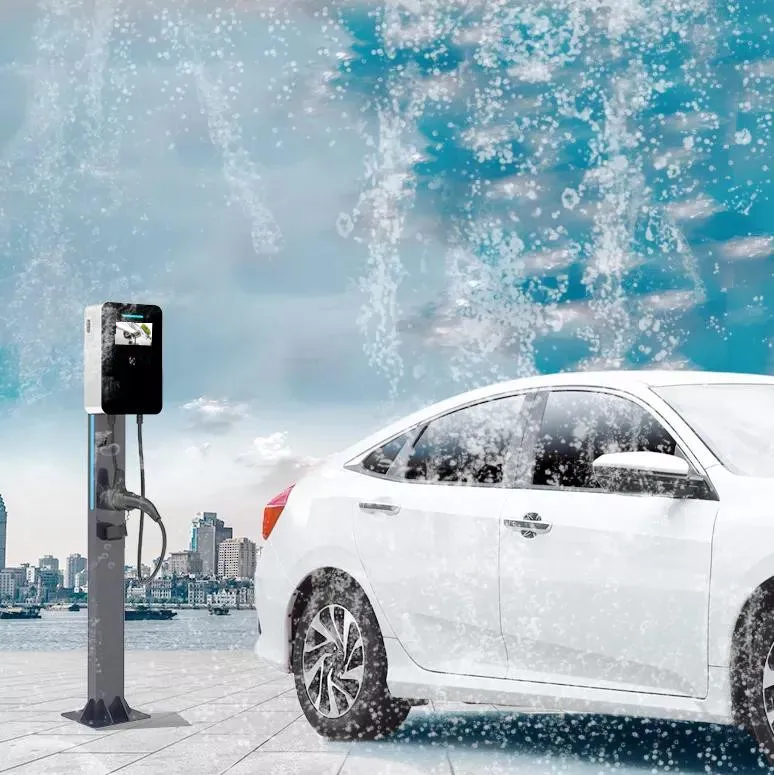

● Wall Mounted Versatility Suitable for wide usage scenarios both indoors and outdoors, including parking lots, gas stations, highway rest areas, and hotels.

● Multi-Standard Compatibility Equipped with plug-and-play connectors to support all major EVs. Options include CHAdeMO, CCS Combo 1, CCS Combo 2, and GB/T.

● High-Speed DC Charging Delivers convenient fast charging for modern lifestyles, allowing users to recharge in the time it takes to grab a coffee.

● Power Flexibility Supports input voltages of 380V with voice navigation. Rated output options of 30KW and 60KW are available.

Technical Datasheet

Product Model	NI-07750	NI-15750	NI-20750	NI-30750
Output Power	7KW	15KW	20KW	30KW
AC Input Range	90-265V	265-475V	265-475V	265-475V
Output Voltage	200-750V
Display Mode	4.3-inch color touch screen
Efficiency	≥95%
Protection Level	IP54

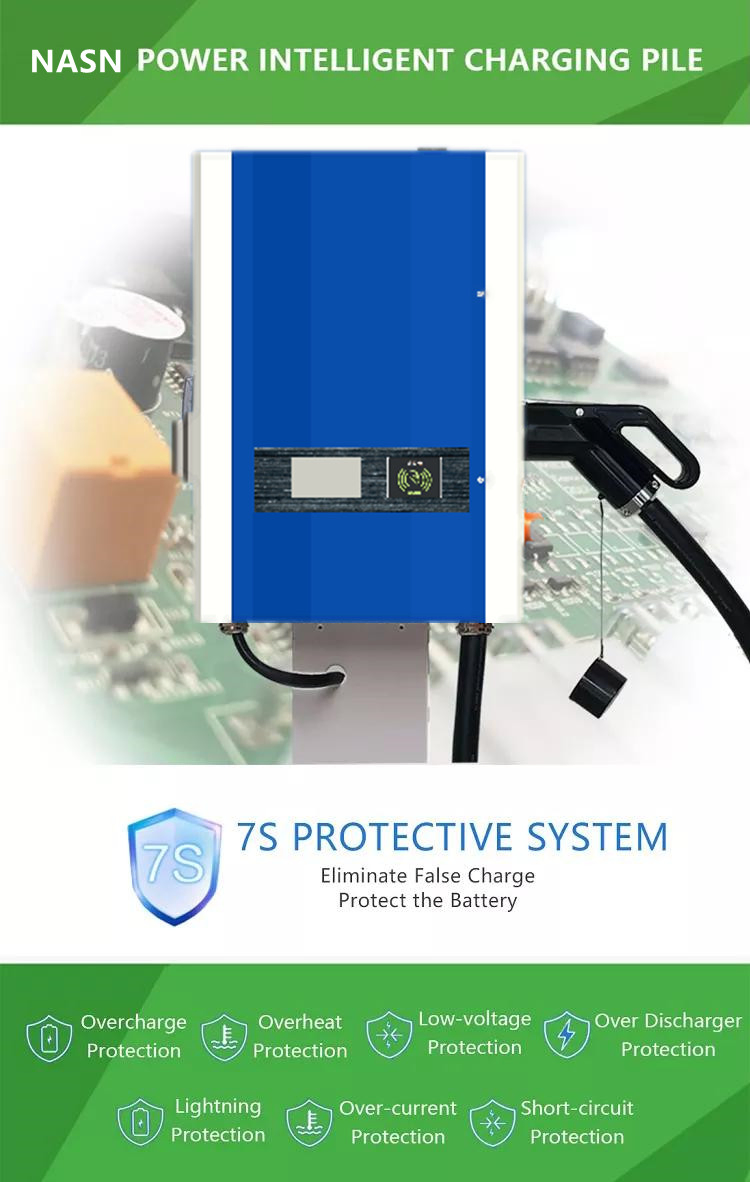

Safety Features	Lightning, Overload, Short Circuit, Over Temperature, Leakage, Emergency Stop

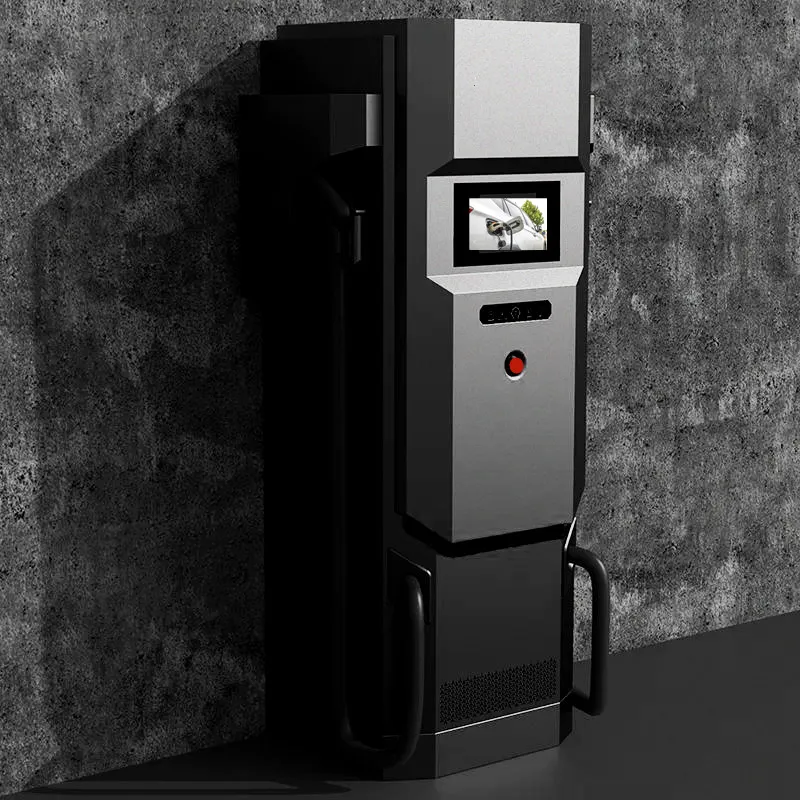

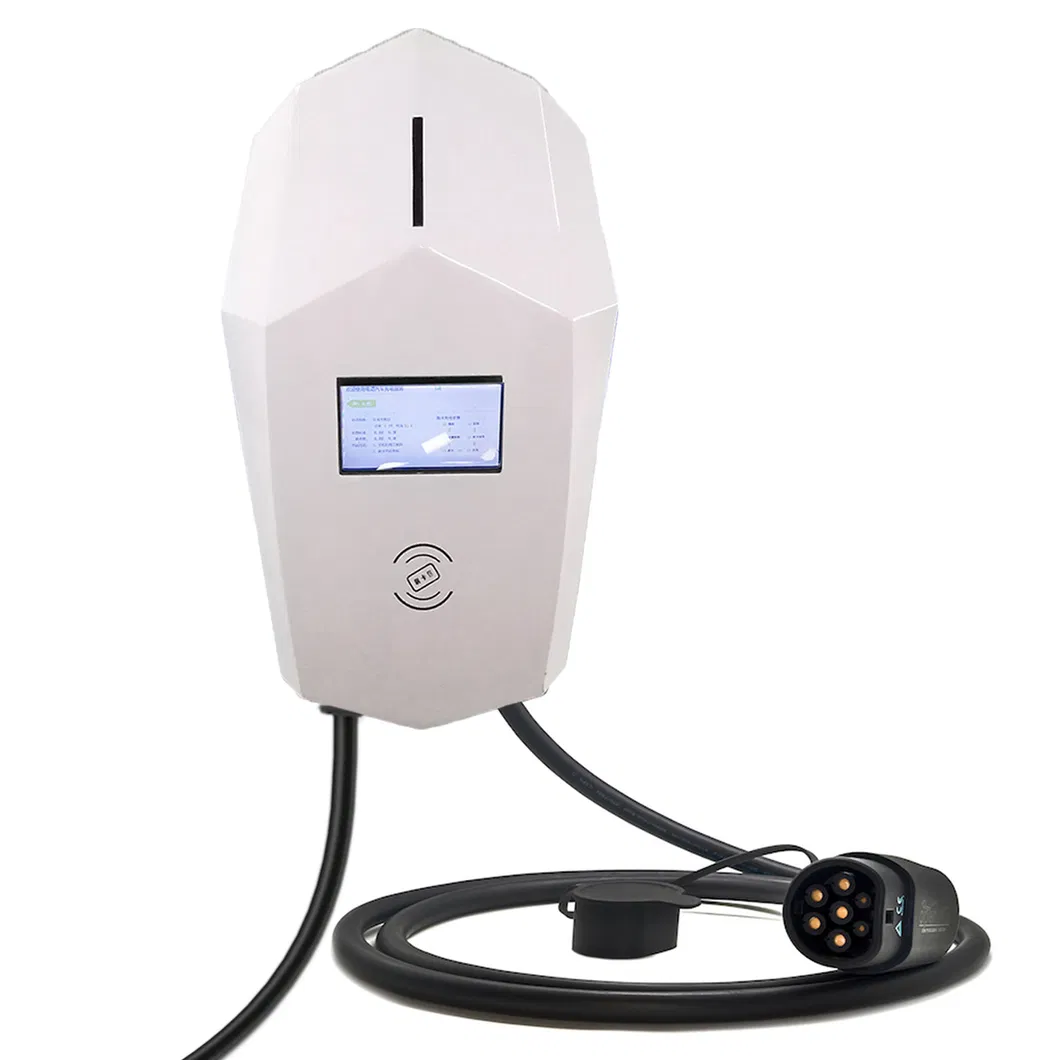

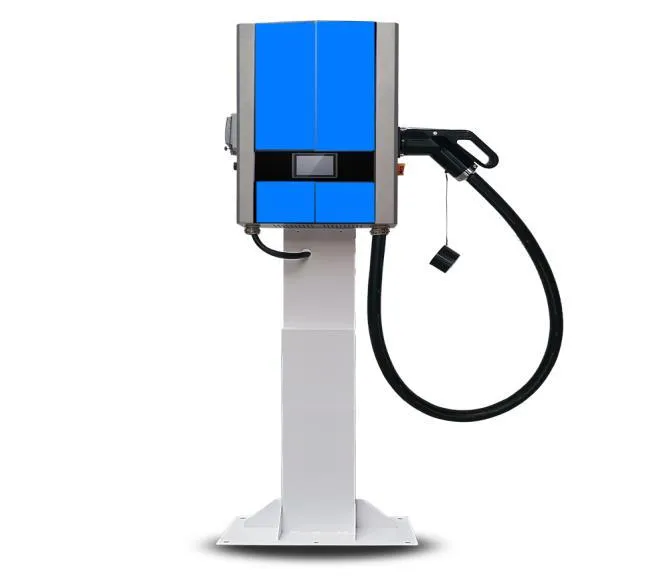

Popular Models

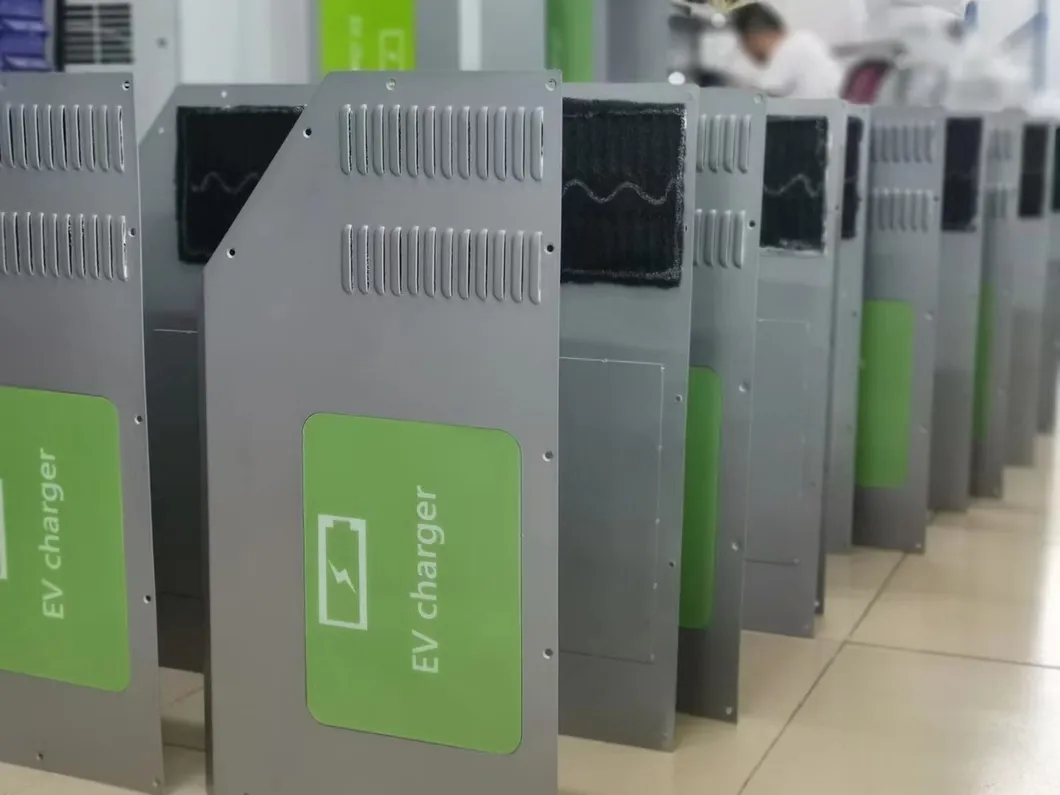

Professional Manufacturing

Dedicated to the manufacturing of AC/DC EV chargers, power supply units, and battery storage products. We focus on providing professional charging equipment that is safe, efficient, and stable. Our product range serves both household and commercial markets, including specialized solutions like solar EV systems, emergency rescue chargers, and high-power public charging infrastructure.

Frequently Asked Questions

What is the difference between a Movable Charger and a Wallbox Charger?

The Wallbox charger has a protection level of IP54, making it suitable for outdoor use with an RFID billing system. The Movable Charger has a protection level of IP43 and should not be used outdoors during rain or inclement weather.

What kind of warranty is provided?

We provide a 12-month (or 24-month as per specification) warranty. During this period, we provide technical support and free replacement parts for our customers.

What are the terms of payment?

Generally, T/T 50% as a deposit and 50% before delivery. We provide photos of the products and packaging before the final balance is paid.

How long is the typical delivery time?

Usually, it takes 3 to 7 working days after receiving the advance payment. The specific timeframe depends on the items and the total quantity of the order.

Are the products tested before they are shipped?

Yes, we conduct 100% comprehensive testing on all goods before they are cleared for delivery to ensure quality and safety.
